06 Starting and drivingAll Wheel Drive (option)
06152
All Wheel Drive (AWD) – general
informationYour Volvo can be equipped with permanent
All Wheel Drive (option), which means that
power is distributed automatically between the
front and rear wheels. Under normal driving
conditions, most of the engine's power is
directed to the front wheels. However, if there
is any tendency for the front wheels to spin, an
electronically controlled coupling distributes
power to the wheels that have the best traction.Tire dimensionsVolvo recommends that you always drive on
tires of the same brand, size, construction
(radial), tread pattern, load, speed, traction,
temperature, and treadwear rating. Never drive
on mixed tires, except for brief periods when
the temporary spare tire is in use.
Always use properly inflated tires of correct
dimensions. Tire size and inflation pressures
are shown on a placard located on the driver's
side B-pillar (the structural member at the side
of the vehicle, at the rear of the driver's door
opening). See also page 178 for the tire infla-
tion pressure tables beginning, .
Temporary SpareThe temporary spare tire is for temporary, low-
speed, short-distance use only. Replace it with
a full-sized tire as soon as possible. Do not
drive on the temporary spare at speeds above
50 mph (80 km/h).
Never install snow chains on a temporary
spare.

07 Wheels and tires
Temporary spare
07
187 Temporary spare
The spare tire in your car is called a "Temporary
Spare".
Recommended tire pressure (see the placard
on the B-pillar or on the fuel filler door) should
be maintained irrespective of which position on
the car the temporary spare tire is used on.
In the event of damage to this tire, a new one
can be purchased from your Volvo retailer.
WARNING
Current legislation prohibits the use of the
"Temporary Spare" tire other than as a tem-
porary replacement for a punctured tire. It
must be replaced as soon as possible by a
standard tire. Road holding and handling
may be affected with the "Temporary
Spare" in use. Do not exceed a speed of
50 mph (80 km/h) with the "Temporary
Spare" in use.
CAUTION
The car must not be driven with wheels of
different dimensions or with a spare tire
other than the one that came with the car.
The use of different size wheels can seri-
ously damage your car's transmission.

G000000

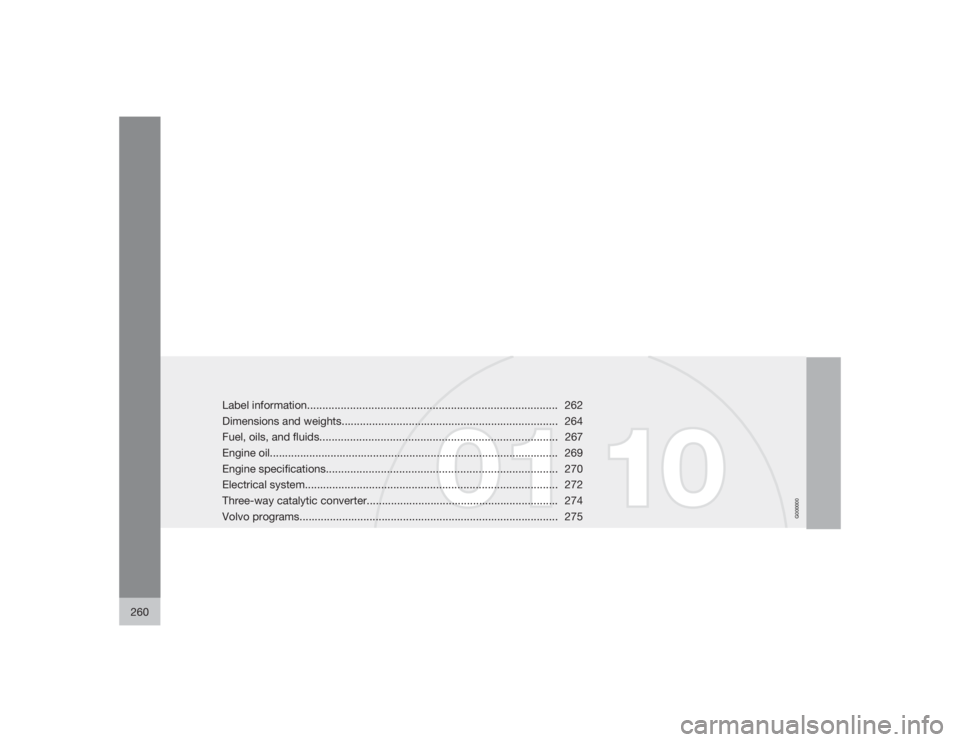

260
Label information.................................................................................. 262
Dimensions and weights....................................................................... 264
Fuel, oils, and fluids..............................................................................267
Engine oil............................................................................................... 269
Engine specifications............................................................................ 270
Electrical system................................................................................... 272
Three-way catalytic converter............................................................... 274
Volvo programs..................................................................................... 275

11 SpecificationsDimensions and weights
11264
Dimensions
G017401
Position
Dimension
in. (mm)
A
Wheelbase
103.9 in. (264 cm)
B
Length
175.9 in. (447 cm)
C
Load length, floor, seatback down
68.7 in. (175 cm)
D
Load length, floor
38.4 in. (98 cm)
E
Height
57.2 in. (145 cm)
F
Track, front
60.4 in. (154 cm)
G
Track, rear
60.3 in. (153 cm)

11 SpecificationsDimensions and weights
11``265
Position
Dimension
in. (mm)
H
Width
69.7 in. (177 cm)
I
Width encl. door mirrors
79.6 in. (202 cm)
WeightsCategory
USA
Canada
Gross vehicle weight
FWD
A: 4320 lbs lbs
FWD Turbo: 4320 lbs
AWDB Turbo: 4450 lbs
1960 kg
1960 kg
2020 kg
Capacity weight
FWD: 800 lbs
AWD: 800 lbs
365 kg
365 kg
Permissible axle weight, front
FWD: 2380 lbs
FWD Turbo: 2380 lbs
AWD Turbo: 2420 lbs
1080 kg
1080 kg
1100 kg
Permissible axle weight, rear
FWD: 2130 lbs
FWD Turbo: 2130 lbs
AWD Turbo: 2220 lbs
970 kg
970 kg
1000 kg
Curb weight
FWD: 3165–3300 lbs
AWD: 3415–3455 lbs
1435–1505 kg
1555–1575 kg
Max. roof load
All models: 165 lbs
All models: 75 kg

11 SpecificationsDimensions and weights
11266
Category
USA
Canada

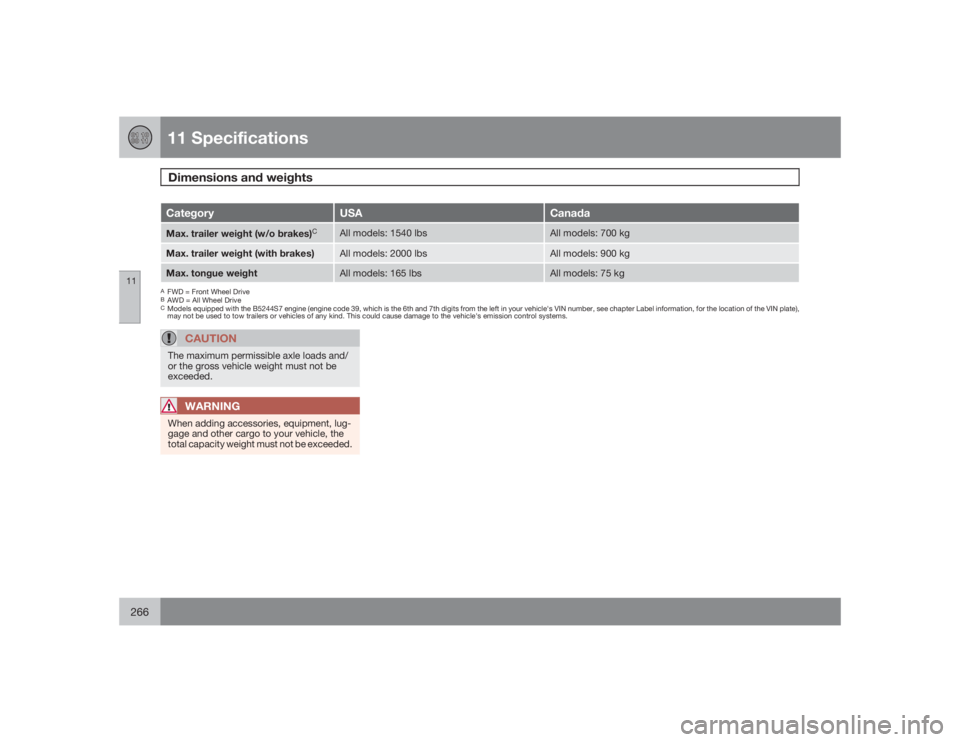

Max. trailer weight (w/o brakes)
C
All models: 1540 lbs
All models: 700 kg
Max. trailer weight (with brakes)
All models: 2000 lbs
All models: 900 kg
Max. tongue weight
All models: 165 lbs
All models: 75 kg
AFWD = Front Wheel DriveBAWD = All Wheel DriveCModels equipped with the B5244S7 engine (engine code 39, which is the 6th and 7th digits from the left in your vehicle's VIN number, see chapter Label information, for the location of the VIN plate),
may not be used to tow trailers or vehicles of any kind. This could cause damage to the vehicle's emission control systems.
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.
