2009 VOLVO S40 clock

05 Locks and alarmValet locking
05122
Locking points
G000000
Remote control: Normal locking/unlocking pointsBy utilizing the remote control without the key
blade, the valet locking feature enables you to
block access to the trunk and glove compart-
ment for e.g., valet parking or when the car is
brought to the retailer for service.
To use the valet locking function, begin by
removing the key blade from the remote con-
trol (see page 120).
Activating valet locking: Insert the key blade in the glove compart-
ment lock.
Turn the key blade 180° clockwise to lock
the glove compartment and disconnect the
trunk from the central locking system (a mes-
sage appears in the information display)
G020032
Activating/deactivating the valet locking function Remove the key blade from the glove com-
partment lock.
The rear seat backrests must also be locked in
the upright position.
Driver’s side: Turn the key clockwise in the
lock on the upper outboard edge of the back-
rest.
Passenger’s side: Turn the key counterclock-
wise in the lock on the upper outboard edge of
the backrest.
G033839
Remote control: Locking/unlocking points with
key blade removed (with valet locking activated)Give the parking attendant or service person-
nel only the remote control (with the key blade
removed).
Deactivating valet locking:
Turn the key blade 180° counterclockwise in
the glove compartment lock to deactivate valet
locking (the trunk can then be unlocked using
the remote control). Then use the key blade to
unlock the rear seat backrests.

05 Locks and alarmKeyless drive (option as available)
05124
Locking or unlocking the vehicle with the
key blade
G020225
Keyless drive keyhole coverThe driver's door on vehicles equipped with
keyless drive can be locked or unlocked with
the remote control's detachable key blade if
necessary, see page 120 for information on
removing the key blade from the remote con-
trol. To access the keyhole in the driver's door:•
Pry off the keyhole cover by inserting the
key blade or a small screwdriver in the hole
on the underside of the cover (indicated by
the arrow in the inset illustration).
•
Insert the key blade as far as possible in the
driver's door lock. Turn the key blade
clockwise approximately one-quarter turnto unlock the driver's door only. This will
trigger the alarm.
•
To disable the alarm: Press the Unlock
button on the keyless drive remote control.
If the batteries in the remote are weak,
remove the keyless drive start control from
the ignition switch by pressing the catch
(see the illustration on page 146) and pull-
ing the control out of the ignition switch.
Insert the ignition key section of a keyless
drive remote control in the ignition switch.
Keyless drive remote control and driver's
seat memoryThis function is only available on vehicles
equipped with the optional power driver's seat.•
When you leave the car with a keyless drive
remote control in your possession and lock
any door, the position of the driver's seat
will be stored in the seat's memory.
•
The next time a door is opened by a person
with the same remote control in his/her
possession, the driver's seat will automat-
ically move to the position that it was in
when the door was most recently locked.
NOTE
If several people carrying keyless drive
remote controls approach the vehicle at the
same time, the driver's seat will assume the
position it was in for the person who opens
a door first.Keyless drive information messagesIf anyone leaves the vehicle with the only key-
less drive remote control in his or her posses-
sion while the ignition is switched on, a
message will be shown in the information dis-
play and an audible signal will sound.
NOTE
This message will only be displayed if the
start control is in position I or II.The message will be erased from the display
and the audible signal will stop when the
remote control has been returned to the vehicle
and one of the following has occurred:•
A door has been opened and closed
•
The start control has been turned to posi-
tion0
•
TheREAD button (see page 60 for the
location of this button) has been pressed.

05 Locks and alarmLocking and unlocking
05128
Locking the glove compartment
G020034
The glove compartment can only be locked
and unlocked using the detachable key blade
on the remote control, see page 120 for infor-
mation on removing the key blade from the
remote control.
Insert the key blade in the glove compart-
ment lock.Turn the key blade 90 degrees clockwise.
The key slot will be in the horizontal posi-
tion.Remove the key blade from the lock.
Unlock the glove compartment in the reverse
order.

06 Starting and drivingFuel requirements
06142
RefuelingThe fuel tank is designed to accommodate
possible expansion of the fuel in hot weather,
see page 267 for fuel tank volume. Be aware
that the "usable" tank capacity will be some-
what less than the specified maximum. When
the fuel level is low, such factors as ambient
temperature, the fuel's "Reid vapor pressure"
characteristics, and terrain can affect the fuel
pump's ability to supply the engine with an
adequate supply of fuel. Therefore, it is advis-
able to refuel as soon as possible when the
needle nears the red zone, or when the fuel
warning light comes on.
CAUTION
•
Do not refuel with the engine running
1.
Turn the ignition off or to position I. If the
ignition is on, an incorrect reading could
occur in the fuel gauge
•
After refueling, close the fuel filler cap
by turning it clockwise until it clicks into
place.
•
Avoid overfilling the fuel tank. Do not
press the handle on the filler nozzle
more than one extra time. Too much
fuel in the tank in hot weather conditions
can cause the fuel to overflow. Overfill-
ing could also cause damage to the
emission control systems.
•
Avoid spilling gasoline during refueling.
In addition to causing damage to the
environment, gasolines containing
alcohol can cause damage to painted
surfaces, which may not be covered
under the New Vehicle Limited War-
ranty.
•
Do not use gasolines containing meth-
anol (methyl alcohol, wood alcohol).
This practice can result in vehicle per-
formance deterioration and can dam-
age critical parts in the fuel system.
Such damage may not be covered
under the New Vehicle Limited War-
ranty.
1If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle’s
performance will not be affected. Use only Volvo original or approved fuel filler caps.

07 Wheels and tiresChanging a wheel
07190
Changing a wheel
G020331
The spare tire, jack, and crank are located
under the carpet on the floor of the trunk.
To change a tire:
1. Apply the parking brake.
2.
Put the gear selector in Park (P) or reverse
on models with a manual transmission.
3. Block the wheels that are on the ground
with wooden blocks or large stones.
4. Remove the wheel cap (where applicable)
using the lug wrench in the tool bag.
G020332
5. With the car still on the ground, use the lug
wrench to loosen the wheel nuts 1/2–1 turn
by exerting downward pressure. Turn the
nuts counterclockwise to loosen.
6. There are two jack attachment points on
each side of the car. Position the jack cor-
rectly in the attachment (see the illustration)
and crank while simultaneously guiding the
base of the jack to the ground. The base of
the jack must be flat on a level, firm, non-
slippery surface. Before raising the car,
check that the jack is still correctly posi-
tioned in the attachment.
G024532
Jack attachment points7. Raise the vehicle until the wheel to be
changed is lifted off the ground.
8. Unscrew the wheel nuts completely and
carefully remove the wheel so as not to
damage the threads on the studs.

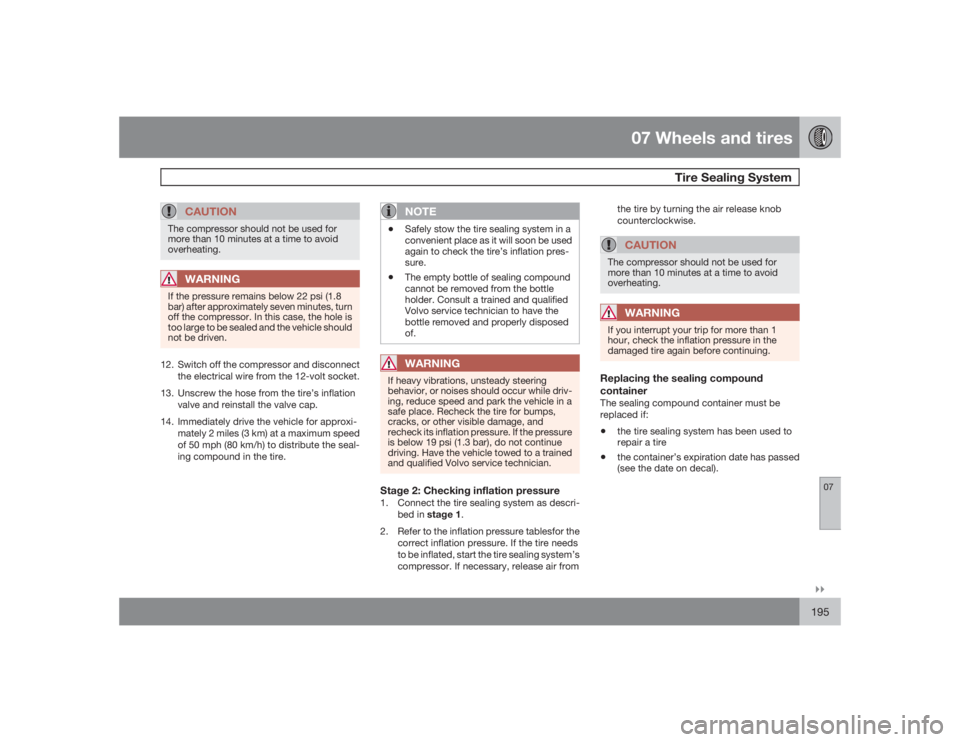

07 Wheels and tires
Tire Sealing System
07``195
CAUTION
The compressor should not be used for
more than 10 minutes at a time to avoid
overheating.
WARNING
If the pressure remains below 22 psi (1.8
bar) after approximately seven minutes, turn
off the compressor. In this case, the hole is
too large to be sealed and the vehicle should
not be driven.12. Switch off the compressor and disconnect
the electrical wire from the 12-volt socket.
13. Unscrew the hose from the tire’s inflation
valve and reinstall the valve cap.
14. Immediately drive the vehicle for approxi-
mately 2 miles (3 km) at a maximum speed
of 50 mph (80 km/h) to distribute the seal-
ing compound in the tire.
NOTE
•
Safely stow the tire sealing system in a
convenient place as it will soon be used
again to check the tire’s inflation pres-
sure.
•
The empty bottle of sealing compound
cannot be removed from the bottle
holder. Consult a trained and qualified
Volvo service technician to have the
bottle removed and properly disposed
of.WARNING
If heavy vibrations, unsteady steering
behavior, or noises should occur while driv-
ing, reduce speed and park the vehicle in a
safe place. Recheck the tire for bumps,
cracks, or other visible damage, and
recheck its inflation pressure. If the pressure
is below 19 psi (1.3 bar), do not continue
driving. Have the vehicle towed to a trained
and qualified Volvo service technician.Stage 2: Checking inflation pressure1. Connect the tire sealing system as descri-
bed in stage 1.
2. Refer to the inflation pressure tablesfor the
correct inflation pressure. If the tire needs
to be inflated, start the tire sealing system’s
compressor. If necessary, release air fromthe tire by turning the air release knob
counterclockwise.
CAUTION
The compressor should not be used for
more than 10 minutes at a time to avoid
overheating.
WARNING
If you interrupt your trip for more than 1
hour, check the inflation pressure in the
damaged tire again before continuing.Replacing the sealing compound
containerThe sealing compound container must be
replaced if:•
the tire sealing system has been used to
repair a tire
•
the container’s expiration date has passed
(see the date on decal).

07 Wheels and tiresTire Sealing System
07196
NOTE
•
After use, the sealing compound bottle,
the hose, and certain other system
components must be replaced. Please
consult your Volvo retailer for replace-
ment parts.
•
If the sealing compound bottle’s expi-
ration date has passed, please take it to
a Volvo retailer or a recycling station
that can properly dispose of harmful
substances.
Inflating tiresThe tire sealing system can be used to inflate
the tires. To do so:
1. Park the car in a safe place.
2. The compressor should be switched off.
Ensure that the on/off switch is in posi-
tion0 (the 0 side of the switch should be
pressed down).
3. Take out the electrical wire and hose.
4. Remove the valve cap from the tire’s infla-
tion valve and screw the hose connector
onto the valve as tightly as possible by
hand.
5. Connect the electrical wire to the nearest
12-volt socket in the vehicle.6. Start the vehicle’s engine.
WARNING
•The vehicle’s engine should be running
when the tire sealing system is used to
avoid battery drain. Therefore, be sure
the vehicle is parked in a well ventilated
place, or outdoors, before using the sys-
tem.•Children should never be left unattended
in the vehicle when the engine is running.
7. Check the tire’s inflation pressure on the
gauge. Switch off the compressor briefly to
get a clear reading from the pressure
gauge.
8. Refer to the tire inflation tables for the cor-
rect inflation pressure. If the tire needs to
be inflated, start the tire sealing system’s
compressor (press the on/off switch to
position I). If necessary, release air from the
tire by turning the air release knob coun-
terclockwise.
CAUTION
The compressor should not be used for
more than 10 minutes at a time to avoid
overheating.
9. Turn off the compressor (press the on/off
switch to position 0) when the correct infla-
tion pressure has been reached.
10. Unscrew the hose from the tire’s inflation
valve and reinstall the valve cap.
11. Disconnect the electrical wire from the
12-volt socket.

09 Maintenance and servicing
Replacing bulbs
09``225 High beam bulb (halogen)
G019136
Halogen high beam bulb1. Open the hood.
2. Remove the headlight housing (see
page 223).
3. Remove the cover on the upper side of the
headlight housing by turning it counter-
clockwise.
NOTE
The halogen high beam bulb has a different
socket on vehicles equipped with Bi-
Xenon
Ÿ headlights. On these models, pull
the bulb straight out.
WARNING
Bi-Xenon
Ÿ headlights (option) – due to the
high voltage used by these headlights, the
Bi-XenonŸ bulbs should only be replaced by
a trained and qualified Volvo service tech-
nician.
4. Driver's side headlight: Turn the bulb
holder counterclockwise.
Passenger's side headlight: Turn the bulb
holder clockwise.
5. Pull out the bulb holder and replace the
bulb.
6. Reinstall the bulb holder. It can only be
installed in one position.
7. Reinstall the cover on the upper side of the
headlight housing by turning it clockwise.
8. Reinstall the headlight housing (see
page 223).
Parking light bulb
G019145
1. Open the hood.
2. Remove the headlight housing, see
page 223.
3. Remove the cover on the upper side of the
headlight housing by turning it counter-
clockwise.
4. Pull out the bulb holder.
5. Replace the bulb.
6. Press the bulb holder back into position. It
will click into place.
7. Reinstall the cover on the upper side of the
headlight housing by turning it clockwise.
8. Reinstall the headlight housing.
