2009 VOLKSWAGEN PASSAT fuses

Fuses

369
A single load (a single electrical component) may be protected by several fuses.
One fuse may protect several loads (several electrical components).
Fuses in the vehicle

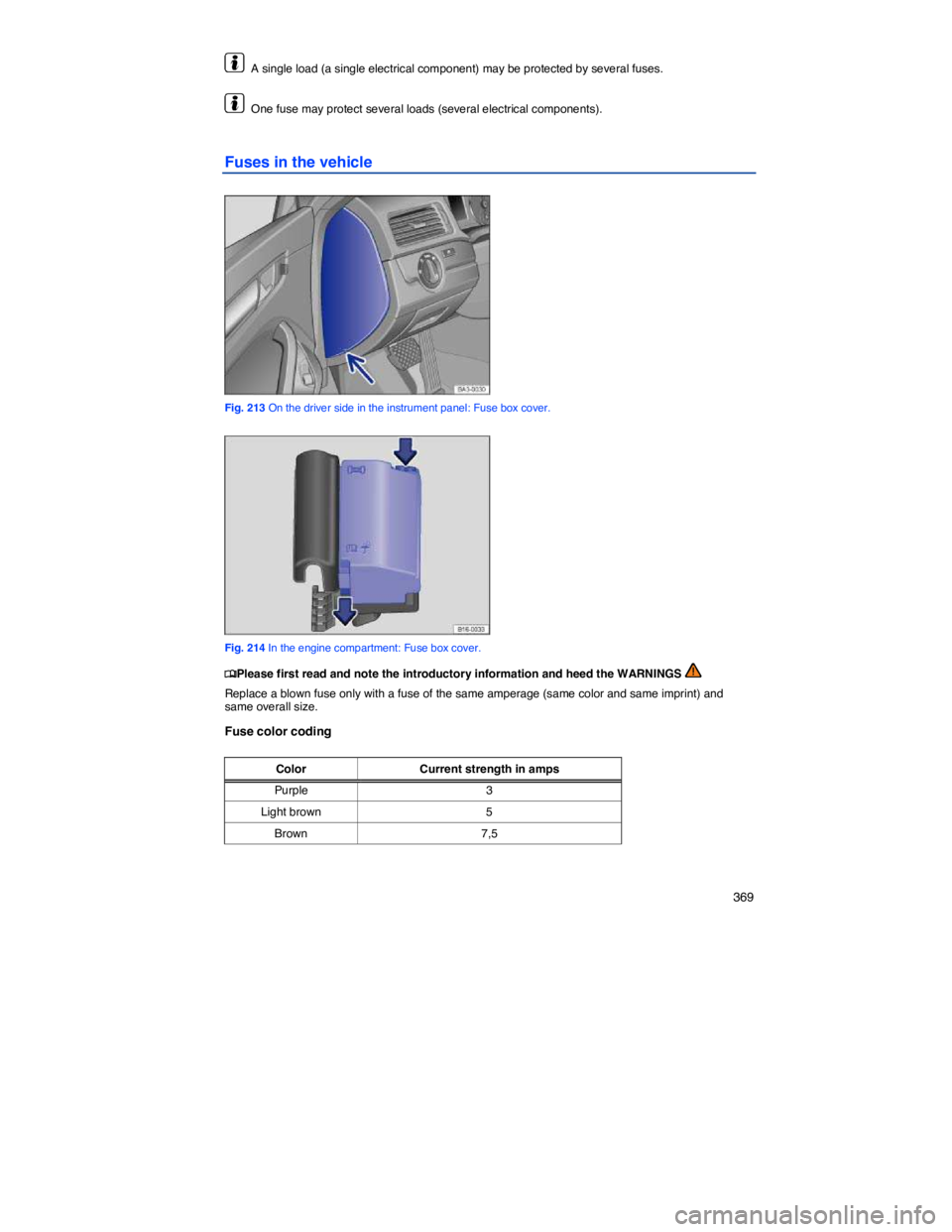

Fig. 213 On the driver side in the instrument panel: Fuse box cover.

Fig. 214 In the engine compartment: Fuse box cover.

Color Current strength in amps
Red 10
Blue 15
Yellow 20
White or clear 25
Green 30
Orange 40
Opening the fuse box in the instrument panel
x Pull the lower part of the cover in the direction of the arrow ⇒ fig. 213 and remove the cover from the bottom.
x On the inside of the cover there are plastic tweezers for removing and inserting fuses.
x To install, guide the cover from the bottom into the instrument panel and push in the direction opposite to the arrow until you can hear it latch into place.
Opening the fuse box in the engine compartment
x Open the engine hood ⇒ 
x Move the release tabs in the direction of the arrows ⇒ fig. 214 to unlock the fuse box cover.
x Remove the cover upward.
x To install push the cover onto the fuse box. The locking tabs must latch with an audible “click”.
Vehicles with battery located in the luggage compartment
There are additional fuses above the vehicle battery behind the panel on the left side of the luggage compartment. Have these fuses replaced by an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
NOTICE
x To help prevent vehicle damage, be careful when removing fuse box covers and be sure to reinstall them properly.
x Open fuse boxes must be protected from dirt and moisture. Dirt and moisture in fuse boxes can cause damage to the electrical system.
The vehicle contains other fuses in addition to those mentioned in this section. Have these fuses replaced by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.

371
Replacing blown fuses

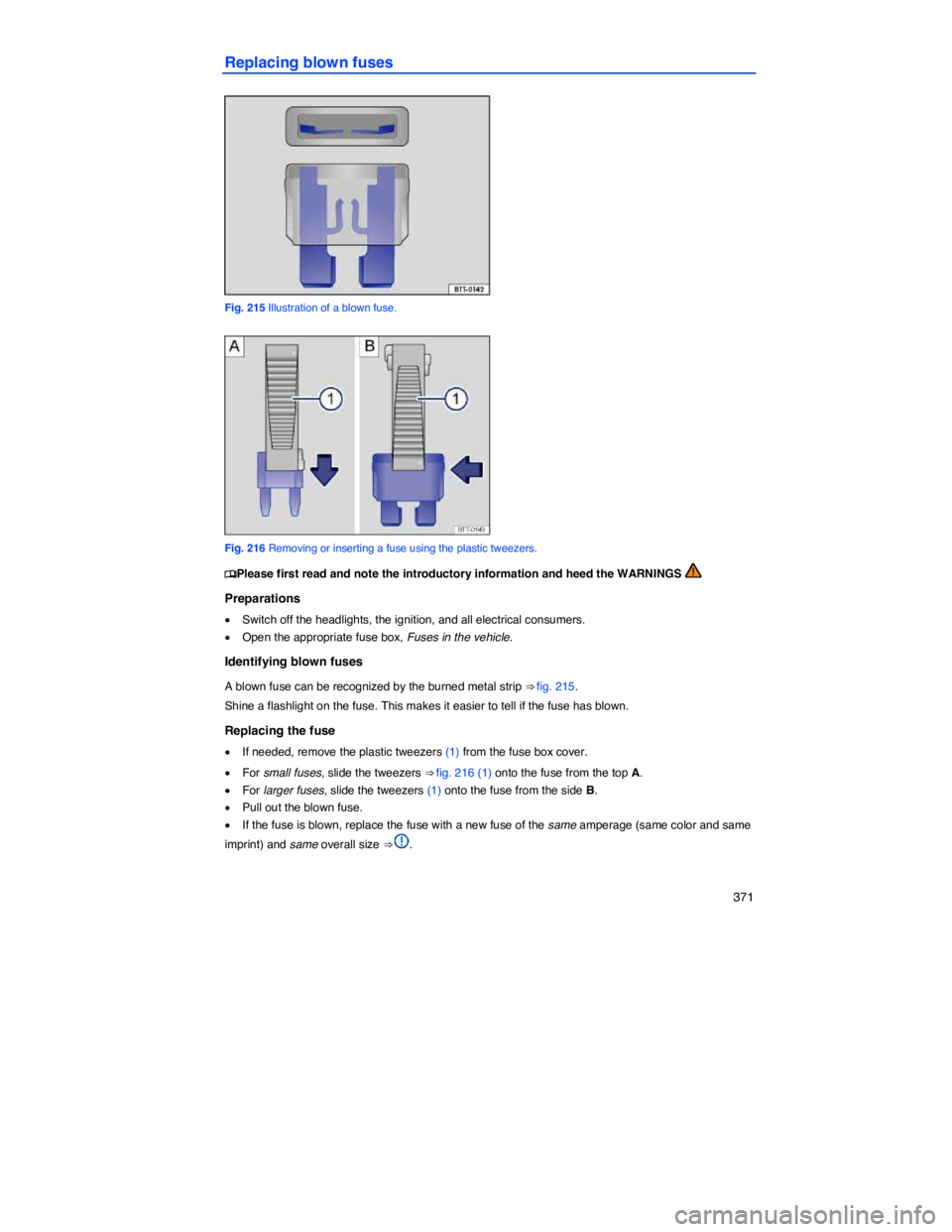

Fig. 215 Illustration of a blown fuse.

Fig. 216 Removing or inserting a fuse using the plastic tweezers.
