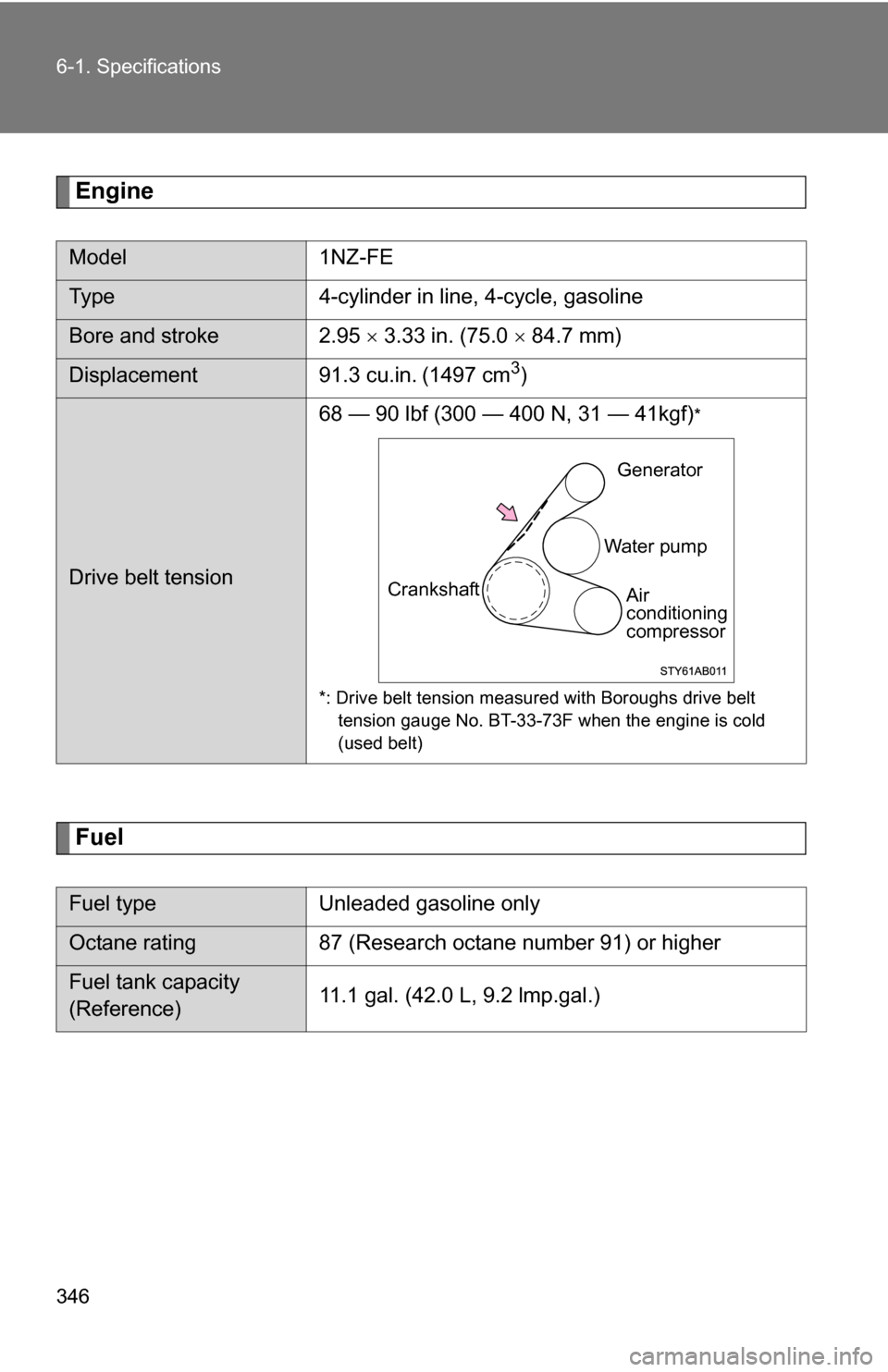

346 6-1. Specifications
Engine
Fuel
Model1NZ-FE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 2.95 3.33 in. (75.0 84.7 mm)
Displacement 91.3 cu.in. (1497 cm3)
Drive belt tension 68 — 90 lbf (300 — 400 N, 31 — 41kgf)
*
*: Drive belt tension measur ed with Boroughs drive belt
tension gauge No. BT-33-73F when the engine is cold
(used belt)
Fuel type Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference) 11.1 gal. (42.0 L, 9.2 lmp.gal.)
Generator
Water pump Air
conditioning
compressor
Crankshaft
