2009 TOYOTA SEQUOIA cruise control

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance10Fuel tank door release and cap9Hood release 9Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating22-23Audio24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake15Power outlets-12V DC 30Power outlets-115V AC30Rear seat entertainment system25Seat adjustments-Front 13Seat adjustments-Rear14Seat ventilators/Heaters 23Seats-Folding second row seats15Seats-Folding third row seats16Seats-Head restraints 13Steering wheel switches26Te l e p h o n e controls (Bluetooth®)29Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11VSC OFF button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools33
Tire Pressure Monitoring (warning) System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2009 Sequoia Quick Reference Guide
412xxxM2.qxd 7/16/08 4:14 PM Page 1

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate controls1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
115V AC Power outlet main switch
1
Power back window switch
VSC OFF switch
Engine (ignition) switch
Tire Pressure Warning System reset
Personal/Interior light main switch
Steering wheel controls
(if equipped)
412xxxM2.qxd 7/16/08 4:14 PM Page 2

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning
Slip indicator1
High/Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator AUTO LSD indicator
1
TOW/HAUL mode indicator
Height control indicator1
Height control/MANUAL indicator1
1If indicator does not turn off within a few seconds of starting engine, \
there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Automatic Transmission fluid temperature warning
412xxxM2.qxd 7/16/08 4:14 PM Page 7

20
Moonroof
Sliding operationTilting operation
OpenTilt
CloseClose
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
FEATURES/OPERATIONS
Push once to open/close completely. To stop partway, press the switch
lightly.
Set
412xxxM2.qxd 7/16/08 4:14 PM Page 20

27
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Distance control mode will cruise at a set speed, decelerate to maintain\
selected distance from a slower vehicle traveling in front of you, and
accelerate back up to the selected speed if the vehicle traveling in fro\
nt
of you changes lanes or speeds up.
(1) To select distance control mode Push the ON-OFF button. The
“CRUISE” indicator will come on.
(2) To set, cancel and resume a speed Refer to instructions for Cruise
Control on page 20.
Note: Once vehicle speed is set, pushing lever up toward “+ RES” will
increase speed to the nearest 5 mph, and then in 5 mph increments.
Pushing lever down toward “- SET” will reduce speed in the same wa\
y.
(3) To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will
change progressively from LONG to MIDDLE to SHORT.

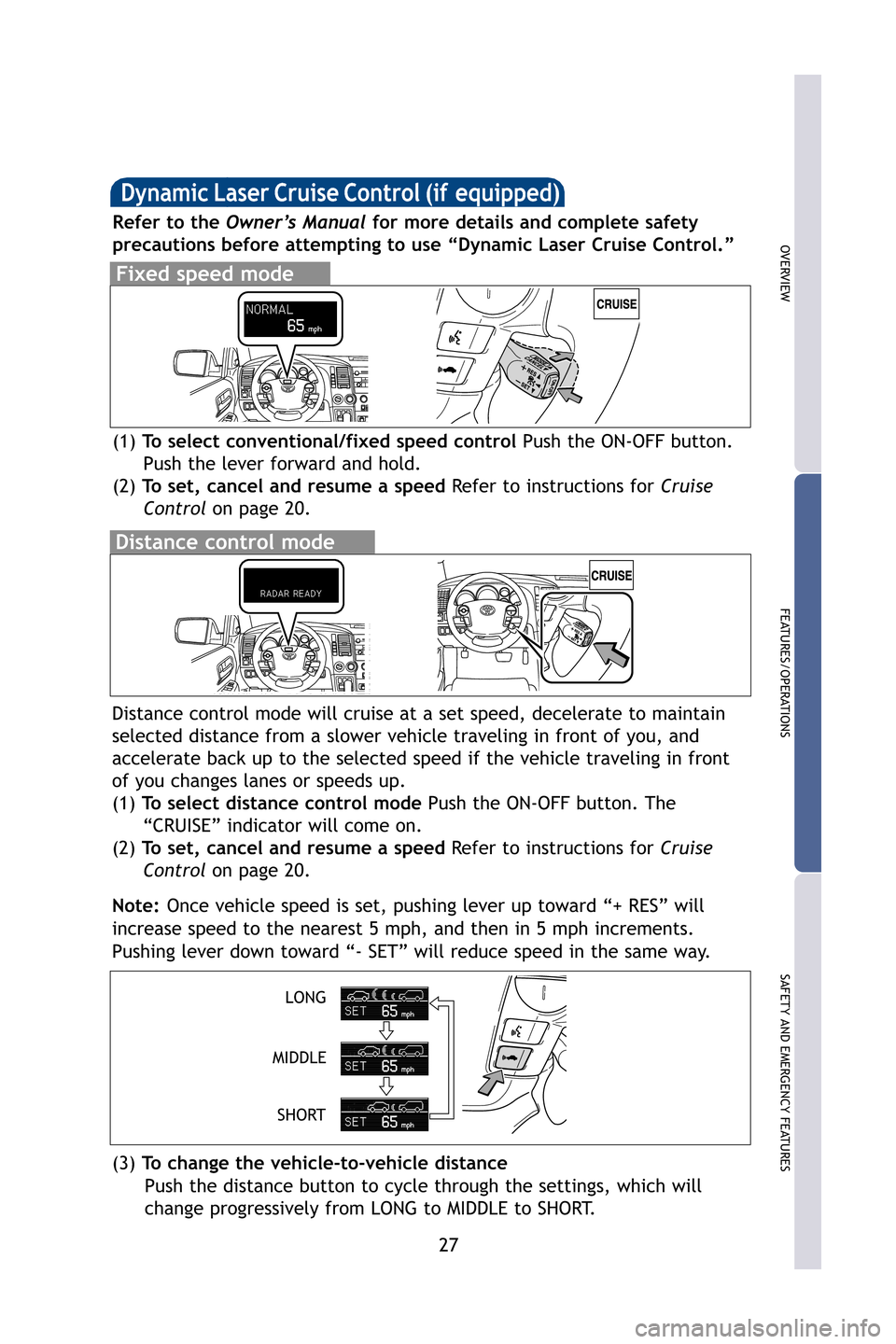

Dynamic Laser Cruise Control (if equipped)
(1) To select conventional/fixed speed control Push the ON-OFF button.
Push the lever forward and hold.
(2) To set, cancel and resume a speed Refer to instructions for Cruise
Control on page 20.
Fixed speed mode
Refer to the Owner’s Manual for more details and complete safety
precautions before attempting to use “Dynamic Laser Cruise Control.”\
Distance control mode
LONG
MIDDLE SHORT
412xxxM2.qxd 7/16/08 4:14 PM Page 27
