2009 TOYOTA SEQUOIA display

286 3-2. Using the audio system
■Loading multiple CDs (type B and C)
Press and hold until you hear a beep.
WAIT is shown on the display.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from WAIT to LOAD.
The indicator on the slot turns to amber when the CD is inserted.
Insert the next CD when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining CDs.
To stop the operation, press .
Ejecting CDs
■ Ejecting a CD (type A)
Press and remove the CD.
■ Ejecting a CD (type B and C)
To select the CD to be ejected.
Type B: Press
or .
Type C: Press
or .
The number of the CD selected is shown on the display.
Press and remove the CD.
■ Ejecting all the CDs (type B and C)
Press and hold until you hear a beep, and then remove the
CDs.

287
3-2. Using the audio system
3
Interior features
Selecting and scanning CDs (with CD changer only)
■ Selecting the desired CD
Type A and B: Press
or .
Type C: Press
or  .
■ Scanning loaded CDs
Press and hold until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
Press the button again when the desired CD is reached.
Selecting and scanning tracks■ Selecting a track
Press “
” to move up or “ ” to move down using until the
desired track number is displayed.
■ Scanning tracks
Press .
The first 10 seconds of each track will be played.
Press the button again when the desired track is reached.
Fast-forwarding and reversing tracksTo fast-forward or reverse.
Type A and B: Press and hold or .
Type C: Press and hold or .

288 3-2. Using the audio system
Repeat play■ Repeating a track
Press or .
■ Repeating all of the tracks on a CD (with CD changer only)
Press and hold or until you hear a beep.
Random playback
■ Current CD
Press or .
Tracks are played in random order until the button is pressed once more.
■All CDs (with CD changer only)
Press and hold or until you hear a beep.
Tracks on all loaded CDs are played in random order until the button is
pressed once more.
Switching the display
Press .
Each time the button is pressed, the display changes in the order of Track
no./Elapsed time CD titleTrack name.

289
3-2. Using the audio system
3
Interior features
■
Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
for 1 second
or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for
6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Canceling random playback
Press or
again.
■ Canceling repeat play
Press or
again.
■ Error messages
“ERROR”: This indicates a trouble either in the CD or inside the player.
The CD may be dirty, damaged or inserted up-side down.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not playback.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.

292
3-2. Using the audio system

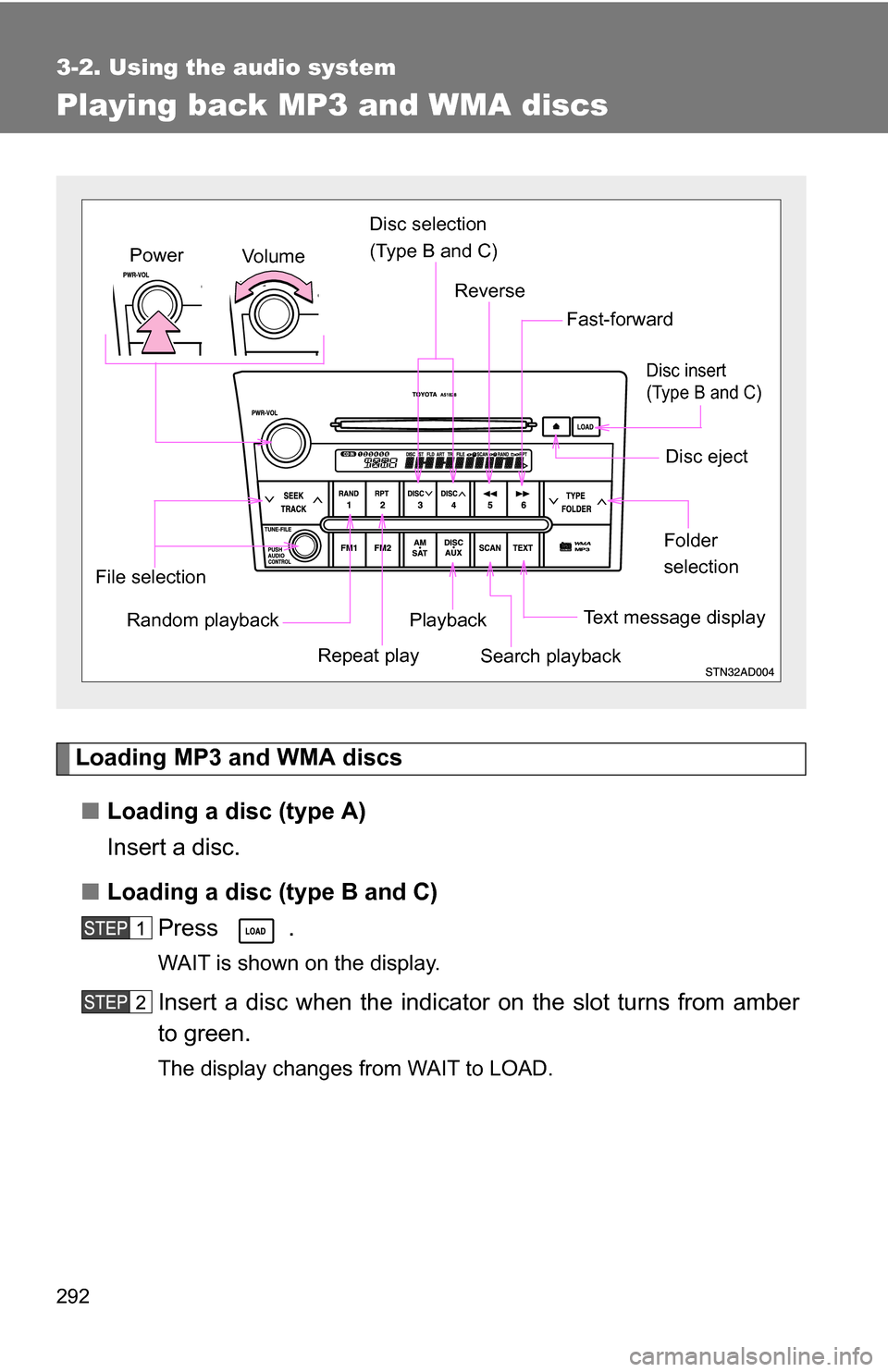

Playing back MP3 and WMA discs
Loading MP3 and WMA discs■ Loading a disc (type A)
Insert a disc.
■ Loading a disc (type B and C)
Press .
WAIT is shown on the display.
Insert a disc when the indicator on the slot turns from amber
to green.
The display changes from WAIT to LOAD.
File selection
Folder
selection
Vo l u m e
Power
Random playback
Repeat playPlayback
Disc eject
Text message display
Disc selection
(Type B and C)
Fast-forward
Search playback
Reverse
Disc insert
(Type B and C)

293
3-2. Using the audio system
3
Interior features
■
Loading multiple discs (type B and C)
Press and hold until you hear a beep.
WAIT is shown on the display.
Insert a disc when the indicator on the slot turns from amber
to green.
The display changes from WAIT to LOAD.
The indicator on the slot turns to amber when the disc is inserted.
Insert the next disc when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining discs.
To stop the operation, press .
Ejecting MP3 and WMA discs
■ Ejecting a disc (type A)
Press and remove the disc.
■ Ejecting a disc (type B and C)
To select the disc to be ejected.
Type B: Press or .
Type C: Press or .
The number of the disc selected is shown on the display.
Press and remove the disc.
■ Ejecting all the discs (type B and C)
Press and hold until you hear a beep, and then remove the
discs.

296 3-2. Using the audio system
Switching the displayPress .
Each time the button is pressed, the display changes in the order of
Folder no./File no./Elapsed time Folder nameFile nameAlbum title
(MP3 only) Track title Artist name.
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
for 1 second
or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for
6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Canceling random playback
Press or
again.
■ Canceling repeat play
Press or again.
■ Error messages
“ERROR”: This indicates a trouble either in the CD or inside the player.
The CD may be dirty, damaged or inserted up-side down.
“NO MUSIC”:This indicates that the MP 3/WMA file is not included in the CD.

299
3-2. Using the audio system
3
Interior features
●
Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not
be displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
● File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
● Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
● ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title and artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
● MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA\
file
is played. To make the file check finish more quickly, we recommend that
you do not save any files other than MP3 or WMA files or create any
unnecessary folders.
If the discs contain a mixture of music data and MP3 or WMA format data,
only music data can be played.
