2009 TOYOTA SEQUOIA tire type

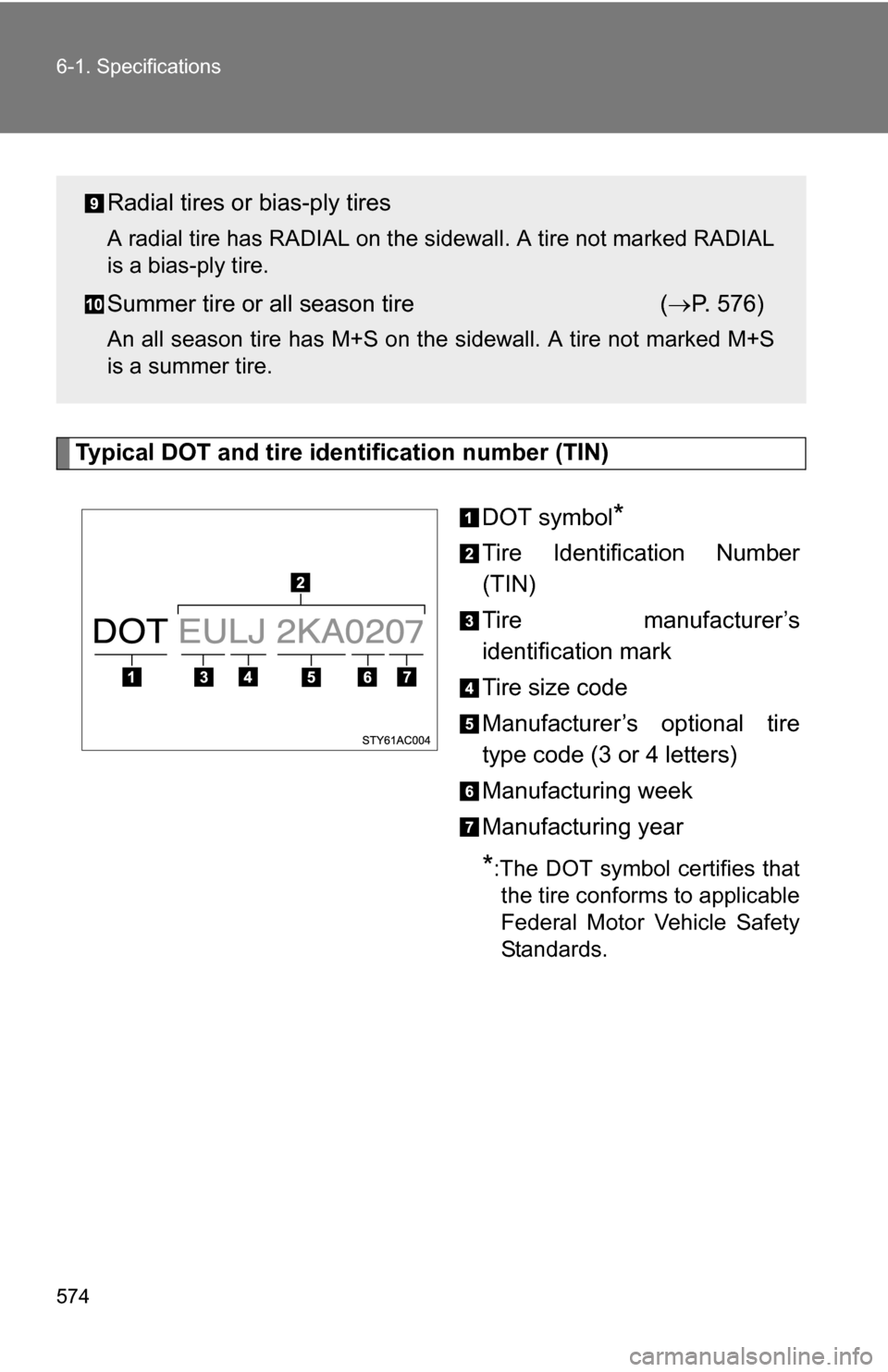

574 6-1. Specifications
Typical DOT and tire identification number (TIN)DOT symbol
*
Tire Identification Number
(TIN)
Tire manufacturer’s
identification mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*:The DOT symbol certifies thatthe tire conforms to applicable
Federal Motor Vehicle Safety
Standards.
Radial tires or bias-ply tires
A radial tire has RADIAL on the sidewall. A tire not marked RADIAL
is a bias-ply tire.
Summer tire or all season tire ( P. 576)
An all season tire has M+S on the sidewall. A tire not marked M+S
is a summer tire.

579
6-1. Specifications
6
Vehicle specifications
Tire related termMeaning
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
* that
follows
Occupant distributionDistribution of occupants in a vehicle as
specified in the third column of Table 1
* below
Production options
weight
The combined weight of installed regular
production options weighing over 5 lb. (2.3 kg)
in excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube
assembly upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a
rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is determined
by distributing to each axle its share of the
maximum loaded vehicle weight, and dividing
by two
Vehicle normal load
on the tire
The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, accessory weight, and normal
occupant weight (distr ibuted in accordance
with Table 1
* below), and dividing it by two

612
GAS STATION INFORMATION
Auxiliary catch leverP. 449Fuel filler doorP. 9 5
Tire inflation pressure
P. 567
Hood lock release lever P. 449
Fuel tank capacity 26.4 gal. (100.0 L, 22.0 lmp.gal.)
Fuel type P. 560
Cold tire inflation
pressureP. 5 6 7
Engine oil
capacity
(Drain and
refill)
4.7 L V8
(2UZ-FE)
engineqt. (L, Imp.qt.)
With filter 6.6 (6.2, 5.5)
Without filter 6.0 (5.7, 5.0)
5.7 L V8
(3UR-FE,
3UR-FBE)
engine qt. (L, Imp.qt.)
With filter 7.4 (7.0, 6.2)
Without filter 6.9 (6.6, 5.8)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade: P. 561
ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W-30 (4.7 L V8 [2UZ-FE] engine)
SAE 5W-20 or 0W-20 (5.7 L V8 [3UR-FE,
3UR-FBE] engine)
