2009 TOYOTA RAV4 audio

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance9
Fuel tank door release and cap8Hood release8Indicator symbols4-5Instrument cluster 4
Instrument panel2-3Keyless entry*6Smart Key system*7
Active torque control 4WD (4WD models) 11Air Conditioning/Heating18-19Audio20-21Automatic Transmission 10Clock 19Cruise control23
Door locks16
Downhill Assist Control system (DAC) 22
Hill-start Assist Control (HAC)23Light control-Instrument panel19Lights & turn signals14Moonroof16Parking brake10Power outlets-12V DC 22Power outlets-120V AC22Seat adjustments-Front12Seat adjustments-Second row seats 12Seat heaters18Seats-Head restraints11Seats-Folding down second row seats 13Seats-Stowing third row seats13Te l e p h o n e controls (Bluetooth®)17Tilt and telescopic steering wheel 17VSC OFF button 16Windows15
Windshield wipers & washers15
Doors-Child safety locks 24Seat belts24Seat belts-Shoulder belt anchor24Spare tire & tools25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
* Visit your Toyota dealer for information on customizing this feature.
412xxxM2.qxd 7/31/08 1:35 PM Page 1

2
OVERVIEW
Instrument panel
Steering wheel
controls
Steering wheel audio controls1
Telephone controls1
Multi-information display switch
Speech command button1
Cruise control
Headlight, turn signal and front fog light1 control
Wiper and washer controls
Four-wheel drive lock switch (4WD models)
Audio system/Navigation system
1,2
Emergency flasher switch
Air Conditioning controls
“ENGINE START STOP” button (Smart Key)
1
Engine immobilizer indicator
Front passenger seat belt reminder light
Clock and Air Conditioning display
Without telephone
controls
With telephone controls
412xxxM2.qxd 7/31/08 1:35 PM Page 2

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Telephone controls (Bluetooth®)
(if equipped)
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible\
telephone and the system.
Refer to “Using the hands-free phone system (for cellular phone),”\
Section
3-3 in the Owner’s Manual for more details.
MicrophoneAudio unit
Steering wheel telephone switches
Vo l u m e
End call
Start call
Voice command
button
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release leverLength
Angle
412xxxM2.qxd 7/31/08 1:36 PM Page 17

20
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Wait until the green indicator illuminates and shutter
opens to insert next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push either side of “TYPE/FOLDER.”
Audio
View CD text
Eject CD
Push to turn
ON/OFF
Push to adjust
tone & balance
Push to skip
up/down folder
Seek station/
CD track select
Station/CD
track scanMode
Load CD(s)
Preset buttons - functions in other
modes indicated above number.
Ty p e 1
Type 2 additional functions
Type 2 (with JBL speakers)
AM/Satellite radio
View genre/Push to
skip up/down folder
FEATURES/OPERATIONS
412xxxM2.qxd 7/31/08 1:36 PM Page 20

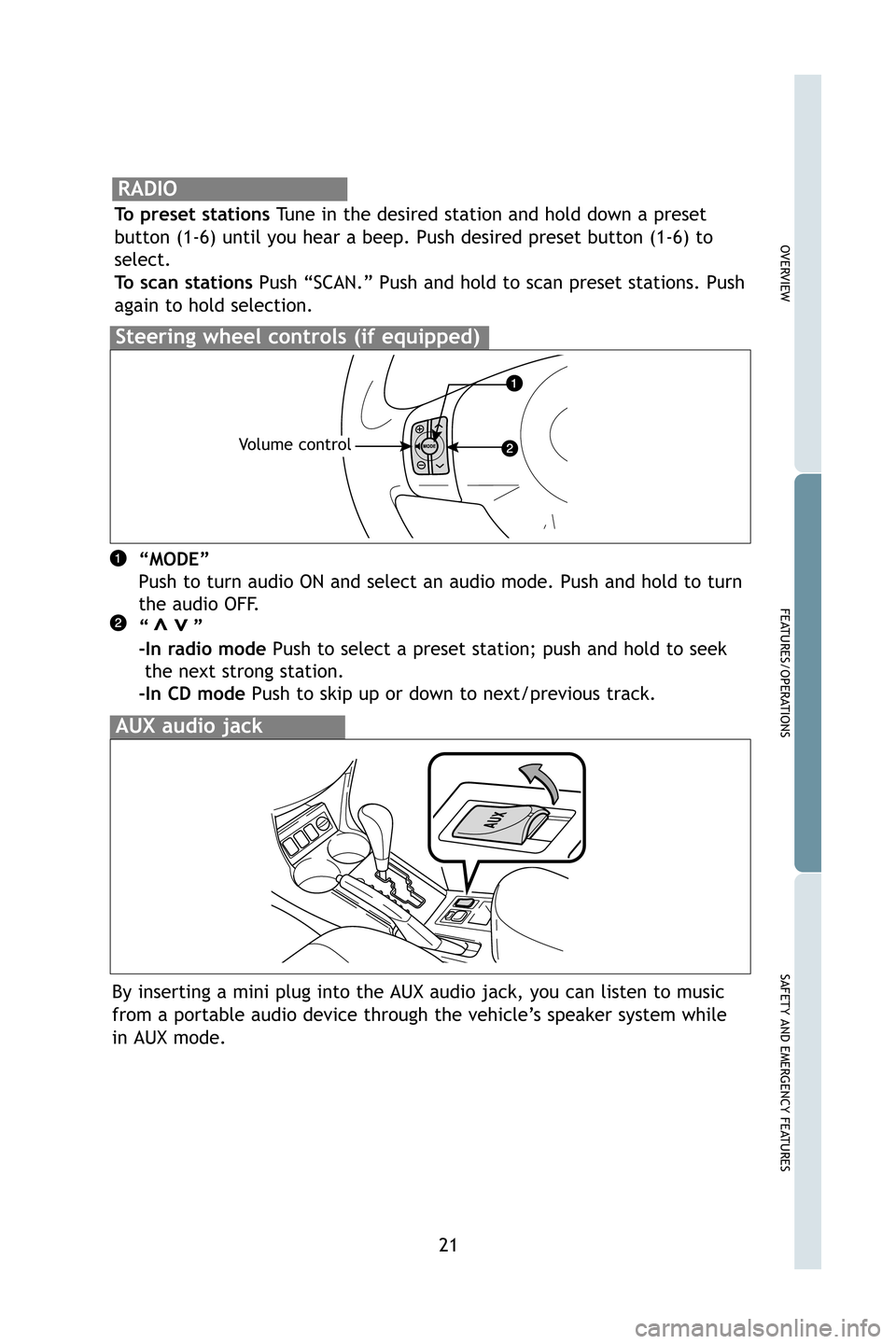

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio OFF.
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
By inserting a mini plug into the AUX audio jack, you can listen to musi\
c
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
>>
Steering wheel controls (if equipped)
AUX audio jack
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6)\
to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
Volume control
412xxxM2.qxd 7/31/08 1:36 PM Page 21
