5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

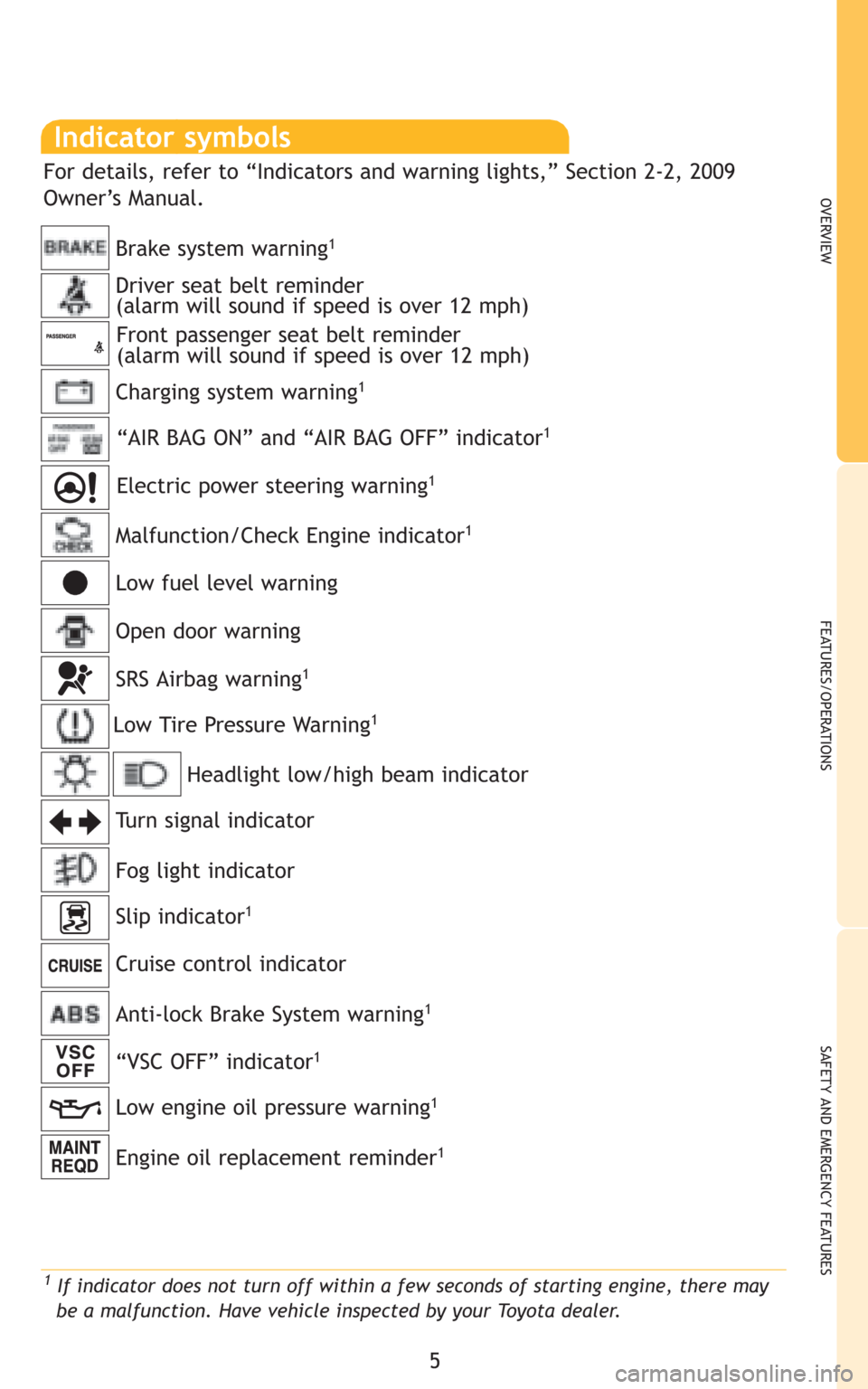

Indicator symbols
Charging system warning1
Brake system warning1
“AIR BAG ON” and “AIR BAG OFF” indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.
Low engine oil pressure warning1
“VSC OFF” indicator1
Engine oil replacement reminder1
Electric power steering warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
6
OVERVIEW
Keyless entry (if equipped)
PushPush ONCE: Driver door
TWICE: All doors
Locking operationUnlocking operation
Panic button
Push and hold
NOTE:If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
Trunk lid operation
Push and hold
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not
tightened enough, Check Engine
“ ” indicator may illuminate.
PullTu r n
Store
