2009 TOYOTA COROLLA bluetooth

228
3-3. Using the hands-free phone system (for cellular phone)
Hands-free phone system (for cellular phone) features (if equipped)
■Conditions affecting operation
The hands-free phone system may not operate normally in the following situ-
ations:
●The cellular phone is turned off, or located outside the service area.
● The cellular phone has a low battery.
● The cellular phone is not connected to the system.
● The cellular phone is behind the seat or in the glove box, or metal mate-
rial covers or touches the phone.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed.
■ Required profiles for the cellular phone
●HFP (Hands Free Profile) Ver. 1.0
● OPP (Object Push Profile) Ver. 1.1
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without oper ating the cellular phone.
TitlePage
Using the hands-free phone system
(for cellular phone) P. 231
Making a phone call P. 240
Setting a cellular phone P. 244
Security and system setup P. 249
Using the phone book P. 253

229
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features

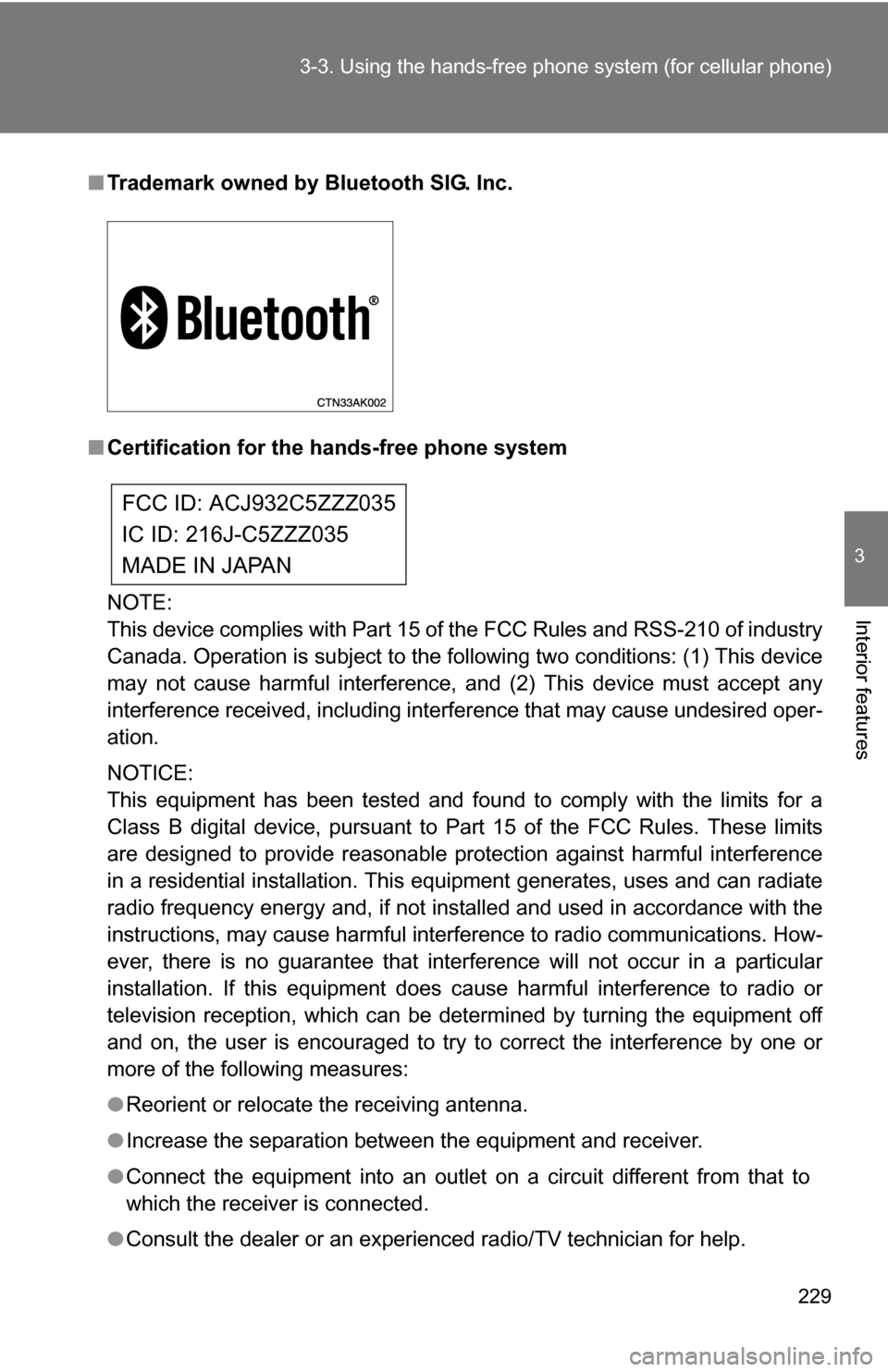

■Trademark owned by Bluetooth SIG. Inc.
■ Certification for the hands-free phone system
NOTE:
This device complies with Part 15 of the FCC Rules and RSS-210 of industry
Canada. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired oper-
ation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC ID: ACJ932C5ZZZ035
IC ID: 216J-C5ZZZ035
MADE IN JAPAN

230 3-3. Using the hands-free phone system (for cellular phone)

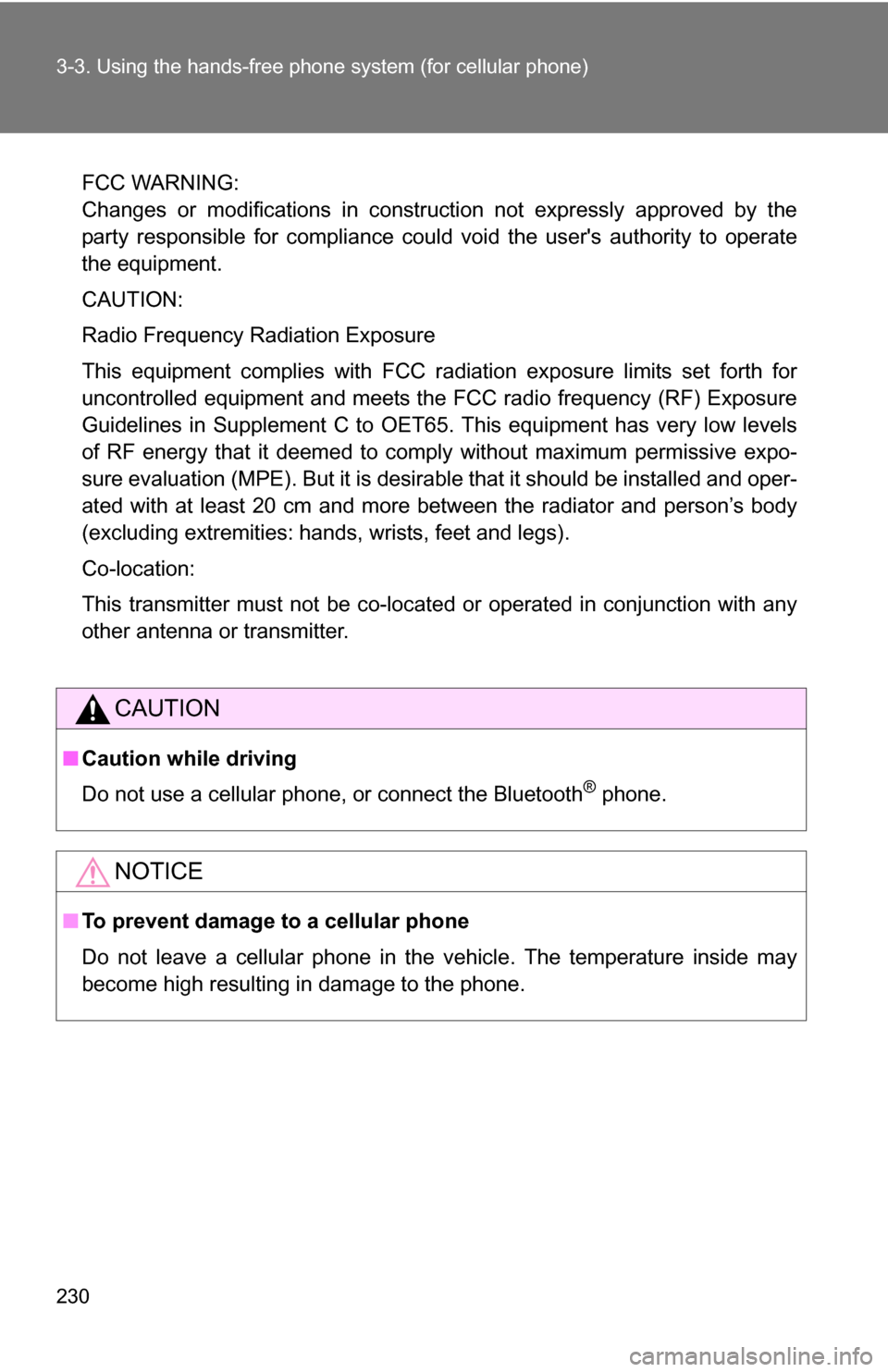

FCC WARNING:
Changes or modifications in construction not expressly approved by the
party responsible for compliance could void the user's authority to operate
the equipment.
CAUTION:
Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. This equipment has very low levels
of RF energy that it deemed to comply without maximum permissive expo-
sure evaluation (MPE). But it is desirable that it should be installed and oper-
ated with at least 20 cm and more between the radiator and person’s body
(excluding extremities: hands, wrists, feet and legs).
Co-location:
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
CAUTION
■Caution while driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
NOTICE
■To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.

231
3-3. Using the hands-free phone system (for cellular phone)
3
Interior features

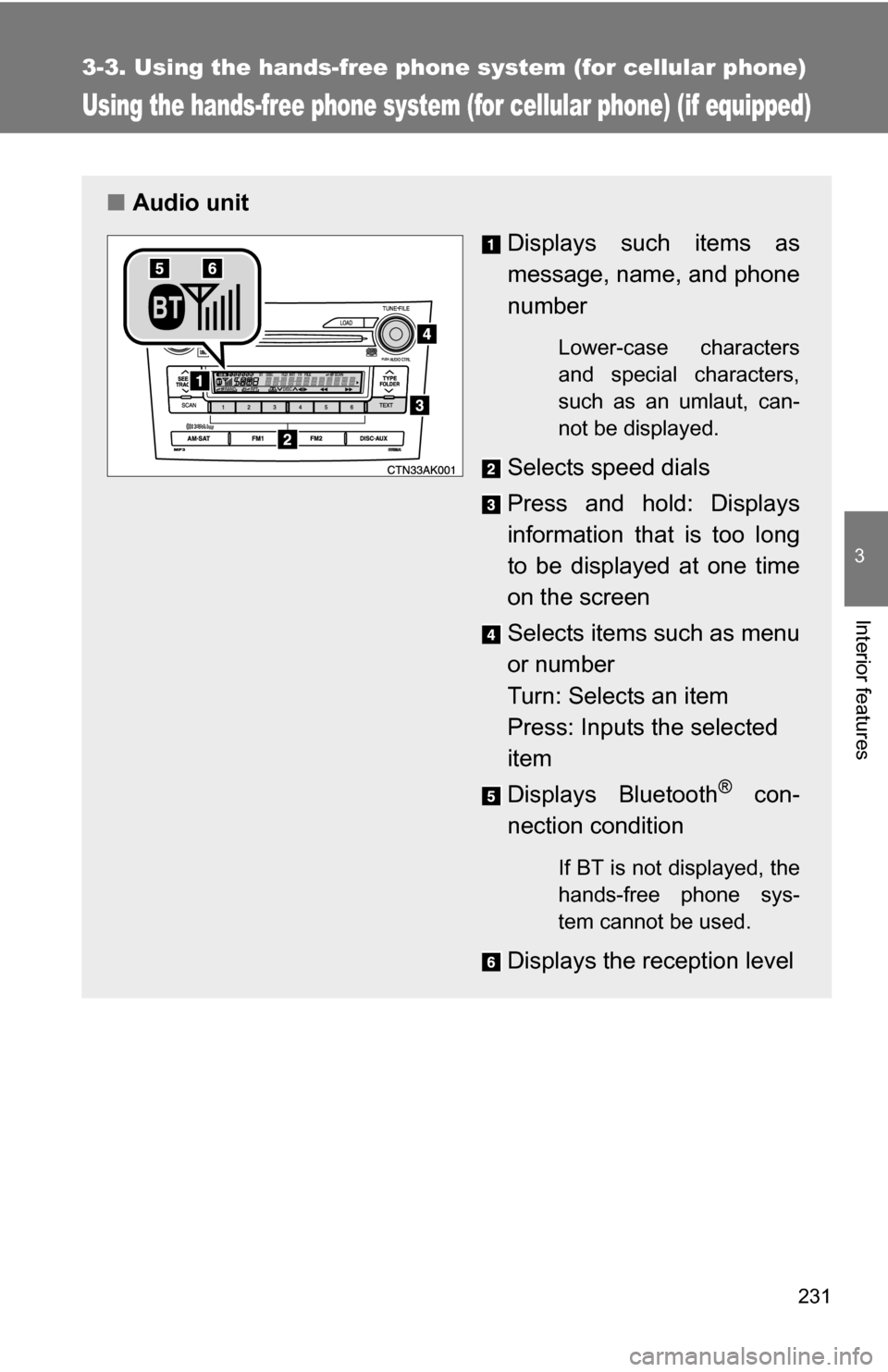

Using the hands-free phone system (for cellular phone) (if equipped)
■Audio unit
Displays such items as
message, name, and phone
number
Lower-case characters
and special characters,
such as an umlaut, can-
not be displayed.
Selects speed dials
Press and hold: Displays
information that is too long
to be displayed at one time
on the screen
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Displays Bluetooth
® con-
nection condition
If BT is not displayed, the
hands-free phone sys-
tem cannot be used.
Displays the reception level

457
Alphabetical index
Alphabetical index
A/C .................................... 184, 190
ABS........................................... 158
Air conditioning filter .............. 341
Air conditioning systemAir conditioning filter ............. 341
Automatic air conditioning system................................ 184
Manual air conditioning system................................ 190
Airbags
Airbag operating conditions .... 83
Airbag precautions for your child...................................... 87
Airbag warning light .............. 378
Curtain shield airbag operating conditions ............. 83
Curtain shield airbag precautions .......................... 87
Front passenger occupant
classification system ............ 92
General airbag precautions .... 87
Locations of airbags ............... 80
Modification and disposal of airbags ................................. 91
Proper driving posture ...... 78, 87
Side airbag operating
conditions ............................. 83
Side airbag precautions.......... 87
SRS airbags ........................... 80
Antenna .................................... 204
Anti-lock brake system ........... 158
Armrest .................................... 281
Ashtray ..................................... 275
Audio input .............................. 224 Audio system
Antenna .................................204
Audio input ............................224
AUX adapter..........................224
CD player/changer ................207
MP3/WMA disc......................214
Optimal use ...........................222
Portable music player............224
Radio .....................................201
Steering wheel audio switch ..................................225
Type ......................................198
Automatic air conditioning
system ....................................184
Automatic transmission Automatic transmission .........130
If the shift lever cannot be
shifted from P......................401
S mode ..................................133
AUX adapter .............................224
Auxiliary boxes ........................269
Back-up lights Replacing light bulbs .............357
Wattage .................................427
Battery Checking ...............................321
If the vehicle has a
discharged battery ..............405
Preparing and checking
before winter .......................166
Bluetooth
®................................228
Bottle holder .............................271
Brake Fluid ......................................318
Parking brake ........................137
Brake assist ..............................158
Break-in tips .............................114
A
B
