2009 TOYOTA COROLLA stop start

406 5-2. Steps to take in an emergency
Connecting the jumper cables If required, remove all vent plugs from the booster battery. Lay a
cloth over the open vents on t he booster battery. (This helps
reduce the explosion hazard, personal injuries and burns.)
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Vehicles with smart key system — Open and close any of
the doors with the “ENGINE START STOP” switch OFF.
Maintain the engine speed of the second vehicle, and turn
the “ENGINE START STOP” switch to IGNITION ON mode
(vehicles with smart key system) or turn the engine switch
to the “ON” position (vehicles without smart key system),
then start the vehicle's engine.
STEP2
STEP3
STEP4
STEP5

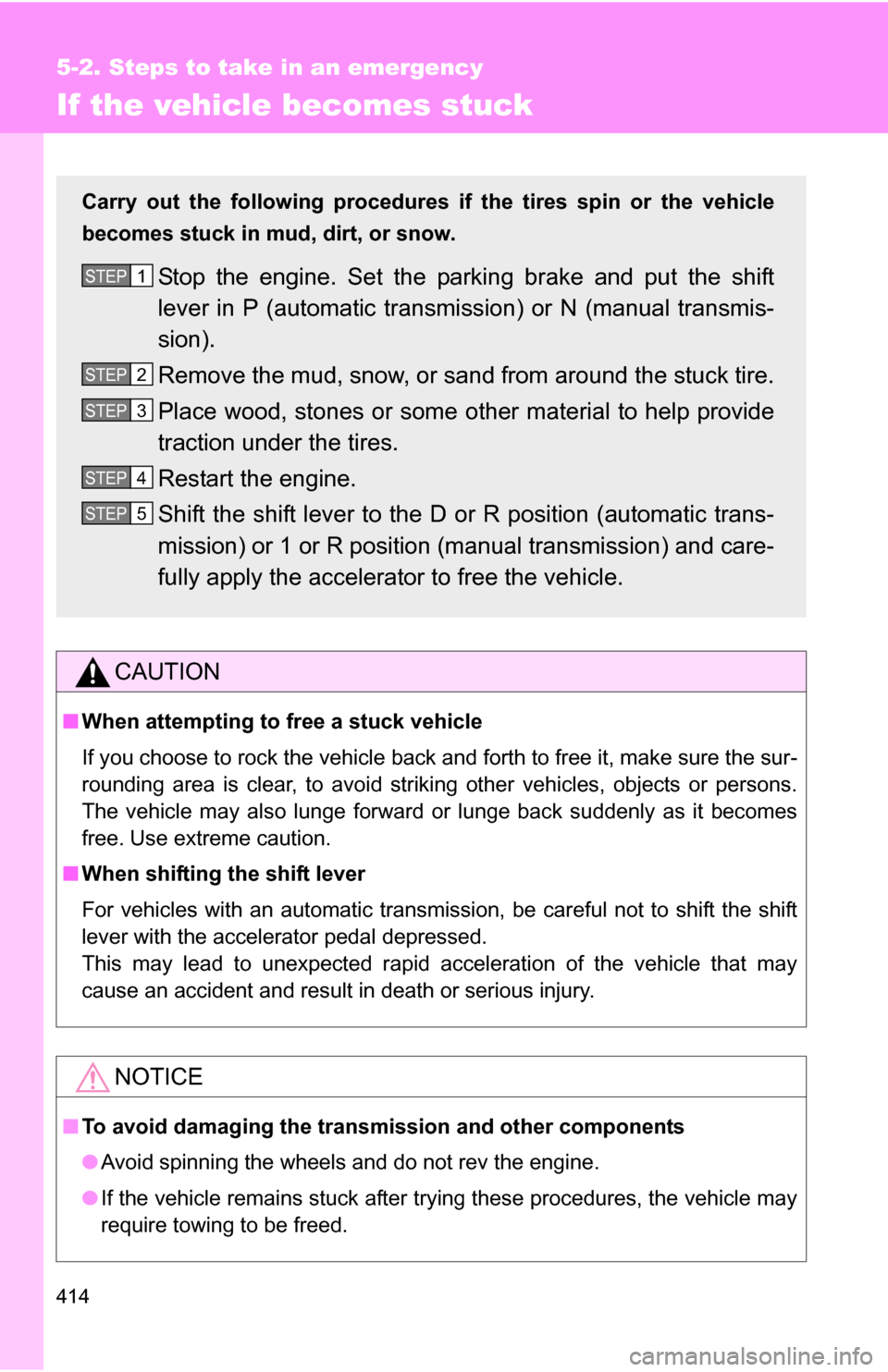

414
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striki ng other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
For vehicles with an automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P (automatic transmission) or N (manual transmis-
sion).
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the D or R position (automatic trans-
mission) or 1 or R position (manual transmission) and care-
fully apply the accelerator to free the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5

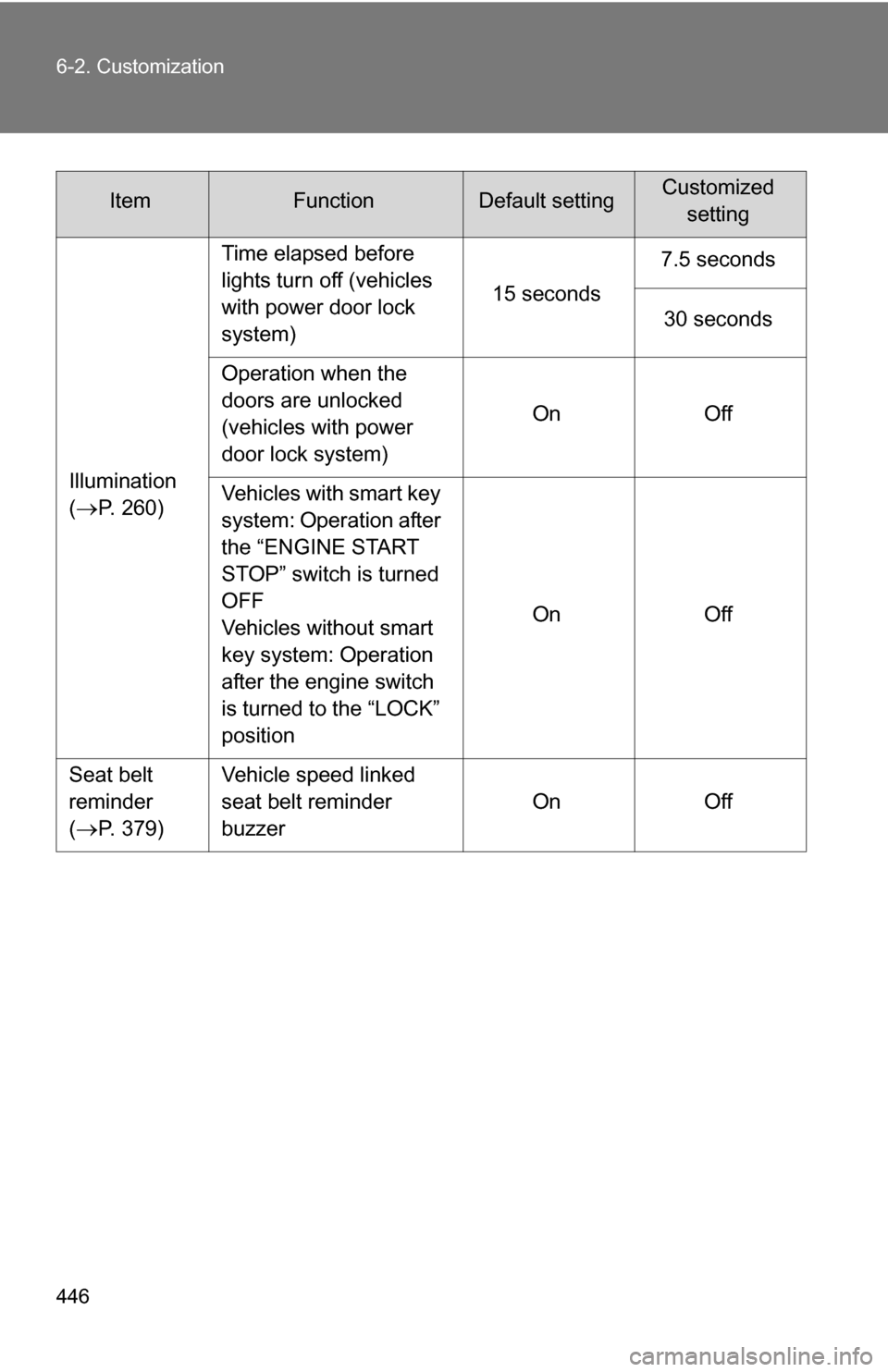

446 6-2. Customization
Illumination
(
P. 260)Time elapsed before
lights turn off (vehicles
with power door lock
system)
15 seconds
7.5 seconds
30 seconds
Operation when the
doors are unlocked
(vehicles with power
door lock system) On Off
Vehicles with smart key
system: Operation after
the “ENGINE START
STOP” switch is turned
OFF
Vehicles without smart
key system: Operation
after the engine switch
is turned to the “LOCK”
position On Off
Seat belt
reminder
(
P. 379) Vehicle speed linked
seat belt reminder
buzzer
On Off
ItemFunctionDefault settingCustomized
setting

463
Alphabetical index
Side mirror
Adjusting and folding .............. 64
Smart key system Entry function ......................... 22
Starting the engine ............... 122
Spare tire Inflation pressure .................. 335
Spare tire .............................. 388
Spark plug................................ 422
Specifications .......................... 416
Speech command switch ....... 232
Speedometer ........................... 138
Steering Column lock release ..... 124, 128
Steering wheel Adjustment ............................. 61
Audio switches ..................... 225
Stop lights Replacing light bulbs ............ 357
Wattage ................................ 427
Storage box ............................. 283
Storage feature ........................ 264
Storage precautions ............... 162
Stuck If your vehicle becomes stuck................................... 414
Sun visors ................................ 272
Sunshade Roof ........................................ 69
Switch Engine switch ............... 122, 126
Fog light switch..................... 152
Ignition switch ............... 122, 126
Light switches ....................... 150
Power door lock switch........... 38
Power window switch ............. 66
Window lock switch ................ 66
Wiper and washer switch ..... 153 Tachometer...............................138
Tail lights
Replacing light bulbs .............357
Switch....................................150
Wattage .................................427
Talk switch................................232
Telephone switch .....................232
Theft deterrent system Engine immobilizer system .....75
Theft prevention labels..............77
Tire inflation pressure .............335
Tire information Glossary ................................437
Size .......................................434
Tire identification number ......433
Uniform tire quality grading ................................435
Tires Chains ...................................166
Checking ...............................326
If you have a flat tire ..............388
Inflation pressure...................335
Inflation pressure sensor .......327
Information ............................431
Replacing ..............................388
Rotating tires .........................326
Size .......................................425
Snow tires .............................166
Spare tire...............................388
Tools .........................................388
Total load capacity...................165
Towing Dinghy towing................178, 179
Emergency towing.................369
Trailer towing.........................170
TRAC .........................................158
Traction control........................158
Trip information .......................146
Trip meter .................................138T
