Page 291 of 444
291
4-3. Do-it-yourself maintenance
4
Maintenance and care

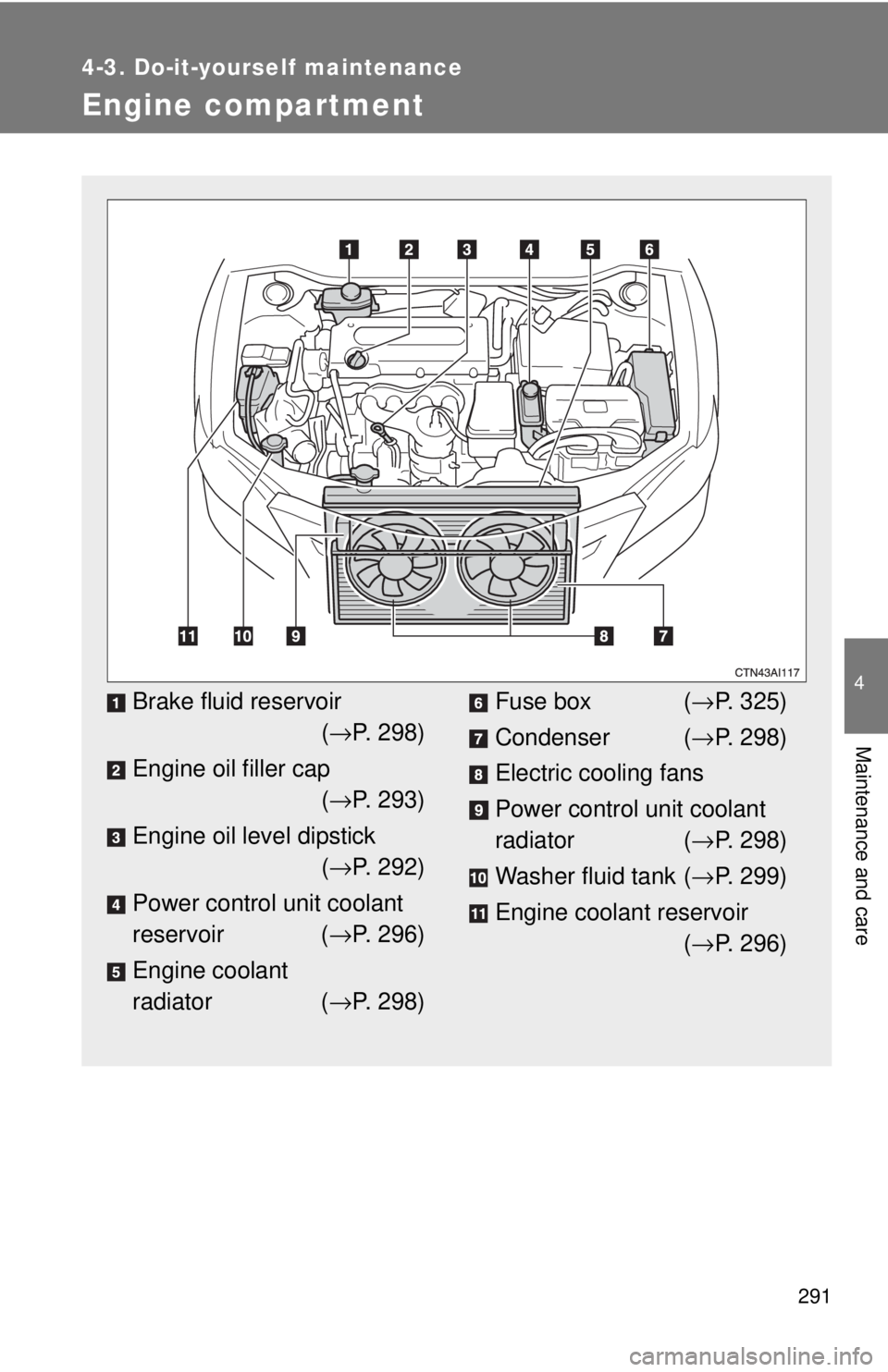

Engine compartment
Brake fluid reservoir(→ P. 298)
Engine oil filler cap (→ P. 293)
Engine oil level dipstick (→ P. 292)
Power control unit coolant
reservoir ( →P. 296)
Engine coolant
radiator ( →P. 298)Fuse box ( →P. 325)
Condenser ( →P. 298)
Electric cooling fans
Power control unit coolant
radiator ( →P. 298)
Washer fluid tank ( →P. 299)
Engine coolant reservoir (→ P. 296)
Page 325 of 444
325
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( →P. 328) for details about which fuse to check.STEP1
STEP2
STEP3
Page 326 of 444
326 4-3. Do-it-yourself maintenance
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
Page 328 of 444
328 4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings■ Engine compartment
Fuse box cover
Fuse block
FuseAmpereCircuit
1 SPARE 30 A Spare fuse
2 SPARE 15 A Spare fuse
3 SPARE 10 A Spare fuse
Page 333 of 444
333
4-3. Do-it-yourself maintenance
4
Maintenance and care
12 DOOR NO.2 25 A Main body ECU
13 S/ROOF
30 A Electric moon roof
14 TAIL 15 AFront side marker lights, tail lights,
rear side marker lights, license
plate lights
15 PANEL 7.5 ANavigation system, seat heaters,
emergency flashers, air condition-
ing system, audio system, clock,
glove box light, instrument panel
lights, steering switches
16 ECU IG NO.1 10 A Main body ECU, electric moon
roof, tire pressure warning system,
auto anti-glare inside rear view mir-
ror, starting system, navigation sys-
tem
17 ECU IG NO.2 7.5 A Electronically controlled brake sys-
tem, electric power steering sys-
tem, shift lock control system
18 A/C NO.2 10 AAir conditioning system, rear win-
dow defogger
19 WASH 10 A Windshield wipers and washer
20 S-HTR 20 A Seat heaters
21 GAUGE NO.1 10 A Emergency flashers, back-up lights
22 WIP 25 A Windshield wipers and washer
23 H-LP LVL 7.5 A No circuit
24 INJ 15 AMultiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit
Page 335 of 444
335
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer, as soon as possible.
