Page 2 of 14

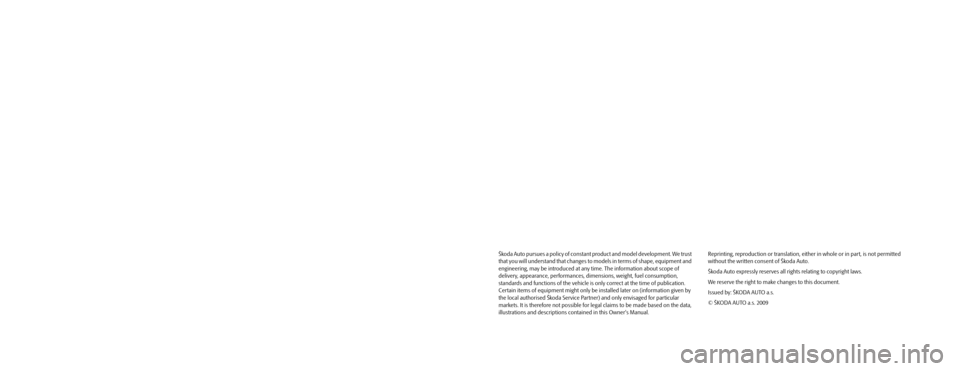

SKODA OCTAVIA 2009 2.G / (1Z) Blues Car Radio Manual Škoda Auto pursues a policy of constant product and model development. We trust
that you will understand that changes to models in terms of shape, equipment and
engineering, may be introduced at an

Page 6 of 14

SKODA OCTAVIA 2009 2.G / (1Z) Blues Car Radio Manual Radio
4If you have switched off the radio by withdrawing the ignition key, the radio switches on again once the ignition is on.Audio settings– Press the rocker switch repeatedly to select the des

Radio
4If you have switched off the radio by withdrawing the ignition key, the radio switches on again once the ignition is on.Audio settings– Press the rocker switch repeatedly to select the desired parameter. – Set the desired value by turning the rotary/push knob .You can select between the following parameters:•
TRE
- Treble setting;
•
BASS
- bass setting;
•
BAL
- setting of the volume ratio between the left and the right side;
•
FA D
- setting of the volume ratio between the front and the rear;
Setting the special functions– Press the rocker switch , in order to activate the menu Set-up. – Individual functions of the menu are
selected by pressing the rocker
switch or by pressing the rocker switches , .
– Set the desired value by turning the button .REG AUTO / REG OFF Certain programs of the broadcasting
companies are divided into regional
programs at specific times. That is why in individual regions the regional programs of a station can broadcast different contents. First of all the unit attempts to set only alternative frequencies of the selected station. If the quality is however so low, that there is a risk of a “program loss”, the unit also accepts “related” frequencies.
When opting for
REG AUTO
the change to a regional “related” station can only be
performed if there is a risk of losing the station. When selecting
REG OFF
, the
receiver can access the regional
“related” stations unlimited.
GALA Your radio increases automatically its volume with the increasing vehicle speed. A higher setting value results in a stronger volume increase. LO U D In case of low volume level, the function reinforces the range of bass and treble frequencies. BEEP Switching on or off the tone signal when storing the radio stations. ON VOL Your radio stores the last volume set before switching off. If the value is higher, the volume is reduced to the value of the parameter
ON VOL
after switching on the
radio again. PHONE* If your vehicle is equipped
with a handsfree system, th
e monophone play function
of the mobile phone calls is carried ou
t via the loudspeakers of the vehicle.
PDC AT* If your vehicle is equippe
d with “parking aid”, the volume is automatically
decreased to a pre-defined value, when the “parking aid” is active.•
PDC AT0
- does not restrict the volume;
•
PDC AT1
- restricts the current volume to a middle level;
•
PDC AT2
- restricts the current volume to a low level;
•
PDC AT3
- switches off the tone completely (Mute).
AUX* Setting of the input sensitivity
AUX LEV
:
•
AUX LEV 1
- high level, used in particular for notebooks;
•
AUX LEV 2
- middle level, used for cassettes or CD player;

A1
MENU
MENU




A1
s220.book Page 4 Tuesday, August 5, 2008 6:46 AM

Page 7 of 14

SKODA OCTAVIA 2009 2.G / (1Z) Blues Car Radio Manual Radio
5
•
AUX LEV 3
- low level, used for MP3 player;
Note
Each setting change is stored by changing to another menu point.Radio modeWaveband switch-overYour radio is fitted with the wavebands
FM

Radio
5
•
AUX LEV 3
- low level, used for MP3 player;
Note
Each setting change is stored by changing to another menu point.Radio modeWaveband switch-overYour radio is fitted with the wavebands
FM and AM, in order to change, press the
rocker switch for some considerable time. In the ranges FM1/AM1 and FM2/AM2 there are each 6 memory spaces available, in order to change, press the rocker switch briefly.The process of searching for and storing the radio stationsManual search – Set the frequency of the desired radio station by pressing the rocker
switch or .
Automatic station finding SEEK – The radio searches for the next radio station in the selected waveband
by pressing the rocker switch or .
Function SCAN – The radio station of the current waveband is briefly played (10
seconds) by pressing the rocker switch .
– This function is ended by pressing
the rocker switch once again
and the current station is replayed.
Store station – After selecting the radio station, hold the station key , on which it
should be stored until it briefly switches to mute and a brief signal sounds.
Automatic station finding with storing the radio stations – Press the rocker switch . An au
tomatic station finding is started
during which the 6 stations with the strongest signal in the memory level FM2 and/or AM2 are stored.
STORE
is displayed on the display.
This applies only to the wavebands FM2 and AM2.
When storing the radio stations on the station keys is finished, you can call up the desired radio station by pressing a station key .
Note
The stored radio stations of the curren
t waveband are updated and stored once
again by repetitively pres
sing the rocker switch .
Radio textCertain radio stations tran
smit additional text information - designated as
radio text.
Note
•
The text information must not be available to all radio stations.
•
Depending upon the quality of the received signal, the radio needs a specific
time, in order to correctly read all the illustrated characters.
A/F
A/F



SCAN
SCAN
A13
AS
A13A13AS
s220.book Page 5 Tuesday, August 5, 2008 6:46 AM

Page 9 of 14

SKODA OCTAVIA 2009 2.G / (1Z) Blues Car Radio Manual CD player
7
CD playerUsing the systemInserting the CD– Press the button , in order to select the source for the play func-
tion:
CD
(internal CD drive),
EXT
(CD changer, if it is connected to

CD player
7
CD playerUsing the systemInserting the CD– Press the button , in order to select the source for the play func-
tion:
CD
(internal CD drive),
EXT
(CD changer, if it is connected to the
radio) or
AUX
.
– Carefully insert a CD into the CD case until it is automatically
drawn in. The play function begins automatically.
Operating the CD playerAudio CD: Select track – Press the rocker switch or during the play function of the CD, in
order to select the previous and/or the next title.
– Press the rocker switch or for a longer period of time for fast
reverse or forward replay of the track. The play function is continued after releasing the button.
MP3 Data: Select track – Press the rocker switch or during the play function of the CD, in
order to select the previous and/or the next title.
– Press the rocker switch or for a longer period of time for fast
reverse or forward replay of the track. The play function is continued after releasing the button.
– Briefly press the rocker switch or for scrolling in the folders or
in the play lists (if they are present on the CD).
Function SCAN – Press the rocker switch , in order to scroll through the CD. The
first 10 seconds of each title are played.
– In order to return to the normal mode, press once again the rocker
switch .
– Press the rocker switch or if you wish to select the previous or
the following track.
End the play function of the CD – In order to end the play function of
the CD and to activate the radio,
press the rocker switch . The CD remains in the unit.
Ejecting CD – Press the button , the Cd is ejected.Display of additional information (MP3 data) In the display, you can select the display of
additional information via the MP3 data
using the station keys - :•
- Number of the folder and number of the track;
•
- Name of the track;
•
- Name of the performer;
•
- Name of the album;
•
- Name of the data;
•
- Name of the folder.Note
•
If the ejected CD is not removed, it is drawn in again for safety reasons.
•
If the radio is functioning in the TP mode before changing to the CD mode, the
play function of the CD is interrupted during the traffic reports and the unit
CD
A7









SCAN
SCAN


A/F
A61
6
123456
s220.book Page 7 Tuesday, August 5, 2008 6:46 AM

Page 11 of 14

SKODA OCTAVIA 2009 2.G / (1Z) Blues Car Radio Manual CD player
9

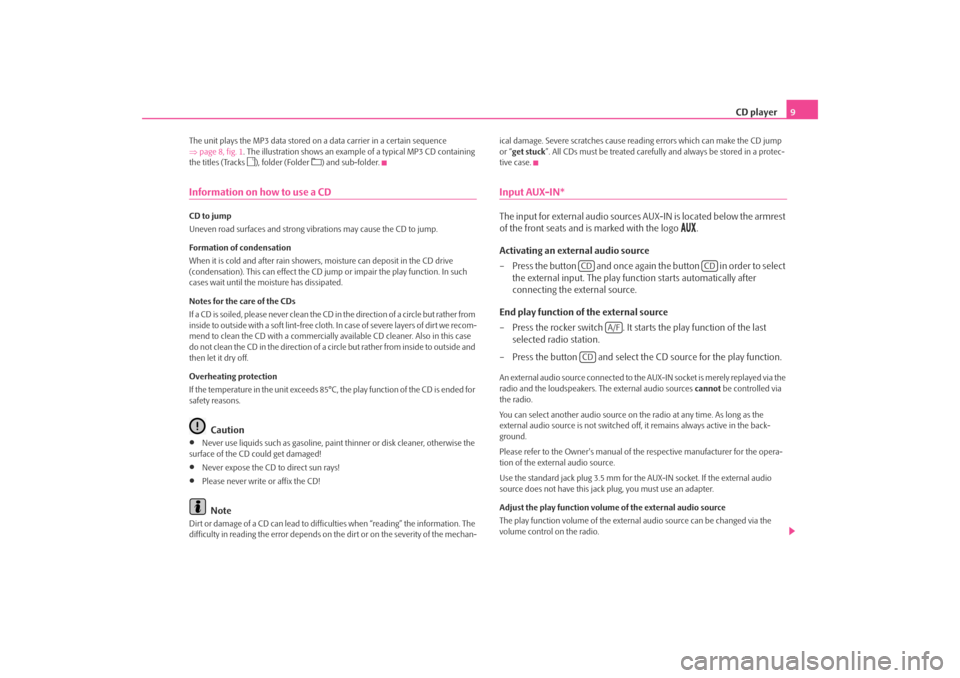

The unit plays the MP3 data stored on
a data carrier in a certain sequence
⇒ page 8, fig. 1
. The illustration shows an exampl
e of a typical MP3 CD containing
the titles (Tracks
�

CD player
9
The unit plays the MP3 data stored on
a data carrier in a certain sequence
⇒ page 8, fig. 1
. The illustration shows an exampl
e of a typical MP3 CD containing
the titles (Tracks
), folder (Folder
) and sub-folder.
Information on how to use a CDCD to jump Uneven road surfaces and strong vibrations may cause the CD to jump. Formation of condensation When it is cold and after rain showers, moisture can deposit in the CD drive (condensation). This can effect the CD ju
mp or impair the play function. In such
cases wait until the moisture has dissipated. Notes for the care of the CDs If a CD is soiled, please never clean the CD
in the direction of a circle but rather from
inside to outside with a soft lint-free cloth. In case of severe layers of dir t we recom- mend to clean the CD with a commercially av
ailable CD cleaner. Also in this case
do not clean the CD in the direction of a circle but rather from inside to outside and then let it dry off. Overheating protection If the temperature in the unit exceeds 85°C, the play function of the CD is ended for safety reasons.
Caution
•
Never use liquids such as gasoline, paint thinner or disk cleaner, otherwise the
surface of the CD could get damaged!•
Never expose the CD to direct sun rays!
•
Please never write or affix the CD!Note
Dirt or damage of a CD can lead to diffic
ulties when “reading” the information. The
difficulty in reading the error depends on th
e dirt or on the severity of the mechan-
ical damage. Severe scratches cause reading errors which can make the CD jump or “
get stuck
”. All CDs must be treated carefully and always be stored in a protec-
tive case.Input AUX-IN*The input for external audio sources
AUX-IN is located below the armrest
of the front seats and is marked with the logo

.
Activating an external audio source – Press the button and once again the button in order to select
the external input. The play function starts automatically after connecting the external source.
End play function of the external source – Press the rocker switch . It starts the play function of the last
selected radio station.
– Press the button and select the CD source for the play function.An external audio source connected to the
AUX-IN socket is merely replayed via the
radio and the loudspeakers. The external audio sources
cannot
be controlled via
the radio. You can select another audio source on
the radio at any time. As long as the
external audio source is no
t switched off, it remains always active in the back-
ground. Please refer to the Owner's manual of the respective manufacturer for the opera- tion of the external audio source. Use the standard jack plug 3.5 mm for the AUX-IN socket. If the external audio source does not have this jack
plug, you must use an adapter.
Adjust the play function volume of the external audio source The play function volume of the external audio source can be changed via the volume control on the radio.
CD
CD
A/F
CD
s220.book Page 9 Tuesday, August 5, 2008 6:46 AM

Page 13 of 14
