2009 Seat Altea technical data

Technical Data
280Weights
Trailer weights
Engine oil capacityDiesel engine 1.9 TDI 77 kW (105 HP). ManualEngine dataGross vehicle weight
in kg 2015
Weight in working order (with driver) in kg 1495
Front gross axle weight in kg 1062
Rear gross axle weight in kg 994
Permitted roof load in kg 75
Trailer without brakes 740
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.6 litres
Power output in kW (HP) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel
Altea_EN.book Seite 280 Montag, 19. Januar 2009 1:31 13

Technical Data281
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 183
Acceleration from 0-80 km/h in sec. 8,2
Acceleration from 0-100 km/h in sec. 12,3
Gross vehicle weight in kg 2005
Weight in working order (with driver) in kg 1480
Front gross axle weight in kg 1045
Rear gross axle weight in kg 983
Permitted roof load in kg 75
Trailer without brakes 740
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Altea_EN.book Seite 281 Montag, 19. Januar 2009 1:31 13

Technical Data
282Diesel engine 1.9 TDI 77 kW (105 HP). AutomaticGeneral engine data
Performance figures
Weights Power output in kW (HP)
rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 19 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 8,1
Acceleration from 0-100 km/h in sec. 12,5
Gross vehicle weight in kg 2030
Weight in working order (with driver) in kg 1510
Front gross axle weight in kg 1074
Rear gross axle weight in kg 982
Permitted roof load in kg 75
Altea_EN.book Seite 282 Montag, 19. Januar 2009 1:31 13

Technical Data283
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity
Diesel engine 2.0 TDI 103 kW (140 HP). ManualGeneral engine data
Performance figures
Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (HP) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 201
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 9,9
Altea_EN.book Seite 283 Montag, 19. Januar 2009 1:31 13

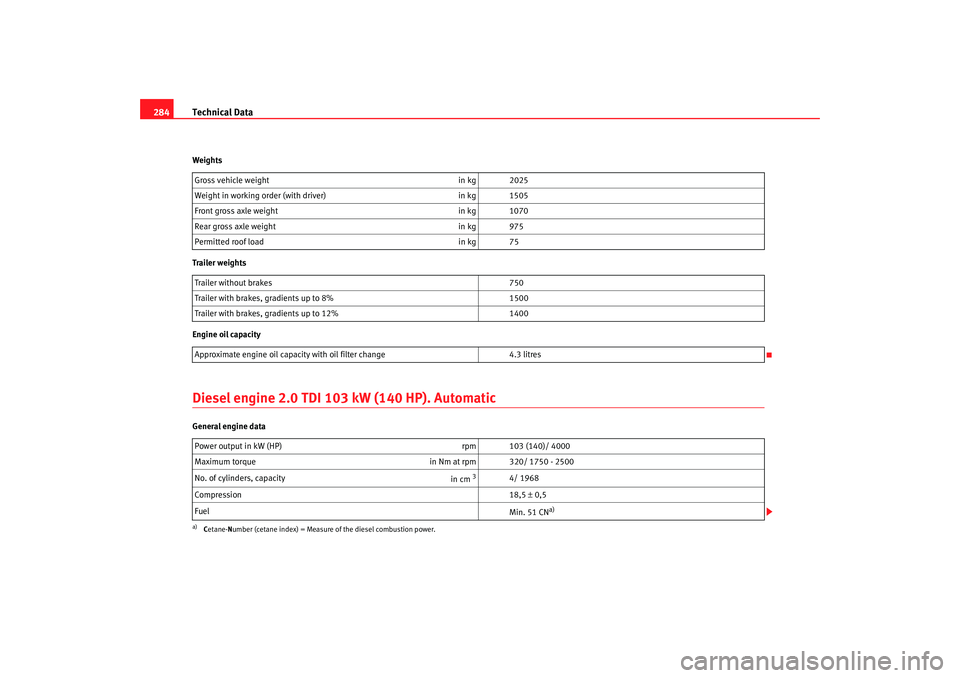

Technical Data
284Weights
Trailer weights
Engine oil capacityDiesel engine 2.0 TDI 103 kW (140 HP). AutomaticGeneral engine data Gross vehicle weight
in kg 2025
Weight in working order (with driver) in kg 1505
Front gross axle weight in kg 1070
Rear gross axle weight in kg 975
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (HP) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
Altea_EN.book Seite 284 Montag, 19. Januar 2009 1:31 13

Technical Data285
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 201
Acceleration from 0-80 km/h in sec. 6,7
Acceleration from 0-100 km/h in sec. 9,8
Gross vehicle weight in kg 2060
Weight in working order (with driver) in kg 1540
Front gross axle weight in kg 1105
Rear gross axle weight in kg 980
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Altea_EN.book Seite 285 Montag, 19. Januar 2009 1:31 13

Technical Data
286Diesel engine 2.0l 125 kW (170 bhp)General engine data
Performance figures
Weights
Trailer weights Power output in kW (HP)
rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750-2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 16,5 ± 0,5
Fuel Min. 51 CZ
Maximum speed in km/h 211
Acceleration from 0-80 km/h in sec. 6,1
Acceleration from 0-100 km/h in sec. 8,6
Gross vehicle weight in kg 2025
Weight in working order (with driver) in kg 1505
Front gross axle weight in kg 1092
Rear gross axle weight in kg 982
Permitted roof load in kg 75
Trailer without brakes 750
With brakes, gradients up to 8% 1500
With brakes, gradients up to 12% 1400
Altea_EN.book Seite 286 Montag, 19. Januar 2009 1:31 13

Technical Data287
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.8 litres
Altea_EN.book Seite 287 Montag, 19. Januar 2009 1:31 13
