2009 SATURN VUE service schedule

3. With the engine off, turn the
ignition to ON/RUN, but do
not start the engine. Without
applying the regular brake, try to
move the shift lever out of
P (Park) with normal effort. If the
shift lever moves out of
P (Park), contact your
dealer/retailer for service.
Ignition Transmission Lock
Check
While parked, and with the parking
brake set, try to turn the ignition
to LOCK/OFF in each shift
lever position.
For automatic transmission
vehicles, the ignition should turn
to LOCK/OFF only when the
shift lever is in P (Park).
The ignition key should come out
only in LOCK/OFF.
For manual transmission
vehicles, the ignition key should
come out only in LOCK/OFF.
Contact your dealer/retailer if service
is required.
Parking Brake and Automatic
Transmission P (Park)
Mechanism Check
{CAUTION
When you are doing this check,
the vehicle could begin to move.
You or others could be injured
and property could be damaged.
Make sure there is room in front
of the vehicle in case it begins to
roll. Be ready to apply the regular
brake at once should the vehicle
begin to move.
Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot on the regular brake, set
the parking brake.
To check the parking brake’s
holding ability: With the engine
running and transmission in
N (Neutral), slowly remove foot
pressure from the regularbrake pedal. Do this until the
vehicle is held by the parking
brake only.
To check the P (Park)
mechanism’s holding ability: With
the engine running, shift to
P (Park). Then release the
parking brake followed by the
regular brake.
Contact your dealer/retailer if
service is required.
Underbody Flushing Service
At least every spring, use plain
water to ush any corrosive
materials from the underbody. Take
care to clean thoroughly any
areas where mud and other debris
can collect.
6-12 Maintenance Schedule
ProCarManuals.com

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. SeeMaintenance Requirements on page 6-1. Any additional
information from Owner Checks and Services on page 6-10 can be added on the following record pages. You should
retain all maintenance receipts.
Maintenance Record
Date Odometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
Maintenance Schedule 6-17
ProCarManuals.com

Maintenance Record (cont’d)
DateOdometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
6-18 Maintenance Schedule
ProCarManuals.com

Maintenance Record (cont’d)
DateOdometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
Maintenance Schedule 6-19
ProCarManuals.com

Maintenance Record (cont’d)
DateOdometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
6-20 Maintenance Schedule
ProCarManuals.com

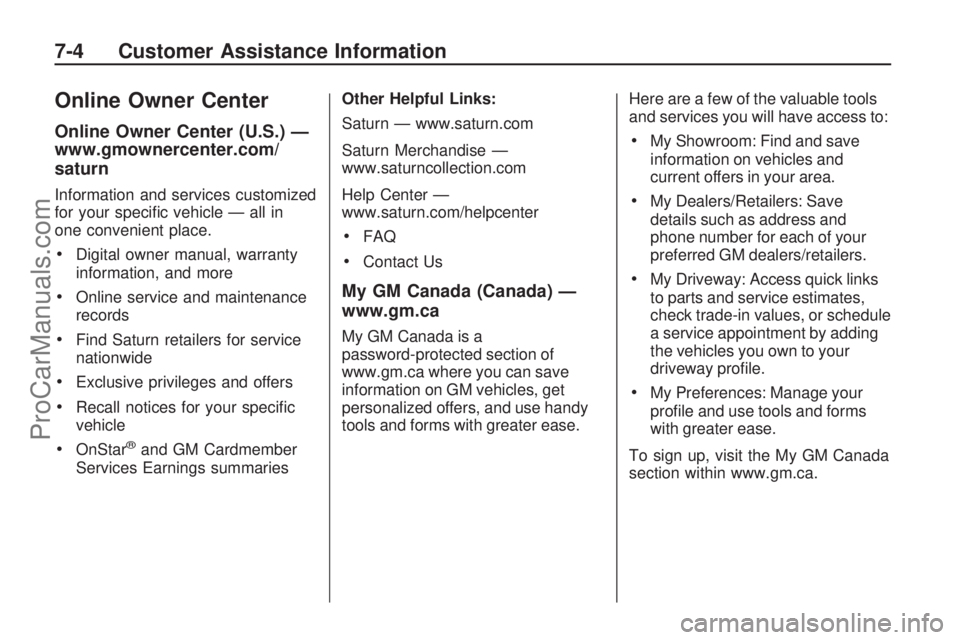

Online Owner Center
Online Owner Center (U.S.) —
www.gmownercenter.com/
saturn
Information and services customized
for your specic vehicle — all in
one convenient place.
Digital owner manual, warranty
information, and more
Online service and maintenance
records
Find Saturn retailers for service
nationwide
Exclusive privileges and offers
Recall notices for your specic
vehicle
OnStar®and GM Cardmember
Services Earnings summariesOther Helpful Links:
Saturn — www.saturn.com
Saturn Merchandise —
www.saturncollection.com
Help Center —
www.saturn.com/helpcenter
FAQ
Contact Us
My GM Canada (Canada) —
www.gm.ca
My GM Canada is a
password-protected section of
www.gm.ca where you can save
information on GM vehicles, get
personalized offers, and use handy
tools and forms with greater ease.Here are a few of the valuable tools
and services you will have access to:
My Showroom: Find and save
information on vehicles and
current offers in your area.
My Dealers/Retailers: Save
details such as address and
phone number for each of your
preferred GM dealers/retailers.
My Driveway: Access quick links
to parts and service estimates,
check trade-in values, or schedule
a service appointment by adding
the vehicles you own to your
driveway prole.
My Preferences: Manage your
prole and use tools and forms
with greater ease.
To sign up, visit the My GM Canada
section within www.gm.ca.
7-4 Customer Assistance Information
ProCarManuals.com

Services Specic to Canadian
Purchased Vehicles

Fuel delivery:Reimbursement is
approximately $5 Canadian.
Diesel fuel delivery may
be restricted. Propane and other
fuels are not provided through
this service.
Lock-Out Service:Vehicle
registration is required.
Trip Routing Service:Detailed
maps of North America are
provided when requested either
with the most direct route or
the most scenic route. There is a
limit of six requests per year.
Additional travel information
is also available. Allow
three weeks for delivery.
Trip Interruption Benets and
Assistance:Must be over
250 kilometres from where your
trip was started to qualify. General
Motors of Canada Limited
requires pre-authorization,
original detailed receipts, and a
copy of the repair orders. Once
authorization has been received,
the Roadside Assistance advisor
will help you make arrangements
and explain how to receive
payment.
Alternative Service:If
assistance cannot be provided
right away, the Roadside
Assistance advisor may give you
permission to get local emergency
road service. You will receive
payment, up to $100, after
sending the original receipt to
Roadside Assistance. Mechanical
failures may be covered, however
any cost for parts and labor for
repairs not covered by the
warranty are the owner
responsibility.
Scheduling Service
Appointments
When your vehicle requires warranty
service, contact your dealer/retailer
and request an appointment. By
scheduling a service appointment
and advising your service consultant
of your transportation needs, your
dealer/retailer can help minimize
your inconvenience.
If your vehicle cannot be scheduled
into the service department
immediately, keep driving it until it
can be scheduled for service,
unless, of course, the problem is
safety-related. If it is, please
call your dealership/retailer, let them
know this, and ask for instructions.
If the dealer/retailer requests
you to bring the vehicle for service,
you are urged to do so as early
in the work day as possible to allow
for the same day repair.
7-8 Customer Assistance Information
ProCarManuals.com

Courtesy Transportation
To enhance your ownership
experience, we and our participating
retailers are proud to offer Courtesy
Transportation, a customer
support program for vehicles with
the Bumper to Bumper (Base
Warranty Coverage period in
Canada), extended powertrain, and
hybrid specic warranties in both
the U.S. and Canada.
Several courtesy transportation
options are available to assist
in reducing your inconvenience
when warranty repairs are required.
Courtesy Transportation is not a
part of the New Vehicle Limited
Warranty. A separate booklet
entitled “Warranty and Owner
Assistance Information” furnished
with each new vehicle provides
detailed warranty coverage
information.
Transportation Options
Warranty service can generally
be completed while you wait.
However, if you are unable to wait,
Saturn helps to minimize your
inconvenience by providing several
transportation options. Depending on
the circumstances, your retailer can
offer you one of the following:
Shuttle Service
Shuttle service is the preferred
means of offering Courtesy
Transportation. Retailers may
provide you with shuttle service to
get you to your destination with
minimal interruption of your daily
schedule. This includes one-way or
round trip shuttle service within
reasonable time and distance
parameters of the retailer’s area.Public Transportation or Fuel
Reimbursement
If your vehicle requires overnight
warranty repairs, and public
transportation is used instead of the
retailer’s shuttle service, the expense
must be supported by original
receipts and can only be up to the
maximum amount allowed by Saturn
for shuttle service. In addition, for
U.S. customers, should you arrange
transportation through a friend or
relative, limited reimbursement for
reasonable fuel expenses may be
available. Claim amounts should
reect actual costs and be supported
by original receipts. See your retailer
for information regarding the
allowance amounts for
reimbursement of fuel or other
transportation costs.
Customer Assistance Information 7-9
