2009 SATURN OUTLOOK keyless

Power Lumbar
If the seats have power lumbar, the
controls used to operate this feature
are located on the outboard side of
the seats. See “Power Lumbar”
underPower Seats on page 1-4for
more information.
To increase or decrease lumbar
support, press and hold the front or
rear of the control (C).
Release the control when the
seatback reaches the desired level
of lumbar support.
The lumbar support may need to be
adjusted when changing the
seating position.
Heated Seats
On vehicles with heated front seats,
the controls are located on the
center console. To operate
the heated seats the engine must
be running.
I(Heated Seatback):Press to
turn on the heated seatback.
J(Heated Seat and Seatback):
Press to turn on or off the
heated seat and seatback.
The light on the button will come on
to indicate that the feature is on.
Each time the button is pressed, the
temperature settings change from
high, to medium, to low, to off.
Indicator lights above the button
will show the level of heat selected:
three for high, two for medium, and
one for low.The passenger seat may take
longer to heat up.
If the vehicle has remote vehicle
start and is started using the remote
keyless entry transmitter, the front
heated seats will be turned on to the
high setting if it is cold outside.
See “Remote Vehicle Start” under
Remote Keyless Entry (RKE)
System Operation on page 2-4.
When the ignition is turned on, the
heated seat feature will turn off.
To turn the heated seat feature back
on, press the desired button.
Seats and Restraint System 1-5
ProCarManuals.com

Features and
Controls
KeysKeys...................................2-2
Remote Keyless Entry (RKE)
System..............................2-3
Remote Keyless Entry (RKE)
System Operation................2-4
Remote Vehicle Start.............2-6
Doors and LocksDoor Locks..........................2-8
Power Door Locks.................2-8
Delayed Locking...................2-8
Programmable Automatic
Door Locks.........................2-9
Rear Door Security Locks.......2-9
Lockout Protection.................2-9
Liftgate...............................2-10
Power Liftgate.....................2-11
WindowsWindows............................2-14
Power Windows..................2-14
Sun Visors.........................2-16
Theft-Deterrent SystemsTheft-Deterrent Systems.......2-16
Content Theft-Deterrent........2-16
PASS-Key
®III+ Electronic
Immobilizer.......................2-18
PASS-Key
®III+ Electronic
Immobilizer Operation.........2-18
Starting and Operating
Your Vehicle
New Vehicle Break-In...........2-20
Ignition Positions.................2-20
Retained Accessory
Power (RAP).....................2-21
Starting the Engine..............2-22
Engine Coolant Heater.........2-23
Automatic Transmission
Operation..........................2-24
Tow/Haul Mode...................2-26
Parking Brake.....................2-27
Shifting Into Park.................2-28
Shifting Out of Park.............2-29
Parking Over Things
That Burn.........................2-29
Engine Exhaust...................2-30
Running the Vehicle While
Parked.............................2-30
MirrorsManual Rearview Mirror........2-31
Automatic Dimming
Rearview Mirror.................2-31
Outside Power Mirrors..........2-32
Outside Power Foldaway
Mirrors.............................2-33
Park Tilt Mirrors..................2-34
Outside Convex Mirror..........2-34
Outside Heated Mirrors.........2-34
Object Detection SystemsUltrasonic Rear Parking
Assist (URPA)...................2-34
Rear Vision Camera (RVC).....2-37
OnStar®SystemOnStar®System..................2-42
Universal Home Remote
System
Universal Home Remote
System.............................2-45
Universal Home Remote
System Operation..............2-46
Features and Controls 2-1
ProCarManuals.com

See your dealer/retailer if a
replacement key or additional key
is needed.
Notice:If you ever lock your
keys in the vehicle, you may have
to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of the vehicle,
call the Roadside Assistance
Center. SeeRoadside Assistance
Program on page 7-6.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
system operates on a radio
frequency subject to Federal
Communications Commission (FCC)
Rules and with Industry Canada.This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
This device complies with
RSS-210 of Industry Canada.
Operation is subject to the following
two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.
If there is a decrease in the RKE
operating range, try this:
Check the distance. The
transmitter may be too far from
the vehicle. Stand closer
during rainy or snowy weather.
Check the location. Other vehicles
or objects may be blocking the
signal. Take a few steps to the left
or right, hold the transmitter
higher, and try again.
Check the transmitter’s battery.
See “Battery Replacement” later
in this section.
If the transmitter is still not
working correctly, see your
dealer/retailer or a qualied
technician for service.
Features and Controls 2-3
ProCarManuals.com

Remote Keyless Entry
(RKE) System Operation
The Remote Keyless Entry (RKE)
transmitter functions work up
to 195 feet (60 m) away from the
vehicle.
There are other conditions which
can affect the performance of
the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-3.
/(Remote Vehicle Start):
For vehicles with this feature,
seeRemote Vehicle Start on
page 2-6for additional information.
Q(Lock):Press to lock all
the doors.
If enabled through the Driver
Information Center (DIC), the
parking lamps ash once to indicate
locking has occurred. If enabled
through the DIC, the horn sounds
when
Qis pressed again within
ve seconds. SeeDIC Vehicle
Customization (With DIC Buttons)
on page 3-65for additional
information.
Pressing
Qmay arm the content
theft-deterrent system. SeeContent
Theft-Deterrent on page 2-16.
K(Unlock):Press once to unlock
only the driver door. If
Kis
pressed again within ve seconds,
all remaining doors unlock.The interior lamps come on and
stay on for 20 seconds or until the
ignition is turned on.
If enabled through the DIC, the
parking lamps ash twice to indicate
unlocking has occurred. SeeDIC
Vehicle Customization (With DIC
Buttons) on page 3-65.
Pressing
Kon the RKE transmitter
disarms the content theft-deterrent
system. SeeContent Theft-Deterrent
on page 2-16.
&(Power Liftgate):Press and
hold for about one second to open
and close the liftgate. The taillamps
ash and a chime sounds to indicate
when the liftgate is opening and
closing.
L(Vehicle Locator/Panic Alarm):
Press and release to locate the
vehicle. The parking lamps ash
and the horn sounds three times.
With Remote Start and Liftgate
(Without Remote Start or
Liftgate Similar)
2-4 Features and Controls
ProCarManuals.com

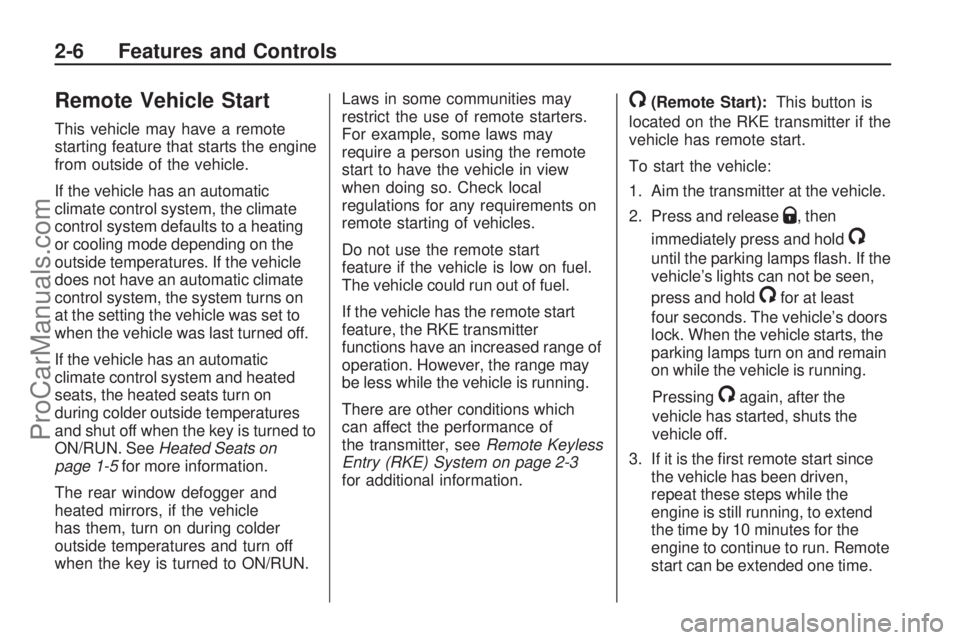

Remote Vehicle Start
This vehicle may have a remote
starting feature that starts the engine
from outside of the vehicle.
If the vehicle has an automatic
climate control system, the climate
control system defaults to a heating
or cooling mode depending on the
outside temperatures. If the vehicle
does not have an automatic climate
control system, the system turns on
at the setting the vehicle was set to
when the vehicle was last turned off.
If the vehicle has an automatic
climate control system and heated
seats, the heated seats turn on
during colder outside temperatures
and shut off when the key is turned to
ON/RUN. SeeHeated Seats on
page 1-5for more information.
The rear window defogger and
heated mirrors, if the vehicle
has them, turn on during colder
outside temperatures and turn off
when the key is turned to ON/RUN.Laws in some communities may
restrict the use of remote starters.
For example, some laws may
require a person using the remote
start to have the vehicle in view
when doing so. Check local
regulations for any requirements on
remote starting of vehicles.
Do not use the remote start
feature if the vehicle is low on fuel.
The vehicle could run out of fuel.
If the vehicle has the remote start
feature, the RKE transmitter
functions have an increased range of
operation. However, the range may
be less while the vehicle is running.
There are other conditions which
can affect the performance of
the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-3
for additional information.
/(Remote Start):This button is
located on the RKE transmitter if the
vehicle has remote start.
To start the vehicle:
1. Aim the transmitter at the vehicle.
2. Press and release
Q, then
immediately press and hold
/
until the parking lamps ash. If the
vehicle’s lights can not be seen,
press and hold
/for at least
four seconds. The vehicle’s doors
lock. When the vehicle starts, the
parking lamps turn on and remain
on while the vehicle is running.
Pressing
/again, after the
vehicle has started, shuts the
vehicle off.
3. If it is the rst remote start since
the vehicle has been driven,
repeat these steps while the
engine is still running, to extend
the time by 10 minutes for the
engine to continue to run. Remote
start can be extended one time.
2-6 Features and Controls
ProCarManuals.com

Liftgate
{CAUTION
Exhaust gases can enter the
vehicle if it is driven with the
liftgate, trunk/hatch open, or with
any objects that pass through
the seal between the body and
the trunk/hatch or liftgate.
Engine exhaust contains Carbon
Monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
If the vehicle must be driven with
the liftgate, or trunk/hatch open:
Close all of the windows.
Fully open the air outlets on or
under the instrument panel.
(Continued)
CAUTION (Continued)
Adjust the Climate Control
system to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See Climate
Control System in the Index.
If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
For more information about
carbon monoxide, seeEngine
Exhaust on page 2-30.
If the vehicle has a power liftgate,
seePower Liftgate on page 2-11.
To unlock the liftgate, use the power
door lock switch or press the door
unlock button on the RKE transmitter
twice. SeeRemote Keyless Entry
(RKE) System Operation on
page 2-4.To open the liftgate, press the
touchpad on the underside of the
liftgate handle. The vehicle must be
in P (Park) to open the liftgate.
To close the liftgate, use the pull cup
or strap.
The liftgate has an electric latch.
If the battery is disconnected or has
low voltage, the liftgate will not
open. The liftgate will resume
operation when the battery is
reconnected and charged.
If the battery is properly connected
and has adequate voltage, and
the liftgate still will not function,
the vehicle should be taken
to a dealers/retailer for service.
2-10 Features and Controls
ProCarManuals.com

Power Liftgate
Power Liftgate Operation
{CAUTION
Exhaust gases can enter the
vehicle if it is driven with the
liftgate, trunk/hatch open, or with
any objects that pass through the
seal between the body and the
trunk/hatch or liftgate. Engine
exhaust contains Carbon
Monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
If the vehicle must be driven with
the liftgate, or trunk/hatch open:
Close all of the windows.
Fully open the air outlets on or
under the instrument panel.
(Continued)
CAUTION (Continued)
Adjust the Climate Control
system to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See Climate
Control System in the Index.
If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
For more information about
carbon monoxide, seeEngine
Exhaust on page 2-30.
The vehicle may have a power
liftgate. The vehicle must be
in P (Park) to use this feature.
The taillamps will ash and a chime
will sound when the power liftgate
is used.
{CAUTION
You or others could be injured if
caught in the path of the power
liftgate. Make sure there is no one
in the way of the liftgate as it is
opening and closing.
Notice:If you open the liftgate
without checking for overhead
obstructions such as a garage
door, you could damage the
liftgate or the liftgate glass.
Always check to make sure the
area above and behind the liftgate
is clear before opening it.
The power liftgate can be power
opened and closed in the
following ways:
Press and hold the power liftgate
button on the RKE transmitter
until the liftgate starts moving.
Remote Keyless Entry (RKE)
System Operation on page 2-4
for more information.
Features and Controls 2-11
ProCarManuals.com

Anti-Pinch Feature
The anti-pinch feature is on windows
with the express-up feature. If an
object is in the way of the window as
it is express-closing, or in certain
weather conditions like severe
icing, the window will stop and
open to a factory preset position.
The window functions normally once
the obstruction is removed.
Window Lockout
o(Window Lockout):The
window lockout switch is located
with the power window switches
on the driver door armrest.
This feature prevents the rear
passenger windows from operating
the windows, except from the
driver position. Press the switch to
turn the lockout feature on or off.
An indicator light will come on
to show the lockout feature is on.
Sun Visors
Pull the sun visor down to block
glare. Detach the sun visor from the
center mount and slide it along
the rod from side-to-side to cover
the driver or passenger side of
the front window. Swing the
sun visor to the side to cover the
side window. It can be moved along
the rod from side-to-side in this
position also.
Lighted Visor Vanity Mirror
The vehicle has lighted visor vanity
mirrors on both the driver and
passenger sun visors. Pull the
sun visor down and lift the mirror
cover to turn the lamps on.
Theft-Deterrent
Systems
Vehicle theft is big business,
especially in some cities.
This vehicle has theft-deterrent
features, however, they do not
make it impossible to steal.
Content Theft-Deterrent
This vehicle may have a content
theft-deterrent alarm system.
To activate the theft-deterrent
system, do one of the following:
PressQon the Remote Keyless
Entry (RKE) transmitter or the
power door lock switch when any
door is open.
The security light ashes.
2-16 Features and Controls
ProCarManuals.com
