82 Instruments and controlsFunctionsPressing AUTO will cancel all manual settings.
If a manual function is selected, it will be locked in but other functions
will be controlled automatically.
The selected temperature is always maintained automatically.
Temperature, air distribution, fan speed and recircu-
lation will be controlled automatically.
Pressing AUTO once will cancel all previous manual
selections.
The ACC system is in AUTO mode when the engine
is started.
A/C compressor OFF.
No cooling of inlet air. Temperature, air distribution
and fan speed still under automatic control.
Turn the fan control anticlockwise until "OFF" lights
up.
ACC system OFF.
Fa n O F F.
A/C compressor OFF.
Air distribution selections locked in current settings.
Recirculation can be selected manually.
Heating
3 and ventilation
3 of the front seats is deac-
tivated.
Pressing the AUTO button will put the system into
automatic mode.
Reactivation by turning the fan control clockwise one
click causes the system to resume any manual selec-
tions.
The rear window and door mirror heating is controlled
manually.
Deactivate the heating as soon as the rear window is
clear of ice and misting to avoid imposing a heavy load
on the battery longer than necessary. Note, however,
that heating will deactivate automatically after a set
time, depending on the outside temperature.
The ACC system can be programmed to activate
heating automatically when outside temperature is
below +5 °C and the temperature inside the car is
below +10°C. See page 85.
Turn the fan control to increase fan speed.
If fan speed 0 is selected, the A/C compressor will be
disengaged and the indicator on the AC OFF button
will illuminate.
Recirculation is controlled automatically to optimize
cooling although it can also be switched on and off
manually.
Recirculation does not appreciably change the air
quality but it can be useful to switch it on to avoid
unpleasant smells from entering the cabin.
95_US_MY09.book Page 82 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

105 Saab 9-5 Audio System
Connecting and activating a
portable player1 Connect the unit to the audio system via
the AUX input.
2 Press the CD AUX button to activate the
portable player.
General functionsSetting time and dateCars without CD changer
1 Press the Clock button.
2 Press the pushbutton under the menu
option you wish to change.
3 Press the pushbutton again to increase
time or date one increment at a time. You
can also adjust time and date by press-
ing the SEEK, FWD or REV button.Cars with CD changer
1 Press the MENU button.
2 Press the pushbutton under the clock
symbol in the display.
3 Press the pushbutton under the menu
option you wish to change.
4 Press the pushbutton again to increase
time or date one increment at a time. You
can also adjust time and date by press-
ing the SEEK, FWD or REV button.
Setting time and date
WARNING
Adjustments should be made when the
car is stationary so that attention to traffic
is not reduced, increasing the likelihood
of an accident.
IB4708
AUX input at the bottom right of the audio
system95_US_MY09.book Page 105 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

106 Saab 9-5 Audio SystemTime and date display
1 In the clock menu, press the pushbutton
under the arrow symbol in the display.
2 Specify whether time should be
displayed with the 12-hour or 24-hour
system and in which order date is to be
indicated by pressing the pushbutton
under the desired menu option.
Time and date display
Speed dependent volume
compensationAs vehicle speed increases, ambient noise
also increases. If you do not wish to contin-
ually adjust the volume, the audio system
can automatically adjust volume based on
an increase or decrease in vehicle speed.
Select one of four settings:

Off
(no compensation)

Low
(low compensation)

Med
(medium compensation)

High
(maximum compensation)
1 Press the MENU button.
2 Press the pushbutton under the menu
option AUTO VOLUME
.
3 Press the pushbutton under the desired
speed compensation.
Speed dependent volume compensation
NOTICEThe menu option RDS has no
function on US/CA cars.95_US_MY09.book Page 106 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

147 Starting and driving
Refueling1 Switch off the engine.
2 Open the fuel cap, located in the
right-hand rear fender.
3 Insert the fuel pump nozzle beyond the
flange on the filler pipe and let the first
mark (a ring, a pimple or the first
spring-coil) rest on the flange. Do not
withdraw the nozzle while filling is in
progress.
4 Cease refueling the first time the pump
stops, and wait a few seconds after
you´ve finished pumping before you
remove the nozzle.Fuel cap
To remove the fuel cap, turn it slowly to the
left (counterclockwise). The fuel cap has a
spring in it; if you let go of the cap too soon,
it will spring back to the right.
When you put the fuel cap back on, turn it to
the right (clockwise) until you hear 3 clicks.
Make sure you fully install the cap.
The diagnostic system can determine if the
fuel cap has been left off or is improperly
installed. See Service Engine Light also
known as CHECK ENGINE indicator light
on page 58.The most effective way to prevent conden-
sation forming in the tank (and thus avoid
possible running problems) is to keep the
tank well filled.
Before the onset of freezing temperatures in
winter, it may be advisable to add gasoline
anti-freeze to the fuel a few times to dispel
any condensation in the system.
The fuel door has a built in filler cap holder
slot located on the fuel door. Slide the white
ring on the cap into the slot.
Notice: If you need a new fuel cap, be sure
to get the right type. Your dealer can get one
for you. If you get the wrong type, it may not
fit properly
WARNING
If a fire starts while you are refueling, do
not remove the nozzle. Shut off the flow of
fuel by shutting off the pump or by notify-
ing the station attendant. Leave the area
immediately.
NOTICEDo not overfill. Fuel should not come
right up the filler pipe as expansion room
is needed when the temperature rises.
 Fill to maximum filling capacity.
 Stop filling after the first time that the
nozzle trips to shut off the flow of fuel.
 Filling capacity can differ between
different fuel stations and outside
temperature. Fuel tank volume when
nozzle trips to shut off, may vary by
0.5 gal. (2 liters).
 Do not fill fuel all the way up the filler
pipe. The gasoline must be allowed
room for expansion especially during
hot weather.
When refueling, hang the fuel cap inside
the fuel door
95_US_MY09.book Page 147 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

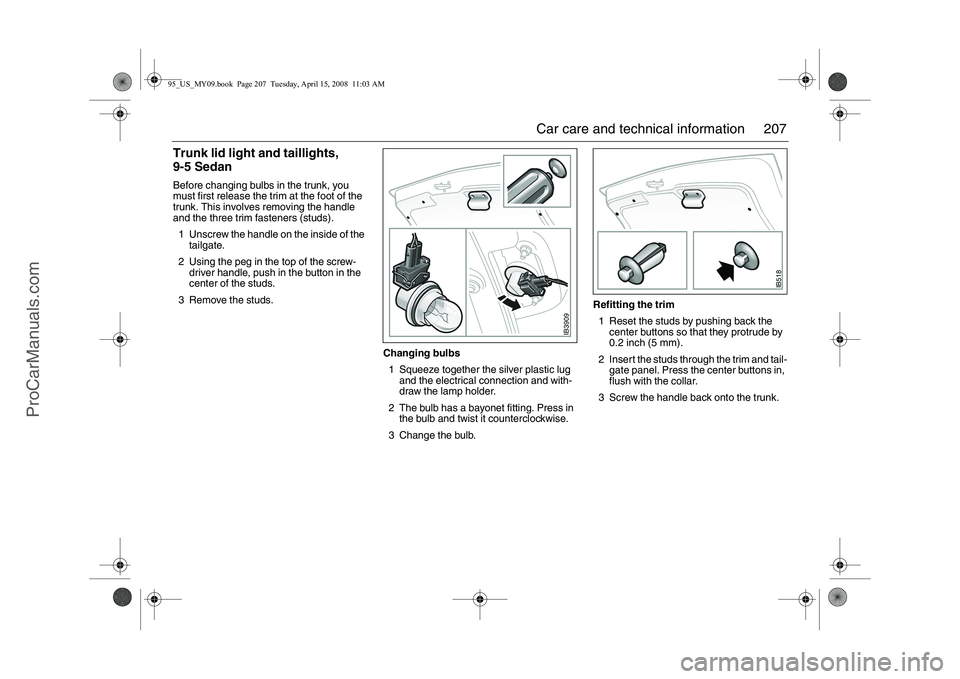

207 Car care and technical information
Trunk lid light and taillights,
9-5 SedanBefore changing bulbs in the trunk, you
must first release the trim at the foot of the
trunk. This involves removing the handle
and the three trim fasteners (studs).
1 Unscrew the handle on the inside of the
tailgate.
2 Using the peg in the top of the screw-
driver handle, push in the button in the
center of the studs.
3 Remove the studs.
Changing bulbs
1 Squeeze together the silver plastic lug
and the electrical connection and with-
draw the lamp holder.
2 The bulb has a bayonet fitting. Press in
the bulb and twist it counterclockwise.
3 Change the bulb.Refitting the trim
1 Reset the studs by pushing back the
center buttons so that they protrude by
0.2 inch (5 mm).
2 Insert the studs through the trim and tail-
gate panel. Press the center buttons in,
flush with the collar.
3 Screw the handle back onto the trunk.
IB3909
IB518
95_US_MY09.book Page 207 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

270 IndexRear fog light
____________________ 74
Rear seat, 9-5 Sedan, folding
______ 129
Rear seat, 9-5 SportCombi, folding
__ 132
Rear window heating
_____________ 82
Rear-seat head restraints __________ 21
Rear-view mirror, auto-dimming
____ 121
Rearview mirrors
________________ 116
Reclamation
___________________ 248
Recommendations for cars with
automatic transmission, towing a
camper or trailer
_______________ 175
Refuelling
_____________________ 146
Relay panel ____________________ 217
Remote control __________________ 44
Remote-control battery, changing
____ 49
Remove the key
________________ 140
Removing CDs
__________________ 99
Removing CDs, CD-changer
______ 100
Removing MP3 discs
____________ 102
Replacement, wheel
_____________ 225
Reporting safety defects
__________ 254
Reprogramming of systems _______ 265
Reservoir, power-steering fluid _____ 196
Retractable door mirrors
__________ 117
Rev counter
_____________________ 64
Reversing lights
_________________ 76
Rolling advertisements
____________ 94
Roof load
______________________ 179
Rotation of tires
_________________ 231
Running-in
_____________________ 170
SSDM
_________________________ 255
SID
___________________________ 68
Saab Information Display (SID)
______ 68
Saab Parking Assistance
_________ 168
Safety belts
_____________________ 12
Safety belts, care of
_____________ 240
Safety-belt pretensioners
__________ 15
Safety-belt reminder
______________ 12
Seats
__________________________ 18
Securing a load
__________________ 47
Selecting a radio station
___________ 93
Selecting and changing tracks, CD
___ 99
Selecting/changing MP3 file
_______ 103
Selector lever indication, automatic
transmission
___________________ 67
Sentronic, manual mode
__________ 156
Service costs
___________________ 253
Service information
______________ 254
Service intervals
________________ 252
Service record retention
__________ 253
Setting the clock
________________ 105
Setting the date _________________ 105
Settings, seats ___________________ 18
Shadow effect __________________ 110
Side airbags
____________________ 36
Signalling, horn _________________ 114
Snow chains
___________________ 172
Sorting music __________________ 103
Sound system __________________ 107
Sources of AM interference
________ 111Sources of FM interference
________ 111
Spare wheel
___________________ 235
Spark plugs
____________________ 260
Speed dependent volume
compensation _________________ 106
Speedometer
_________________ 64
, 65
Starting in cold weather, ACC
_______ 84
Starting in hot weather, ACC ________ 84
Steering wheel adjustment
________ 114
Steering wheel controls
____________ 91
Steps for determining correct load
limit
_________________________ 231
Stone-chip damage, repairing
______ 243
Storage compartments
___________ 126
Storing radio stations
______________ 93
Sun visors
_____________________ 125
Switches
_______________________ 73
Symboler ________________________ 9
Systems, adjustment
_____________ 265
TTCS OFF
_______________________ 63
TP
____________________________ 99
Table of fuses
__________________ 216
Tachometer
_____________________ 64
Tailgate, opening
_________________ 47
Tank gauge
_____________________ 65
Technical data __________________ 257
Technical data, radio/audio
________ 108
Temperature control, ACC _________ 81
95_US_MY09.book Page 270 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com
