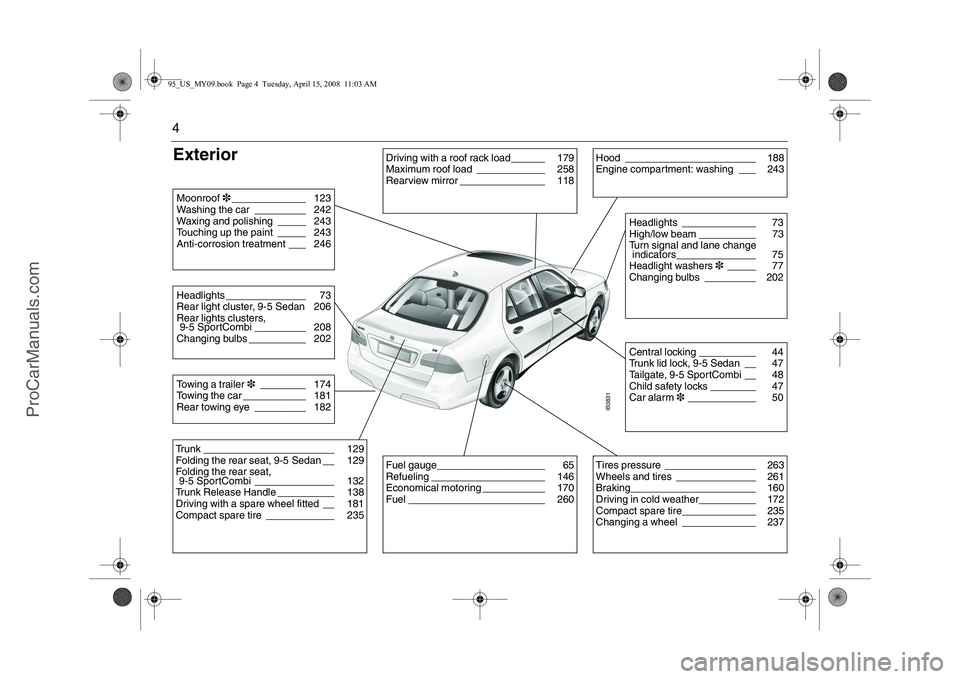

4Exterior
IB3831
Driving with a roof rack load______ 179
Maximum roof load ____________ 258
Rearview mirror _______________ 118
Hood _______________________ 188
Engine compartment: washing ___ 243
Central locking __________ 44
Trunk lid lock, 9-5 Sedan __ 47
Tailgate, 9-5 SportCombi __ 48
Child safety locks ________ 47
Car alarm3____________ 50Headlights _____________ 73
High/low beam __________ 73
Turn signal and lane change
indicators______________ 75
Headlight washers3_____ 77
Changing bulbs _________ 202
Fuel gauge___________________ 65
Refueling ____________________ 146
Economical motoring ___________ 170
Fuel ________________________ 260
b Tires pressure ________________ 263
Wheels and tires ______________ 261
Braking______________________ 160
Driving in cold weather__________ 172
Compact spare tire_____________ 235
Changing a wheel _____________ 237
Trunk _______________________ 129
Folding the rear seat, 9-5 Sedan __ 129
Folding the rear seat,
9-5 SportCombi ______________ 132
Trunk Release Handle __________ 138
Driving with a spare wheel fitted __ 181
Compact spare tire ____________ 235Towing a trailer3________ 174
Towing the car ___________ 181
Rear towing eye _________ 182Headlights ______________ 73
Rear light cluster, 9-5 Sedan 206
Rear lights clusters,
9-5 SportCombi _________ 208
Changing bulbs __________ 202Moonroof3_____________ 123
Washing the car _________ 242
Waxing and polishing _____ 243
Touching up the paint _____ 243
Anti-corrosion treatment ___ 24695_US_MY09.book Page 4 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

187 Car care and technical information
IB3888
Hood ________________ 188
Engine compartment __ 189
Emission control
systems ____________ 190
Engine ______________ 192
Engine oil ____________ 192
Transmission fluid ____ 193
Coolant ______________ 193
Brake and clutch fluid__ 194
Power steering fluid ___ 196
Air filter _____________ 196
Battery ______________ 197
Drive belts ___________ 199
Wipers and washers ___ 200
Changing bulbs _______ 202
Fuses _______________ 214 Tires ________________ 220
Automatic tire pressure
monitoring system ___ 232
Compact spare tire ____ 235
Safety belts __________ 240
Upholstery and trim ___ 241
Textile carpeting ______ 241
Washing the car ______ 242
Waxing and polishing __ 243
Engine compartment __ 243
Touching up the paint _ 243
Air conditioning (ACC) _ 244
Anti-corrosion treatment 246
For long trips _________ 247
Recovery and/or
recycling of automotive
materials ___________ 248
Headlight aiming ______ 248
Car care and technical information
3 Asterisk means: equipment not fitted in all cars
(can depend on model variant, engine variant,
market specification, options or accessories).95_US_MY09.book Page 187 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

202 Car care and technical informationChanging bulbs
Check that the new bulb is working when
finished.
Use only "Long Life" bulbs.
Headlight aiming, see page 248.
Xenon headlight3Xenon headlights produce roughly twice as
much light as halogen bulbs and have a sig-
nificantly longer service life.
The lamp units consist of a gas discharge
lamp containing xenon. When the lights are
switched on a very high voltage activates
the xenon gas. The lamps soon reach full
intensity.
Cars with xenon headlights have automatic
levelling. The levelling system comprises
two sensors, one on the front axle, one on
the rear axle and a control unit under each
of the two headlight housings. Headlight
alignment is regulated automatically to pre-
vent dazzling oncoming traffic. Alignment is
also adjusted during braking.
WARNING
Before changing a bulb in the engine bay,
switch off the engine to avoid danger of
fingers and hands being injured by
moving parts.
The radiator fan can start up even when
the engine is switched off.
Xenon headlights3 are high voltage
and must therefore be changed at a
workshop. We recommend that you
contact an authorized Saab work-
shop. Work involving high-voltage
components is potentially lethal.NOTICE Since the headlight lenses are made
of plastic, rinse dried-on dirt with
water and allow it time to soften up
before cleaning the lenses. Avoid
rubbing the lenses when dry and
never use solvents.
 Use de-icer spray instead of scraping
the ice off.
NOTICE Do not fit bulbs with a higher rating
than 55 W, since the headlight reflec-
tor and the wiring of the car are not
designed for a higher wattage.
 Switch off the ignition before chang-
ing a bulb, to avoid possible short-cir-
cuiting.
 Do not touch the glass of the bulbs
with your fingers. The oil on your skin
can shorten the life of the bulb.
95_US_MY09.book Page 202 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

203 Car care and technical information
Headlight bulb for high beam (Halogen)On cars equipped with Xenon lamps the Halogen lamps are used
only for high beam flasher if the daytime running lights are deacti-
vated and the headlight switch is in the off position (otherwise Xenon
lamp is utilized):
1 Remove the cover from the back of the lamp unit. To improve
accessibility to the right-hand side, hold back the induction air
hose. To improve accessibility to the left-hand side, remove the
battery cover. Release the two clips along the long sides of the
cover.
2 Hold the connector and move the bulb up and down slightly while
pulling it out.
3 Detach the connector from the bulb.
4 Fit the new bulb in the connector without touching the lens with
fingers.
5 Align and fit the bulb in its guide in the reflector by moving it up
and down slightly while pushing it forward.
6Fit the cover.
IB3894
IB3895
The three covers of the headlight.
The left-hand cover is for the direction indicator. Replacement of
this bulb should be carried out by a workshop. We recommend
that you contact an authorized Saab workshop.
95_US_MY09.book Page 203 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

204 Car care and technical informationHeadlight bulb for low beam (Halogen)1 Take off the cover from the back of the lamp unit. To improve
accessibility to the right-hand headlight, hold aside the induction
air hose. To improve accessibility to the left-hand headlight,
remove the battery cover. Release the two clips along the long
sides of the cover.
2 Unplug the connector.
3 To remove the spring clip, push it in and then move it to the right.
4 Remove the bulb.
5 Without touching the glass with your fingers, insert the new bulb.
6 Line up the bulb with the guide in the reflector and secure it with
the spring clip.
7 Plug in the connector.
8Fit the cover.
Low beam bulb3On certain variants the low beam bulb is fitted in the same way as
the high beam bulb, without spring clips, see previous page.
IB3896
IB3898
Contact an
authorized
Saab workshop
if a Xenon
headlight
requires
replacement
95_US_MY09.book Page 204 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

213
Car care and technical information
Bulb tableA special kit containing spare bulbs and fuses is available as an
accessory from your Saab dealer. A storage space for this is pro-
vided adjacent to the toolkit and jack, under the panel in the luggage
compartment. # Cap Wattage
1 H7 55 Headlight
2 H8 35 Fog light
3 P21W 21 Reversing lamp; rear fog lamp; rear direc-
tion indicator
4 P21/5W 21/5 Stop/tail lamp
5 R10W 10 Dome light; courtesy lights; glove com- partment; luggage compartment
6 R5W 5 Safety belt reminder; license-plate lighting
7 Xenon w9U 6 Reading light, overhead panel
8 T4W 4 Reading light, rear
9WY5W/ W5W 5 Side indicators (yellow);/ high-mounted
stop light (9-5 Sedan); parking lights
10 W2W 1.2 SwitchesNOTICEOnly fit lamps of the specified ra ting. Lamps of the wrong wattage
could damage the wiring harness and electronics.
12345
678910
IB4095
95_US_7carcare_MY09.fm Page 213 Tuesday, April 15, 2008 11:45 AM
ProCarManuals.com

218 Car care and technical information
Fuse box under hoodFuses J–
KStarter relay
L1 Limp-home function
L2 –
# Amp Function
1 40 Radiator fan, high speed
240
ABS/ESP
®
330
ABS/ESP
®
4 7.5 Load angle sensor (cars with xenon headlights)
515Heater
6 10 A/C; car alarm siren
715Bulb test
8––
9 20 Headlight washers
43
2
IB1797
2 1
14 1312 7 6
5 1
15 168
11
10 9
178 5
17 14 11 7 4
16 13 69
10 3
15 12
95_US_MY09.book Page 218 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

219 Car care and technical information
Relays
10 15 High beam headlight, left
11 15 Low beam headlight left
12 15 High beam headlight, right
13 15 Low beam headlight, right
14 30 Radiator fan, high speed
15 15 Fog lights (front spoiler)
16 20 Wiper, rear
17 15 Horn
18 – –
# Function
1 Bulb test; head light; high beam flasher
2 Headlight washer
3 Front fog lights
4 Wiper, rear (9-5 SportCombi)
5–
6–
7 Rain sensor
8 Radiator fan, low speed
9 Radiator fan, high speed
10 A/C-compressor
11 Radiator fan, high speed, right fan
12 Horn
13 Extra lights (accessory)
14 High beam headlight
15 Low beam headlight
16 –
17 Windshield wipers
