2009 RENAULT TWINGO RS CD player

86A-46
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V1 MR-413-X44-86A150$120.mif
RADIO
Fault finding – Interpretation of faults86A
R2-08
Vdiag No.: 64
DF032
PRESENT
OR
STOREDCOMPUTER
1.DEF: CD player: CD removal impossible
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after the multimedia system is switched on using the on/
off button.
Status of fault detection:
Fault is detected when the message appears.
Special note:
The multimedia system no longer emits sound.
Replace the computer (see MR 392 (Clio III) or MR 411 (New Twingo) Mechanical, 86A, Radio, Radio: Removal
- Refitting).
If the fault persists, contact your Techline.
R208_V64_DF032

86A-65V1 MR-413-X44-86A150$130.mif
RADIO
Fault finding – Conformity check86A
R2-08
Vdiag No.: 64
FUNCTION: MULTIMEDIA
SUB-FUNCTION: USER SELECTION (continued)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application condition: engine off, ignition on.
FunctionParameter or status
checked or actionDisplay and notes Fault finding
RadioAC013CD ejectionThis command is used for
testing CD ejection from
the CD player.In the event of an inconsistency,
contact the Techline.

86A-69V1 MR-413-X44-86A150$170.mif
86A
R2-08
Vdiag No.: 64
Tool
commandDiagnostic tool title Description
RZ003:Fault memoryThis command is used for clearing the stored
faults from the computer.
AC004:Test right front speaker line
These commands are used to carry out
a listening test for each speaker.
NOTE:
These commands are not usable if the
anti- theft code is not entered. AC005:Front left-hand speaker lines test
AC006:Rear right-hand speaker lines test
AC007:Test left rear speaker line
AC010:Microphone testThis command is for testing microphone
operation.
NOTE:
Command AC010 is inactive if the auxiliary
source is selected.
Start by setting the radio to CD or radio
mode and run command AC010.
This command is not usable if the anti-theft
code is not entered.
AC013:CD ejectionThis command is used for testing CD ejection
from the CD player.
Set the radio to CD mode and run command
AC013.
SC002:Computer configuration See Configuration and Programming.

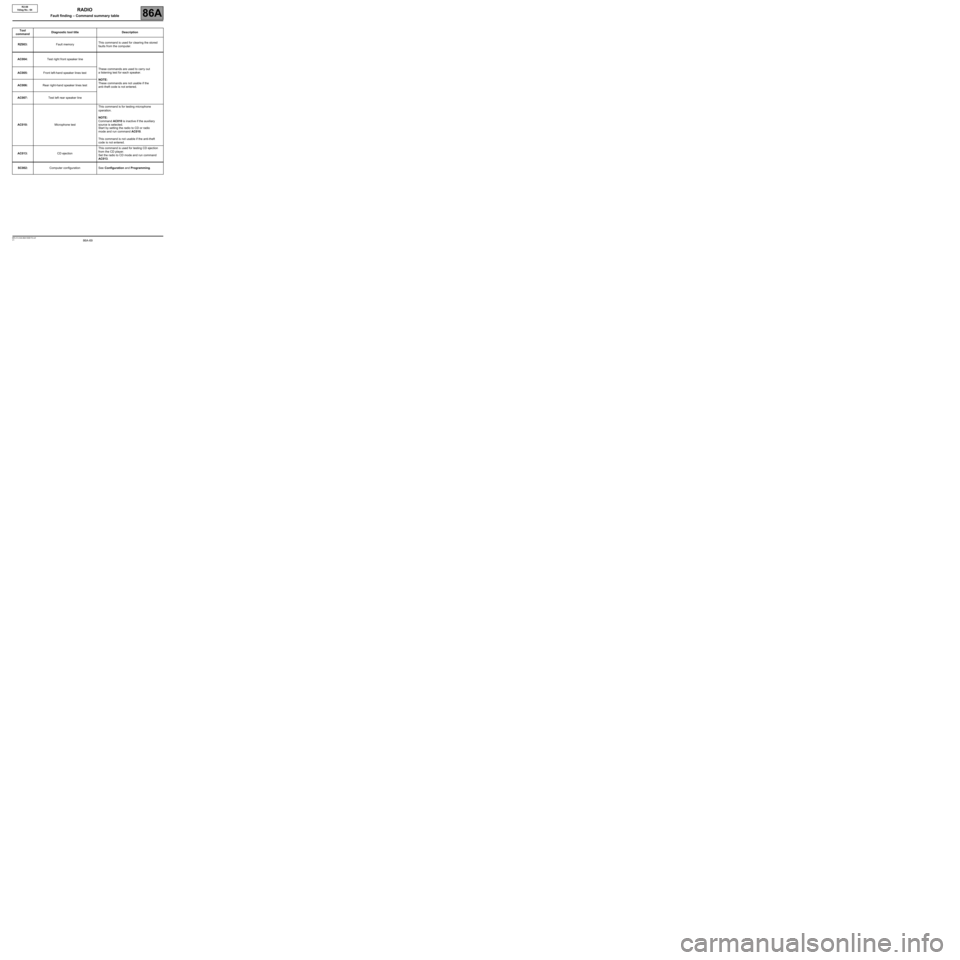

RADIO
Fault finding – Command summary table

86A-93
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 9 The radio does not play the CD in order or skips songs
NOTESUse the Wiring Diagrams Technical Note for Clio III or New Twingo.
Is the CD player set to random play?Deselect random play mode.
Try the CD player using another original,
good-quality CD
Did the CD play correctly?Replace the radio, component code 261
(see MR 392 (Clio III) or MR 411
(New Twingo) Mechanical, 86A, Radio,
Radio: Removal - Refitting).
The fault is linked to the customer's CD.
YES
NO
NO
YES
R208_V64_ALP9

86A-97
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 12 The CD does not eject.
NOTESUse the Wiring Diagrams Technical Note for Clio III or New Twingo.
Is a second CD jammed in the player?Remove the CD that is jammed in
the CD player.
Activate AC013 CD ejection
Replace the radio, component code
261 (see MR 392 (Clio III) or
MR 411 (New Twingo)
Mechanical, 86A, Radio, Radio:
Removal - Refitting). Was the CD ejected?
Check the ET009 CD eject button.
Is the status of the CD eject button consistent?Perform the test several times.
If the fault is still present,
contact Techline.
Replace the radio, component code 261 (see MR 392
(Clio III) or MR 411 (New Twingo) Mechanical, 86A,
Radio, Radio: Removal - Refitting).
YES
NO
NO
YES
YES
NO
R208_V64_ALP12
