PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 15V2 MR-413-X44-87F000$462_eng.mif

Vdiag No.: 04 08
PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
DF002
CONTINUED
Measure the resistance of component 1218 between the following connections:
●Connection code 151C,
●Connection code 151U.
If the resistance value is not infinite, replace the left-hand outer sensor.
●Connection code 151C,
●Connection code 151V.
If the resistance is not 40 kΩΩ Ω Ω
± 5 kΩΩ Ω Ω
(wait a few seconds for the reading to stabilise), replace the left-hand outer
sensor.
If the fault is still present, contact the Techline.
With the ignition off, disconnect the parking distance control computer connector and check the insulation,
continuity and the absence of interference resistance on the following connections:
●Connection code 151U.
●Connection code 151C.
●Connection code 151V.
Between components 1222 and 1218.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the left-hand outer detection sensor.
If the fault is still present, contact the Techline.
1.DEF
NOTES None
Replace the left-hand outer sensor.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any other faults.

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 16V2 MR-413-X44-87F000$462_eng.mif
Vdiag No.: 04 08
DF003
PRESENT
OR
STOREDLEFT-HAND INNER SENSOR
CC.1 : Short circuit to + 12 V
CO.0 : Open circuit or short circuit to earth
1.DEF : Internal electronic fault
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present following selection of reverse gear if the parking proximity
sensor function is ACTIVE (READY): the parking proximity sensor warning light is not
lit, see the interpretation of status ET003 Parking proximity sensor function.
Special notes:
This fault is indicated by the buzzer (a 5 second warning sound) and the system shuts
down.
CC.1
CO.0
NOTES None
Remove the rear bumper and disconnect the 3-track connector on the left-hand inner detection sensor.
Check for possible damage to the wiring harness, check the condition and connection of the parking distance
control computer and left hand inner sensor connectors (bent, oxidised or broken tabs).
If the connection is faulty (see Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, or replace it.
Switch off the ignition and disconnect the computer's 16-track connector.
Measure the internal resistances of the computer between the following connections:
●Connection code 151M,
●Connection code 151U.
The resistance must be 215 kΩΩ Ω Ω
± 10 kΩΩ Ω Ω
.
●Connection code 151M,
●Connection code 151V.
The resistance must be 100 kΩΩ Ω Ω
± 5 kΩΩ Ω Ω
.
If the readings do not correspond to the above values or if there is a short circuit in the specified connections,
contact Techline.
Measure the resistance of component 1221 between the following connections:
●Connection code 151M,
●Connection code 151U.
If the resistance value is not infinite, replace the left-hand inner sensor.
●Connection code 151M,
●Connection code 151V.
If the resistance is not 40 kΩΩ Ω Ω
± 5 kΩΩ Ω Ω
(wait a few seconds for the reading to stabilise), replace the left-hand inner
sensor.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any other faults.
AAP_V04_DEF003/AAP_V08_DEF003

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 17V2 MR-413-X44-87F000$462_eng.mif

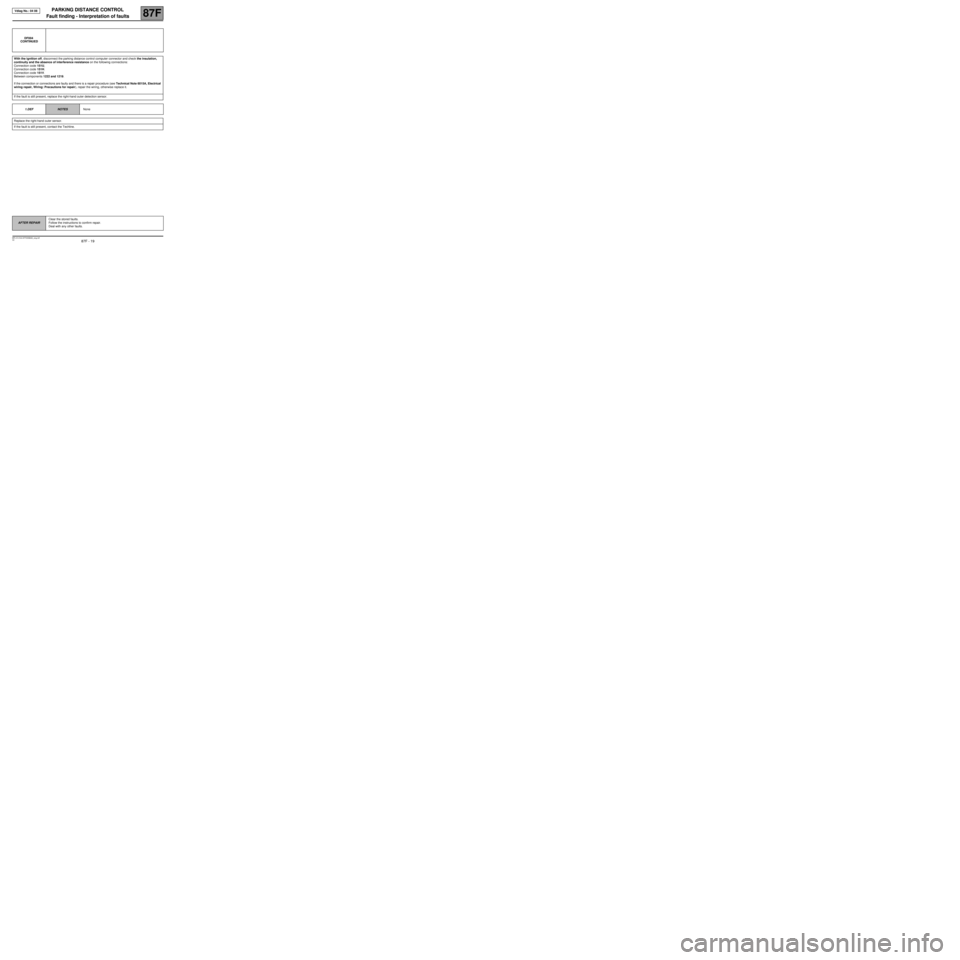

Vdiag No.: 04 08PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
DF003
CONTINUED
With the ignition off, disconnect the parking distance control computer connector and check the insulation,
continuity and the absence of interference resistance on the following connections:
●Connection code 151U,
●Connection code 151M.
●Connection code 151V.
Between components 1222 and 1221.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the left-hand inner detection sensor.
If the fault is still present, contact the Techline.
1.DEF
NOTES None
Replace the left-hand inner sensor.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any other faults.

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 18V2 MR-413-X44-87F000$462_eng.mif
Vdiag No.: 04 08
DF004
PRESENT
OR
STOREDRIGHT-HAND OUTER SENSOR
CC.1 : Short circuit to + 12 V
CO.0 : Open circuit or short circuit to earth
1.DEF : Internal electronic fault
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present following selection of reverse gear if the parking proximity
sensor function is ACTIVE (READY): the parking proximity sensor warning light is not
lit, see the interpretation of status ET003 Parking proximity sensor function.
Special notes:
This fault is indicated by the buzzer (a 5 second warning sound) and the system shuts
down.
CC.1
CO.0
NOTES None
Remove the rear bumper and disconnect the 3-track connector on the right-hand outer detection sensor.
Check for possible damage to the wiring harness, check the condition and connection of the parking distance
control computer and right-hand outer sensor connectors (bent, oxidised or broken tabs).
If the connection is faulty (see Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, or replace it.
Switch off the ignition and disconnect the computer's 16-track connector.
Measure the internal resistances of the computer between the following connections:
Connection code 151H,
●Connection code 151U.
The resistance should be 215 kΩΩ Ω Ω
± 10 kΩΩ Ω Ω
.
●Connection code 151H,
●Connection code 151V.
The resistance should be 100 kΩΩ Ω Ω
± 5 kΩΩ Ω Ω
.
If the readings do not correspond to the above values or if there is a short circuit in the specified connections,
contact Techline.
Measure the resistance of component 1219 between the following connections:
●Connection code 151H,
●Connection code 151U.
If the resistance value is not infinite, replace the right-hand outer sensor.
●Connection code 151H,
●Connection code 151V.
If the resistance is not 40 kΩΩ Ω Ω
± 5 kΩΩ Ω Ω
(wait a few seconds for the reading to stabilise), replace the right-hand outer
sensor.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any other faults.
AAP_V04_DEF004/AAP_V08_DEF004

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 19V2 MR-413-X44-87F000$462_eng.mif
Vdiag No.: 04 08PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
DF004
CONTINUED
With the ignition off, disconnect the parking distance control computer connector and check the insulation,
continuity and the absence of interference resistance on the following connections:
Connection code 151U,
Connection code 151H.
Connection code 151V.
Between components 1222 and 1219.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the right-hand outer detection sensor.
1.DEF
NOTES None
Replace the right-hand outer sensor.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any other faults.

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 20V2 MR-413-X44-87F000$462_eng.mif
Vdiag No.: 04 08
DF005
PRESENT
OR
STOREDRIGHT-HAND INNER SENSOR
CC.1 : Short circuit to + 12 V
CO.0 : Open circuit or short circuit to earth
1.DEF : Internal electronic fault
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present following selection of reverse gear if the parking proximity
sensor function is ACTIVE (READY): the parking proximity sensor warning light is not
lit, see the interpretation of status ET003 Parking proximity sensor function.
Special notes:
This fault is indicated by the buzzer (a 5 second warning sound) and the system shuts
down.
CC.1
CO.0
NOTES None
Remove the rear bumper and disconnect the 3-track connector on the right-hand inner detection sensor.
Check for possible damage to the wiring harness, check the condition and connection of the parking distance
control computer and the right hand inner sensor connectors (bent, oxidised or broken tabs).
If the connection is faulty (see Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, or replace it.
Switch off the ignition and disconnect the computer's 16-track connector.
Measure the internal resistances of the computer between the following connections:
Connection code 151Q,
●Connection code 151U.
The resistance should be 215 kΩΩ Ω Ω
± 10 kΩΩ Ω Ω
.
●Connection code 151Q,
●Connection code 151V.
The resistance should be 100 kΩΩ Ω Ω
± 5 kΩΩ Ω Ω
.
If the readings do not correspond to the above values or if there is a short circuit in the specified connections,
contact Techline.
Measure the resistance of component 1220 between the following connections:
●Connection code 151Q,
●Connection code 151U.
If the resistance value is not infinite, replace the right-hand inner sensor.
●Connection code 151Q,
●Connection code 151V.
If the resistance value is not 40 kΩΩ Ω Ω
± 5 kΩΩ Ω Ω
(wait a few seconds for the reading to stabilise), replace the right-hand
inner sensor.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any other faults.
AAP_V04_DEF005/AAP_V08_DEF005

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 21V2 MR-413-X44-87F000$462_eng.mif
Vdiag No.: 04 08PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
DF005
CONTINUED
With the ignition off, disconnect the parking distance control computer connector and check the insulation,
continuity and the absence of interference resistance on the following connections:
Connection code 151U,
Connection code 151Q.
Connection code 151V.
Between components 1222 and 1220.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the right-hand inner detection sensor.
1.DEF
NOTES None
Replace the right-hand inner sensor.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any other faults.

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 22V2 MR-413-X44-87F000$462_eng.mif
Vdiag No.: 04 08
DF006
PRESENT
OR
STOREDBUZZER
CC.1 : Short circuit to + 12 V
CO.0 : Open circuit or short circuit to earth
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present following selection of reverse gear if the parking proximity
sensor function is ACTIVE (READY): the parking proximity sensor warning light is not
lit, see the interpretation of status ET003 Parking proximity sensor function.
Special notes:
The fault is indicated by the absence of the 1-second beep normally emitted by the
buzzer when reverse gear is selected.
Check for possible damage to the wiring harness, check the condition and connection of the parking distance
control computer and the buzzer connectors (bent, oxidised or broken tabs).
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Switch off the ignition and disconnect the 16 track connector from computer component code 1222.
Measure the internal resistance of the computer between the following connections:
●Connection code 151R.
●Connection code 151S
Between components 1222 and 1223.
If the measured value is not 314 ΩΩ Ω Ω

± 10 ΩΩ Ω Ω
or if there is a short circuit on the specified connections, contact Techline.
Switch off the ignition, and disconnect the parking distance control computer to check the insulation, continuity
and the absence of interference resistance on the following connections:
●Connection code 151R,
●Connection code 151S.
Between components 1222 and 1223.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring or replace it.
Measure the resistance value of component 1223 between the following connections:
Measure the resistance between the following connections:
●Connection code 151R,
●Connection code 151S.
Replace the buzzer if its resistance value is not approximately 48 ΩΩ Ω Ω
± 5 ΩΩ Ω Ω
.
If the fault is still present, replace the buzzer.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any other faults.
AAP_V04_DEF006/AAP_V08_DEF006
