control instruments ...............................(up to the end of the DU)indicators:instrument panel .............................(up to the end of the DU)trip computer and warning system........(up to the end of the DU)instrument panel ...................................(up to the end of the DU)warning lights........................................(up to the end of the DU)instrument panel messages..................(up to the end of the DU)
1.59
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
Trip computer and warning system
TRIP COMPUTER AND WARNING SYSTEM (1/10)
Trip computer and warning
system
This displays the following information
on instrument panel display A or B (po- sition varies according to vehicle):
– information messages (distance
travelled, journey parameters etc.);
– Operating fault messages (gener
-
ally connected to the © warning light);
– Warning messages (linked to the

® warning light).
B
A

Downloaded from www.Manualslib.com manuals search engine
1.60
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

JauneNoirNoir texte

TRIP COMPUTER AND WARNING SYSTEM (2/10)
Display selection keys 1
and
2
Scroll through the following informa- tion in this order or reverse the order by briefly pressing the key repeatedly.
a) total mileage recorder; trip mileage
recorder,
b) journey parameters:
– fuel used,
– average fuel consumption,
– current fuel consumption (de
- pending on vehicle),
– estimated range,
– distance travelled. c)
mileage before service,
d) programmed speed (speed limiter/
cruise control),
e) on-board log: operating fault and in
- formation message readout.
1
2

Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte

1.61
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

TRIP COMPUTER AND WARNING SYSTEM (3/10)
Resetting the trip mileage
With the display set to “trip mileage re-
corder”, press and hold button 1 or 2, or
press and hold buttons 1 and 2 simul- taneously.
Resetting the journey
parameters (reset button)
With the display set to one of the jour- ney parameters, press and hold but-
ton 1 or 2, or the two buttons simulta- neously.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con- sumption, range and average speed will become more stable and reliable the further you travel after pressing the reset button.
For the first few miles after pressing the reset key you will notice that the range increases as you travel. This range takes into account the average fuel consumption since the last time the reset button was pressed. Therefore, the average fuel consumption may de- crease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold when reset key was pressed);
– when driving from a built-up area
onto the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when the maximum value of any of the pa- rameters is exceeded.
1
2

Downloaded from www.Manualslib.com manuals search engine
1.62
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

JauneNoirNoir texte

TRIP COMPUTER AND WARNING SYSTEM (4/10)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections by pressing button 2
Interpreting the display selected
Display ADisplay B
251852518525161a) Total mileage recorder(visible on the first line of the display B)
251862518625161Trip mileage recorder
(visible on the second line of the display B)
251872518725162b) Journey parametersFuel consumed since the last reset.
251882518825163Average fuel consumption since the last reset.This value is displayed after driving 400 metres and takes into account the distance travelled and the fuel used since the last time the reset button was pressed.

Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte

1.63
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

TRIP COMPUTER AND WARNING SYSTEM (5/10)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections by pressing button 2
Interpreting the display selected
Display ADisplay B
251782517825158Current fuel consumptionThis value is displayed after a speed of approximately 18 mph (30 km/h) is reached.
251792517925164Estimated range with remaining fuelThis range takes into account the average fuel consumption since the last time the reset button was pressed.The value is displayed after driving 400 metres.
251802518025159Distance travelled since the last reset.
251812518125160Average speed since the last reset.The value is displayed after driving 400 metres.

Downloaded from www.Manualslib.com manuals search engine
1.64
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

JauneNoirNoir texte

TRIP COMPUTER AND WARNING SYSTEM (6/10)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections by pressing button 2Interpreting the display selected
Display ADisplay B
c) Distance before serviceDistance remaining until the next service.
There are several scenarios:
– remaining mileage less than 900 miles (1,500 km) or next service due within
two months. When the display selected is “mileage before service”,
symbol Ê appears on display A. The message “Service due” appears on
display B.
– mileage before service equal to
0 miles/km or date of serviced reached. When
the display selected is “mileage before service”, symbol Ê flashes on dis-
play
A accompanied by warning light ©. The message “Service vehicle”
appears on display
B accompanied by symbol Ê and warning light ©.
Note: depending on the vehicle, the mileage before service changes according to the driving style (frequent driving at low speed, door-to-door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next service can there- fore decrease more quickly in some cases than the actual distance travel\
led.
Resetting the display after the service in accordance with the maintenan\
ce schedule.The mileage before service must only be reset after a service which complies with the recommendations in the maintenance schedule.
If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the re- placement intervals for other parts in the maintenance schedule.
Special note: to reset the distance before service, press and hold one of the display reset buttons for approximately 10 seconds until the display shows the mileage permanently.

Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte

1.65
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

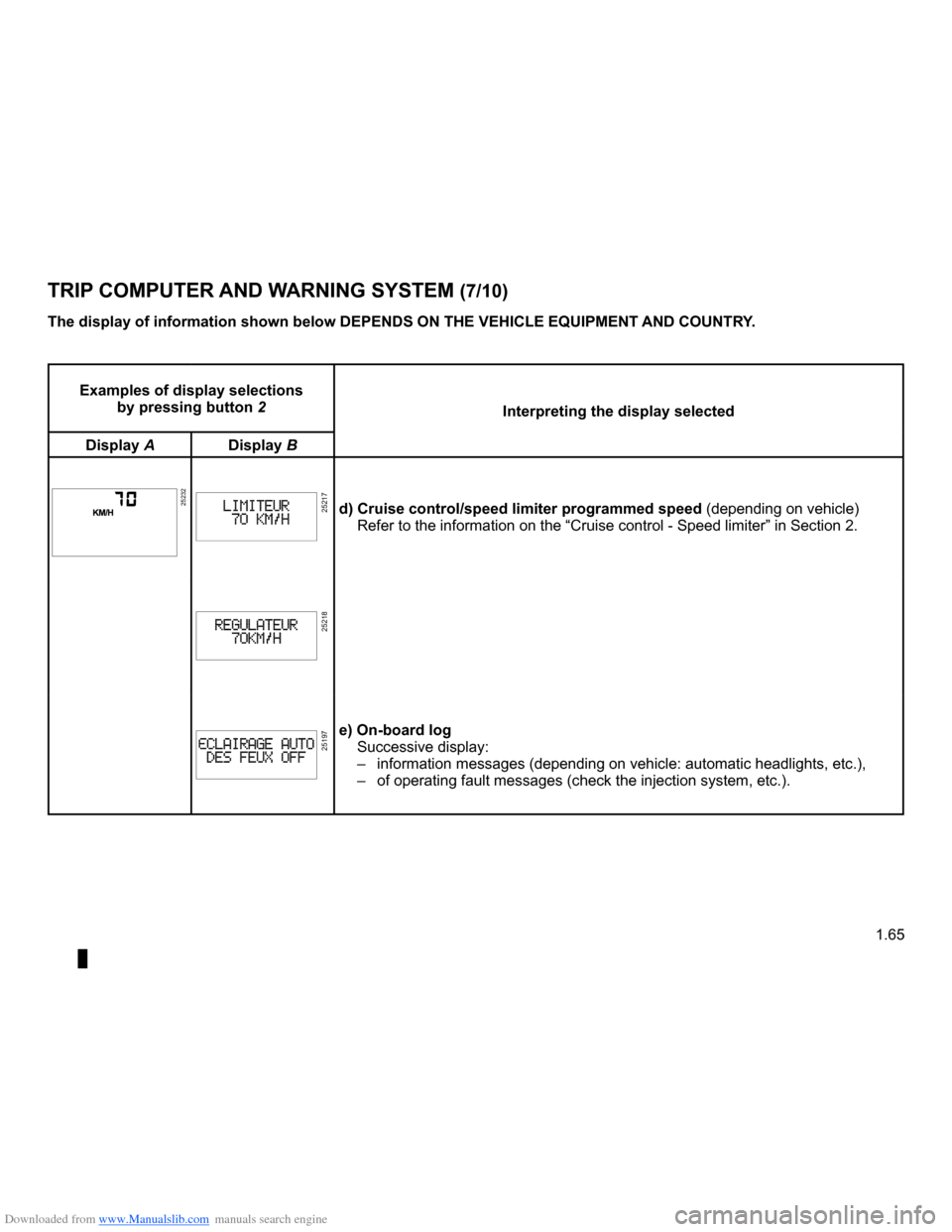

TRIP COMPUTER AND WARNING SYSTEM (7/10)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections by pressing button 2Interpreting the display selected
Display ADisplay B
252322523225217d) Cruise control/speed limiter programmed speed (depending on vehicle)Refer to the information on the “Cruise control - Speed limiter” i\
n Section 2.
25218
25197e) On-board logSuccessive display:
– information messages (depending on vehicle: automatic headlights, etc.)\
,
– of operating fault messages (check the injection system, etc.).

Downloaded from www.Manualslib.com manuals search engine
1.66
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

JauneNoirNoir texte

Information messagesThese can help in the vehicle starting phase, or give information about \
a selection or a driving status.Examples of information messages are given in the following pages.
Examples of messagesInterpretation of messages
‘Tailgate open’Indicates that the tailgate has been left open.
‘Oil level OK’Indicates that the oil level is correct when the ignition is switched on\
.
‘Automatic lights OFF’Indicates that the automatic lights function is deactivated.
TRIP COMPUTER AND WARNING SYSTEM (8/10)
