2009 RAM CHASSIS CAB climate control

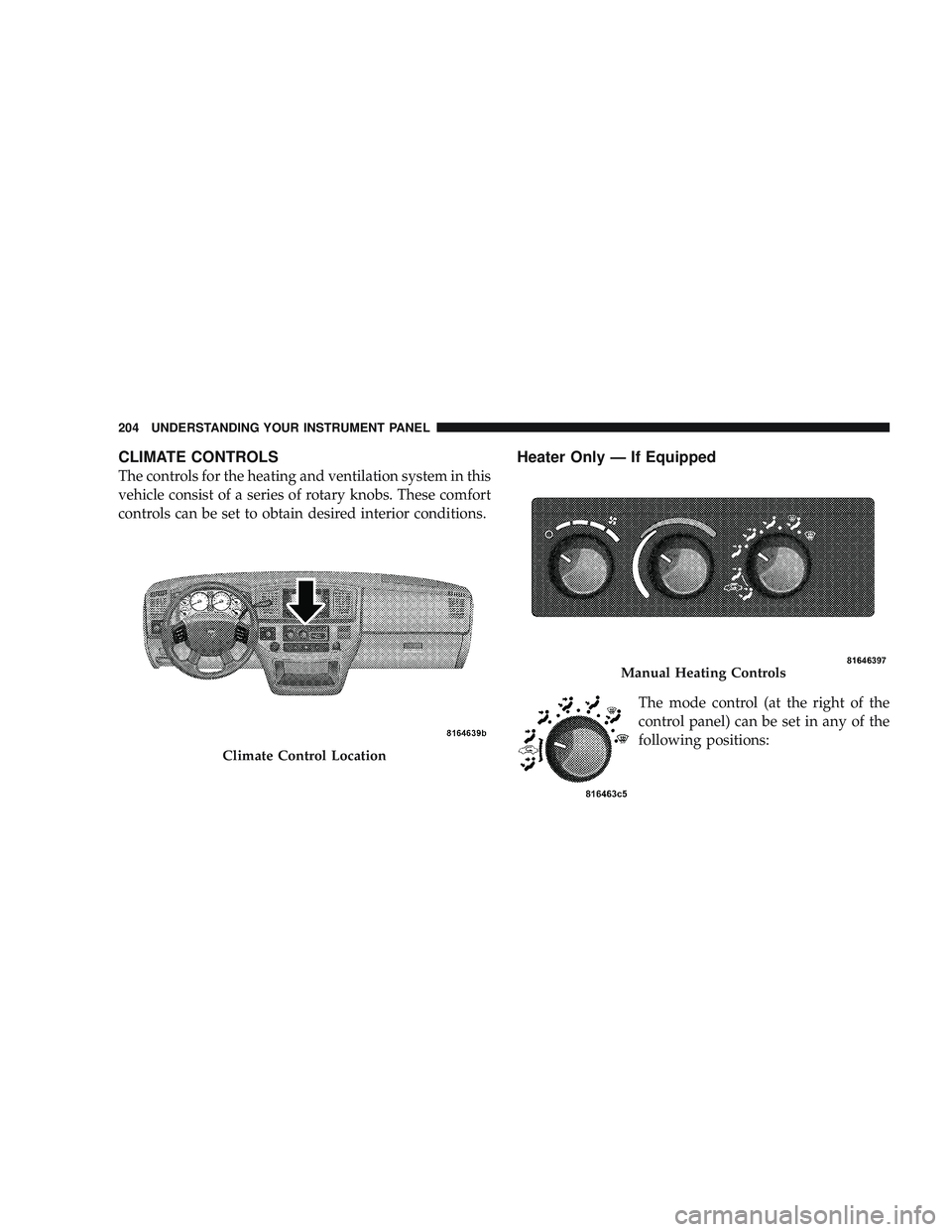

CLIMATE CONTROLS
The controls for the heating and ventilation system in this
vehicle consist of a series of rotary knobs. These comfort
controls can be set to obtain desired interior conditions.
Heater Only — If Equipped
The mode control (at the right of the
control panel) can be set in any of the
following positions:
Climate Control Location
Manual Heating Controls
204 UNDERSTANDING YOUR INSTRUMENT PANEL

Blower Control
The rotary knob on the left of the
control panel is the blower control.
Turn the knob clockwise to one of the
four positions to obtain the blower
speed you desire. To turn the blower
off, turn the knob to the far left posi-
tion.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
Temperature Control
The rotary knob at the center of the
control panel controls the temperature
of the interior air. You can choose your
degree of comfort by rotating the
knob. The coldest temperature setting
is to the extreme left (blue region) and
the warmest setting is to the extreme
right (red region) of the rotation.
206 UNDERSTANDING YOUR INSTRUMENT PANEL

Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
IF YOU NEED CONSUMER ASSISTANCE 407
9

CleaningWheels ............................. 361
Climate Control ......................... 204
Clock ........................ 172,175,189,195
Compact Disc (CD) Maintenance ............. 203
Compass ........................... 140,141
Compass Calibration ..................... 141
Compass Variance ....................... 143
Computer, Trip/Travel .................... 136
Contract, Service ........................ 403
Coolant Pressure Cap (Radiator Cap) .......... 351
Cooling System ......................... 348
Adding Coolant (Antifreeze) .............. 350
Coolant Capacity ...................... 377
Coolant Level ...................... 348,352
Disposal of Used Coolant ................ 352
Drain, Flush, and Refill .................. 349
Inspection ........................... 352
Points to Remember .................... 352 Pressure Cap
......................... 351
Radiator Cap ......................... 351
Selection of Coolant (Antifreeze) .........349,378
Cruise Control (Speed Control) .............. 133
Cupholders ............................ 146
Customer Assistance ..................... 401
Data Recorder, Event ...................... 57
Daytime Running Lights ................... 126
Dealer Service .......................... 337
Defroster, Rear Window ................... 153
Defroster, Windshield ................74,205,208
Delay (Intermittent) Wipers ................. 129
Differential, Limited-Slip .................. 249
Dipsticks .............................. 338
Power Steering ........................ 253
Disposal .............................. 340
Antifreeze (Engine Coolant) ............... 352
Engine Oil ........................... 340
412 INDEX
