2009 Ram 1500 seat memory

▫General Information .................. 127
 Voice Recognition (VR) System —
If Equipped .......................... 127
▫ Voice Recognition (VR) System Operation . . . 127
▫ Commands ........................ 129
▫ Voice Training ...................... 132
 Seats .............................. 132
▫ Manual Seat Adjuster — If Equipped ...... 133
▫ Manual Reclining Seats — If Equipped ..... 134
▫ Adjustable Head Restraints ............. 136
▫ Eight-Way Power Seats — If Equipped ..... 136
▫ Power Lumbar — If Equipped ........... 138
▫ Heated Seats — If Equipped ............ 138▫
Ventilated Seats — If Equipped .......... 140
▫ 40-20-40 Front Bench Seat — If Equipped . . . 140
 Driver Memory Seat — If Equipped ........ 141
▫ Setting Memory Positions And Linking RKE
Transmitter To Memory ................ 141
▫ Memory Position Recall ................ 142
▫ To Disable a RKE Transmitter Linked To
Memory ........................... 143
▫ Self-Limiting Control .................. 144
▫ Driver Easy Exit And Easy Entry Control . . . 144
 To Open And Close The Hood ............ 145
 Lights ............................. 146
▫ Headlights ......................... 147
▫ Automatic Headlights — If Equipped ...... 147
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

DRIVER MEMORY SEAT — IF EQUIPPED
The memory seat buttons are located on the outboard
side of the drivers seat cushion.
The memory buttons 1 and 2 can be programmed to
recall the driver’s seat position, driver’s outside mirror
position, adjustable brake, accelerator pedals position,Automatic Temperature Control (ATC) temperature set-
ting and radio station preset settings. Your Remote
Keyless Entry (RKE) transmitters can also be pro-
grammed to recall the same positions when the UN-
LOCK button is pressed.
NOTE:
The power lumbar option is not programmable
with driver memory seats.
Your vehicle was delivered with two RKE transmitters.
One or both RKE transmitters can be linked to either
memory position. The memory system can accommodate
up to two RKE transmitters, each RKE transmitter linked
to either of the two memory positions.
Setting Memory Positions and Linking RKE
Transmitter to Memory
NOTE: Each time the S (SET) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
Memory Seat Buttons
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141

1. Turn the vehicle key to the ON/RUN position.
2. Adjust the driver’s seat, recliner, and both sideview
mirrors to the desired positions.
NOTE:Not all motors may be moved at one time. Refer
to the eight-way power seat description in this section.
3. Adjust the brake and accelerator pedals to the desired
positions.
4. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
5. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.
6. Press and release the SET button located on the
driver’s seat.
7. Within five seconds, press and release MEMORY
button 1 or 2 on the driver’s seat. The next steps must be performed within 10 seconds if you desire to also use a
RKE transmitter to recall memory positions.
8. Turn the ignition OFF and remove the key.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Repeat the above steps to set the next memory
position using the other numbered memory button or to
link another RKE transmitter to memory.
NOTE:
A chime sound may be heard if Setting Memory
was inhibited for any reason.
Memory Position Recall
NOTE:
•The vehicle must be in PARK to recall memory posi-
tions.
•Not all motors may be moved at one time. Please refer
to the eight-way power seat description in this section.
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To recall the memory settings for driver one, press
MEMORY button number 1 on the driver’s seat or the
UNLOCK button on the RKE transmitter linked to
memory position 1.
To recall the memory setting for driver two, press
MEMORY button number 2 on the driver’s seat or the
UNLOCK button on the RKE transmitter linked to
memory position 2.
A recall can be cancelled by pressing any of the
MEMORY buttons on the driver’s seat during a recall (S,
1, or 2), or pressing any one of the power seat buttons,
pressing the adjustable pedals button, or pressing either
the LOCK or UNLOCK button on the RKE transmitter
when not in the ignition switch. When a recall is can-
celled, the driver’s seat and the pedals stop moving. A
delay of one second will occur before another recall can
be selected.NOTE:
A chime sound may be heard if setting memory
was inhibited for any reason.
To Disable a RKE Transmitter Linked to Memory
1. Turn the ignition switch to the OFF position and
remove the key.
2. Press and release the memory SET button located on
the driver’s seat.
3. Within 10 seconds, press and release the UNLOCK
button on the RKE transmitter.
To disable another RKE transmitter linked to either
memory position, repeat Steps 1-3 for each RKE trans-
mitter.
NOTE: The capability to link RKE transmitters to
memory is enabled when delivered from the factory. The
capability to link RKE transmitters to memory can be
disabled (or later re-enabled) by an authorized dealer. For
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143

vehicles equipped with the Electronic vehicle Informa-
tion Center (EVIC), refer to “Customer-Programmable
Features (SETUP)” under “Electronic Vehicle Information
Center (EVIC) – If Equipped” in Section 3.

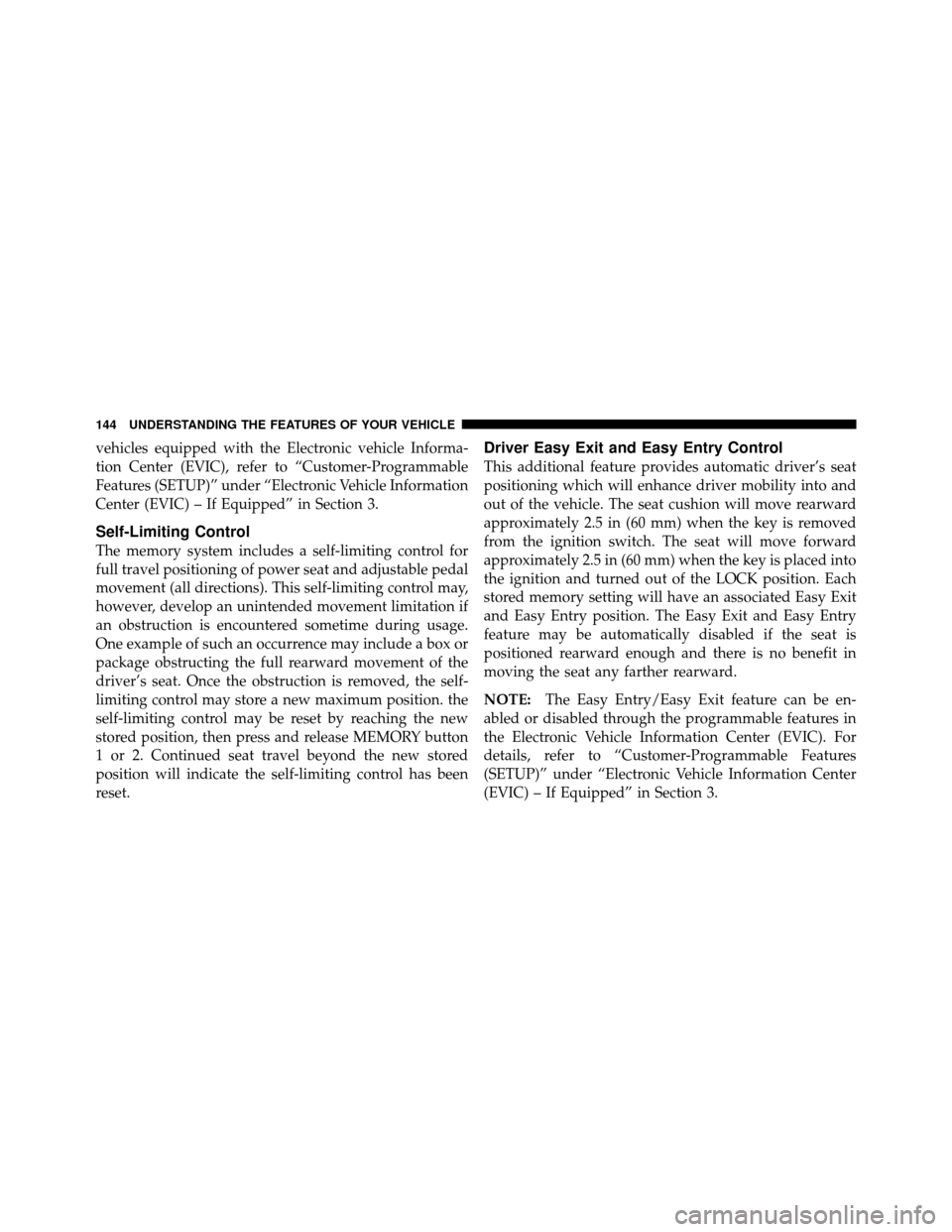

Self-Limiting Control
The memory system includes a self-limiting control for
full travel positioning of power seat and adjustable pedal
movement (all directions). This self-limiting control may,
however, develop an unintended movement limitation if
an obstruction is encountered sometime during usage.
One example of such an occurrence may include a box or
package obstructing the full rearward movement of the
driver’s seat. Once the obstruction is removed, the self-
limiting control may store a new maximum position. the
self-limiting control may be reset by reaching the new
stored position, then press and release MEMORY button
1 or 2. Continued seat travel beyond the new stored
position will indicate the self-limiting control has been
reset.
Driver Easy Exit and Easy Entry Control
This additional feature provides automatic driver’s seat
positioning which will enhance driver mobility into and
out of the vehicle. The seat cushion will move rearward
approximately 2.5 in (60 mm) when the key is removed
from the ignition switch. The seat will move forward
approximately 2.5 in (60 mm) when the key is placed into
the ignition and turned out of the LOCK position. Each
stored memory setting will have an associated Easy Exit
and Easy Entry position. The Easy Exit and Easy Entry
feature may be automatically disabled if the seat is
positioned rearward enough and there is no benefit in
moving the seat any farther rearward.
NOTE:The Easy Entry/Easy Exit feature can be en-
abled or disabled through the programmable features in
the Electronic Vehicle Information Center (EVIC). For
details, refer to “Customer-Programmable Features
(SETUP)” under “Electronic Vehicle Information Center
(EVIC) – If Equipped” in Section 3.
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Remote Unlk Sequence
WhenDriver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the RKE transmitter
UNLOCK button. When Driver Door 1st Press is selected,
you must press the RKE transmitter UNLOCK button
twice to unlock the passenger’s doors. When All Doors
1st Press is selected, all of the doors will unlock on the
first press of the RKE transmitter UNLOCK button. To
make your selection, press and release the SELECT
button until “Driver Door 1st Press” or “All Doors 1st
Press” appears.
RKE Linked To Memory
When this feature is selected the memory seat, mirror,
and radio settings will return to the memory set position
when the RKE transmitter UNLOCK button is pressed. If
this feature is not selected then the memory seat, mirror,
and radio settings can only return to the memory set
position using the door mounted switch. To make your
selection, press and release the SELECT button until a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed,
showing the system has been deactivated.
Horn With Remote Start
When this feature is selected, a short horn sound will
occur when the RKE transmitter REMOTE START button
is pressed. To make your selection, press and release the
SELECT button until a check-mark appears next to the
feature showing the system has been activated or the
check-mark is removed, showing the system has been
deactivated.
Horn With Remote Lock
When this feature is selected, a short horn sound will
occur when the RKE transmitter LOCK button is pressed.
This feature may be selected with or without the Flash
Lamps with Lock feature. To make your selection, press
4
UNDERSTANDING YOUR INSTRUMENT PANEL 257

and release the SELECT button until a check-mark ap-
pears next to the feature showing the system has been
activated or the check-mark is removed, showing the
system has been deactivated.
NOTE:The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
to ON) when the RKE transmitter is used to unlock the
door. Refer to “Easy Entry/Exit Seat” under “Driver
Memory Seat” in Section 3 of this manual for more
information.
Tilt Mirror In Reverse
When this feature is selected and the shift lever is placed
in reverse gear, the side mirrors tilt downward to allow
the driver to see into the previous blind spot and avoid
objects in close proximity to the rear of the vehicle. To
make your selection, press and release the SELECT
button until a check-mark appears next to the feature showing the system has been activated or the check-mark
is removed, showing the system has been deactivated.
Remote Start Comfort Sys.
When this feature is selected and the remote start is
activated, the heated steering wheel and driver heated
seat features will automatically turn on in cold weather.
In warm weather, the driver vented seat feature will
automatically turn on when the remote start is activated.
These features will stay on through the duration of
remote start or until the key is turned to RUN. To make
your selection, press and release the SELECT button until
a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed,
showing the system has been deactivated.
Display Units of Measure In
The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
260 UNDERSTANDING YOUR INSTRUMENT PANEL

Oil Pressure.......................... 237
Passing ............................. 153
Seat Belt Reminder ..................... 242
Security Alarm (Theft Alarm) .............. 230
Service ............................. 481
Theft Alarm (Security Alarm) .............. 230
Tire Pressure Monitoring (TPMS) ........... 237
Traction Control ....................... 357
Turn Signal ................... 85,152,481,484
Warning (Instrument Cluster Description) . . 223,227
Limited-Slip Differential ................339,465
Loading Vehicle ......................... 396
Tires ............................... 367
Locks ................................. 29
Child Protection ........................ 33
Door ................................ 29
Power Door ........................... 30
Lower Anchors and Tether for CHildren
(LATCH) .............................. 72 Lubrication, Body
....................... 453
Lug Nuts ............................. 431
Maintenance ........................... 447
Maintenance Free Battery .................. 451
Maintenance Procedures ................... 447
Maintenance Schedule .................... 492
Malfunction Indicator Light (Check Engine) ..... 445
Manual, Service ......................... 517
Manual Transmission Fluid Level Check ..................... 466
Lubricant Selection ..................... 490
Memory Seat ........................... 141
Mini-Trip Computer ...................... 252
Mirrors ................................ 93
Automatic Dimming ..................... 94
Electric Powered ....................... 96
Heated .............................. 97
Memory ............................ 141
10
INDEX 531
