Average Fuel Economy / Fuel Saver Mode — If
Equipped
Shows the average fuel economy since the last reset.
When the fuel economy is reset, the display will read
“RESET” or show dashes for two seconds. Then, the
history information will be erased, and the averaging will
continue from the last fuel average reading before the
reset.
The FUEL SAVER MODE message will display above the
average fuel economy in the EVIC display. This message
will appear whenever MDS (if equipped) allows the
engine to operate on four cylinders, or if you are driving
in a fuel efficient manner.This feature allows you to monitor when you are driving
in a fuel efficient manner, and it can be used to modify
driving habits in order to increase fuel economy.
Fuel Saver Mode — On
4
UNDERSTANDING YOUR INSTRUMENT PANEL 251

System (Customer Information Features)
Press and release the UP or DOWN button until “SYS-
TEM” displays in the EVIC and press the SELECT button.
Press the UP and DOWN button to scroll through the
available information displays, then press SELECT to
display anyone of the following choices.
•Coolant Temp
Displays the actual coolant temperature.
•Oil Temperature
Displays the actual oil temperature.
•Oil Pressure
Displays the actual oil pressure.
•Trans Temperature
Displays the actual transmission temperature.
•Engine Hours
Displays the hours of engine operation.
Compass Display
The compass readings indicate the direction
the vehicle is facing. Press and release the
compass button to display one of eight com-
pass readings and the outside temperature.
Automatic Compass Calibration
This compass is self-calibrating, which eliminates the
need to manually reset the compass. When the vehicle is
new, the compass may appear erratic and the EVIC will
display CAL until the compass is calibrated. You may
also calibrate the compass by completing one or more
360–degree turns (in an area free from large metal or
metallic objects) until the CAL indicator displayed in the
EVIC turns off. The compass will now function normally.
NOTE: A good calibration requires a level surface and
an environment free from large metallic objects such as
buildings, bridges, underground cables, railroad tracks,
etc.4
UNDERSTANDING YOUR INSTRUMENT PANEL 253

Automatic Operation
1. Position the MODE control knob to the Auto position
on the Automatic Temperature Control (ATC) Panel.
2. Position the BLOWER control knob in the Auto posi-
tion on the ATC Panel.
3. Next, adjust the temperature you would like the
system to maintain by adjusting the driver and front
passenger temperature buttons. Once the desired tem-
perature is displayed, the system will achieve and auto-
matically maintain that comfort level.
4. When the system is set up for your comfort level, it is
not necessary to change the settings. You will experience
the greatest efficiency by simply allowing the system to
function automatically.NOTE:•It is not necessary to move the temperature settings for
cold or hot vehicles. The system automatically adjusts
the temperature, mode and fan speed to provide
comfort as quickly as possible.
•The temperature can be displayed in U.S. or Metric
units by selecting the US/M customer-programmable
feature. Refer to the “Electronic Vehicle Information
Center (EVIC) — Customer-Programmable Features
(SETUP)” in this section of the manual.
To provide you with maximum comfort in the Automatic
mode, during cold start-ups the blower fan will remain
on low and the DELAY symbol will appear in the ATC
display until the engine warms up. The blower will
increase in speed and transition into Auto mode and
DELAY will no longer be illuminated in the display. The
blower will engage immediately if the Defrost mode is
selected, or by adjusting the blower control knob and
setting the fan to any fixed speed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 299

Recirculation Control
When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the RECIRCULATION control button.
Recirculation mode should only be used temporarily. The
recirculation LED will illuminate on the blower control
knob when this button is selected. Push the button a
second time to turn off the Recirculation mode LED and
allow outside air into the vehicle.
NOTE: In cold weather, use of Recirculation mode may
lead to excessive window fogging. The Recirculation
mode is not allowed in the Floor, Mix and Defrost modes
to improve window clearing operation. Recirculation will
be disabled automatically if these modes are selected.
Summer Operation
The engine cooling system in air conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A solution of 50% ethylene
glycol antifreeze coolant and 50% water is recommended.
Refer to “Maintenance Procedures” in Section 7 of this
manual for proper coolant selection.
Winter Operation
To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is function-
ing properly and the proper amount, type, and concen-
tration of coolant is used. Refer to “Maintenance
Procedures” in section 7 of this manual for proper coolant
selection. Use of the air Recirculation mode during
Winter months is not recommended because it may cause
window fogging.
302 UNDERSTANDING YOUR INSTRUMENT PANEL

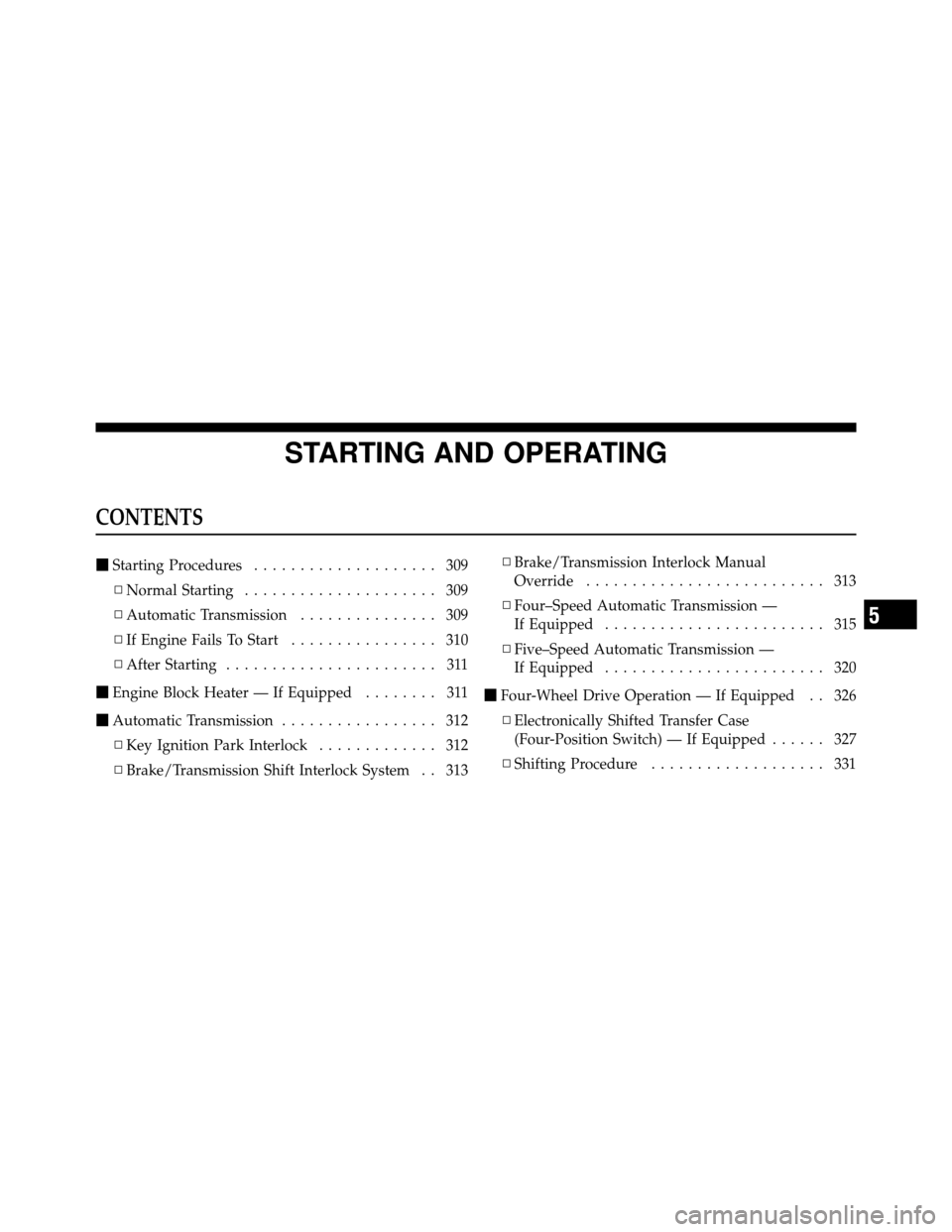

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 309
▫ Normal Starting ..................... 309
▫ Automatic Transmission ............... 309
▫ If Engine Fails To Start ................ 310
▫ After Starting ....................... 311
 Engine Block Heater — If Equipped ........ 311
 Automatic Transmission ................. 312
▫ Key Ignition Park Interlock ............. 312
▫ Brake/Transmission Shift Interlock System . . 313 ▫
Brake/Transmission Interlock Manual
Override .......................... 313
▫ Four–Speed Automatic Transmission —
If Equipped ........................ 315
▫ Five–Speed Automatic Transmission —
If Equipped ........................ 320
 Four-Wheel Drive Operation — If Equipped . . 326
▫ Electronically Shifted Transfer Case
(Four-Position Switch) — If Equipped ...... 327
▫ Shifting Procedure ................... 331
5

▫Electronically Shifted Transfer Case
(Five-Position Switch) — If Equipped ...... 333
▫ Shifting Procedure ................... 337
 Limited-Slip Differential – If Equipped ...... 339
 Driving On Slippery Surfaces ............. 340
 Driving Through Water ................. 341
▫ Flowing/Rising Water ................. 341
▫ Shallow Standing Water ............... 341
 Driving Off-Road ..................... 343
 Power Steering ....................... 343
▫ Power Steering Fluid Check ............. 345
 Parking Brake ........................ 346
 Brake System ........................ 347
▫ Four-Wheel Anti-Lock Brake System ....... 348
Multi-Displacement System (MDS)
(If Equipped) – 5.7L Engine Only ........... 349
 Electronic Brake Control System ........... 350
▫ Anti-Lock Brake System (ABS) ........... 350
▫ Traction Control System (TCS) ........... 351
▫ Brake Assist System (BAS) .............. 351
▫ Hill Start Assist (HSA) ................ 352
▫ Electronic Stability Program (ESP) ........ 356
▫ Trailer Sway Control (TSC) ............. 361
 Tire Safety Information ................. 362
▫ Tire Markings ....................... 362
▫ Tire Identification Number (TIN) ......... 366
▫ Tire Loading And Tire Pressure .......... 367
 Tires — General Information ............. 371
▫ Tire Pressure ....................... 371
306 STARTING AND OPERATING

▫Tire Inflation Pressures ................ 372
▫ Tire Pressures For High Speed Operation . . . 374
▫ Radial Ply Tires ..................... 374
▫ Tire Spinning ....................... 374
▫ Tread Wear Indicators ................. 375
▫ Life Of Tire ........................ 376
▫ Replacement Tires .................... 376
 Supplemental Tire Pressure Information —
If Equipped .......................... 377
 Tire Chains .......................... 378
 Snow Tires .......................... 379
 Tire Rotation Recommendations ........... 379
 Tire Pressure Monitor System (TPMS) ....... 381
▫ Tire Pressure Monitor System Components . . 383 ▫
General Information .................. 385
 Fuel Requirements ..................... 386
▫ 3.7L And 4.7L Engine ................. 386
▫ 5.7L Engine ........................ 386
▫ Reformulated Gasoline ................ 387
▫ Gasoline/Oxygenate Blends ............. 387
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 388
▫ MMT In Gasoline .................... 388
▫ Materials Added To Fuel ............... 389
▫ Fuel System Cautions ................. 389
▫ Carbon Monoxide Warnings ............ 390
 Flexible Fuel (4.7L Engine Only) —
If Equipped .......................... 390
▫ E-85 General Information ............... 390
▫ Ethanol Fuel (E-85) ................... 392
5
STARTING AND OPERATING 307

▫Fuel Requirements ................... 392
▫ Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles ...... 393
▫ Starting ........................... 393
▫ Cruising Range ...................... 393
▫ Replacement Parts ................... 394
▫ Maintenance ........................ 394
 Adding Fuel ......................... 394
▫ Loose Fuel Filler Cap (Gas Cap) Message . . . 396
 Vehicle Loading ...................... 396
▫ Certification Label ................... 396
 Trailer Towing ........................ 399
▫ Common Towing Definitions ............ 399▫
Trailer Hitch Classification .............. 403
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ..................... 404
▫ Trailer And Tongue Weight ............. 404
▫ Towing Requirements ................. 405
▫ Towing Tips ........................ 410
 Snowplow .......................... 411
 Recreational Towing
(Behind Motorhome, Etc.) ................ 412
▫ Recreational Towing – Two-Wheel Drive
Models ........................... 412
▫ Recreational Towing – Four-Wheel Drive
Models ........................... 413
