2009 Peugeot Expert VU display panel

45
Steering wheel controls
ERGONOMICS and COMFORT
3
SPEED LIMITER "LIMIT"
However, pressing the pedal beyond this
point of resistance to the floor permits
exceeding of the programmed speed.
To resume use of the limiter, simply reduce
the pressure on the accelerator pedal
gradually and return to a speed below that
programmed. Function selected,
displaying of the
"Speed Limiter" symbol.
Function deactivated,
last programmed speed-
OFF
(example at
65 mph (107 km/h)).
Function activated
(example at 65 mph
(107 km/h)).
Vehicle speed above
(example 70 mph
(118 km/h)),
the programmed speed
is displayed flashing.
Operating fault
detected,

OFF - the dashes flash.
This speed limiter shows the function
selection status on the instrument panel and
displays the programmed speed:

The operating actions may be carried out
when stationary, with the engine running,
or with the vehicle moving.
"This is the selected speed which the driver
does not wish to exceed".
This selection is made with the engine
running while stationary or with the vehicle
moving. The minimum speed which can be
programmed is 20 mph (30 km/h).
The speed of the vehicle responds to the
pressure of the driver's foot as far as the
accelerator pedal point of resistance which
indicates that the programmed speed has
been reached.

50
Ventilation
AUTOMATIC AIR CONDITIONING WITH SEPARATE ADJUSTMEN TS
Good practice
For maximum cooling or heating of the passenger compartment, it is possible to exceed the value 15 by turning until LO is displayed or the value 27 by turning until HI is displayed.
For optimum comfort, the difference between the value displayed for the driver and for the passenger should not be greater than 3.
If your vehicle is fitted with this control
panel, it is located on the centre console.
On entering the vehicle, the inside
temperature may be much colder (or
warmer) than is comfortable. There is no
advantage in changing the value displayed
in order to quickly reach the level of comfort
required. The system will use its maximum
performance to reach the comfort value set.

86

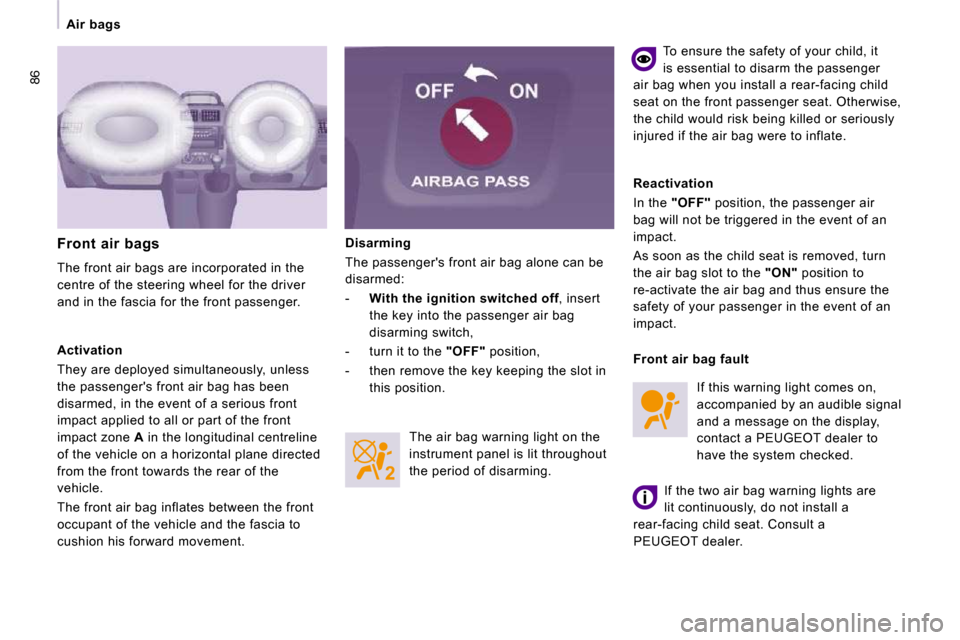

Air bags Disarming
The passenger's front air bag alone can be
disarmed:
- With the ignition switched off , insert
the key into the passenger air bag
disarming switch,
- turn it to the "OFF" position,
- then remove the key keeping the slot in this position.
Front air bags
The front air bags are incorporated in the
centre of the steering wheel for the driver
and in the fascia for the front passenger.
Reactivation
In the
"OFF" position, the passenger air
bag will not be triggered in the event of an
impact.
As soon as the child seat is removed, turn
the air bag slot to the "ON" position to
re-activate the air bag and thus ensure the
safety of your passenger in the event of an
impact. To ensure the safety of your child, it
is essential to disarm the passenger
air bag when you install a rear-facing child
seat on the front passenger seat. Otherwise,
the child would risk being killed or seriously
injured if the air bag were to inflate.
The air bag warning light on the
instrument panel is lit throughout
the period of disarming.
Activation
They are deployed simultaneously, unless
the passenger's front air bag has been
disarmed, in the event of a serious front
impact applied to all or part of the front
impact zone
A in the longitudinal centreline
of the vehicle on a horizontal plane directed
from the front towards the rear of the
vehicle.
The front air bag inflates between the front
occupant of the vehicle and the fascia to
cushion his forward movement. If this warning light comes on,
accompanied by an audible signal
and a message on the display,
contact a PEUGEOT dealer to
have the system checked.
Front air bag fault
If the two air bag warning lights are
lit continuously, do not install a
rear-facing child seat. Consult a
PEUGEOT dealer.

85
Air bags
SAFETY
4
If this warning light comes
on on the instrument panel,
accompanied by an audible signal
and a message on the display,
contact a PEUGEOT dealer to
have the system checked. The air bags
may no longer be triggered in the event of a
serious impact.
Side air bags
If fitted on your vehicle, this is a system
which protects the driver and front
passenger in the event of a serious side
impact in order to limit the risk of injury to
the chest.
Each side air bag is incorporated in the front
seat back frame, on the door side. Impact detection zones

A. Front impact zone.

B. Side impact zone.
In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the air bag may not be
triggered.
The air bag is not triggered in the event of a
rear or front collision. Operating fault
Activation
It is triggered unilaterally in the event of a
serious side impact applied to all or part
of the side impact zone B , perpendicular
to the longitudinal centreline of the vehicle
on a horizontal plane and directed from the
outside towards the inside of the vehicle.
The side air bag inflates between the
front occupant of the vehicle and the
corresponding door trim pad.

117
Changing a fuse
TROUBLESHOOTING
7
RIGHT-HAND SIDE FASCIA PANEL FUSES
- Tilt the storage compartment then pull it firmly to access the fuses.
Fuses A (amps) Allocation

1 15 Rear wiper

2 - Free

3 5 Air bag control unit

4 10 Steering wheel angle sensor, Diagnostic socket,
ESP sensor, Manual ventilation, Clutch switch,
Headlamp beam height, Particle emission filter pump


5 30 Electric mirrors, Passenger electric window mot or

6 30 Front electric windows supply

7 5 Courtesy lights and glove box light

8 20 Multifunction display, Anti-theft alarm siren, Aud
io
equipment, Compact disc changer, Audio/telephone,
Trailer fuse box (accessory), Coachbuilder/vehicle modifier
unit (platform cab)

9 10 Load space accessories socket

10 30 Rear ride height corrector, Steering wheel switchi
ng,
Instrument panel

11 15 Diagnostic socket, Ignition switch

12 15 Hands-free kit, Air bag control unit, Parking assi
stance
control unit

13 5 Engine fuse box, Trailer fuse box

14 15 Rain sensor, Automatic air conditioning, Instru ment panel

15 30 Locking/unlocking/deadlocking of the accesses

16 - Free

17 40 Heated rear screen, Heated mirrors

17 10 Heated mirrors only
