Page 94 of 99
1010
83

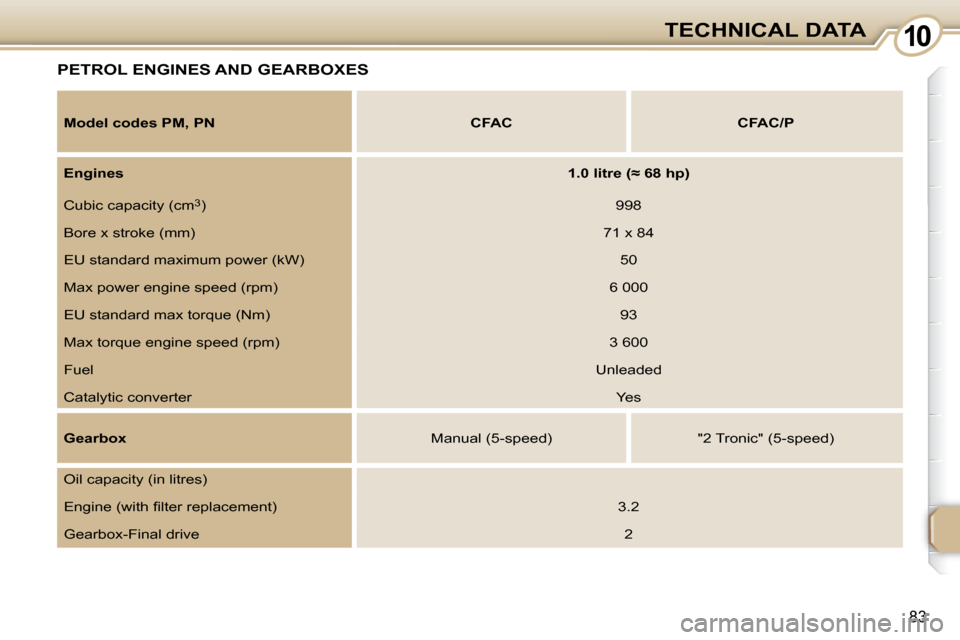

TECHNICAL DATA
PETROL ENGINES AND GEARBOXES
Model codes PM, PN CFAC CFAC/P
Engines
1 . 0 l i t r e ( ≈ 6 8
hp
)
Cubic capacity (cm 3
) 998
Bore x stroke (mm) 71 x 84
EU standard maximum power (kW) 50
Max power engine speed (rpm) 6 000
EU standard max torque (Nm) 93
Max torque engine speed (rpm) 3 600
Fuel Unleaded
Catalytic converter Yes
Gearbox Manual (5-speed) "2 Tronic" (5-speed)
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.2
Gearbox-Final drive 2
Page 95 of 99
1010
85

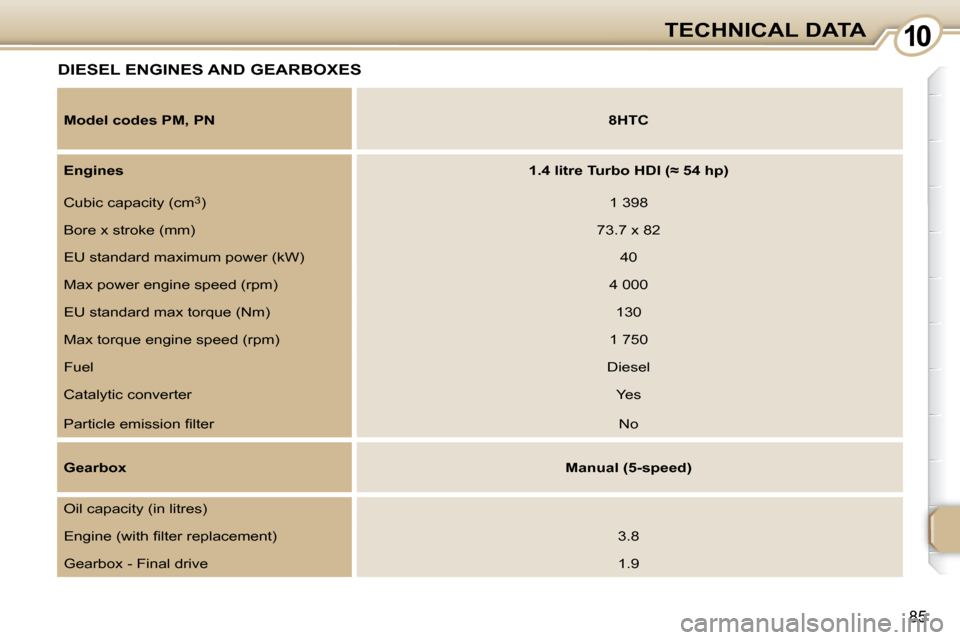

TECHNICAL DATA
DIESEL ENGINES AND GEARBOXES
Model codes PM, PN
8 H T C
Engines
1 . 4 l i t r e T u r b o H D I ( ≈ 5 4
hp
)
Cubic capacity (cm 3
) 1 398
Bore x stroke (mm) 73.7 x 82
EU standard maximum power (kW) 40
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 130
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
P a r t i c l e e m i s s i o n fi l t e r No
Gearbox
Manual (5-speed)
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.8
Gearbox - Final drive 1.9
Page 98 of 99
1010
87

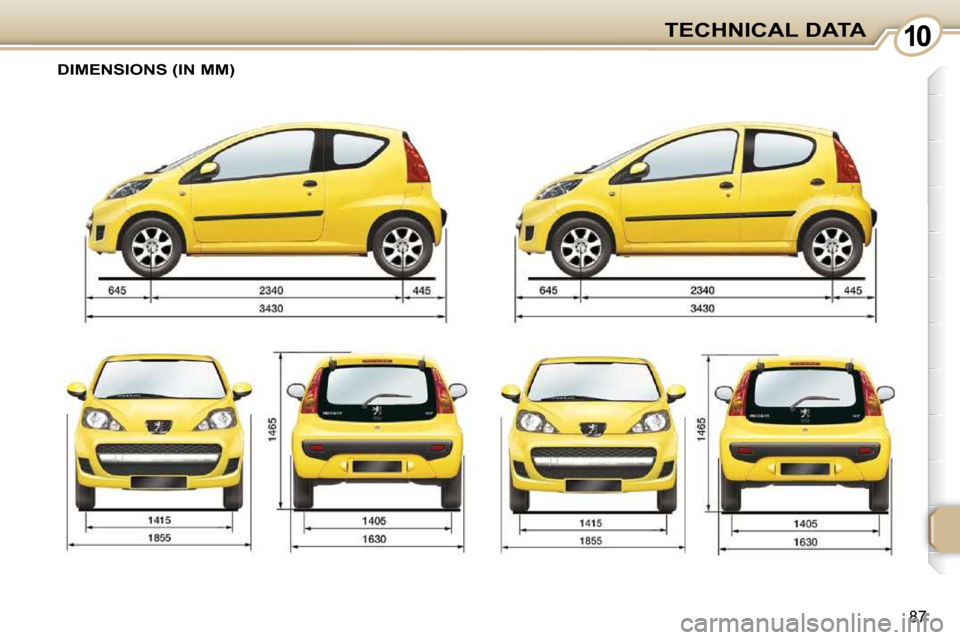

TECHNICAL DATA
DIMENSIONS (IN MM)
