Instruments, controls80
Correcting timeSome RDS1) transmitters do not send a
correct time signal. If the incorrect time is
continually displayed, deactivate
automatic time synchronisation 3 and set
the time manually – see next column. The automatic setting is indicated by
} in
the display.
To correct time with the help of RDS, select
the menu item for time synchronisation
from the Settings menu.
Make the desired setting.
Setting date and time
Select the menu item for time and date
setting from the Settings menu.
Make the desired setting.
The setting is saved when the menu item is
exited.
Ignition logic
3See Infotainment system instruction
manual. Language selectionYou can select the display language for
some functions.
Select the menu item for language from the
Settings
menu and make the desired
setting.
1)RDS = Radio Data System.

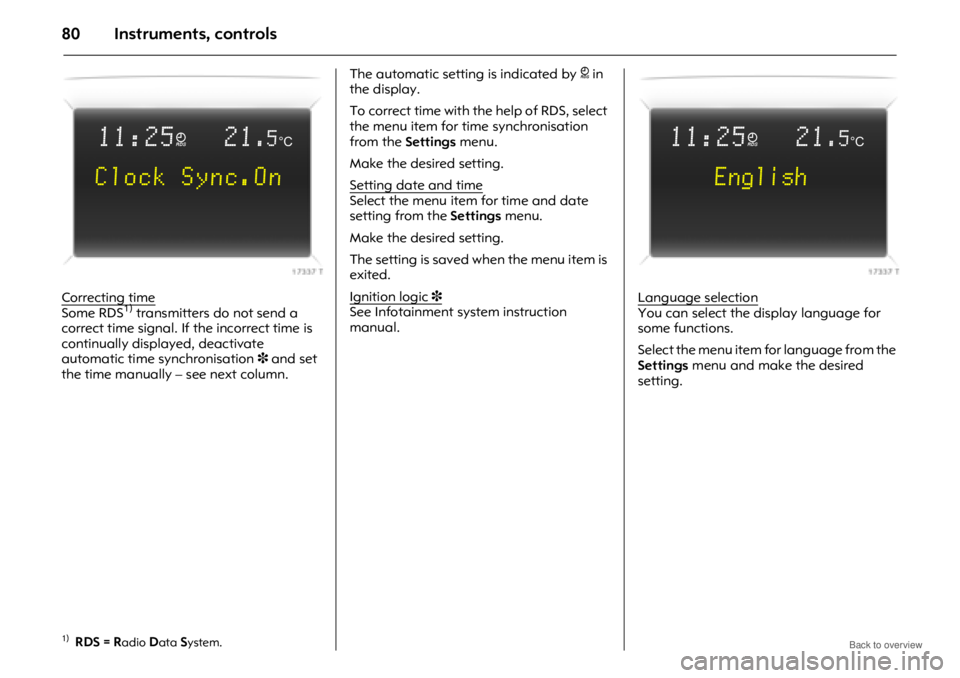

11:25}21.5°C
Clock Sync.On
11:25}21.5°C
English

Instruments, controls85
For each functional area there is a main
page (Main), which is selected at the
top edge of the display:
zAudio
z Navigation 3
z Telephone 3
z Trip computer 3
For audio, navigation 3 and telephone 3
functions – see Infotainment system
instruction manual. Graphical information display
3 or
colour information display 3,
system settings
The settings are accessed via the Settings
menu.
Press the Main button 3 (not found on all
Infotainment systems) on the Infotainment
system (call up main display).
Press the Settings button on the
Infotainment system. On Infotainment
System CD 30, make sure no menu has
been selected.
The Settings menu is displayed. Setting date and timeSelect menu item
Time, Date from the
Settings menu.
The menu for Time, Date is displayed.
Select the menu items required:
make the desired setting.
FM [TP] CDin

90.6 MHz
19,5° 19:36
7
77 7Settings 19,5° 19:36
Time, Date 19:36
Language
Units 10 . 07 . 2004
Contrast
Day / Night
6
66 6 Ign. logic
7
77 7 Time, Date 19,5° 19:36
Time 19:36
Date 10 . 07 . 2004
6
66 6 Synchron. clock automatical.

Instruments, controls86
Correcting time 3With the navigation system, date and time
are set automatically upon receipt of a
GPS
1) satellite signal. If the displayed time
does not match local time, it can be
corrected manually or automatically by
receiving an RDS
2) time signal 3.
Some RDS transmitters do not send correct
time signals. If the incorrect time is
displayed often, deactivate automatic
time synchronisation 3 and set the time
manually.
To correct time with the help of RDS, select
menu item Synchron. clock automatical.
from the Time, Date menu.
The box in front of Synchron. clock
automatical. will be ticked:
see Fig. 17340 T. Language selection
You can select the display language for
some functions.
Select menu item
Language from the
Settings menu.
The available langua ges are displayed. Select the desired language.
Selections are indicated by a
6 in front of
the menu item.
In systems with voice output 3, when the
language setting of the display is changed,
the system will ask whether the
announcement language should also be
changed – see Infotainment system
instruction manual.
1)GPS = Global Positioning System,
satellite system for w orld-wide positioning.
2)RDS = Radio Data System.
7
77 7Settings 19,5° 19:36
Time, Date
Language Deutsch
Units English
Contrast Español
Day / Night ...
6
66 6 Ign. logic
7
77 713 Languages 19,5° 19:36
XDeutsch
English
Español
Nederlands
Français
Italiano

Climate control105
Heated rear window,
heated exterior mirrors 3
Operational only in ignition switch
positions ACC or ON.
Control indicator in button.
Turn off as soon as vision is clear.
Rear window and exterior mirror heating is
switched off automatically after approx.
15 minutes.
To avoid discharging the battery, do not
operate when you are just starting the
vehicle, or if there is a build up of snow or
ice. Operate only with the engine running.
Do not use sharp instruments or abrasive
cleaners on rear window or exterior mirrors,
and avoid scratching or damaging their
heating elements.
Heated front seats 3
Operational only in ignition switch
positions ACC or ON.
Press switch ß on respective side one or
more times to set the desired heat output.
Control indicator in switch indicates which
of the three heating levels is active.
To switch heating off, set heat output to
the lowest level and press the switch again.
The control indicato r will extinguish.
Prolonged use could cause damage to
delicate and thin clothing and burn seat
occupants.
Avoid subjecting seats to heavy impacts,
as this may cause damage to the heating
element.
If temperature continues to rise, turn seat
heating off and consult a workshop.
Glove compartment cooling 3
Cooled air is fed into the glove
compartment through an air opening,
when the air conditioning is turned on.
Rotate adjustment wheel anti-clockwise to
allow the air conditioning to keep the
contents of the glove compartment cool.
Rotate adjustment wheel clockwise to close
air opening when glove compartment
cooling is not required.
General notes and notes on air intake,
pollen filter and maintenance
see page 114.
Press button
Ü=On
Press button Ü again = Off

Self-help, vehicle care180
3. The location of front and rear jacking points is indicated by notches on the
bottom edge of the vehicle, under the
doors.4. Before positioning the jack, set it to the necessary height by rotating the eye by
hand.
Position jack at the front or rear jacking
point located nearest to the wheel
concerned so that the jack claw spans
the vertical base. Make sure it is properly
positioned.
The jack base must be on the ground
directly below the jacking point in a
manner that prevents it from slipping.5. Attach wrench to eye of threaded rod and turn crank to raise vehicle.
If this is not the case, carefully lower the
vehicle immediately and reposition the
jack.
Raise the vehicle until the wheel is just
clear of the ground.
6. Unscrew wheel nuts completely by turning anti-clockwise and wipe clean
with a cloth. Then apply a light coating
of grease to the cone of each wheel
nut. Do not grease the threads.
Put wheel nuts somewhere where the
threads will not be soiled.

Self-help, vehicle care181
Electrical system
Fuses
There are two fuse boxes in the vehicle:
the instrument panel fu se box is located on
the left-hand side of the front passenger’s
footwell, the engine compartment fuse box
is located next to the coolant reservoir.
It is advisable to carry a full set of fuses.
Spare fuses are kept in the engine
compartment fuse box.
7. Change the wheel.
Notes on spare wheel - see page 178.
8. Screw on wheel nuts and tighten slightly by hand until wheel is held
against the hub.
9. Rotate wrench anti-clockwise and lower vehicle to the ground.
10. Tighten wheel nuts in a cross wise sequence, putting the wrench on as far
as possible.
11. Stow replaced wheel in luggage compartment.
12. Stow the jacking equipment and warning triangle 3 - see pages 176,
177.
13. Check the tyre pressure of the newly fitted wheel - see page 224. Adjust as
necessary.
14. Have the new wheel balanced on the vehicle and have the tightening torque
of the wheel nuts checked as soon as
possible, and if necessary, corrected.
Tightening torque - see page 223.
15. Replace defective tyre on the wheel that was removed.
16. Replace temporary spare wheel with a full specification wheel without delay.
9 Warning
Electronic ignition systems generate very
high voltages. Do not touch the ignition
system; high voltage can be fatal.

Self-help, vehicle care194
Engine oil change, oil filter change
Engine oil changes are to be carried out
depending on time intervals or kilometre/
mileage intervals, since oil loses its
lubrication properties not only through
engine operation but also through ageing.
We recommend that you use genuine Opel
oil filters.

Remember to reset the engine oil life
monitor 3 whenever the engine oil is
changed.
Engine oil life monitor 3
The engine oil life monitor lets you know
when to change the oil. Based on driving
conditions, the kilometre/mileage interval
at which an oil change will be indicated can
vary considerably.
For the system to work properly, it must be
reset every time the oil is changed. Consult
a workshop.
When the system has calculated that oil life
has been diminished, control indicator C
illuminates in the instrument panel -
see page 73. Engine oil needs changing
within approx. 1000 km (600 miles). Engine
power may be decreased.Diesel fuel filter
Drain diesel fuel filter of residual water at
every engine oil change.
Place a container underneath the filter
housing. Turn drain plug, located on the
left of the filter housing, anti-clockwise
using a suitable screwdriver, to drain off
the water.
The filter is drained as soon as diesel fuel
emerges from the port. Retighten the drain
plug by turning it clockwise.
With engine switched off, turn ignition key
to ON, wait approx. 5 seconds, and turn
key to LOCK to perform priming operation.
Perform this operation 3 times or more
while the engine is switched off, to avoid air
entering the fuel line.
9 Warning
Used engine oil filters and empty oil
containers should not be disposed of as
domestic refuse. We recommend that
you entrust oil and oil filter changes to a
workshop who is familiar with legal
requirements regarding disposal of used
oil and can thus help to protect both the
environment and your health.
Engine oil is a danger to health; avoid
prolonged contact with skin and wash
exposed areas thoroughly.
