2009 Nissan Towing Guide 21 4. Being cautious of traffic, step out of the vehicle and, from a safe distance, look for steam

underneath the engine. If you see steam or leaking coolant, stand clear to avoid being
burned and shut off your engine immediately and allow it to cool. If there is no steam, open
the hood. Never remove the radiator cap when the radiator is hot. If the cap is removed
under these conditions, hot water/coolant under high pressure may spurt out, possibly
causing serious injury.
5. As soon as the engine has cooled to its normal operating temperature, visually inspect the
drive belts for damage or looseness. A loose belt reduces water pump efficiency. Be
careful to keep your hands, hair, jewelry, and clothing clear of the running drive belt and
other moving parts when inspecting the engine and radiator. Also check to see if the
cooling fan is running, and inspect the water pump, radiator, and radiator hoses for leaks.
Keep in mind, too, that if your vehicle is equipped with an electric fan motor, it may start
without warning any time the coolant temperature is high. If you find leaking coolant, a
loose or missing drive belt, or an inoperable fan, turn off the engine immediately.
6. If no leaks are apparent and all other components appear to be operating properly with
the engine cooled to its normal operating temperature, check the coolant level in the
reservoir tank with the engine running. Add coolant to the reservoir tank if needed. At this
point, if repairs are required, go to the nearest Nissan dealer. See the IN CASE OF
EMERGENCY section of your vehicle owner’s manual for additional information on
overheating.
NOTE – All Nissan vehicles have an engine protection mode, which helps reduce the chance
of engine damage if the engine coolant reaches a specified temperature. See your vehicle
owner’s manual for details.


TOWING
GLOSSARY
5TH WHEEL
HITCH Located just forward of the rear axle centerline, this hitch uses a king pin to
serve as the pivot point for the trailer.

BALL MOUNT A bar that holds the hitch ball and is inserted into the hitch receiver. Also
commonly called a drawbar.

BREAKAWAY SWITCH A safety device using a trailer battery that automatically applies the trailer’s
brakes if it should accidentally become separated from the tow vehicle.
A breakaway switch may be used with both electric or surge trailer brake
systems.

BUMPER HITCH A reinforced bumper designed to accommodate a hitch ball.

2009 Nissan Towing Guide 23
SPECIFICATIONS

TOWING CAPACITIES
Crossovers, Minivans, SUVs, and Trucks

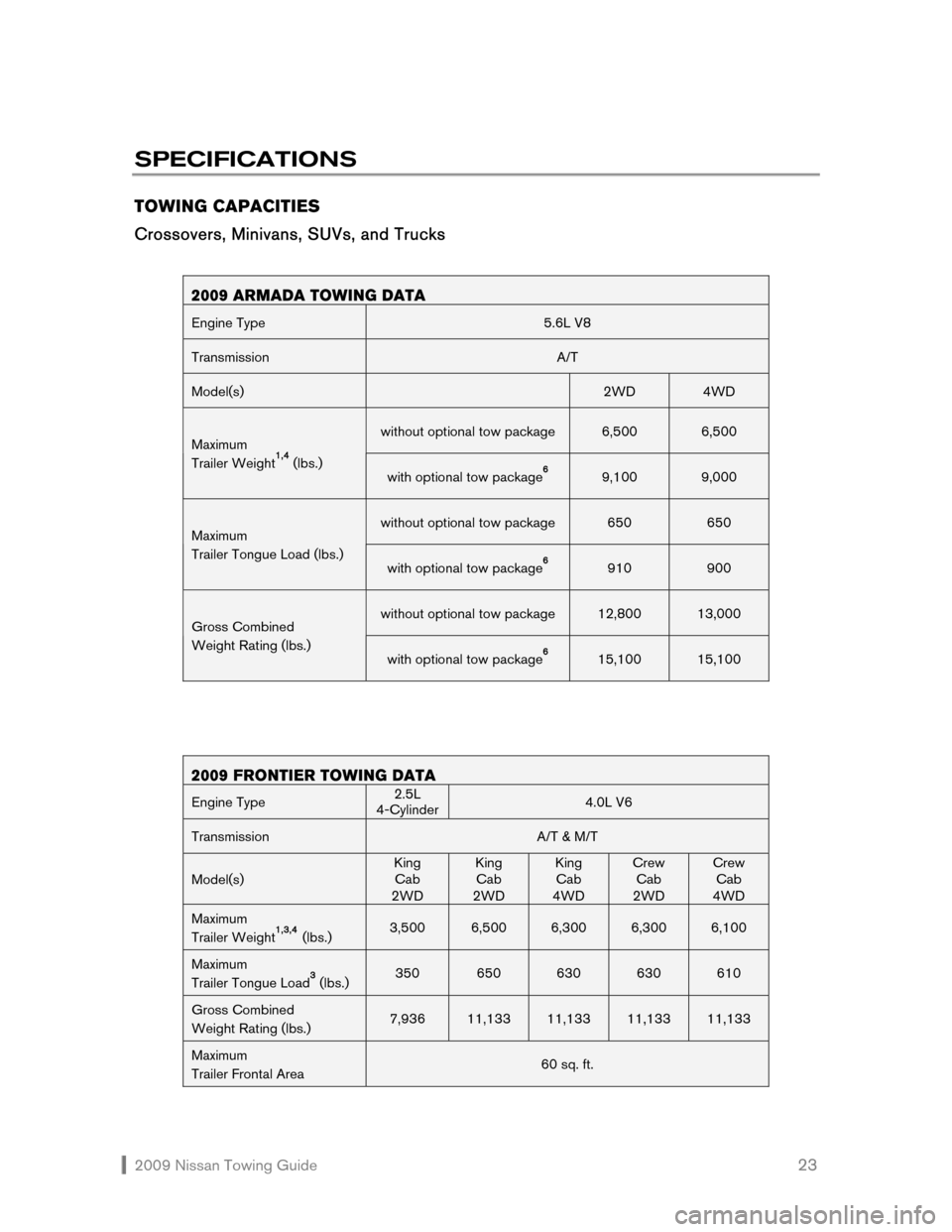

2009 ARMADA TOWING DATA
Engine Type 5.6L V8
Transmission A/T
Model(s) 2WD 4WD
without optional tow package 6,500 6,500 Maximum
Trailer Weight1,4 (lbs.) with optional tow package6 9,100 9,000
without optional tow package 650 650 Maximum
Trailer Tongue Load (lbs.) with optional tow package6 910 900
without optional tow package 12,800 13,000 Gross Combined
Weight Rating (lbs.) with optional tow package6 15,100 15,100
2009 FRONTIER TOWING DATA
Engine Type 2.5L
4-Cylinder 4.0L V6
Transmission A/T & M/T
Model(s)
King
Cab
2WD
King
Cab
2WD
King
Cab
4WD
Crew
Cab
2WD
Crew
Cab
4WD
Maximum
Trailer Weight1,3,4 (lbs.) 3,500 6,500 6,300 6,300 6,100
Maximum
Trailer Tongue Load3 (lbs.) 350 650 630 630 610
Gross Combined
Weight Rating (lbs.) 7,936 11,133 11,133 11,133 11,133
Maximum
Trailer Frontal Area 60 sq. ft.

2009 Nissan Towing Guide 24

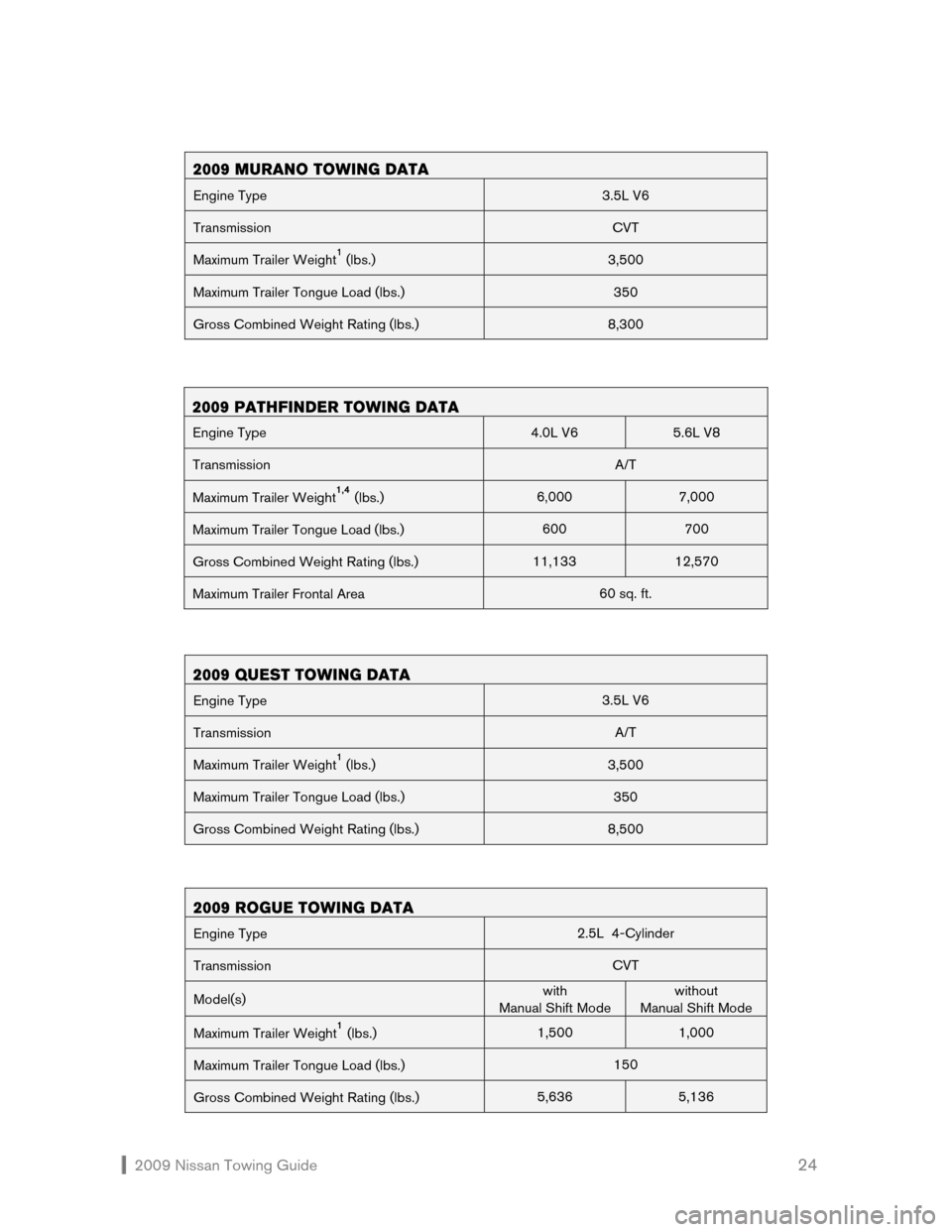

2009 MURANO TOWING DATA
Engine Type 3.5L V6
Transmission CVT
Maximum Trailer Weight1 (lbs.) 3,500
Maximum Trailer Tongue Load (lbs.) 350
Gross Combined Weight Rating (lbs.) 8,300
2009 PATHFINDER TOWING DATA
Engine Type 4.0L V6 5.6L V8
Transmission A/T
Maximum Trailer Weight1,4 (lbs.) 6,000 7,000
Maximum Trailer Tongue Load (lbs.) 600 700
Gross Combined Weight Rating (lbs.) 11,133 12,570
Maximum Trailer Frontal Area 60 sq. ft.
2009 ROGUE TOWING DATA
Engine Type 2.5L 4-Cylinder
Transmission CVT
Model(s) with
Manual Shift Mode
without
Manual Shift Mode
Maximum Trailer Weight1 (lbs.) 1,500 1,000
Maximum Trailer Tongue Load (lbs.) 150
Gross Combined Weight Rating (lbs.) 5,636 5,136
2009 QUEST TOWING DATA
Engine Type 3.5L V6
Transmission A/T
Maximum Trailer Weight1 (lbs.) 3,500
Maximum Trailer Tongue Load (lbs.) 350
Gross Combined Weight Rating (lbs.) 8,500

2009 Nissan Towing Guide 25

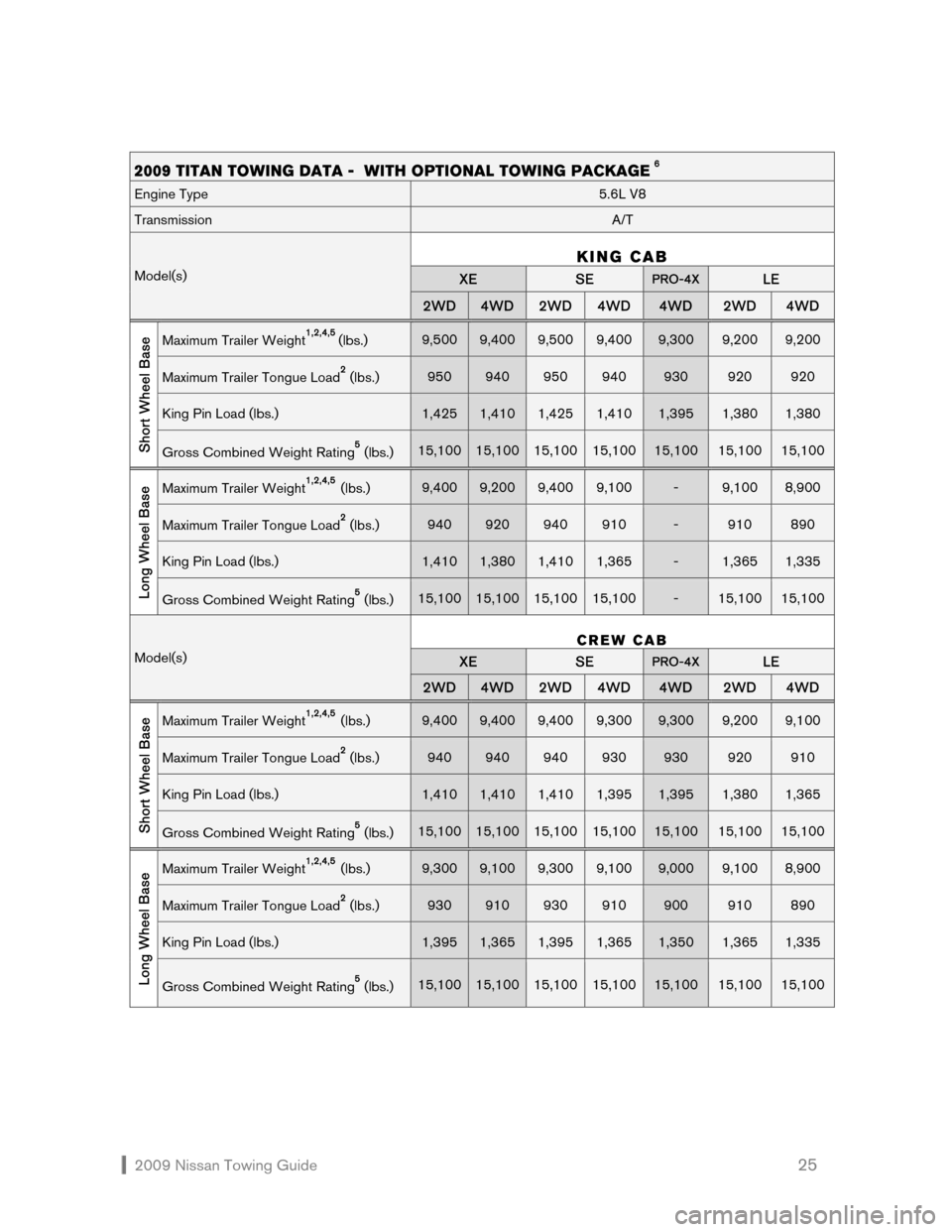

2009 TITAN TOWING DATA - WITH OPTIONAL TOWING PACKAGE 6
Engine Type 5.6L V8
Transmission A/T
KING CAB
XE SE PRO-4X LE Model(s)
2WD 4WD 2WD 4WD 4WD 2WD 4WD
Maximum Trailer Weight1,2,4,5 (lbs.) 9,500 9,400 9,500 9,400 9,300 9,200 9,200
Maximum Trailer Tongue Load2 (lbs.) 950 940 950 940 930 920 920
King Pin Load (lbs.) 1,425 1,410 1,425 1,410 1,395 1,380 1,380
Short Wheel Base Gross Combined Weight Rating5 (lbs.) 15,10015,10015,10015,10015,100 15,100 15,100
Maximum Trailer Weight1,2,4,5 (lbs.) 9,400 9,200 9,400 9,100 - 9,100 8,900
Maximum Trailer Tongue Load2 (lbs.) 940 920 940 910 - 910 890
King Pin Load (lbs.) 1,410 1,380 1,410 1,365 - 1,365 1,335
Long Wheel Base Gross Combined Weight Rating5 (lbs.) 15,10015,10015,10015,100- 15,100 15,100
CREW CAB
XE SE PRO-4X LE Model(s)
2WD 4WD 2WD 4WD 4WD 2WD 4WD
Maximum Trailer Weight1,2,4,5 (lbs.) 9,400 9,400 9,400 9,300 9,300 9,200 9,100
Maximum Trailer Tongue Load2 (lbs.) 940 940 940 930 930 920 910
King Pin Load (lbs.) 1,410 1,410 1,410 1,395 1,395 1,380 1,365
Short Wheel Base Gross Combined Weight Rating5 (lbs.) 15,10015,10015,10015,10015,100 15,100 15,100
Maximum Trailer Weight1,2,4,5 (lbs.) 9,300 9,100 9,300 9,100 9,000 9,100 8,900
Maximum Trailer Tongue Load2 (lbs.) 930 910 930 910 900 910 890
King Pin Load (lbs.) 1,395 1,365 1,395 1,365 1,350 1,365 1,335
Long Wheel Base Gross Combined Weight Rating5 (lbs.) 15,10015,10015,10015,10015,100 15,100 15,100

2009 Nissan Towing Guide 26

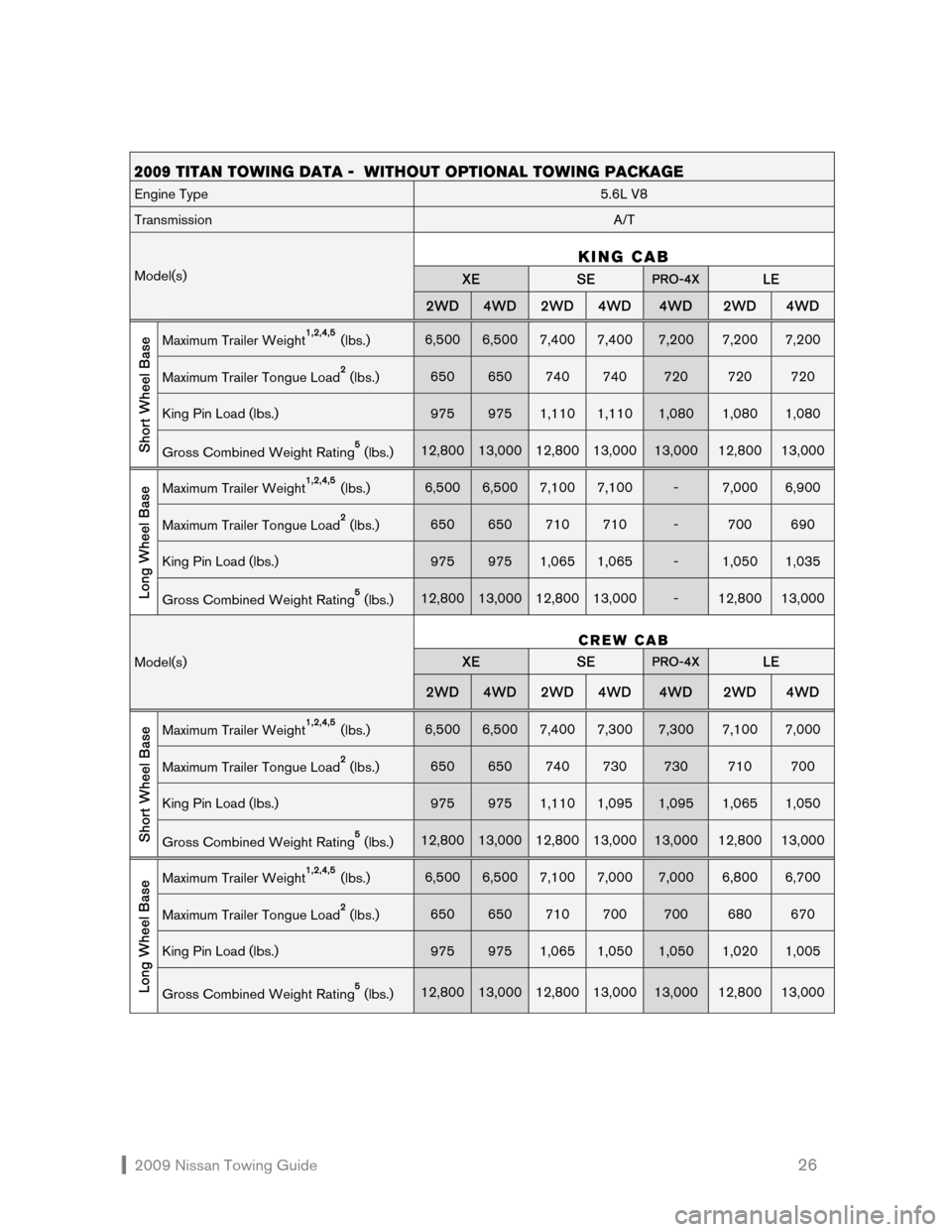

2009 TITAN TOWING DATA - WITHOUT OPTIONAL TOWING PACKAGE
Engine Type 5.6L V8
Transmission A/T
KING CAB
XE SE PRO-4X LE Model(s)
2WD 4WD 2WD 4WD 4WD 2WD 4WD
Maximum Trailer Weight1,2,4,5 (lbs.) 6,500 6,500 7,400 7,400 7,200 7,200 7,200
Maximum Trailer Tongue Load2 (lbs.) 650 650 740 740 720 720 720
King Pin Load (lbs.) 975 975 1,110 1,110 1,080 1,080 1,080
Short Wheel Base Gross Combined Weight Rating5 (lbs.) 12,80013,00012,80013,00013,000 12,800 13,000
Maximum Trailer Weight1,2,4,5 (lbs.) 6,500 6,500 7,100 7,100 - 7,000 6,900
Maximum Trailer Tongue Load2 (lbs.) 650 650 710 710 - 700 690
King Pin Load (lbs.) 975 975 1,065 1,065 - 1,050 1,035
Long Wheel Base Gross Combined Weight Rating5 (lbs.) 12,80013,00012,80013,000- 12,800 13,000
CREW CAB
XE SE PRO-4X LE Model(s)
2WD 4WD 2WD 4WD 4WD 2WD 4WD
Maximum Trailer Weight1,2,4,5 (lbs.) 6,500 6,500 7,400 7,300 7,300 7,100 7,000
Maximum Trailer Tongue Load2 (lbs.) 650 650 740 730 730 710 700
King Pin Load (lbs.) 975 975 1,110 1,095 1,095 1,065 1,050
Short Wheel Base Gross Combined Weight Rating5 (lbs.) 12,80013,00012,80013,00013,000 12,800 13,000
Maximum Trailer Weight1,2,4,5 (lbs.) 6,500 6,500 7,100 7,000 7,000 6,800 6,700
Maximum Trailer Tongue Load2 (lbs.) 650 650 710 700 700 680 670
King Pin Load (lbs.) 975 975 1,065 1,050 1,050 1,020 1,005
Long Wheel Base Gross Combined Weight Rating5 (lbs.) 12,80013,00012,80013,00013,000 12,800 13,000

2009 Nissan Towing Guide 27










































Passenger Vehicles – The towing capacity for Altima (Coupe, Hybrid, and Sedan), Maxima,
and Sentra vehicles is 1,000 lbs.; the maximum trailer tongue load is 100 lbs. DO NOT
tow a
trailer with 350Z Roadster, 370Z Coupe, cube, Versa, or GT-R.
NOTE – For passenger vehicles, the trailer tongue load must be subtracted from the GVWR
as shown on the F.M.V.S.S. certification label located in the driver’s-side door area.

2009 XTERRA TOWING DATA
Engine Type 4.0L V6
Transmission A/T & M/T
Model(s) 2WD & 4WD
Maximum
Trailer Weight1 (lbs.) 5,000
Maximum
Trailer Tongue Load (lbs.) 500
Gross Combined
Weight Rating (lbs.) 9,658
Maximum
Trailer Frontal Area 60 sq. ft.
1 Maximum Trailer Weight values are calculated assuming a base vehicle with driver and any options
required to achieve the rating. Additional passengers, cargo and/or optional equipment will add
weight to the vehicle and reduce your vehicle’s maximum towing capacity and trailer tongue load.
2 The Maximum Trailer Weight when using the Genuine Nissan step bumper in this application as a
ball mount is 5,000 lbs.; the Maximum Trailer Tongue Load is 500 lbs.
3 The Maximum Trailer Weight when using the Genuine Nissan step bumper in this application as a
ball mount is 3,500 lbs.; the Maximum Trailer Tongue Load is 350 lbs. 4 Use of a weight-distributing hitch system is recommended when towing over 5,000 lbs. 5 The Maximum Trailer Weight and Gross Combined Weight ratings for 5th wheel and gooseneck
trailer towing are the same as specified for conventional trailer towing.
6 The vehicle optional tow package does not include a ball mount. Two ball mount options are
available through your Nissan dealer:
Š Class III hitch ball mount for trailers with a Maximum Trailer Weight of 5,000 lbs. or less.
NOTE – A hitch ball is not included with the Class III ball mount. This ball mount can be
used with any hitch ball with a shank diameter of 1” or larger.
Š Class IV weight-distributing hitch ball mount for trailers with a Maximum Trailer Weight
greater than 5,000 lbs. This ball mount can also be used with trailers under 5,000 lbs.
Maximum Trailer Weight.
NOTE – The Class IV ball mount includes a 2
5/16” hitch ball rated for 10,000 lbs. Smaller
hitch ball sizes may be used by following the instructions included in the ball mount kit.

NOTES:
Š Most states require a separate braking system on trailers with a loaded weight above a
specific amount. Check local ordinances.
Š A/T – Automatic Transmission, CVT – Continuously Variable Transmission
