NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer system will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using a registered key (for
example, when interference is caused by another
registered key, an automated toll road device or
automatic payment device on the key ring) , restart
the engine using the following procedure:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Place the ignition switch in the OFF or
LOCK position, and wait approximately 10
seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered key.
If the no start condition re-occurs, NISSAN recom-
mends placing the registered key on a separate key
ring to avoid interference from other devices.
●Make sure the area around the vehicle is
clear.
●Check fluid levels such as engine oil, cool-
ant, brake and clutch fluid, and window
washer fluid as frequently as possible, or at
least whenever you refuel.
●Check that all windows and lights are clean.
●Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
●Lock all doors.
●Position seat and adjust head restraints.
●Adjust inside and outside mirrors.
●Fasten seat belts and ask all passengers to
do likewise.
●Check the operation of warning lights when
the key is turned to the ON (3) position. See
“Warning/indicator lights and audible re-
minders” in the “Instruments and controls”
section of this manual.1. Apply the parking brake.
2.CVT model:
Move the shift selector to P (Park) or N
(Neutral) . P (Park) is recommended.
The shift selector cannot be moved out
of P (Park) and into any of the other
gear positions if the ignition key is
turned to the OFF position or if the key
is removed from the ignition switch.
The starter is designed not to operate if
the shift selector is in any of the driving
positions.
Manual transmission model:
Move the shift selector to N (Neutral) . De-
press the clutch pedal to the floor while
cranking the engine.
The starter is designed not to operate
unless the clutch pedal is fully de-
pressed.
Models with Intelligent Key:Slowly
“PUSH ON” the ignition switch. When the
Intelligent Key warning light
in the
meter illuminates in green, the ignition
switch can be turned.
The Intelligent Key must be carried
when operating the ignition switch.
BEFORE STARTING THE ENGINE STARTING THE ENGINE
5-10Starting and driving
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks


●When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag.
●Use the recommended viscosity engine oil.
See “Capacities and recommended
fuel/lubricants” in the “Technical and con-
sumer information” section of this manual.
WARNING
●Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite
and cause a fire.
●Safe parking procedures require that
both the parking brake be set and the
transmission placed into P (Park) for
CVT models or in an appropriate gear
for manual transmission models. Fail-
ure to do so could cause the vehicle to
move unexpectedly or roll away and re-
sult in an accident. Make sure the shift
lever has been pushed as far forward asit can go and cannot be moved without
depressing the foot brake pedal.
●Never leave the engine running while
the vehicle is unattended.
●Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.
1. Firmly apply the parking brake.
2.Manual transmission models:
Place the shift selector in the R (Reverse)
position. When parking on an uphill grade,
place the shift lever in 1st gear.
SSD0488
PARKING/PARKING ON HILLS
5-22Starting and driving
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks


5. Remove the dipstick again and check the oil
level. It should be between the H (High) and
L (Low) marks
B. This is the normal oper-
ating oil level range. If the oil level is below
the L (Low) mark
A, remove the oil filler cap
and pour recommended oil through the
opening.Do not overfill
C.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil
maintenance intervals or during the
break-in period, depending on the severity
of operating conditions.
CAUTION
Oil level should be checked regularly. Op-
erating the engine with an insufficient
amount of oil can damage the engine, and
such damage is not covered by warranty.
Type B
LDI0590LDI0371
8-10Maintenance and do-it-yourself
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks


CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
6. Clean and reinstall the drain plug and a new
washer. Securely tighten the drain plug with
a wrench. Do not use excessive force.
Drain plug tightening torque:
22 - 29 ft-lb (29 - 39 N·m)
7. Refill engine with recommended oil through
the oil filler opening, then install the oil filler
cap securely.
See “Capacities and recommended
fuel/lubricants” in the “Technical and con-
sumer information” section of this manual for
drain and refill capacity.
The drain and refill capacity depends on the
oil temperature and drain time. Use these
specifications for reference only. Always use
the dipstick to determine when the proper
amount of oil is in the engine.
8. Start the engine. Check for leakage around
the drain plug and oil filter. Correct as re-
quired.
9. Turn the engine off and wait more than 10
minutes. Check the oil level with the dipstick.
Add engine oil if necessary.
CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and apply
the parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
C.
4. Loosen the oil filter with an oil filter wrench
by turning it counterclockwise. Then remove
the oil filter by turning it by hand.
MR20DE engine
AOil filler cap
BOil drain plug
COil filter
WDI0521
QR25DE engine
AOil filler cap
BOil drain plug
COil filter
WDI0597
8-12Maintenance and do-it-yourself
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks


9 Technical and consumer information
Capacities and recommended fuel/lubricants.........9-2
Fuel recommendation . . .........................9-4
Engine oil and oil filter recommendations..........9-6
Air conditioner system refrigerant and oil
recommendations..............................9-7
Specifications . . ...................................9-8
Engine........................................9-8
Wheels and tires...............................9-9
Dimensions and weights.......................9-10
When traveling or registering your vehicle in
another country..................................9-11
Vehicle identification..............................9-11
Vehicle identification number (VIN) plate.........9-11
Vehicle identification number
(chassis number)..............................9-11
Engine serial number...........................9-12
F.M.V.S.S./C.M.V.S.S. certification label..........9-12
Emission control information label...............9-13
Tire and loading information label................9-13Air conditioner specification label................9-13
Installing front license plate........................9-14
Vehicle loading information........................9-14
Terms........................................9-14
Vehicle load capacity..........................9-15
Loading tips..................................9-17
Measurement of weights.......................9-17
Towing a trailer...................................9-18
Maximum load limits...........................9-18
Towing load/specification. . .....................9-21
Towing safety.................................9-21
Flat towing....................................9-25
Uniform tire quality grading........................9-26
Emission control system warranty..................9-27
Reporting safety defects (US only).................9-27
Readiness for inspection/maintenance (I/M) test.....9-28
Event Data Recorders (EDR).......................9-29
Owner’s Manual/Service Manual order information . . . 9-29
In the event of a collision.......................9-30
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks


The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate) Recommended Fluids and Lubricants
US measure Imp measure Liter
Fuel 14-1/2 gal 12-1/8 gal 55.0 See “Fuel recommendation” later in this section.
Engine oil *6
Drain and Refill
With oil filter change MR20DE 4-1/8 3-3/8 qt 3.9
Engine oil with API Certification Mark *1
Viscosity SAE 5W-30 *1 QR25DE 4-1/2 qt 3-1/4 qt 4.3
Without oil filter
changeMR20DE 3-7/8 qt 3-1/8 qt 3.6
QR25DE 4-1/4 qt 3-1/2 qt 4.0
Cooling system
With reservoir
MR20DE 1-7/8 gal 1-1/2 gal 7.0
50% Genuine NISSAN Long Life Antifreeze/Coolant or equivalent
50% Demineralized or distilled water
QR25DECVT 2 gal 1-5/8 gal 7.6
MT 2 gal 1-5/8 gal 7.6
Continuously Variable Transmission (CVT) fluid — — — Genuine NISSAN CVT Fluid NS-2-V *2
Manual transmission gear oil
MR20DE —— — Genuine NISSAN gear oil (XT4447 M+) 75W-80, Genuine NISSAN gear
oil (ETL8997B) 75W-80 or equivalent *3
QR25DE —— — Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or
API GL-4, Viscosity SAE 75W-85
Brake and clutch fluid Refill to the proper level according to the instructions
in the “Maintenance and do-it-yourself” section *7Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent DOT 3 *4
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks

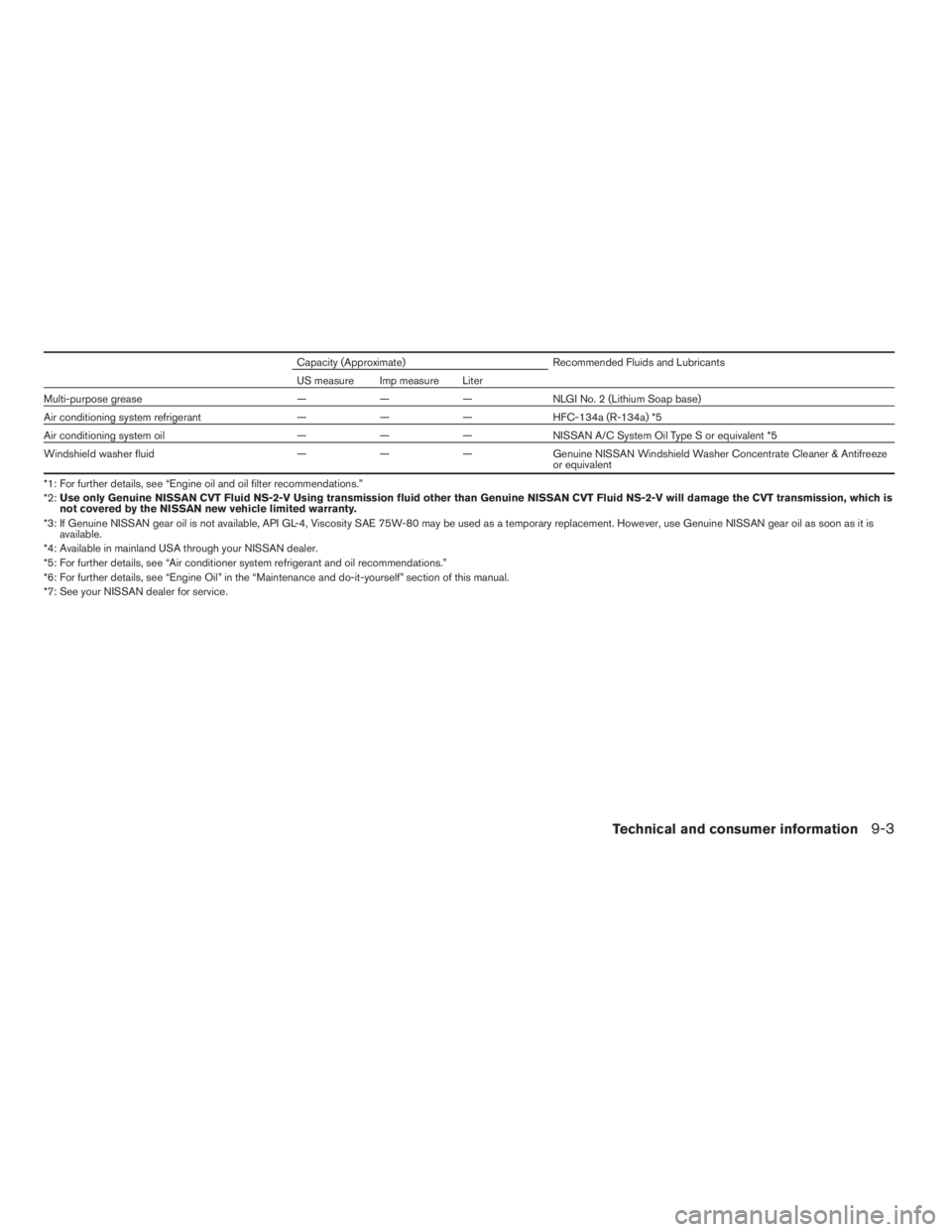

Capacity (Approximate) Recommended Fluids and Lubricants
US measure Imp measure Liter
Multi-purpose grease — — — NLGI No. 2 (Lithium Soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a) *5
Air conditioning system oil — — — NISSAN A/C System Oil Type S or equivalent *5
Windshield washer fluid — — — Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze
or equivalent
*1: For further details, see “Engine oil and oil filter recommendations.”
*2:Use only Genuine NISSAN CVT Fluid NS-2-V Using transmission fluid other than Genuine NISSAN CVT Fluid NS-2-V will damage the CVT transmission, which is
not covered by the NISSAN new vehicle limited warranty.
*3: If Genuine NISSAN gear oil is not available, API GL-4, Viscosity SAE 75W-80 may be used as a temporary replacement. However, use Genuine NISSAN gearoil as soon as it is
available.
*4: Available in mainland USA through your NISSAN dealer.
*5: For further details, see “Air conditioner system refrigerant and oil recommendations.”
*6: For further details, see “Engine Oil” in the “Maintenance and do-it-yourself” section of this manual.
*7: See your NISSAN dealer for service.
Technical and consumer information9-3
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks


ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. See “Capacities
and recommended fuel/lubricants” earlier in this
section. NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and ApprovalCommittee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifica-
tion mark on the front of the container. Oils which
do not have the specified quality label should not
be used as they could cause engine damage.Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not neces-
sary when the proper oil type is used and main-
tenance intervals are followed.
Oil which may contain foreign matter or has been
previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be oper-
ated before the next oil change. Choosing an oil
viscosity other than that recommended could
cause serious engine damage.
Selecting the correct oil filter
Your new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When re-
placing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals.”
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and filters
that are not of the specified quality, or exceeding
recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is not
covered by the NISSAN new vehicle limited war-
ranty.
WTI0183
9-6Technical and consumer information
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks
