Black plate (25,1)
8 Maintenance and do-it-yourself
Model "S35-D" EDITED: 2008/ 6/ 3
Maintenance requirement..................................... 8-2
Scheduled maintenance................................... 8-2
General maintenance...................................... 8-2
Where to go for service................................... 8-2
General maintenance.......................................... 8-2
Explanation of maintenance items....................... 8-2
Maintenance precautions..................................... 8-5
Engine compartment check locations...................... 8-6
QR25DE engine............................................ 8-6
Engine cooling system......................................... 8-7
Checking engine coolant level........................... 8-8
Changing engine coolant................................. 8-8
Engine oil......................................................... 8-8
Checking engine oil level................................. 8-8
Changing engine oil and filter............................ 8-9
Continuously Variable Transmission (CVT) fluid........ 8-11
Brake fluid...................................................... 8-11
Window washer fluid........................................ 8-12
Battery.......................................................... 8-13
Jump starting.............................................. 8-14
Drive belts...................................................... 8-14
Spark plugs.................................................... 8-15
Replacing spark plugs................................... 8-15Air cleaner...................................................... 8-16
Windshield wiper blades.................................... 8-16
Cleaning.................................................... 8-16
Replacing................................................... 8-17
Rear window wiper blade................................... 8-18
Brakes........................................................... 8-18
Self-adjusting brakes.................................... 8-18
Brake pad wear indicators.............................. 8-18
Fuses............................................................ 8-19
Engine compartment..................................... 8-19
Passenger compartment................................ 8-20
Battery replacement.......................................... 8-21
Keyfob....................................................... 8-21
Intelligent Key battery.................................... 8-22
Lights............................................................ 8-24
Headlights.................................................. 8-25
Exterior and interior lights............................... 8-26
Wheels and tires.............................................. 8-29
Tire pressure............................................... 8-29
Tire labeling................................................ 8-33
Types of tires.............................................. 8-35
Tire chains.................................................. 8-36
Changing wheels and tires............................. 8-37

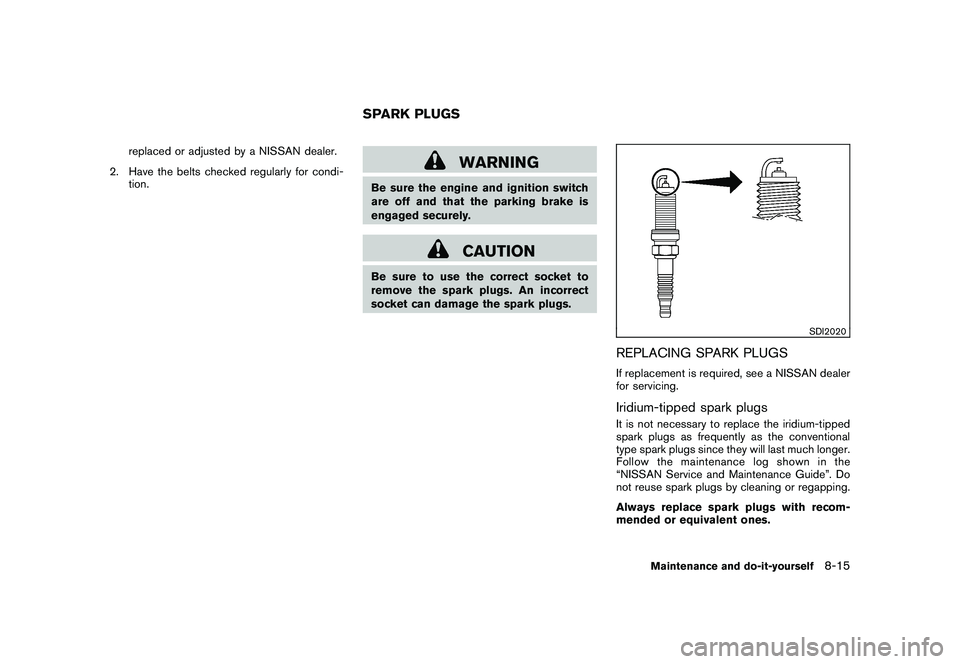

Black plate (253,1)
Model "S35-D" EDITED: 2008/ 7/ 24
replaced or adjusted by a NISSAN dealer.
2. Have the belts checked regularly for condi-
tion.
WARNING
Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
SDI2020
REPLACING SPARK PLUGSIf replacement is required, see a NISSAN dealer
for servicing.Iridium-tipped spark plugsIt is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much longer.
Follow the maintenance log shown in the
“NISSAN Service and Maintenance Guide”. Do
not reuse spark plugs by cleaning or regapping.
Always replace spark plugs with recom-
mended or equivalent ones.
SPARK PLUGS
Maintenance and do-it-yourself
8-15
