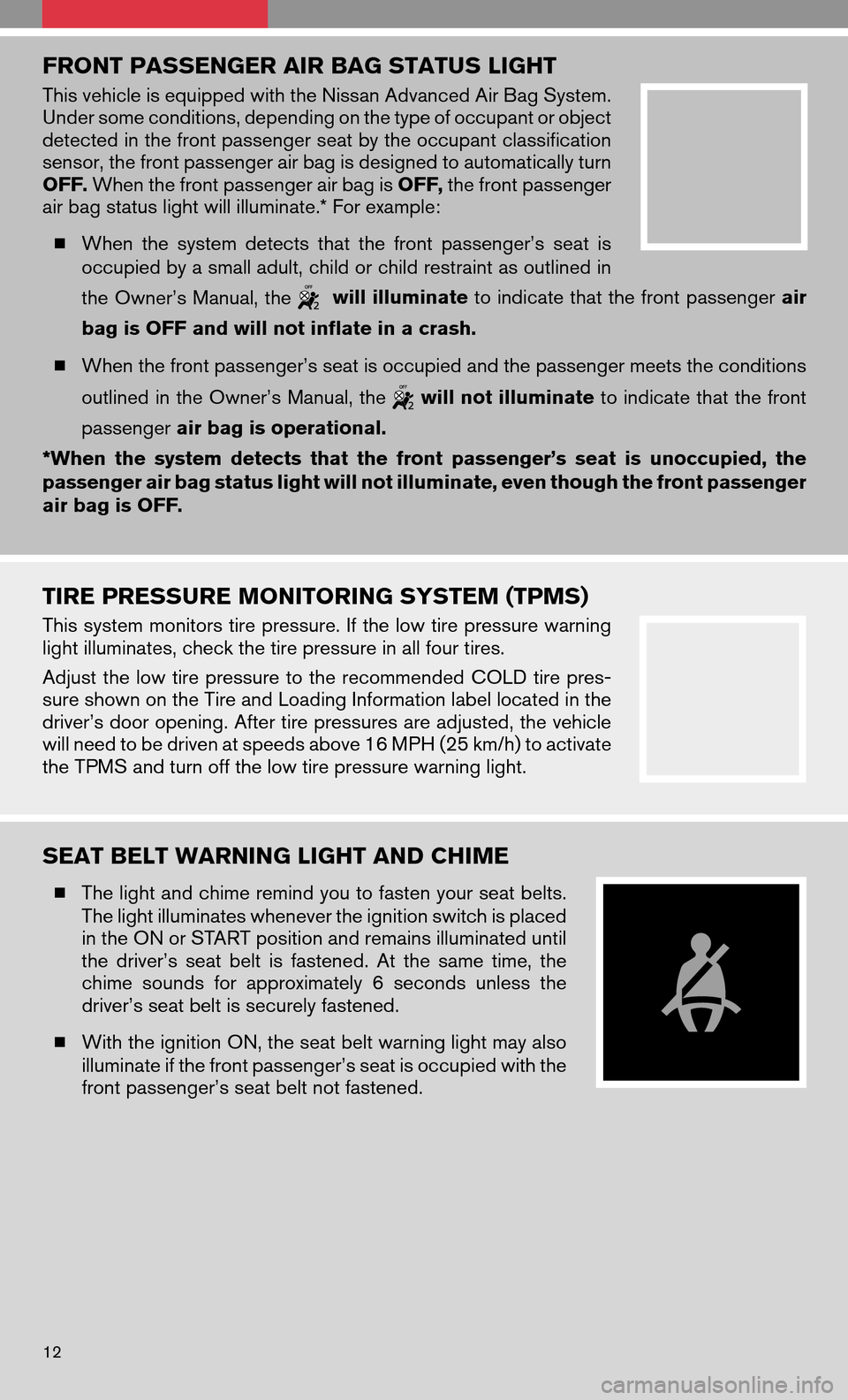

FRONT PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag System.
Under some conditions, depending on the type of occupant or object
detected in the front passenger seat by the occupant classification
sensor, the front passenger air bag is designed to automatically turn
OFF.When the front passenger air bag is OFF,the front passenger
air bag status light will illuminate.* For example:
When thesystem detects thatthefront passenger’s seatis
occupied by a small adult, child or child restraint as outlined in
the Owner’s Manual, the
will illuminate to indicate that the front passenger air
bag is OFF and will not inflate in a crash.
When the front passenger’s seat is occupied and the passenger meets the conditions
outlined in the Owner’s Manual, the
will not illuminate to indicate that the front
passenger air bag is operational.
*When thesystem detects thatthefront passenger’s seatisunoccupied, the
passenger air bag status light will not illuminate, even though the front passenger
air bag is OFF.
TIRE PRESSURE MONITORING SYSTEM (TPMS)
This system monitors tire pressure. If the low tire pressure warning
light illuminates, check the tire pressure in all four tires.
Adjust thelow tirepressure tothe recommended COLDtirepres-
sure shown on the Tire and Loading Information label located in the
driver’s door opening. After tire pressures are adjusted, the vehicle
will need to be driven at speeds above 16 MPH (25 km/h) to activate
the TPMS and turn off the low tire pressure warning light.
SEAT BELT WARNING LIGHT AND CHIME
The light and chime remind you to fasten your seat belts.
The light illuminates whenever the ignition switch is placed
in the ON or START position and remains illuminated until
the driver’s seatbeltisfastened. Atthe same time,the
chime sounds forapproximately 6seconds unlessthe
driver’s seat belt is securely fastened.
With the ignition ON, the seat belt warning light may also
illuminate if the front passenger’s seat is occupied with the
front passenger’s seat belt not fastened.
12
