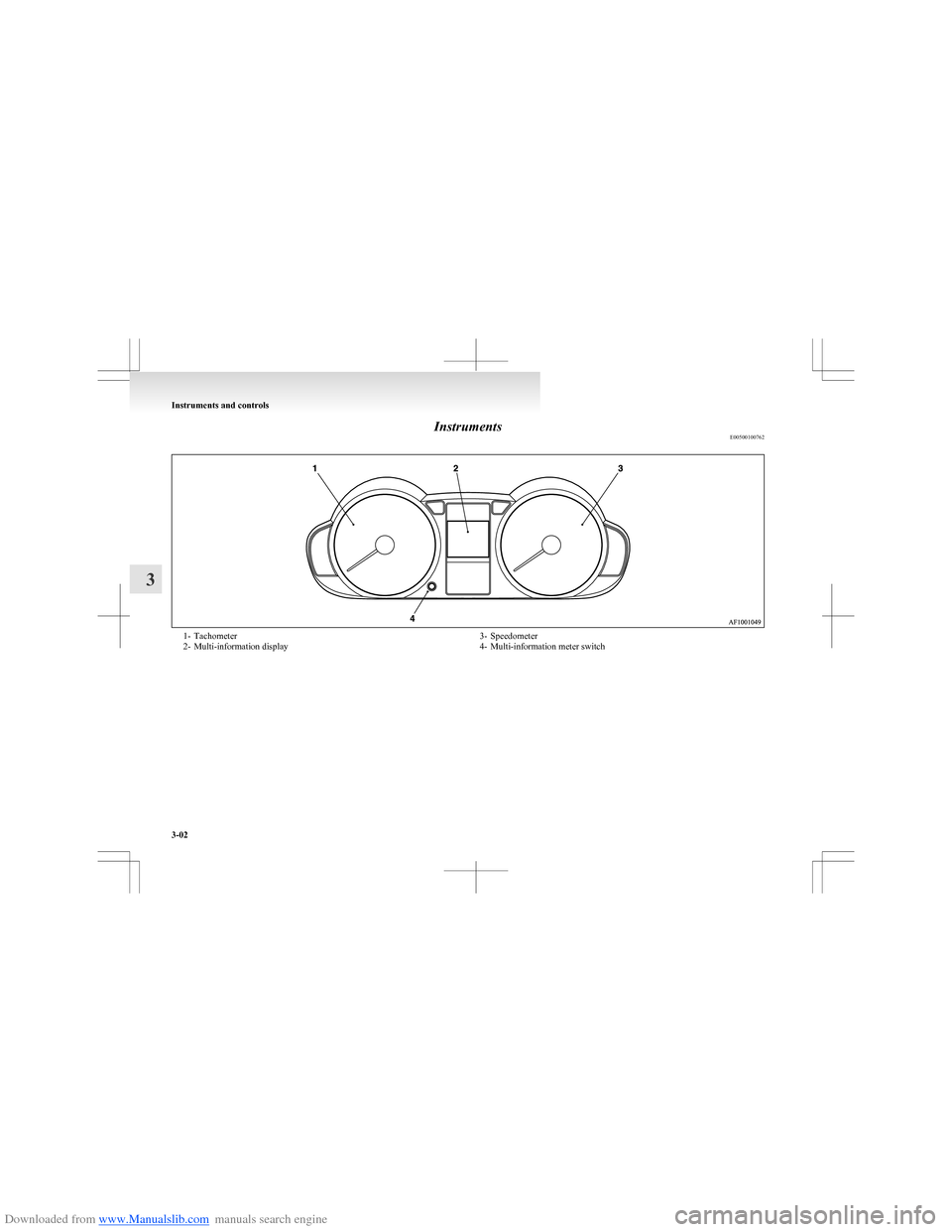

Downloaded from www.Manualslib.com manuals search engine InstrumentsE005001007621- Tachometer
2- Multi-information display3- Speedometer
4- Multi-information meter switch
Instruments and controls
3-02
3

Downloaded from www.Manualslib.com manuals search engine Multi-information displayE00519900362
Always stop the vehicle in a safe place before operating. The following information is included on the multi-information display: odometer, tripmeter, service
reminder, fuel remaining, outside temperature, allshift lever position driving range, momentary and average fuel consumption and average speed.
It is also possible to change elements such as the units used on the multi-information display.
When the ignition switch is “OFF”When the ignition switch is “ON”1- Information display (when the ignition switch is “OFF”) ® p. 3-05
2- Information display (when the ignition switch is “ON”) ® p. 3-06
3- Gearshift indicator* ® p. 4-16, 4-20
4- Allshift lever position display* ® p. 3-095-
Frozen road warning ® p. 3-10
6- Service reminder ® p. 3-11
7- Outside temperature display ® p. 3-10
8- Information display (when the ignition switch is “OFF”) ® p. 3-10
NOTE
l The display is different depending on whether the ignition switch is “OFF” or “ON”.
Refer to “Information display (when the ignition switch is “OFF”)” on page 3-05.
Refer to “Information display (when the ignition switch is “ON”)” on page 3-06.
Instruments and controls
3-04
3

Downloaded from www.Manualslib.com manuals search engine Information display (when the ignition
switch is “OFF”) E00528200026
Each time you lightly press the multi-information
meter switch, the display switches in the following
order.
1- Odometer
2- Tripmeter
3-Tripmeter 4- Service reminder (distance)
5- Service reminder (month)
Odometer E00527800012
The odometer indicates the distance travelled.Tripmeter E00527900013
The tripmeter indicates the distance travelled be-
tween two points.
Example usage of tripmeter
and tripmeter It is possible to measure two currently travel-
led distances, from home using tripmeter
and from a particular point on the way using
tripmeter .
To reset the tripmeter
To return the display to 0, hold down the multi-in-
formation meter switch for about 2 seconds or
more. Only the currently displayed value will be re-
set.

Example
If tripmeter
is displayed, only tripmeter will be reset.
NOTE l Both tripmeters
and can count up to
9999.9 km (9999.9 miles).
When a tripmeter goes past 9999.9 km
( 9999.9 miles), it returns to 0.0 km
(0.0 miles).
l When disconnecting the battery terminal, the
memories of tripmeter display
and dis-
play are erased, and their displays return
to 0.0 km (0.0 miles).
Service reminder E00521300536
This displays the distance and number of
months until the next periodic inspection.
Refer to “Service reminder” on page
3-11.
Instruments and controls
3-05
3

Downloaded from www.Manualslib.com manuals search engine Information display (when the ignition switch is “ON”)E00528300027
Each time you lightly press the multi-information meter switch in the meter or MODE/SET switch in the audio (if so equipped), the display switches in the follow-
ing order.A- Lightly press the multi-information meter switchB- Lightly press the MODE/SET switch

Instruments and controls
3-06
3

Downloaded from www.Manualslib.com manuals search engine 1- Odometer
2- Tripmeter
3-Tripmeter 4- Service reminder (distance)
5- Service reminder (month)
6- Driving range display*
7- Momentary fuel consumption display*
8- Average fuel consumption display*
9- Average speed display*
NOTE
l Always stop the vehicle in a safe place before operating.
Refer to “Changing the function settings (when the ignition switch is “ON”)” on page 3-12.
l For vehicles that are not equipped with an audio system, the driving range display, momentary fuel consumption display, average fuel consumption display,
and average speed display cannot be displayed.
Instruments and controls
3-07
3

Downloaded from www.Manualslib.com manuals search engine OdometerE00527700011
The operation method is the same as
when the ignition switch is “OFF”.
Refer to “Odometer” on page 3-05.Tripmeter E00528000011
The operation method is the same as
when the ignition switch is “OFF”.
Refer to “Tripmeter” on page 3-05.Service reminder E00521300552
This displays the distance and number of
months until the next periodic inspection.
Refer to “Service reminder” on page
3-11.Driving range display* E00521500219
This displays the approximate driving
range (how many more kilometres or
miles you can drive). When the driving
range falls below approximately 50 km
(30 miles), “---” is displayed.
Refuel as soon as possible.NOTE
l The remaining distance is based
on the previous fuel consumption
data. The actual distance will de-
pend on the driving conditions
(road conditions, how you drive,
etc.). When the battery terminal is
disconnected, the previous fuel
consumption data is erased. A val-
ue different from before may be
displayed. Treat the distance dis-
played as just a rough guideline.
l When you refuel, the driving
range display is updated.
However, if you only add a small
amount of fuel, the correct value
will not be displayed. Fill with a
full tank whenever possible.
l On rare occasions, the value dis-
played for the driving range may
change if you are parked on an ex-
tremely steep incline. This is due
to the movement of fuel in the
tank and does not indicate any mal-
function.Momentary fuel consumption
display* E00521800544
While driving, this displays the momen-
tary fuel consumption (in L/100 km ,
km/L or mpg). Calculation and indica-
tion of the value begin when the vehicle
speed rises above 6 km/h (4 mph).NOTE
l “
---” is displayed when the momen-
tary fuel consumption cannot be
measured.
l The display setting can be
changed to the preferred units
(L/100 km, km/L).
Refer to “Changing the function
settings (when the ignition switch
is “ON”)” on page 3-12.
l For vehicles equipped with multi-
information displays that show fig-
ures in miles, the fuel consump-
tion can only be displayed in
miles per gallon (“mpg”).Average fuel consumption dis-
play* E00521700729
This displays the average fuel consump-
tion (in L/100 km, km/L, or mpg) from
the last reset to the present time.
There are the following 2 mode settings.
For information on how to change the
average fuel consumption display set-
ting, refer to “Changing the function set-
tings (when the ignition switch is
“ON”)” on page 3-12.

Manual reset mode
l When the average fuel consump-
tion is being displayed, if you hold
down the MODE/SET switch, the
average fuel consumption and aver-
age speed displayed at that time
are reset.
Instruments and controls
3-08
3

Downloaded from www.Manualslib.com manuals search engine lWhen the ignition switch is switch-
ed from “ACC” or “LOCK” to
“ON”, the mode setting is automat-
ically switched from manual to au-
to.
Switching to auto occurs automati-
cally. If switching to manual
mode is done, however, the data
from the last reset is displayed.
Auto reset mode l When the average fuel consump-
tion is being displayed, if you hold
down the MODE/SET switch, the
average fuel consumption and aver-
age speed displayed at that time
are reset.
l If the ignition switch is at “ACC”
or “LOCK” for about 4 hours or
longer, the average fuel consump-
tion display is automatically reset.
NOTE l “
---” is displayed when the aver-
age fuel consumption cannot be
measured.
l The initial (default) setting is “Au-
to reset mode”.
l The average fuel consumption de-
pends on the driving condition
(road condition, driving behavior,
etc.). The displayed fuel consump-
tion may vary from the actual fuel
consumption. Treat the fuel con-
sumption displayed as just a rough
guideline.l The memory of the auto reset
mode or manual reset mode for
the average fuel consumption dis-
play is erased if the battery is dis-
connected.
l The display setting can be
changed to the preferred units
(L/100 km, km/L).
Refer to “Changing the function
settings (when the ignition switch
is “ON”)” on page 3-12.
l For vehicles equipped with multi-
information displays that show fig-
ures in miles, the fuel consump-
tion can only be displayed in
miles per gallon (“mpg”).Average speed display* E00521600744
This displays the average speed (km/h or
mph ) from the last reset to the present
time.
There are the following 2 mode settings.
For the method for changing the average
speed display setting, refer to “Changing
the function settings (when the ignition
switch is “ON”)” on page 3-12.

Manual reset mode
l When the average speed is being
displayed, if you hold down the
MODE/SET switch, the average
speed and average fuel consump-
tion displayed at that time are reset.l When the ignition switch is switch-
ed from “ACC” or “LOCK” to
“ON”, the mode setting is automat-
ically switched from manual to au-
to.
Switching to auto occurs automati-
cally. If switching to manual
mode is done, however, the data
from the last reset is displayed.
Auto reset mode l When the average speed is being
displayed, if you hold down the
MODE/SET switch, the average
speed and average fuel consump-
tion displayed at that time are reset.
l If the ignition switch is at “ACC”
or “LOCK” for about 4 hours or
longer, the average speed display
is automatically reset.
NOTE l “
---” is displayed when the aver-
age speed cannot be measured.
l The initial (default) setting is “Au-
to reset mode”.
l The memory of the auto reset
mode or manual reset mode for
the average speed display is
erased if the battery is disconnec-
ted.Allshift lever position display* E00528100012
Shows the position of the allshift lever.
Refer to “Allshift lever position and mul-
ti-information display” on page 4-20.
Instruments and controls
3-09
