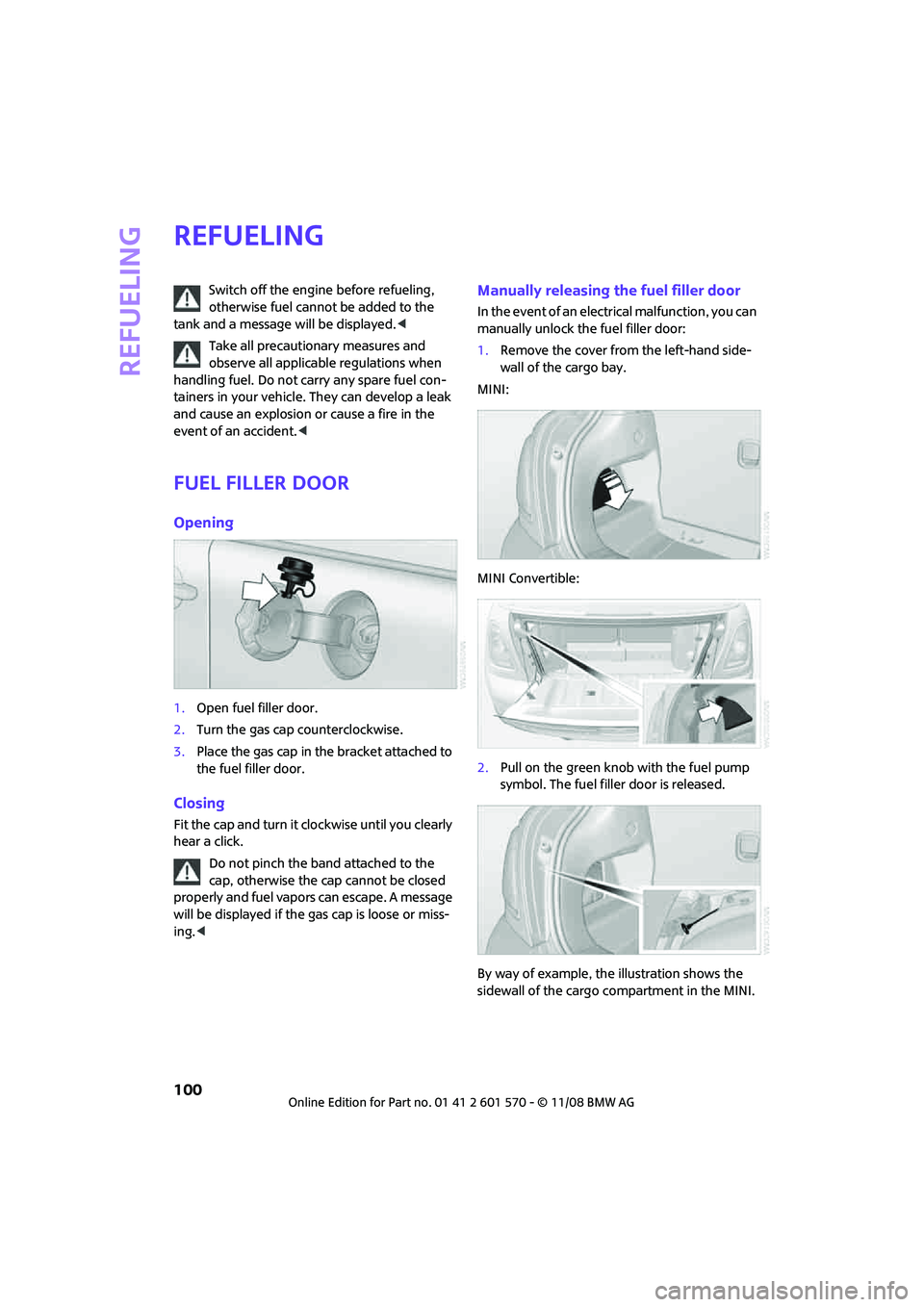

Refueling
100
Refueling
Switch off the engine before refueling,
otherwise fuel cannot be added to the
tank and a message will be displayed.<
Take all precautionary measures and
observe all applicable regulations when
handling fuel. Do not carry any spare fuel con-
tainers in your vehicle. They can develop a leak
and cause an explosion or cause a fire in the
event of an accident.<
Fuel filler door
Opening
1.Open fuel filler door.
2.Turn the gas cap counterclockwise.
3.Place the gas cap in the bracket attached to
the fuel filler door.
Closing
Fit the cap and turn it clockwise until you clearly
hear a click.
Do not pinch the band attached to the
cap, otherwise the cap cannot be closed
properly and fuel vapors can escape. A message
will be displayed if the gas cap is loose or miss-
ing.<
Manually releasing the fuel filler door
In the event of an electrical malfunction, you can
manually unlock the fuel filler door:
1.Remove the cover from the left-hand side-
wall of the cargo bay.
MINI:
MINI Convertible:
2.Pull on the green knob with the fuel pump
symbol. The fuel filler door is released.
By way of example, the illustration shows the
sidewall of the cargo compartment in the MINI.
REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
161
Engine
– breaking in90
– data152
– overheated, refer to Coolant
temperature52
– speed152
– starting44
– starting, convenient
access26
– switching off44
Engine compartment114
Engine coolant, refer to
Coolant115
Engine oil
– adding115
– additives, refer to Approved
engine oils115
– approved engine oils115
– capacity115
– checking level114
– dipstick114
– intervals between changes,
refer to Service
requirements57
– MINI Maintenance
System117
Engine oil level, checking114
Engine output, refer to Engine
data152
Engine starting, refer to
Starting the engine44
Error messages, refer to Check
Control60
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC63
Event data recorders118
Exhaust system, refer to Hot
exhaust system90
Exterior mirrors38
– adjusting38
– automatic heating38
– folding in and out38
External audio device85
External care
– 119Eyes
– for tow-starting and towing
away135
– for tying down loads95
F
Failure messages, refer to
Check Control60
Failure of an electrical
consumer133
Fasten safety belts reminder,
refer to Seat belt
reminder37
Fastening safety belts, refer to
Safety belts37
Filter
– microfilter for air
conditioner80
– microfilter/activated-
charcoal filter for automatic
climate control82
Fine wood, care122
First aid pouch134
Fixture for remote control,
refer to Ignition lock43
Flash when locking/
unlocking20
Flat tire
– Run-Flat Tires111
– Tire Pressure Monitor TPM66
Flat Tire Monitor FTM65
– indicating a flat tire66
– initializing the system65
– malfunction66
– snow chains65
– system limits65
Flat tires, refer to Tire
condition110
Floor mats, care121
Fog lamps
– replacing bulb125,127
Folding rear seat backrest92
Folding roof, refer to
Convertible top with
integrated sliding sunroof29
Footbrake, refer to Braking
safely91
Footwell lamps76For your own safety4
Front airbags70
Front fog lamps76
– indicator lamp138
– replacing bulb125
Front seat adjustment34
Frost on windows, refer to
Defrosting windows80,82
FTM, refer to Flat Tire
Monitor65
Fuel101
– gauge53
– high-quality brands101
– quality101
– specifications101
– tank capacity
156
Fuel clock, refer to Fuel
gauge53
Fuel display, refer to Fuel
gauge53
Fuel filler door100
– releasing in the event of
electrical malfunction100
Fuses133
G
Garage door opener, refer to
Integrated universal remote
control83
Gasoline
– refer to Average
consumption53
Gasoline display, refer to Fuel
gauge53
Gasoline, refer to Required
fuel101
Gear indicator
– automatic transmission with
Steptronic45
Gear shifting
– automatic transmission46
– manual transmission45
Gearshift lever
– automatic transmission with
Steptronic46
– manual transmission45
General driving notes90
