2009 Mercury Sable jump start

Locks and Security 96
Keys 96
Locks 97
Anti-theft system 111
Seating and Safety Restraints 117
Seating 117
Safety restraints 125
Airbags 139
Child restraints 154
Tires, Wheels and Loading 171
Tire information 171
Tire inflation 173
Tire Pressure Monitoring System (TPMS) 187
Vehicle loading 193
Trailer towing 199
Recreational towing 201
Driving 203
Starting 203
Brakes 208
AdvanceTrac210
Transmission operation 215
Reverse sensing system 219
Roadside Emergencies 227
Getting roadside assistance 227
Hazard flasher control 228
Fuel pump shut-off switch 229
Fuses and relays 229
Changing tires 236
Wheel lug nut torque 243
Jump starting 244
Wrecker towing 249
Table of Contents
2
2009 Sable(mgo)
Owners Guide, 2nd Printing
USA(fus)

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
2009 Sable(mgo)
Owners Guide, 2nd Printing
USA(fus)
Roadside Emergencies
227

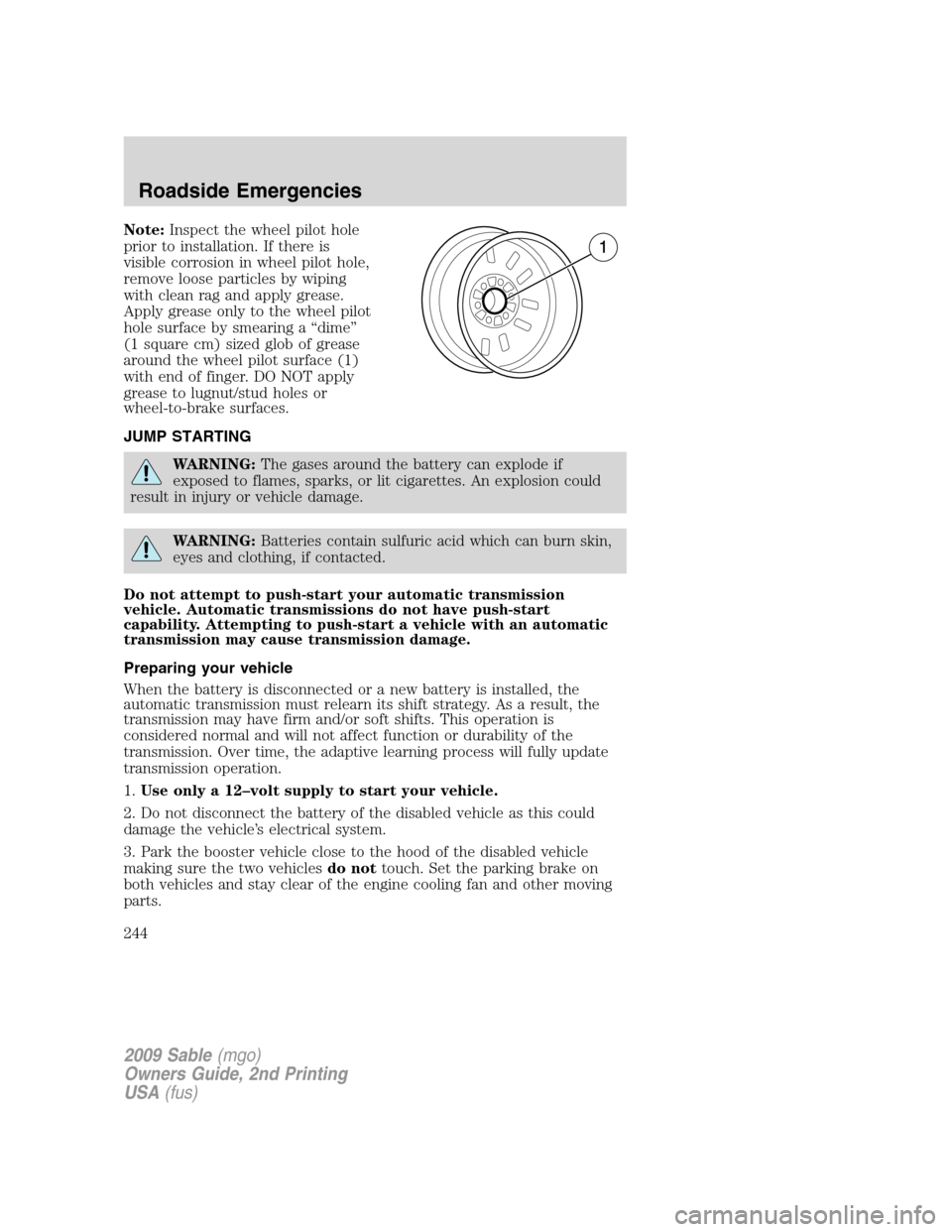

Note:Inspect the wheel pilot hole
prior to installation. If there is
visible corrosion in wheel pilot hole,
remove loose particles by wiping
with clean rag and apply grease.
Apply grease only to the wheel pilot
hole surface by smearing a “dime”
(1 square cm) sized glob of grease
around the wheel pilot surface (1)
with end of finger. DO NOT apply
grease to lugnut/stud holes or
wheel-to-brake surfaces.
JUMP STARTING
WARNING:The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
2009 Sable(mgo)
Owners Guide, 2nd Printing
USA(fus)
Roadside Emergencies
244

Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from thegroundmetal surface.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Remove the jumper cable on the negative (-) connection of the
booster vehicle’s battery.
+–+–
+–+–
2009 Sable(mgo)
Owners Guide, 2nd Printing
USA(fus)
Roadside Emergencies
247

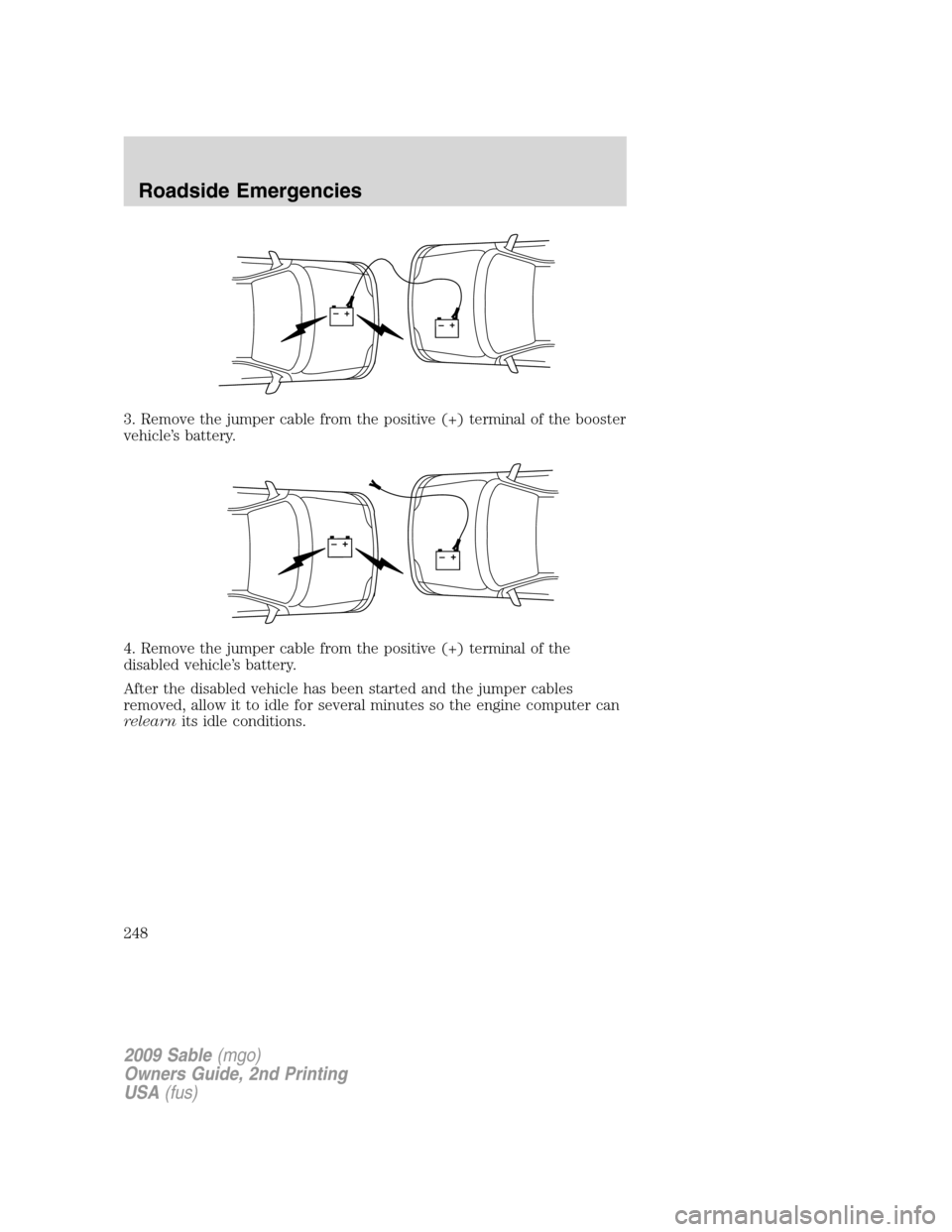

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
2009 Sable(mgo)
Owners Guide, 2nd Printing
USA(fus)
Roadside Emergencies
248

Cleaning your vehicle
engine compartment ..............261
instrument panel ....................263
interior .....................................263
plastic parts ............................262
washing ....................................259
waxing .....................................260
wheels ......................................260
wiper blades ............................262
Climate control (see Air
conditioning or Heating) ......48, 50
Clock ............................................67
Clock adjust
6-CD in dash .............................30
AM/FM/CD .................................23
Compass, electronic
set zone adjustment .................87
Console
overhead ....................................67
Controls
power seat ...............................120
steering column ........................77
Coolant
checking and adding ..............276
refill capacities ................279, 298
specifications ..........................298
Cruise control (see Speed
control) ........................................74
Cupholder(s) .............................125
Customer Assistance ................227
Ford Extended Service
Plan ..........................................255
Getting assistance outside the
U.S. and Canada .....................256
Getting roadside assistance ...227
Getting the service you
need .........................................251
Ordering additional owner’s
literature .................................257Utilizing the
Mediation/Arbitration
Program ...................................255
D
Daytime running lamps
(see Lamps) ................................56
Dipstick
automatic transmission
fluid ..........................................294
engine oil .................................270
Driving under special
conditions ..........................222, 224
sand .........................................223
snow and ice ...........................225
through water .................223, 226
E
Electronic message center .........84
Emergencies, roadside
jump-starting ..........................244
Emission control system ..........290
Engine ........................................300
cleaning ...................................261
coolant .....................................276
fail-safe cooling .......................280
idle speed control ...................273
lubrication specifications .......298
refill capacities ........................298
service points ..................268–269
starting after a collision .........229
Engine block heater .................206
Engine oil ..................................270
change oil soon warning,
message center .......................270
checking and adding ..............270
dipstick ....................................270
filter, specifications ........272, 297
2009 Sable(mgo)
Owners Guide, 2nd Printing
USA(fus)
Index
306

J
Jack ............................................236
positioning ...............................236
storage .....................................236
Jump-starting your vehicle ......244
K
Keyless entry system
autolock .....................................98
keypad .....................................110
locking and unlocking
doors ........................................111
programming entry code .......110
Keys .....................................96, 113
positions of the ignition .........203
L
Lamps
autolamp system .......................54
bulb replacement
specifications chart ..................59
daytime running light ...............56
fog lamps ...................................55
headlamps .................................54
headlamps, flash to pass ..........56
instrument panel, dimming .....56
interior lamps .....................58, 60
replacing bulbs ...................60, 64
LATCH anchors .........................162
Liftgate ......................................105
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........209
Load limits .................................193
Locks
autolock .....................................98
childproof ................................101
doors ..........................................97Lubricant specifications ...........298
Lug nuts ....................................243
Lumbar support, seats .............118
M
Message center .....................84–85
english/metric button ...............90
system check button ................89
warning messages .....................92
Mirrors ...................................71–72
automatic dimming rearview
mirror ........................................72
fold away ...................................73
heated ........................................73
programmable memory ..........105
side view mirrors (power) .......72
Moon roof ....................................79
Motorcraft parts ................265, 297
N
Navigation system .......................45
O
Octane rating ............................285
Oil (see Engine oil) ..................270
Overdrive ...................................216
P
Parking brake ............................209
Parts (see Motorcraft parts) ....297
Passenger Occupant
Classification Sensor .................127
Power adjustable foot pedals .....74
2009 Sable(mgo)
Owners Guide, 2nd Printing
USA(fus)
Index
308

Power distribution box (see
Fuses) ........................................233
Power door locks ........................97
Power mirrors .............................72
Power point .................................68
Power steering ..........................214
fluid, checking and adding ....293
fluid, refill capacity ................298
fluid, specifications .................298
Power Windows ...........................69
R
Radio ................................18, 22, 29
Recommendations for
attaching safety restraints for
children ......................................156
Relays ........................................229
Remote entry system .......103–104
illuminated entry ............107, 109
locking/unlocking
doors ................................104–105
opening the trunk ...................105
panic alarm .............................105
replacement/additional
transmitters .............................107
replacing the batteries ...........106
Reverse sensing system ...........219
Roadside assistance ..................227
S
Safety belts (see Safety
restraints) ..................125, 129–133
Safety Canopy ...................148, 150
Safety defects, reporting ..........258
Safety restraints ........125, 129–133
Belt-Minder...........................134extension assembly ................133
for adults .........................130–132
for children .............................154
Occupant Classification
Sensor ......................................127
warning light and chime ........134
Safety restraints - LATCH
anchors ......................................162
Safety seats for children ..........158
Safety Compliance
Certification Label ....................301
Satellite Radio Information ........42
Seats ..........................................117
child safety seats ....................158
front seats .......................117, 119
heated ................................50, 122
memory seat ...................105, 123
SecuriCode keyless entry
system ........................................110
SecuriLock passive anti-theft
system ........................................111
Servicing your vehicle ..............266
Setting the clock
AM/FM single CD .....................23
AM/FM/In-dash 6 CD ................30
Spare tire (see Changing the
Tire) ...........................................239
Spark plugs,
specifications .....................297, 300
Specification chart,
lubricants ...................................298
Speed control ..............................74
Starting your vehicle ........203–205
jump starting ..........................244
Steering wheel
controls ......................................77
tilting .........................................66
2009 Sable(mgo)
Owners Guide, 2nd Printing
USA(fus)
Index
309
