NOTElThe system requires about 10 seconds to alternate between turning the front passenger front and
side air bags and seat belt pretensioner system on or off.
lThe front passenger air bag deactivation indicator light may illuminate repeatedly if luggage or
other items are put on the front passenger seat, or if the temperature of the vehicle's interior
changes suddenly.
lThe front passenger air bag deactivation indicator light may illuminate for 10 seconds if the total
seated weight on the front passenger seat changes.
lIf the front passenger air bag deactivation indicator light does not illuminate after installing a
child-restraint system on the front passenger seat, install the child-restraint system on the rear
seat and consult an Authorized Mazda Dealer as soon as possible.
Driver and front passenger buckle switches
The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.
qHow the Side and Curtain Air Bags Work
When air bag crash sensors detect a side impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the side and curtain air bags and after the inflation, the side
and curtain air bags quickly deflate. However, the side air bag system for the front
passenger is designed to only deploy in accordance with the total seated weight on the front
passenger seat.
The side and curtain air bags will function only once. After that, the side and curtain air
bags will not work again and must be replaced. Only an Authorized Mazda Dealer can
replace the systems.
The side and curtain air bags will deploy only on the side the
vehicle receives the force of the impact.
Essential Safety Equipment
SRS Air Bags
2-49
RX-8_8Z09-EA-08C_Edition3 Page61
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (62,1)
qAir Bag Activation/Deactivation
NOTE
If the front passenger seat weight sensors detect a total seated weight on the front passenger seat is
less than approximately 42 kg (93 lb), the front passenger front and side air bags and seat belt
pretensioner may not deploy (page 2-44), but the curtain air bags may deploy.
Front air bag activation
The front air bags will inflate if the
severity of impact is above the designed
threshold level.
lHitting a solid wall straight on at
greater than about 22 km/h (14 mph).
lHitting a curb, pavement edge or hard
object.
lLanding hard or the vehicle falling.
lFrontal impact within about a 30
degree range from head-on to the
vehicle.
lDriving into a big hole or hitting the far
side of a hole.
Limitations to front air bag activation
Depending on the severity of impact, the
front air bags may not inflate in the
following cases:
lImpacts involving trees or poles cause
severe cosmetic damage but may not
have enough stopping force to activate
the air bag.
2-50
Essential Safety Equipment
SRS Air Bags
RX-8_8Z09-EA-08C_Edition3 Page62
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (64,1)
lSide impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side and curtain air bags.
lVehicle roll-over may not provide
enough side force to deploy the side
and curtain air bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side and curtain air bags.
Non-activation of side and curtain air
bag
The side and curtain air bags will not
normally inflate in the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unitlFront air bag sensorlAir bag moduleslSide crash sensorslAir bag/Front seat belt pretensioner
system warning light
lFront seat belt pretensionerslFront passenger air bag deactivation
indicator light
lRelated wiringlDriver seat slide position sensorlFront passenger seat weight sensorslDriver and front passenger seat belt
buckle switches
2-52
Essential Safety Equipment
SRS Air Bags
RX-8_8Z09-EA-08C_Edition3 Page64
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (65,1)

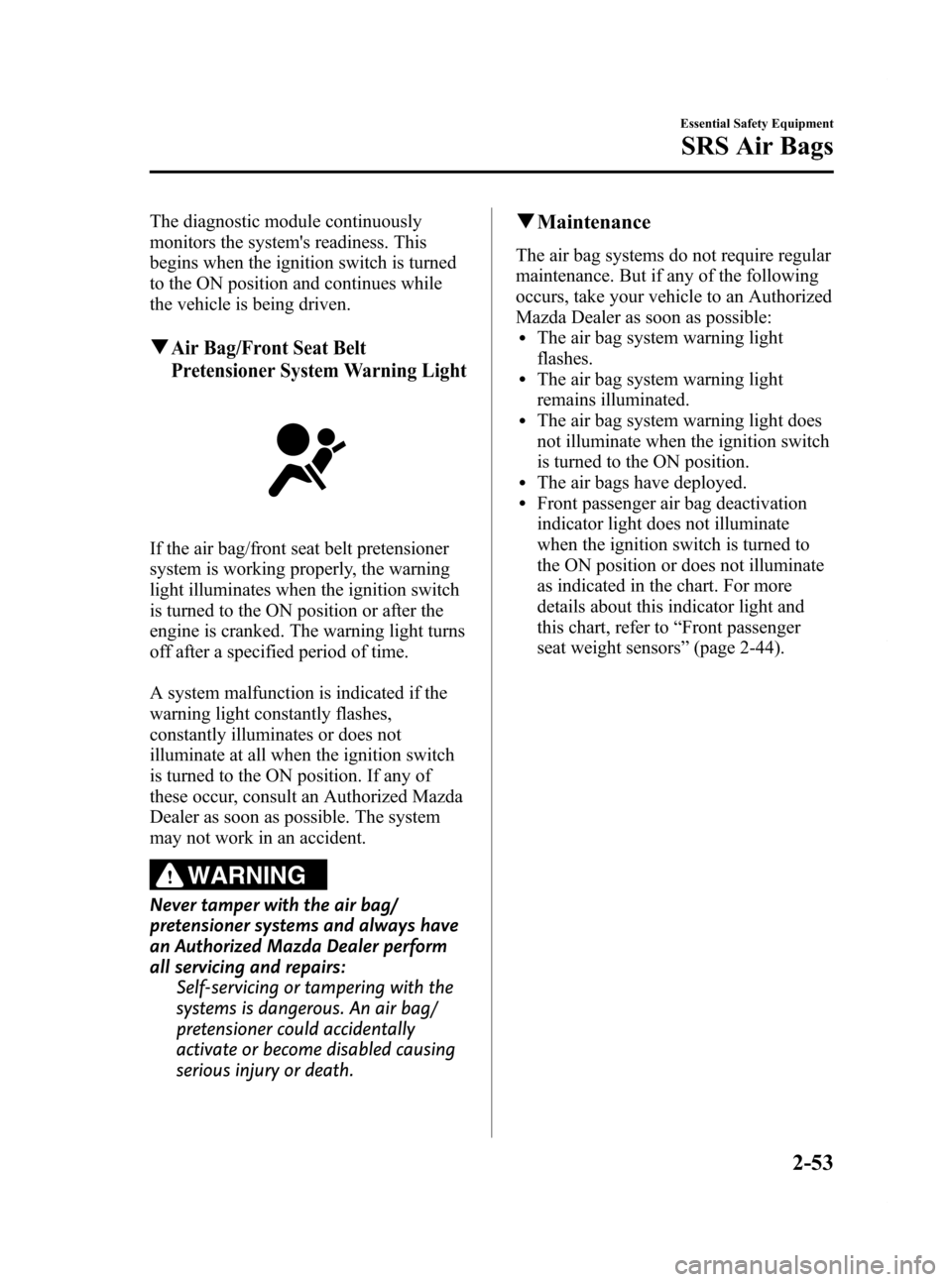

The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to “Front passenger
seat weight sensors ”(page 2-44).
Essential Safety Equipment
SRS Air Bags
2-53
RX-8_8Z09-EA-08C_Edition3 Page65
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (66,1)
WARNING
Do not operate a vehicle with damaged
air bag/seat belt pretensioner system
components:Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that
they will work in any subsequent
accident. Driving with an expended
or damaged air bag or pretensioner
unit will not afford you the necessary
protection in the event of any
subsequent accident which could
result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as
the front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along
the roof edge, containing air bag
parts or sensors is dangerous. These
parts contain essential air bag
components. The air bag could
accidentally activate and cause
serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
Dispose of the air bag properly: Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle. NOTEIf it becomes necessary to have the components
or wiring system for the supplementary
restraint system modified to accommodate a
person with certain medical conditions in
accordance with a certified physician, contact
an Authorized Mazda Dealer, refer to
“
Customer Assistance (U.S.A.) ”(page 9-2).
2-54
Essential Safety Equipment
SRS Air Bags
RX-8_8Z09-EA-08C_Edition3 Page66
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (123,1)
NOTElDo not use glass cleaner or suspend objects
on or around the light sensor. Otherwise,
light sensor sensitivity will be affected and
may not operate normally.
Light sensor
Light sensor
lFor information regarding the 3 buttons
(
,,) on the auto-dimming
mirror, refer to HomeLink Wireless Control
System (page 5-67).
Knowing Your Mazda
Steering Wheel and Mirrors
3-57
RX-8_8Z09-EA-08C_Edition3 Page123
Thursday, July 3 2008 2:23 PM
Form No.8Z09-EA-08C

Black plate (126,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
FuelOctane Rating*(Anti-knock index)
Premium unleaded fuel 91 [ (R+M)/2 method] or above (96 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
This vehicle is designed to use 91[ (R+M)/2 method] (96RON) or higher gasoline for best
performance. If 91[ (R+M)/2 method] (96RON) is not available, gasoline from 87 to 90[ (R
+M)/2 method] (91 to 95RON) can be used temporarily for emergency purposes, but this
will slightly reduce performance. Fuel with gasoline from 87 to 90[ (R+M)/2 method] (91
to 95RON), driving in high temperature or low humidity conditions could cause engine
knocking.
Fuel with a rating lower than 87[ (R+M)/2 method] (lower than 91RON) could cause the
emission control system to lose effectiveness. It could also cause engine knocking and
serious engine damage.
CAUTION
Ø USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
Ø Your vehicle can only use oxygenated fuels containing no more than 10% ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
Ø Never add fuel system additives. Never add cleaning agents other than those
specified by Mazda. Other cleaning agents and additives may damage the system.
Consult an Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name “Gasohol ”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
RX-8_8Z09-EA-08C_Edition3 Page126
Thursday, July 3 2008 2:23 PM
Form No.8Z09-EA-08C

Black plate (164,1)
Dynamic Stability Control
(DSC)
í
The Dynamic Stability Control (DSC)
automatically controls braking and engine
torque in conjunction with systems such
as ABS and TCS to help control side slip
when driving on slippery surfaces, or
during sudden or evasive maneuvering,
enhancing vehicle safety.
Refer to ABS (page 5-8) and TCS (page
5-25).
WARNING
Do not rely on the dynamic stability
control as a substitute for safe driving:The dynamic stability control (DSC)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident.
CAUTION
ØThe DSC may not operate correctly
unless the following are observed:
ØUse tires of the correct size
specified for your Mazda on all
four wheels.
ØUse tires of the same
manufacturer, brand and tread
pattern on all four wheels.
ØDo not mix worn tires.
Ø The DSC may not operate correctly
when tire chains are used or a
temporary spare tire is installed
because the tire diameter changes.
Ø If repair or replacement of the
steering or other surrounding
equipment is necessary, have it
done at an Authorized Mazda
Dealer. If the center position of the
steering deviates, the DSC may not
operate correctly because there is
a sensor in the steering which
detects driving conditions.
qTCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
5-26
Driving Your Mazda
íSome models.
Starting and Driving
RX-8_8Z09-EA-08C_Edition3 Page164
Thursday, July 3 2008 2:23 PM
Form No.8Z09-EA-08C
