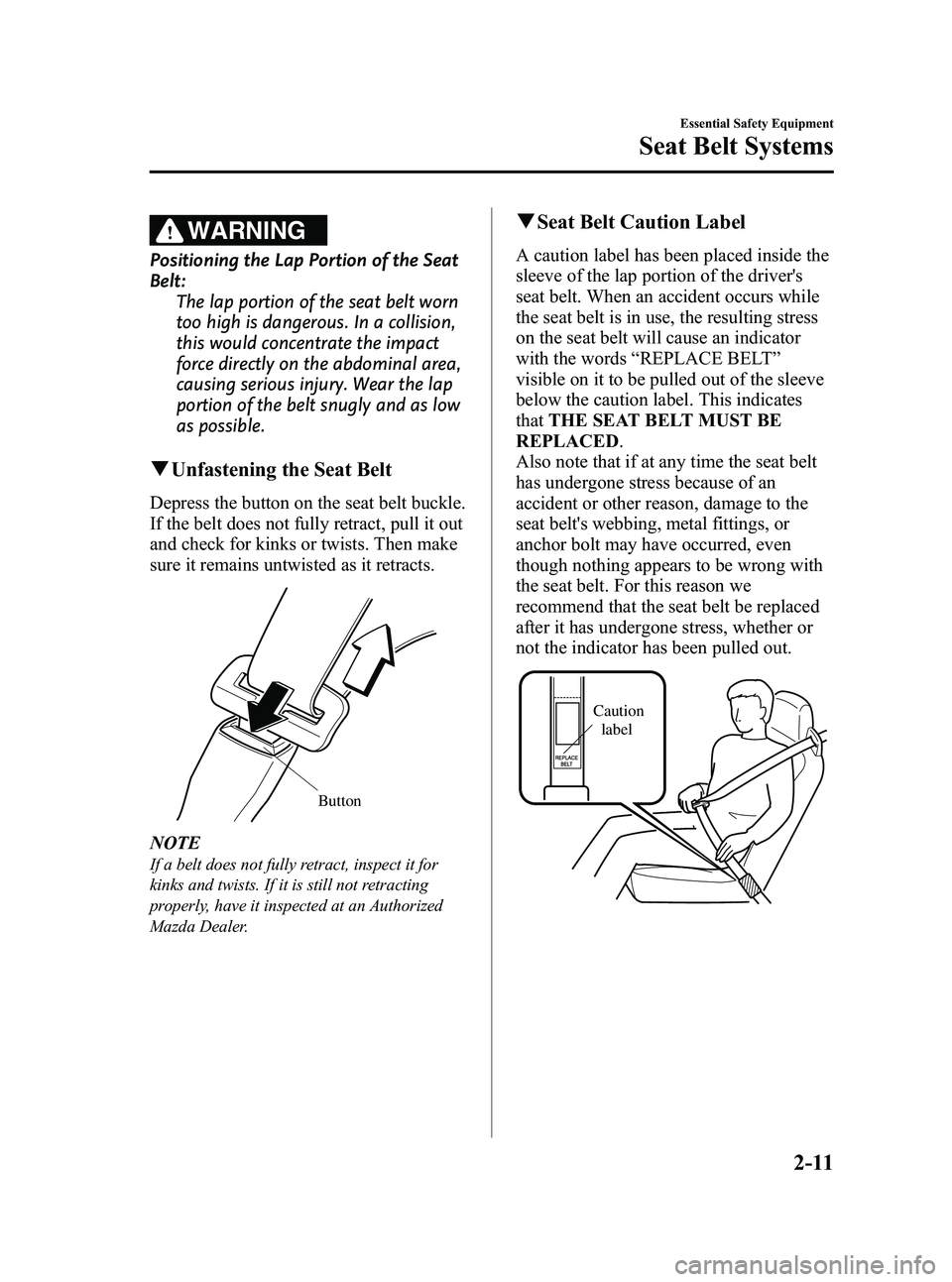

WARNING
Positioning the Lap Portion of the Seat
Belt:The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
qUnfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
qSeat Belt Caution Label
A caution label has been placed inside the
sleeve of the lap portion of the driver's
seat belt. When an accident occurs while
the seat belt is in use, the resulting stress
on the seat belt will cause an indicator
with the words “REPLACE BELT ”
visible on it to be pulled out of the sleeve
below the caution label. This indicates
that THE SEAT BELT MUST BE
REPLACED .
Also note that if at any time the seat belt
has undergone stress because of an
accident or other reason, damage to the
seat belt's webbing, metal fittings, or
anchor bolt may have occurred, even
though nothing appears to be wrong with
the seat belt. For this reason we
recommend that the seat belt be replaced
after it has undergone stress, whether or
not the indicator has been pulled out.
Caution
label
Essential Safety Equipment
Seat Belt Systems
2-11
MX-5_8Z78-EA-08K_Edition1 Page23
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (24,1)
Seat Belt Pretensioner and
Load Limiting Systems
For optimum protection, the driver and
passenger seat belts are equipped with
pretensioner and load limiting systems.
For both these systems to work properly
you must wear the seat belt properly.
Pretensioners:
In moderate or severe frontal or near-
frontal accidents, the air bag and
pretensioner systems deploy
simultaneously. The seat belt retractors
remove slack quickly as the air bags are
expanding.
In addition, the pretensioner system for
the passenger, like the passenger air bag,
is designed to only deploy in accordance
with the total seated weight on the
passenger seat (page 2-43) or when the
passenger air bag deactivation switch
turned to the ON position (page 2-39).
Any time the air bags and seat belt
pretensioners have fired they must be
replaced.
Load limiter:
The load limiting system releases belt
webbing in a controlled manner to reduce
belt force on the occupant's chest. While
the most severe load on a seat belt occurs
in frontal collisions, the load limiter has
an automatic mechanical function and can
activate in any accident mode with
sufficient occupant movement.
Even if the pretensioners have not fired,
the load limiting function must be
checked by an Authorized Mazda Dealer
after any collision.
WARNING
Wear seat belts only as recommended
in this owner's manual:Incorrect positioning of the driver and
passenger seat belts is dangerous.
Without proper positioning, the
pretensioner and load limiting
systems cannot provide adequate
protection in an accident and this
could result in serious injury. For
more details about wearing seat
belts, refer to “Fastening the seat
belts ”(page 2-10).
Have your seat belts changed
immediately if the pretensioner or load
limiter has been expended: If the air bags deploy the
corresponding pretensioner(s) may
also deploy at the same time. Like
the air bags, the seat belt
pretensioners will only function once.
While it is safer to use a crash-used
seat belt that was used in an
accident than no seat belt at all,
using a seat belt with an expended
pretensioner or load limiter loaded
reduces the safety available to you. If
the seat belt pretensioners are not
replaced, the risk of injury in a
collision will increase. Expended seat
belt pretensioners and air bags must
be replaced after any collision which
caused them to deploy. Additionally,
the load limiter will only limit loads
on the chest once in a collision and
this is another reason to have the
seat belts inspected. Always have an
Authorized Mazda Dealer inspect the
seat belt pretensioners and air bags
after any collision.
2-12
Essential Safety Equipment
Seat Belt Systems
MX-5_8Z78-EA-08K_Edition1 Page24
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (25,1)
Do not modify the components or
wiring, or use electronic testing devices
on the pretensioner system:Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable
which would prevent it from
activating in an accident. The
occupants or repairers could be
seriously injured.
Properly dispose of the pretensioner
system: Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap
a pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will activate in a
moderate or greater frontal or near-frontal
collision. The pretensioner system for the
passenger is designed to only deploy in
accordance with the total seated weight on
the passenger seat. It will not activate in
most rollovers, side or rear impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not indicate
a fire. This gas normally has no effect on
occupants, however, those with sensitive
skin may experience light skin irritation. If
residue from the deployment of the air bags
or the pretensioner system gets on the skin
or in the eyes, wash it off as soon as
possible.
q Air Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is working properly, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
Essential Safety Equipment
Seat Belt Systems
2-13
MX-5_8Z78-EA-08K_Edition1 Page25
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (26,1)
Seat Belt Extender
If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
WARNING
Do not use a seat belt extender unless
it is necessary:Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly.
In an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.
Do not use an improper extender: Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt
will not provide adequate protection
and the user could be seriously
injured in an accident. Only use the
extender provided for you and for the
particular vehicle and seat. NEVER
use the extender in a different vehicle
or seat. If you sell your Mazda, do
not leave your seat belt extender in
the vehicle. It could be used
accidentally by the new owner of the
vehicle. After removing the seat belt
extender, discard it. Never use the
seat belt extender in any other
vehicle you may own in the future.
Do not use an extender that is too
long: Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Do not use the extender or choose
one shorter in length if the distance
between the extender's buckle and
the center of the user's body is less
than 15 cm (6 in).
2-14
Essential Safety Equipment
Seat Belt Systems
MX-5_8Z78-EA-08K_Edition1 Page26
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (27,1)
NOTE
When not in use, remove the seat belt extender
and store it in the vehicle. If the seat belt
extender is left connected, the seat belt
extender might get damaged as it will not
retract with the rest of the seat belt and can
easily fall out of the door when not in use and
be damaged. In addition, the seat belt warning
light will not illuminate and function properly.Seat Belt Warning Light/Beep
The seat belt warning light illuminates
and a beep sound will be heard if the
driver's seat belt is not fastened when the
ignition switch is turned to the ON
position.
Conditions of operation
ConditionResult
The driver's seat belt is not
fastened when the ignition
switch is turned to the ON
position. The warning light
flashes and a beep
sound will be heard
for about 6 seconds.
The driver's seat belt is
fastened while the warning
light and the beep sound are
activated. The warning light
turns off and the beep
sound stops.
The driver's seat belt is
fastened before the ignition
switch is turned to the ON
position. The warning light will
not illuminate and the
beep sound will not be
heard.
q
Belt Minder
NOTE
The belt minder can be deactivated. Consult an
Authorized Mazda Dealer to deactivate or
restore the seat belt minder.
Essential Safety Equipment
Seat Belt Systems
2-15
MX-5_8Z78-EA-08K_Edition1 Page27
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (28,1)
Driver seated/Passenger not seated
The belt minder is a supplemental
warning to the seat belt warning function.
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the warning light/beep
operates to give you further reminders
according to the chart below.
ConditionVehicle speed
Between 0 ―20
km/h
(0 ― 12 mph) 20 km/h
(12 mph) or more
Seat belt
Indicator
Beep
: Fastened: Unfastened: Illuminated: Flashing: Beep
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the
seatbelt is fastened or the beep sound
period has passed.
Driver seated/Passenger seated
The seat belt warning function reminds
the passenger to fasten the seat belt
according to the chart below.
Condition Vehicle speed
Between 0 ―20
km/h
(0 ― 12 mph) 20 km/h
(12 mph) or more
Seat belt
(Driver)
Seat belt
(Passenger)
Indicator
Beep
: Fastened: Unfastened: Illuminated: Flashing: Beep
Placing heavy items on the passenger seat
may cause the passenger seat belt warning
function to operate depending on the
weight of the item.
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the
seatbelt is fastened or the beep sound
period has passed.
NOTE
lTo allow the passenger seat weight sensor
to function properly, do not place and sit on
an additional seat cushion on the passenger
seat. The sensor may not function properly
because the additional seat cushion could
cause sensor interference.
lWhen a small child sits on the passenger
seat, it is possible that neither the warning
light nor the warning beep operate.
2-16
Essential Safety Equipment
Seat Belt Systems
MX-5_8Z78-EA-08K_Edition1 Page28
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (30,1)
To reduce the chance of injuries caused by the deployment of the passenger air bag, there
are two methods to deactivate the passenger air bag for a child's safety as follows―
however the surest way to avoid the passenger air bag not deploying is to use the key and
turn off the passenger air bag and not rely on the passenger seat weight sensors, which will
also detect other loads or objects on and around the passenger seat;
Passenger air bag deactivation switch
This switch should be used to deactivate the passenger front and side air bags and also the
passenger seat belt pretensioner system if installing a child-restraint system is installed on
the passenger seat.
Make sure the passenger air bag deactivation switch is in the ON position except when a
child-restraint system is installed on the passenger seat.
Refer to Passenger Air Bag Deactivation Switch on page 2-39.
Passenger seat weight sensors
These sensors deactivate the passenger front and side air bags and also the passenger seat
belt pretensioner system when the total seated weight on the passenger seat is less than
approximately 30 kg (66 lb).
When an infant or small child is seated on the passenger seat, the system shuts off the
passenger air bag, so make sure the passenger air bag deactivation indicator light
illuminates.
Refer to Passenger seat weight sensors on page 2-43.
LATCH Child-Restraint System
We have installed lower LATCH anchor points for LATCH style junior seats and infant
carriers that work without tethers only. Any other child-restraint system that has an upper
tether cannot be used in this vehicle because there is no tether anchor. A child-restraint
system with a tether cannot be properly mounted in this vehicle unless the child restraint
manufacturer provides instructions on mounting the child-restraint system with only seat
belts in automatic locking mode. Even then, without a tether, the child-restraint system may
move forward more easily in seat belts, further degrading the safety provided if you were to
put the child restraint in a tether anchor equipped rear seat of another vehicle. The seat and
head restraint is designed for maximum adult space utilization in this vehicle. Do not try to
secure the tether to something else in the vehicle, as too much slack will result and the
serious risk of injury or death to the child. Use the seat belts to properly secure the non-
tethered child-restraint systems other than the LATCH junior seats and non-tethered infant
carriers. Turn off the passenger air bag deactivation switch. To expose and use the lower
LATCH anchor points, which are affixed to the body and not the seat, slide the seat all the
way rearward which is the optimal vehicle seat position for all children in this two seat car.
WARNING
Use the correct size child-restraint system: For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
2-18
Essential Safety Equipment
Child Restraint
MX-5_8Z78-EA-08K_Edition1 Page30
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (35,1)
4. Push the child-restraint system firmlyinto the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in automatic
locking mode. If the belt does not lock
the seat down tight, repeat this step.
5. Make sure the passenger air bag deactivation indicator light illuminates
by using the key to turn the passenger
air bag off after installing a child-
restraint system on the passenger seat.WARNING
Always make sure the passenger air
bag deactivation indicator light is
illuminated when using a rear-facing
child-restraint system: Seating a child in a rear-facing child-
restraint system that is installed on
the passenger seat with the
passenger air bag deactivation
indicator light not illuminated is
extremely dangerous. In an accident,
a air bag could inflate and cause
serious injuries or even death to the
child seated in the rear-facing child-
restraint system. Always make sure
the passenger air bag deactivation
indicator light is illuminated using
the key to turn the passenger air bag
off.
Refer to Passenger seat weight
sensors on page 2-43.
Refer to Passenger Air Bag
Deactivation Switch on page 2-39.
Essential Safety Equipment
Child Restraint
2-23
MX-5_8Z78-EA-08K_Edition1 Page35
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K
