With the switch in the OFF position, the
remote release button cannot be operated.
To open the trunk lid when the switch is
in the OFF position, do one of the
following:
lPress the request switch on the trunk
lid.
lPress the trunk button on the
transmitter.
lOpen the trunk with the auxiliary key.
Without advanced key
With the switch in the ON position, the
remote trunk lid release button and the
trunk button on the transmitter can be
operated.
With the switch in the OFF position, the
remote release button or the trunk button
on the transmitter cannot be operated.
To open the trunk lid when the switch is
in the OFF position, open the trunk with
the key.
Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles do not have such levers.
Knowing Your Mazda
Doors and Locks
3-35
MX-5_8Z78-EA-08K_Edition1 Page97
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (98,1)
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
doors and the trunk, and keeping the
keys where children can not play with
them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the
trunk unlocked.
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk end trim.
3-36
Knowing Your Mazda
Doors and Locks
MX-5_8Z78-EA-08K_Edition1 Page98
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (99,1)

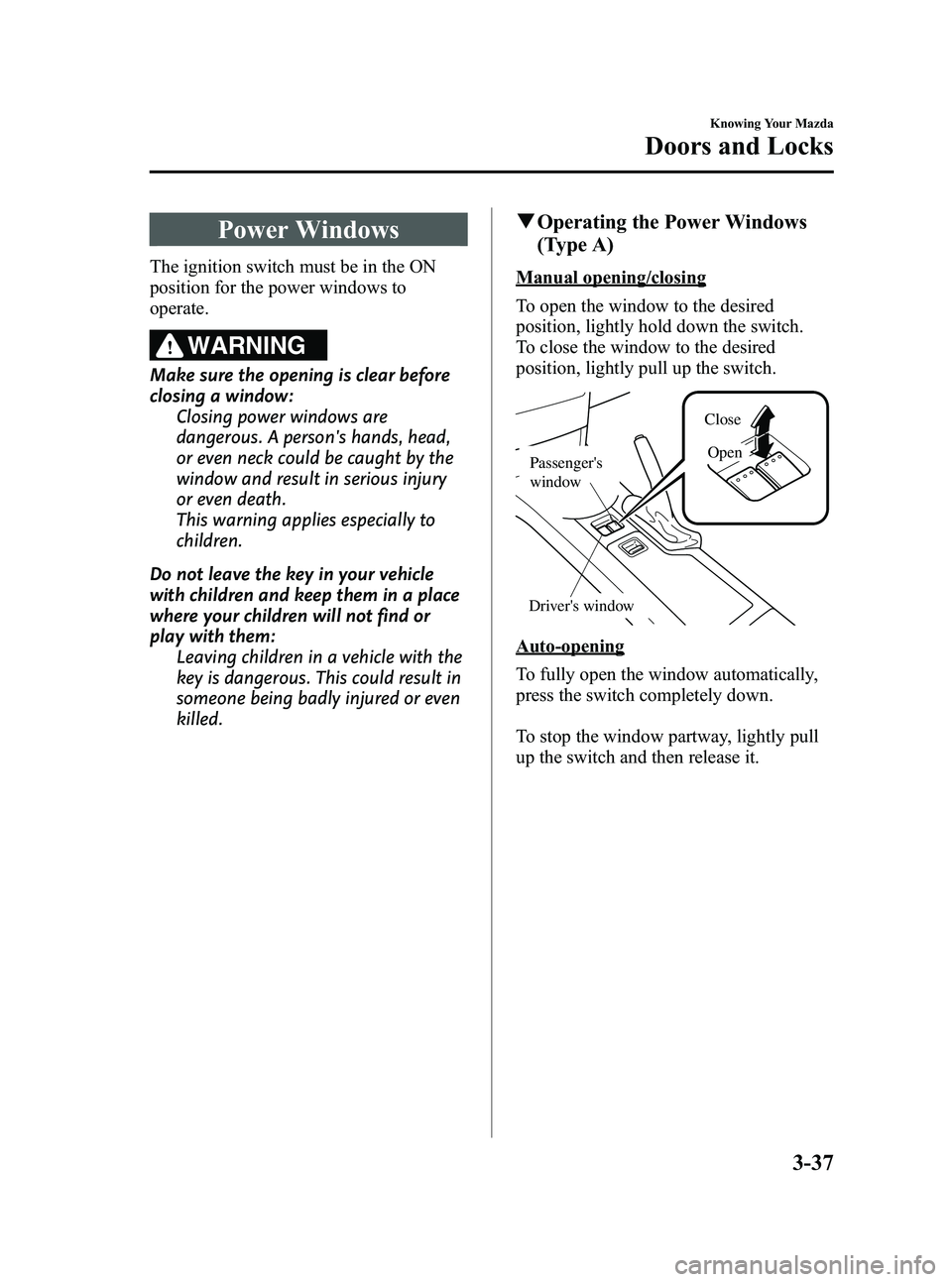

Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
qOperating the Power Windows
(Type A)
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Close
Open
Driver's window
Passenger's
window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
Knowing Your Mazda
Doors and Locks
3-37
MX-5_8Z78-EA-08K_Edition1 Page99
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (100,1)
qOperating the Driver's Side
Power Window (Type B)
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Close
Open
Driver's window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
q Operating the Passenger Power
Window (Type B)
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
Passenger's window
q Opening the Power Windows
from Outsideí
Both power windows can be opened from
outside the vehicle after the doors are
closed.
NOTE
The power windows cannot be opened from
outside the vehicle under the following
condition:
lA door or the trunk lid is opened.lThe key is inserted into the ignition switch.l(With advanced key)
The start knob is in any position except
Lock.
3-38
Knowing Your Mazda
íSome models.
Doors and Locks
MX-5_8Z78-EA-08K_Edition1 Page100
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (101,1)
Opening
Because nobody likes getting into a very
hot car, we have introduced a way to get a
head start on cooling it, even before you
put your seat belts on and insert your key
in the ignition. If you see the vehicle is in
a secure area, you can open the both
windows as you approach the vehicle to
get the air moving before you even step
into the hot vehicle.
WARNING
Use the auto-window function only
when you can see the vehicle and it is
in a secure area:Do not let children play with your
keys. If they open the window
without your knowing, the open
windows are an even bigger
invitation to a thief than leaving the
doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
Press once, then press again within 1.5
seconds and hold the unlock button on the
transmitter.
After the doors are unlocked, both
windows open while the unlock button is
pressed.
To stop the windows while opening,
release the button.
If the operation is performed from the
beginning again, the windows open.
NOTE
The unlock button does not operate unless it is
pressed twice sequentially.
Advanced key
Lock button Unlock button
Trunk button
Panic button
Retractable type key
Lock buttonUnlock button
Trunk button Panic button
Knowing Your Mazda
Doors and Locks
3-39
MX-5_8Z78-EA-08K_Edition1 Page101
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (122,1)
To the outside of the vehicle
Rope
Links
NOTE
Always route the one end of the rope to inside
of the vehicle. If it is not inside the vehicle, it
will be difficult to service the hardtop at an
Authorized Mazda Dealer.
3. Do the same procedure on the other
side.
4. Close the deck uniformly on both sides using two adults, one on each side of
the vehicle.
CAUTION
Close the deck using two adults.
Doing it alone could result in injury
or the deck lid mechanism being
twisted which could damage it. 5. Lightly pushing the deck downward,
pull the ropes to the rear along both
sides of the trunk to hold the deck
down.
NOTE
Pull the ropes horizontally to the vehicle rear.
Rope
6. Lightly move the deck and verify that it is secured completely.
7. Open the trunk using the key, and tie the rope to the bracket and knot it twice
so that it does not loosen.
Rope
Bracket
CAUTION
Tie the ropes securely so that the
deck does not open while the vehicle
is being driven.
3-60
Knowing Your Mazda
Doors and Locks
MX-5_8Z78-EA-08K_Edition1 Page122
Thursday, October 23 2008 1:53 PM
Form No.8Z78-EA-08K

Black plate (123,1)
NOTE
Open the trunk using the key. The remote
release button, advanced keyless entry
function, and the keyless entry system do not
operate when this emergency procedure is
done.
8. Tie off the other side rope the sameway.
9. Close the trunk lid.
After finishing the procedure
After finishing the procedure, have the
hardtop checked at an Authorized Mazda
Dealer as soon as possible.
WARNING
Drive the vehicle at a speed of 40 km/h
(25 mph) or lower before having the
hardtop checked at an Authorized
Mazda Dealer: The hardtop may open while the
vehicle is being driven and cause an
accident.
NOTE
The trunk cannot be opened with the remote
release button, advanced keyless entry
function, and the keyless entry system as they
are disabled when this emergency procedure is
done.
q Power Retractable Hardtop
Appearance Care
Refer to Hardtop Maintenance (page
8-53) for information on retractable
hardtop appearance care.
Knowing Your Mazda
Doors and Locks
3-61
MX-5_8Z78-EA-08K_Edition1 Page123
Thursday, October 23 2008 1:53 PM
Form No.8Z78-EA-08K

Black plate (125,1)
Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
ØDevices for electronic purchases, or
security passage which touch or
come near the key.
Knowing Your Mazda
Security System
3-63
MX-5_8Z78-EA-08K_Edition1 Page125
Thursday, October 23 2008 1:53 PM
