qSeat Position Memory (Driver's
Seat)í
One-touch seat position programming and
activation is available on the driver's seat.
CAUTION
When activating the seat position, do
not place your hands or fingers
around the seat bottom. The seat
moves to the desired position
automatically, and if your hands or
fingers are placed around the seat
bottom, it could cause injury.
Set button
Programming of the driver's seat positions
is possible using the following functions:
lProgramming buttons 1, 2, or 3 and the
set button.
lOperation using the advanced key/
retractable type key
Programmed seat positions can activated
using the following functions:
lProgramming buttons 1, 2, or 3.lOperation using advanced keyless
functions/keyless entry system
NOTE
Individual seat positions can be programmed
to the three available programming buttons on
the side of the driver's seat, plus one seat
position for each advanced key/retractable
type key used with the vehicle.
Operation using the seat-side buttons
Programming
Park the vehicle in a safe location before
performing the seat position
programming. (Vehicle must be stopped)
1. Adjust the seat to the desired position.
For each seat position adjustment
method refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-6)
Height Adjustment (page 2-6)
2. Press the desired programming button
1, 2, or 3 while pressing the set button
until a beep sound is heard.
The button is programmed after a beep
sound is heard. Other buttons can be
programmed using the same procedure.
NOTE
Vehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased.
In this case, re-program the seat positions.
Essential Safety Equipment
Seats
2-7íSome models. CX-9_8Z66-EA-08F_Edition3 Page19
Tuesday, March 31 2009 1:50 PM
Form No.8Z66-EA-08F

Black plate (20,1)
Setting the driver's seat to a pre-
programmed position
There are two methods for setting the
driver's seat to a pre-programmed
position. For example, the type A method
can be used before sitting in the seat and
while the driver's door is open, and the
type B method can be used after getting in
the vehicle with the driver's door closed.
TYPE A
When the ignition switch in the LOCK
position and the driver's door is open,
press the programming button 1, 2, or 3
for the desired seating position.
NOTE
In the following cases, the seat position set
function cancels:
lAny of the seat adjustment switches are
operated.
lThe set switch is pressed.lA programming button 1, 2, or 3 is pressed.lThe vehicle starts moving.lVehicle locking/unlocking is done using the
transmitter.
lVehicle locking/unlocking is done by
pressing the request switch while the
advanced key is being carried.
TYPE B
When the ignition switch the ON position
or the driver's door is closed, press and
hold the desired programming button 1, 2,
or 3.
NOTE
In the following cases, the seat position set
function cancels:
lAny of the seat adjustment switches are
operated.
lThe set switch is pressed.lThe vehicle starts moving.
Operation using the advanced key/
retractable type key
With advanced key
Auxiliary key
Unlock button Lock button
With retractable type key
Lock button
Unlock button
Programming
One seat position can be programmed into
each advanced key/retractable type key.
After the following conditions have been
met, operate the seat and the advanced
key/retractable type key to program the
seat positions.
lThe ignition switch in the LOCK
position
(The auxiliary key/retractable type key
is removed from the ignition switch)
lThe driver's door is open
2-8
Essential Safety Equipment
Seats
CX-9_8Z66-EA-08F_Edition3 Page20
Tuesday, March 31 2009 1:50 PM
Form No.8Z66-EA-08F

Black plate (21,1)
1. Adjust the seat to the desired position.
For each seat position adjustment
method, refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-6)
Height Adjustment (page 2-6)
2. Press and hold the unlock button on the
advanced key/retractable type key
while pressing the set button until a
beep sound is heard.
The advanced key/retractable type key
is programmed after a beep sound is
heard.
Seat position activation
With the ignition switch in the LOCK
position, unlock the doors using any of
the following methods and open the
driver's door within about 40 seconds to
set the driver's seat to a pre-programmed
position.
lPress the unlock switch on the
advanced key/retractable type key.
lPress the request switch on a front door
or liftgate while the advanced key is
being carried.
NOTE
If any of the following occurs, the seat position
activation function cancels:
lPress the lock/unlock button while the key
is not inserted into the ignition switch.
lA seat adjustment switch is operated.lThe vehicle moves or starts to move.lThe selected programming button 1, 2, or 3
or the set button is pressed again.
lPress the request switch on a front door or
liftgate while the advanced key is being
carried.
lThe set switch is pressed.
Erasing memory
After the following conditions have been
met, press the lock button on the
advanced key/retractable type key while
pressing the set button until a beep sound
is heard.
lThe ignition switch is in the LOCK
position
(The auxiliary key/retractable type key
is removed from the ignition switch)
lThe driver's door is open
NOTE
Memory will also be erased if any of the
following operations are performed:
lThe advanced key/retractable type key code
has been changed.
Refer to Immobilizer System (with
Advanced Key) on page 3-50.
Refer to Immobilizer System (without
Advanced Key) on page 3-53.
Refer to Immobilizer System on page 3-53.
lThe vehicle battery is disconnected for
vehicle maintenance or other reasons.
qLumbar Support Adjustment
(Driver's Seat)
Manually operated
To increase the seat firmness, pull the
lever forward. Push the lever backward to
decrease firmness.
Essential Safety Equipment
Seats
2-9
CX-9_8Z66-EA-08F_Edition3 Page21
Tuesday, March 31 2009 1:50 PM
Form No.8Z66-EA-08F

Black plate (41,1)
WARNING
Positioning the Lap Portion of the Seat
Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
qUnfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
qRetracting the center seat belt
(middle row) to lower the
seatbacks for carrying cargo
To retract the center belt and lower the
seatbacks for carrying cargo, insert a
small object such as a key in the seat belt
anchor buckle (B) slot.
(A)
(B)
CAUTION
Always unfasten the lap portion of
the belt before folding the left-rear
seatback. Leaving the lap portion of
the belt fastened could cause
damage to the seat belt, seat belt
buckle and seatback.
qStowing and pulling out the
Center-Rear Position Seat Belt
The center-rear position seat belt can be
stowed using the following procedure.
CAUTION
When stowing the seat belt, make
sure the belt is locked securely into
the recess. If the seat belt is not
properly stowed, it might get caught
in the seats and be damaged.
Essential Safety Equipment
Seat Belt Systems
2-29
CX-9_8Z66-EA-08F_Edition3 Page41
Tuesday, March 31 2009 1:50 PM
Form No.8Z66-EA-08F

Black plate (83,1)

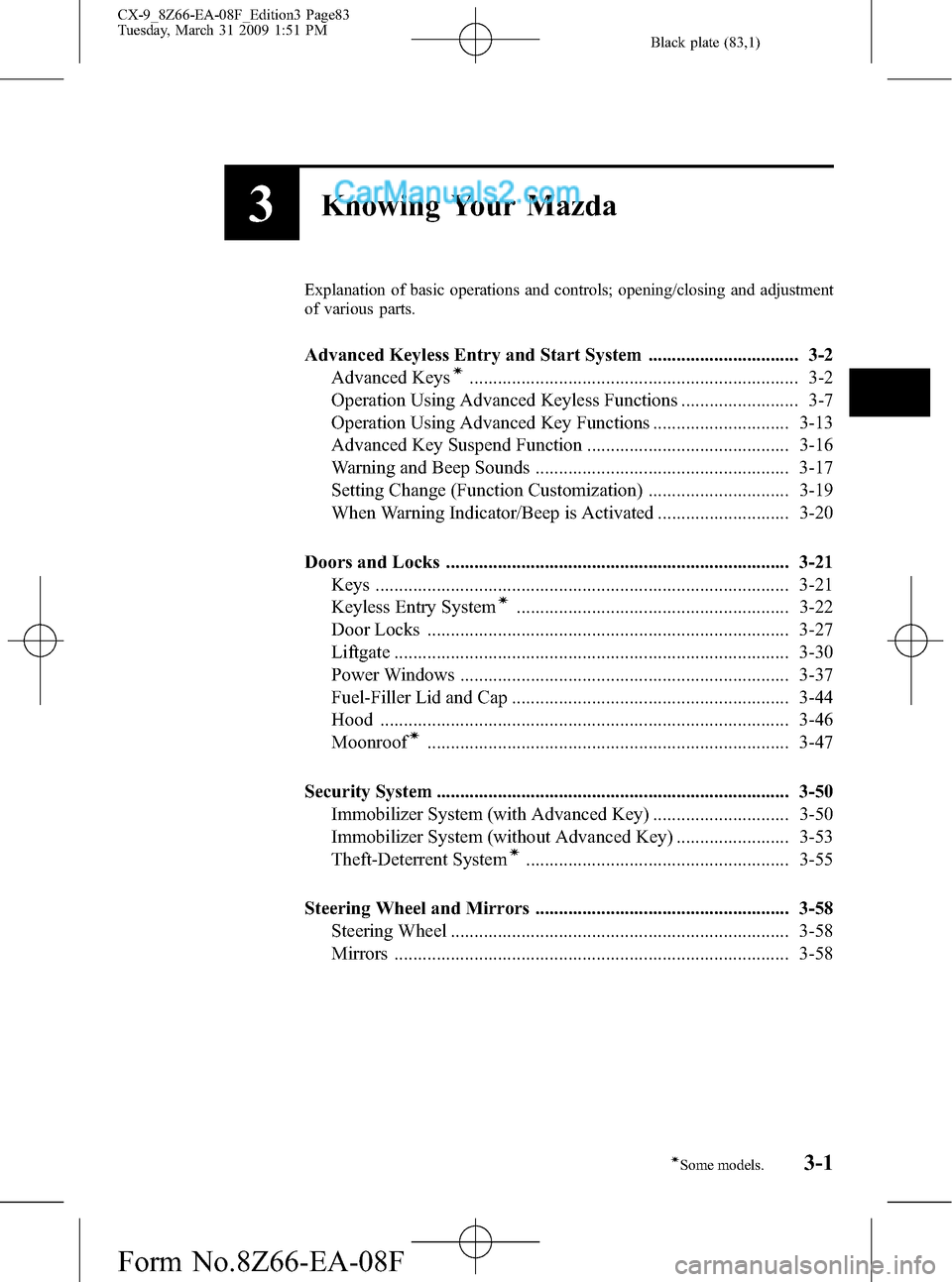

3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Advanced Keyless Entry and Start System ................................ 3-2
Advanced Keysí...................................................................... 3-2
Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-13
Advanced Key Suspend Function ........................................... 3-16
Warning and Beep Sounds ...................................................... 3-17
Setting Change (Function Customization) .............................. 3-19
When Warning Indicator/Beep is Activated ............................ 3-20
Doors and Locks ......................................................................... 3-21
Keys ........................................................................................ 3-21
Keyless Entry System
í.......................................................... 3-22
Door Locks ............................................................................. 3-27
Liftgate .................................................................................... 3-30
Power Windows ...................................................................... 3-37
Fuel-Filler Lid and Cap ........................................................... 3-44
Hood ....................................................................................... 3-46
Moonroof
í............................................................................. 3-47
Security System ........................................................................... 3-50
Immobilizer System (with Advanced Key) ............................. 3-50
Immobilizer System (without Advanced Key) ........................ 3-53
Theft-Deterrent System
í........................................................ 3-55
Steering Wheel and Mirrors ...................................................... 3-58
Steering Wheel ........................................................................ 3-58
Mirrors .................................................................................... 3-58
3-1íSome models.
CX-9_8Z66-EA-08F_Edition3 Page83
Tuesday, March 31 2009 1:51 PM
Form No.8Z66-EA-08F

Black plate (84,1)
Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enables the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors and the liftgate without operating the key.lStarting the engine without operating the key.
Additional functions are available using the buttons on the advanced key.
Refer to Operation Using Advanced Key Functions on page 3-13.
lThe following operations are possible using the transmitter of the keyless entry system
from a distance (Lock/Unlock/Panic/Liftgateíbutton):lLocking/unlocking the doors and the liftgate.lOpening/closing the power liftgateí.lOpening the power windows and the moonroofí.lOperating the theft-deterrent systemí.lTurning on the alarm.lLocking/unlocking the doors or starting the engine using the auxiliary key.
WARNING
Do not leave the key in your vehicle with children and keep them in a place where
your children will not find or play with them:
Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. Children may find these new kinds of keys to be
an interesting toy to play with and could cause the power windows or other controls
to operate, or even make the vehicle move.
Radio waves from the advanced key may affect medical equipment such as
pacemakers:
Before using the advanced key near people who use medical equipment, ask the
medical equipment manufacturer or your physician if radio waves from the
advanced key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.lRefer to Immobilizer System (page 3-50) for information regarding keys and engine starting.l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-55) for information regarding keys and the prevention of
vehicle and vehicle contents theft.
3-2
Knowing Your Mazda
íSome models.
Advanced Keyless Entry and Start System
CX-9_8Z66-EA-08F_Edition3 Page84
Tuesday, March 31 2009 1:51 PM
Form No.8Z66-EA-08F

Black plate (85,1)
With power liftgate button
Panic button
Auxiliary key
Key code number plate
Operation indicator light Unlock buttonLock button
Power liftgate button
Without power liftgate button
Panic button
Auxiliary key
Key code number plate
Operation indicator light Unlock buttonLock button
A code number is stamped on the plate attached to the key set; detach this plate and store it
in a safe place (not in the vehicle) for use if you need to make a replacement key.
Also write down the code number and keep it in another safe and handy place, but not in
the vehicle.
If your key is lost, consult your Authorized Mazda Dealer with the code number ready.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-3
CX-9_8Z66-EA-08F_Edition3 Page85
Tuesday, March 31 2009 1:51 PM
Form No.8Z66-EA-08F

Black plate (86,1)
CAUTION
ØBecause the advanced key uses low-intensity radio waves, it may not function
correctly under the following conditions:
ØThe advanced key is carried with communication devices such as cellular
phones.
ØThe advanced key contacts or is covered by a metal object.
ØThe advanced key is near electronic devices such as personal computers or cell
phones.
ØNon-Mazda genuine electronic equipment is installed in the vehicle.
ØThere is equipment which discharges radio waves near the vehicle.
ØIf the vehicle is near equipment such as wireless pay devices installed at certain
gas stations.
ØThe advanced key may consume battery power excessively if it receives high-
intensity radio waves. Do not place the advanced key near electronic devices such
as televisions or personal computers.
ØTo avoid damage to the advanced key, DO NOT:
ØDrop the advanced key.
ØGet the advanced key wet.
ØDisassemble the advanced key.
ØExpose the advanced key to high temperatures on places such as the
dashboard or hood, under direct sunlight.
ØPlace heavy objects on the advanced key.
ØPut the advanced key in an ultrasonic cleaner.
ØPut any magnetized objects close to the advanced key.
NOTE
lBattery life is about one year. Be sure to replace the battery as soon as you see the green KEY
indicator light in the instrument cluster begin flashing for 30 seconds after turning off the engine,
otherwise, you will not be able to start the engine using the advanced keyless start system once the
battery is completely dead Refer to KEY warning light (red) on page 5-54. If this occurs, you will
have to either force-start the engine or use the auxiliary key Refer to Advanced Key Battery Dead
Warning on page 3-18.
lAdditional advanced keys can be obtained at an Authorized Mazda Dealer. Up to 6 advanced keys
can be used with the advanced keyless functions per vehicle.
3-4
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8Z66-EA-08F_Edition3 Page86
Tuesday, March 31 2009 1:51 PM
Form No.8Z66-EA-08F
