2009 MAZDA MODEL CX-9 climate control

Black plate (9,1)
Interior Equipment (View B)
Audio control switches ...................................................................................... page 6-58
SRS air bags ...................................................................................................... page 2-50
Cruise control switches ...................................................................................... page 5-19
Information display .......................................................................................... page 6-141
Climate control system ........................................................................................ page 6-2
Hazard warning flasher switch .......................................................................... page 5-70
Audio system ..................................................................................................... page 6-17
Glove box ........................................................................................................ page 6-148
Accessory socket ............................................................................................. page 6-151
AT shift lever ...................................................................................................... page 5-10
Seat warmer switches ........................................................................................ page 2-17
Rear window defroster switch ........................................................................... page 5-69
Hood release handle .......................................................................................... page 3-46
Coin box .......................................................................................................... page 6-148
Navigation system (if equipped) .......................................... Refer to the separate manual
Your Vehicle at a Glance
Interior Overview
1-3The equipment and installation position varies by vehicle CX-9_8Z66-EA-08F_Edition3 Page9
Tuesday, March 31 2009 1:50 PM
Form No.8Z66-EA-08F

Black plate (10,1)
Interior Equipment (View C)
Overhead lights ................................................................................................ page 6-139
SRS air bags ...................................................................................................... page 2-50
Seat belt ............................................................................................................. page 2-19
Rear entertainment system ................................................................................. page 6-64
Center console ................................................................................................. page 6-149
Remote fuel-filler lid release ............................................................................. page 3-45
Cup holders ...................................................................................................... page 6-146
Sunvisor ........................................................................................................... page 6-138
Moonroof switches ............................................................................................ page 3-47
Overhead console ............................................................................................ page 6-148
Rearview mirror ................................................................................................. page 3-59
Vanity mirror .................................................................................................... page 6-138
Front seat ............................................................................................................. page 2-2
Climate control system (Rear) ........................................................................... page 6-14
Second-row seat ................................................................................................. page 2-10
Third-row seat ................................................................................................... page 2-15
1-4
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Interior Overview
CX-9_8Z66-EA-08F_Edition3 Page10
Tuesday, March 31 2009 1:50 PM
Form No.8Z66-EA-08F

Black plate (241,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System .......................... 6-2
Operating Tips .................................... 6-2
Vent Operation (Front) ........................ 6-4
Fully Automatic Type ......................... 6-6
Vent Operation (Rear) ....................... 6-12
Control Panel (Rear) ......................... 6-14
Audio System ......................................... 6-17
Antenna ............................................. 6-17
Operating Tips for Audio System ..... 6-17
Audio Set .......................................... 6-27
Audio Control Switch Operation (Steering
Wheel) ............................................... 6-58
AUX Mode (Auxiliary input) ........... 6-61
Safety Certification ........................... 6-63
Rear Entertainment System ................. 6-64
Rear Entertainment System
í............ 6-64
Part Names ........................................ 6-73
Before Operation ............................... 6-76
Sound Output .................................... 6-82
Rear Entertainment System
Functions ........................................... 6-86
DVD video, DVD audio, Video CD, Audio
CD and MP3/WMA CD Playback (Disc
Mode) ................................................ 6-87
Auxiliary Input (AUX mode) .......... 6-101
Language Code List ........................ 6-105
Country Code List ........................... 6-107
Error Message ................................. 6-111
Symptoms and Actions ................... 6-113Bluetooth Hands-Free ......................... 6-116
Bluetooth Hands-Free
í.................. 6-116
Basic Bluetooth Hands-Free
Operation ........................................ 6-120
Convenient Use of the Hands-Free
System ............................................. 6-124
Hands-Free Setting .......................... 6-130
When Bluetooth Hands-Free Cannot be
Used ................................................ 6-136
Safety Certification ......................... 6-137
Mazda Bluetooth Hands-Free Customer
Service ............................................ 6-137
Interior Equipment ............................. 6-138
Sunvisors ......................................... 6-138
Interior Lights ................................. 6-139
Information Display ........................ 6-141
Cup Holder ...................................... 6-146
Bottle Holder ................................... 6-147
Storage Compartments .................... 6-148
Accessory Sockets .......................... 6-151
Power Outlet
í................................ 6-152
6-1íSome models.
CX-9_8Z66-EA-08F_Edition3 Page241
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (242,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switch in the
ON position when the engine is not running.
qClearing the Air Inlet
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
CX-9_8Z66-EA-08F_Edition3 Page242
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (243,1)
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and the intensity of direct
sunlight. It then sets temperatures inside
the passenger compartment accordingly.
CAUTION
Do not obstruct either sensor,
otherwise the automatic air
conditioner will not operate properly.
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-3
CX-9_8Z66-EA-08F_Edition3 Page243
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (244,1)

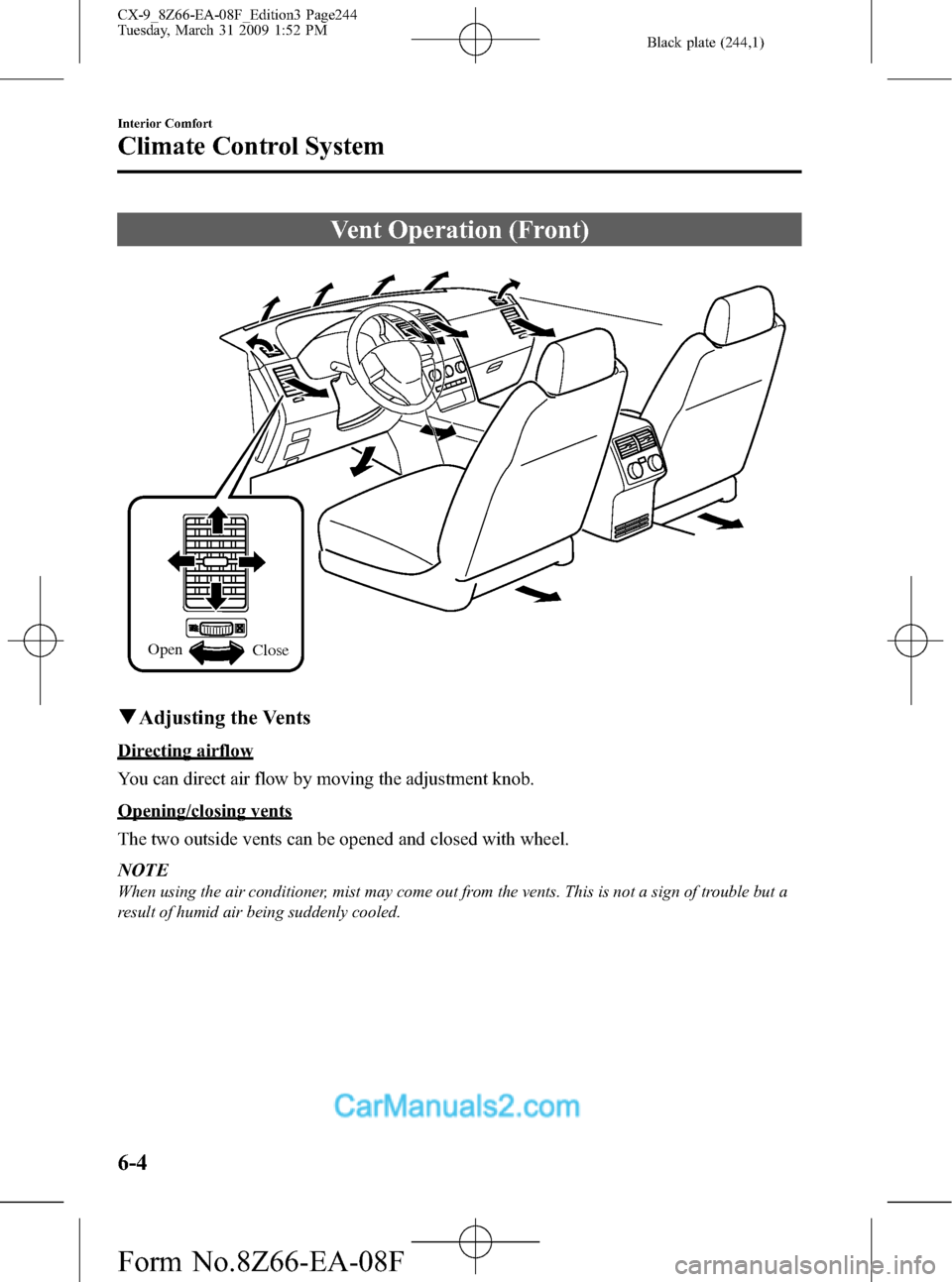

Vent Operation (Front)
Open
Close
qAdjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
Opening/closing vents
The two outside vents can be opened and closed with wheel.
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of trouble but a
result of humid air being suddenly cooled.
6-4
Interior Comfort
Climate Control System
CX-9_8Z66-EA-08F_Edition3 Page244
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (245,1)
qSelecting the Airflow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor Vents
Defroster and Floor Vents
Defroster Vents
Interior Comfort
Climate Control System
6-5
CX-9_8Z66-EA-08F_Edition3 Page245
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (246,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Temperature setting display (driver)Ambient temperature /Temperature
setting display (front passenger)
Mode selector display
Airflow display A/C
DUALAU TO
Air intake display
Information display
Front passenger temperature control dial
Windshield defroster switchFan control dial Driver temperature control dial
Air intake selector OFF switch AUTO switch
Mode selector
switchA/C switch
DUAL switch
OUTSIDE (Ambient
temperature) switch
6-6
Interior Comfort
Climate Control System
CX-9_8Z66-EA-08F_Edition3 Page246
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F
