GCW
GCW (Gross Combination Weight)is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.
GCWR (Gross Combination Weight Rating)is the maximum allowable weight of the
vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated
for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs).The GCW must
never exceed the GCWR.
Maximum Loaded Trailer Weightis the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or
external), a tongue load of 10_
15% (conventional trailer) or king pin weight of 15_
25%
(fifth-wheel trailer), and driver only (150 lbs).Consult your dealership (or the RV and
Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weightrefers to the amount of the weight that a
trailer pushes down on a trailer hitch.
Examples:For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb fifth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
9-43
CX-9_8Z66-EA-08F_Edition3 Page515
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F

Black plate (517,1)

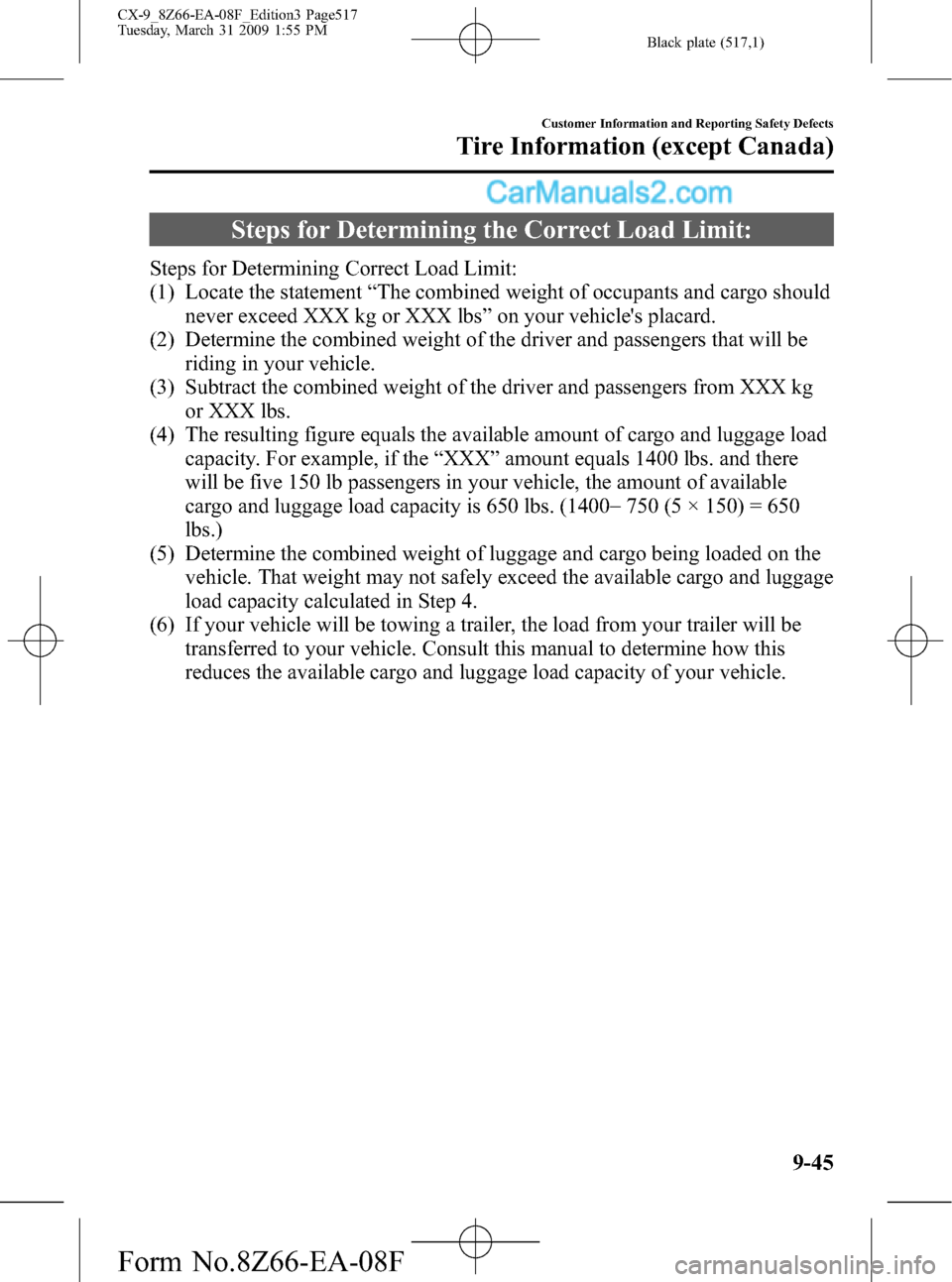

Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs”on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be
riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg
or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load
capacity. For example, if the“XXX”amount equals 1400 lbs. and there
will be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400_
750 (5 × 150) = 650
lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the
vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, the load from your trailer will be
transferred to your vehicle. Consult this manual to determine how this
reduces the available cargo and luggage load capacity of your vehicle.
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
9-45
CX-9_8Z66-EA-08F_Edition3 Page517
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F

Black plate (519,1)
Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information and Reporting Safety Defects
Reporting Safety Defects
9-47
CX-9_8Z66-EA-08F_Edition3 Page519
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F

Black plate (527,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 5.2 L (5.5 US qt, 4.6 Imp qt)
Without oil filter replacement 4.7 L (5.0 US qt, 4.2 Imp qt)
CoolantWith Towing Package 13.3 L (14.1 US qt, 11.7 Imp qt)
Without Towing Package 12.9 L (13.6 US qt, 11.4 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 0.532 L (0.562 US qt, 0.468 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluid 4.5 L (4.8 US qt, 4.0 Imp qt)
Fuel tank 76.0 L (20.1 US gal, 16.7 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall length 5,074 mm (199.8 in)
Overall width 1,936 mm (76.2 in)
Overall height 1,728 mm (68.0 in)
Front tread 1,654 mm (65.1 in)
Rear tread 1,644 mm (64.7 in)
Wheelbase 2,875 mm (113.2 in)
qWeights
ItemWeight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,645 kg (5,831 lbs) 2,744 kg (6,049 lbs)
GAWR (Gross Axle Weight Rating)Front 1,276 kg (2,813 lbs) 1,307 kg (2,881 lbs)
Rear 1,400 kg (3,086 lbs) 1,458 kg (3,214 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
CX-9_8Z66-EA-08F_Edition3 Page527
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F

Black plate (534,1)
