11
Getting started

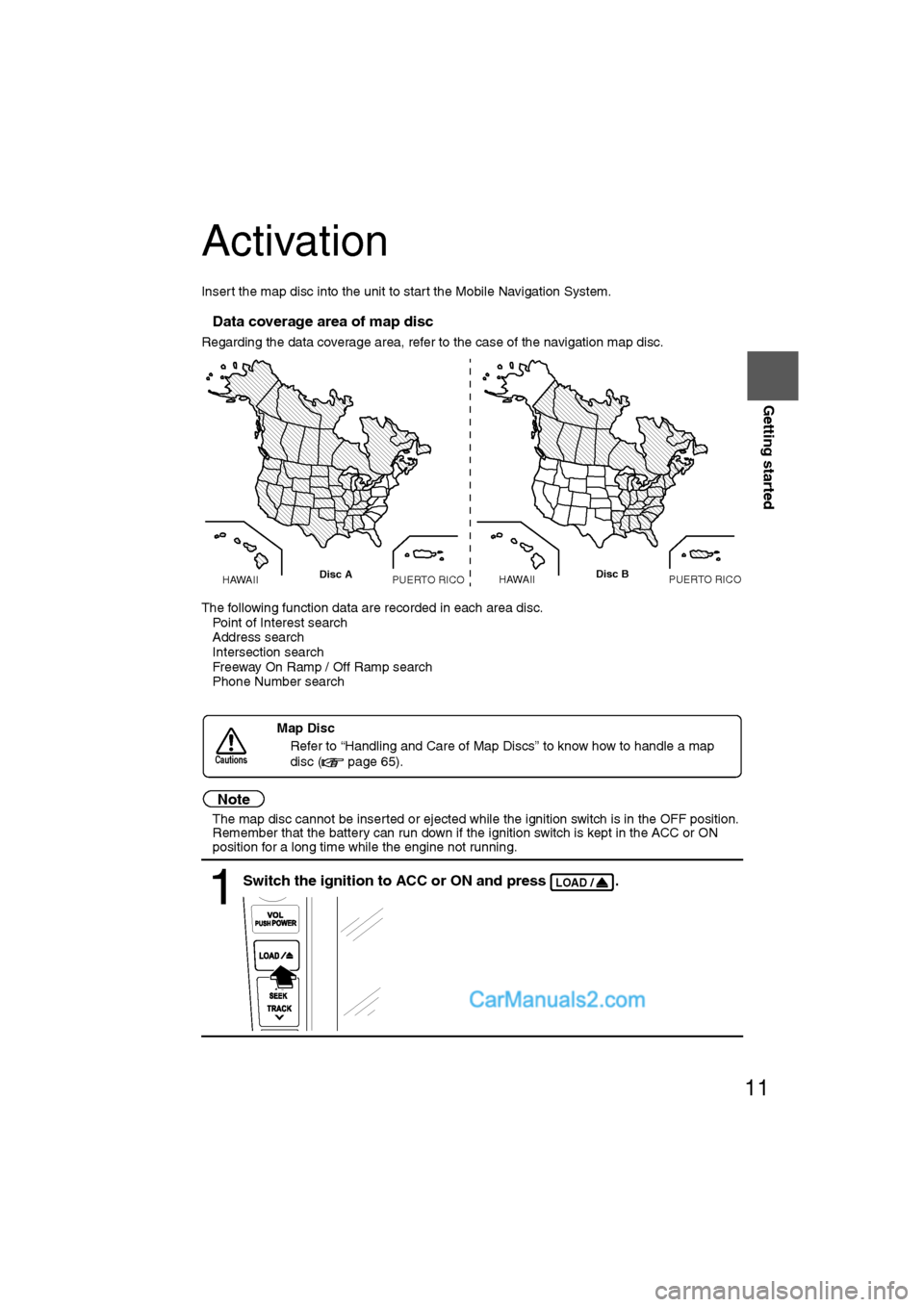

Activation
Insert the map disc into the unit to start the Mobile Navigation System.
nData coverage area of map disc
Regarding the data coverage area, refer to the case of the navigation map disc.
The following function data are recorded in each area disc.
lPoint of Interest search
l Address search
l Intersection search
l Freeway On Ramp / Off Ramp search
l Phone Number search
Note
lThe map disc cannot be inserted or ejected while the ignition switch is in the OFF position.
l Remember that the battery can run down if the ignition switch is kept in the ACC or ON
position for a long time while the engine not running.
nMap Disc
l Refer to “Handling and Care of Map Discs” to know how to handle a map
disc ( page 65).
1
Switch the ignition to ACC or ON and press .
Disc AHAWAII PUERTO RICODisc B
HAWAII PUERTO RICO
Cautions
LOAD /
2%:':9)FSSO4EKI1SRHE].YRI41

12
RoutingAddress
Book
Getting started
2
Select the MAP on-screen button to open the display.
3
Insert the map disc
with the printed side
facing up.Note
lCondensation may form on the optical lens or the map
disc inside the unit when the temperature in the vehicle
increases in a short time such as when heating the car
on a cold day. This condensation may cause
malfunctions. If so, unload the map disc and do not
operate the unit for approximately 1 hour. Wipe the
condensation off the map disc with a soft cloth.
If the unit does not operate correctly after 1 hour,
consult an Authorised Mazda Dealer.
Note
l
When the ignition switch is in the ACC or ON
position, the screen changes as shown above to
activate the navigation system.
l The screen (audio or navigation) that was displayed
prior to the engine being turned off is displayed.
Before the navigation screen is displayed, the
CAUTION screen will be displayed.
MAP on-screen button
(CAUTION) screen
2%:':9)FSSO4EKI1SRHE].YRI41

13
Getting started
lThe Current Position screen appears.
Note
lYou can select the language by selecting the on-screen button. You can also
change the selected language using Language Selection. ( page 20)
l The CAUTION screen remains on the display unless you select the on-screen
button.
Press the and MAP on-screen button with the ignition switch in the
ACC position.
Select the on-screen button lightly with your finger.
Colors for unavailable buttons will be pale.
4
Read the CAUTION
carefully, and select
the on-screen
button.
Removing the Map Disc
On-screen Buttons
Most functions are inhibited while the
vehicle is in motion.
Please read the handbook for operation
instructions.
Always obey traffic regulations.
Caution
LOAD /
Do not get your hand or fingers caught in
moving parts or in the disc slot. This can
cause injuries. Children are inquisitive, try
to install or remove the map disc without
infants looking on.
Caution
MAP on-screen button
2%:':9)FSSO4EKI1SRHE].YRI41

59
Before
UseGetting
started
RoutingAddress
BookVo i c e
Recognition
Navigation
Set Up
If necessary
GPS is a position detecting system utilizing the signals
from GPS satellites deployed by the U.S. Department of
Defense. The Mobile Navigation System uses input from
three or more satellites and calculates the vehicle position
based on the principle of triangulation.
The positioning accuracy of the system corresponds to the
error display of the GPS which is from about 30 to 200 meters.
l If you are using the system for the first time, or if you have not used it for some time, it takes
about 5 minutes (or about 2 minutes in open areas) to calculate your vehicle’s position.
nGPS signal reception is poor in the following places
lThe GPS satellites are controlled by the U.S. Defense Department, which may intentionally
lower positioning accuracy. In such cases, there may be vehicle position deviations.
l There may be vehicle position deviations for some time until GPS signals are received after
switching on the ignition.
This function compares your vehicle’s tracking data with the road data on the map
disc, applies dead reckoning to determine the road you are driving on, and displays
your vehicle on that road on the map.
l Intelligent map matching addresses the following problems to achieve high accuracy in
vehicle positioning.
Position Correction for Elevated RoadsPosition accuracy is improved by detecting if the vehicle is
running on or under an elevated road.
Position Correction for Parking GaragesPosition accuracy is improved by detecting if the vehicle is
driving in an elevated or underground parking garage.
High-precision GyrosensorA gyro detects turns with an accuracy of 0.05° per second.
Combined with a speed sensor, it enables the system to
display the current vehicle position even where GPS signals
may be blocked.
l Using a spare tire in place of the regular one may cause vehicle position deviations.
l Any difference between the direction which your vehicle actually travels and that shown on
the map is automatically eliminated by azimuth correction.
GPS
In tunnelsAmong high-rise buildingsUnder elevated roads In wooded areas
Map Matching
2%:':9)FSSO4EKI1SRHE].YRI41

60
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
If necessary
Precautions/System Performance
In the following situations, your vehicle position may not be displayed correctly on the
map. But, as you keep driving, your vehicle position will be automatically corrected
utilizing map matching and GPS data.
Although you may encounter the following problems in route guide, there is nothing
wrong with the system.
Positioning Accuracy
Running on an
elevated road Making a turn after
driving on a long
straight roadRunning on a steep
mountain road
Running on a spiral
roadEntering an intersection
where a road branches
off at a small angle
Running on gridiron
layout of roads Running on a
slippery road with
tire chainsSnaking on a wide
road
When your vehicle
is on a turntable
with the ignition
switched offAfter getting off a
ferryboat or vehicle
train
Route Guide
For certain intersection shapes,
the upcoming turn or the name of
the intersection may not be
announced. For certain intersection shapes,
you may be prompted to turn right
or left When you should actually
stay on the same road.Voice guidance for the planned
route may continue even after you
have deviated from that route
such as having turned too early.
Some points where the road
divides on highways or toll roads
may not be displayed or
announced. The Intersection Zoom Map may
not always agree with the actual
shape of the intersection.
The announced distance to an
upcoming turn may differ slightly
from reality.
STOP
CAR FERRY
Left turn
ahead
In 300 m
right turn
300m
0m
In 300 m
right turn
2%:':9)FSSO4EKI1SRHE].YRI41

74
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
l
The liquid crystal display may not open if the power supply had been interrupted due to the
vehicle battery being disconnected.
l If the liquid crystal display stays open/closed (or partly opened) and does not move when
the liquid crystal display is pressed, switch the ignition switch and then on again. Then try
the open/close operation again. If the liquid crystal display still does not move, contact an
Authorized Mazda Dealer.
The beep sound and voice guidance related to the audio operation are not heard while a
Bluetooth Hands-Free is being used.
Operating Tips for Display
nDo not place any objects on the dashboard. If you drop any objects onto
the dashboard or spill liquid on it, it may result in system malfunction.
nBe careful not to pinch your hands or fingers when the liquid crystal
display is closed.
nDo not open/close the liquid crystal display manually. It may damage the
equipment.
Beep sound and voice guidance restrictions while using Bluetooth Hands-Free
2%:':9)FSSO4EKI1SRHE].YRI41

75
Audio Operation
nPower ON/OFF
Switch the ignition switch to the ACC or ON position.
Press the power/volume dial to turn the audio system on.
Press the power/volume dial again to turn the audio system off.
Note
To prevent the battery from being discharged, do not leave the audio system on for a long
period of time when the engine is not running.
nVolume adjustment
To adjust the volume, turn the power/volume dial.
Turn the power/volume dial to the right to increase volume, to the left to decrease it.
nAudio sound adjustment
1.Press the SOURCE button.
2.Select the desired on-screen button corresponding to one of the following modes.• on-screen button : Audio mode (AM band)
• on-screen button : Audio mode (FM band)
• on-screen button : Satellite radio
• on-screen button : CD mode
• , on-screen button : Image and Sound playback is possible using a portable video player connected to an external input terminal.*
• on-screen button : iPod mode
• on-screen button : BT-Audio mode
Power/Volume/Sound Controls
Power / Volume dial
2%:':9)FSSO4EKI1SRHE].YRI41

109
Rear View Monitor
Switching to the Rear View Monitor Display
Shift the shift lever to R with the ignition switch in the ON position to switch the display to the
rear view monitor display.
Note
When the shift lever is shifted from R to another shift lever position, the screen returns to the
previous display.
Displayable Range on the Screen
The images on the screen may be different from the actual conditions.
Note
lThe displayable range varies depending on the vehicle and road conditions.
l The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.
l The distance appearing in the displayed image is different from the actual distance because
the rear view parking camera is equipped with a specific lens.
l Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional parts that can interfere with the camera view, such as illuminating parts
or parts made of reflective material.
l It may be difficult to see the display under the following conditions, however, it does not
indicate a malfunction.
• In darkened areas.
• When the temperature around the lens is high/low.
• When the camera is wet such as on a rainy day or during periods of high humidity.
• When foreign material such as mud is stuck around the camera.
• When the camera lens reflects sunlight or headlight beams.
l If the camera picks up a high-intensity light such as sunlight reflected off the vehicle body, a
bright belt (light line) may appear on the display. (Smear phenomenon)
(Screen display)
Both bumper ends are not displayed. Both bumper ends are not displayed. Object
(Actual view)
