qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
sound will be heard 6 times and the KEY
warning light (red) will flash continuously
when the start knob has not been returned
to the LOCK position to notify the driver
that the advanced key has been removed.
The KEY warning light (red) will stop
flashing when the advanced key is back
inside the vehicle:
lThe start knob has not been returned to
the LOCK position, the driver's door is
open, and the advanced key is removed
from the vehicle.
However the beep sound will be heard
continuously when the start knob is in
the ACC position and the door is open
due to the activation of the warning
beep sound indicating that the start
knob is not in the LOCK position.
lThe start knob has not been returned to
the LOCK position and all the doors
are closed after removing the advanced
key from the vehicle.
NOTE
Because the advanced key utilizes low-intensity
radio waves, the Advanced Key Removed From
Vehicle Warning may activate if the advanced
key is carried together with a metal object or it
is placed in a poor signal reception area.
qRequest Switch Inoperable
Warning Beep
If the request switch for a front door or the
liftgate is pressed under the following
conditions while the advanced key is
being carried, a beep will be heard 6 times
to indicate that the front doors and the
liftgate cannot be locked.
lA door or the liftgate is open (door ajar
included).
lThe start knob has not been returned to
the LOCK position.
lThe auxiliary key is inserted into the
ignition switch.
qAdvanced Key Battery Dead
Warning
When the start knob is returned to the
ACC or LOCK position from the ON
position, the KEY indicator light (green)
flashes for approximately 30 seconds
indicating that the remaining battery
power is low. Replace with a new battery
before the advanced key becomes
unusable.
Refer to Advanced Key Maintenance
(page 3-5).
NOTE
The advanced key can be set so that the KEY
indicator light (green) does not flash even if
the battery power is low.
Refer to Setting Change (page 3-19).
qEngine Start Not Permitted Warning
Under the following conditions, the KEY
warning light (red) flashes to inform the
driver that the start knob will not rotate to
the ACC position even if it is pushed in
from the LOCK position.
lThe advanced key battery is dead.lThe advanced key is not within
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-17
CX-7_8Z60-EA-08D_Edition2 Page95
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (96,1)

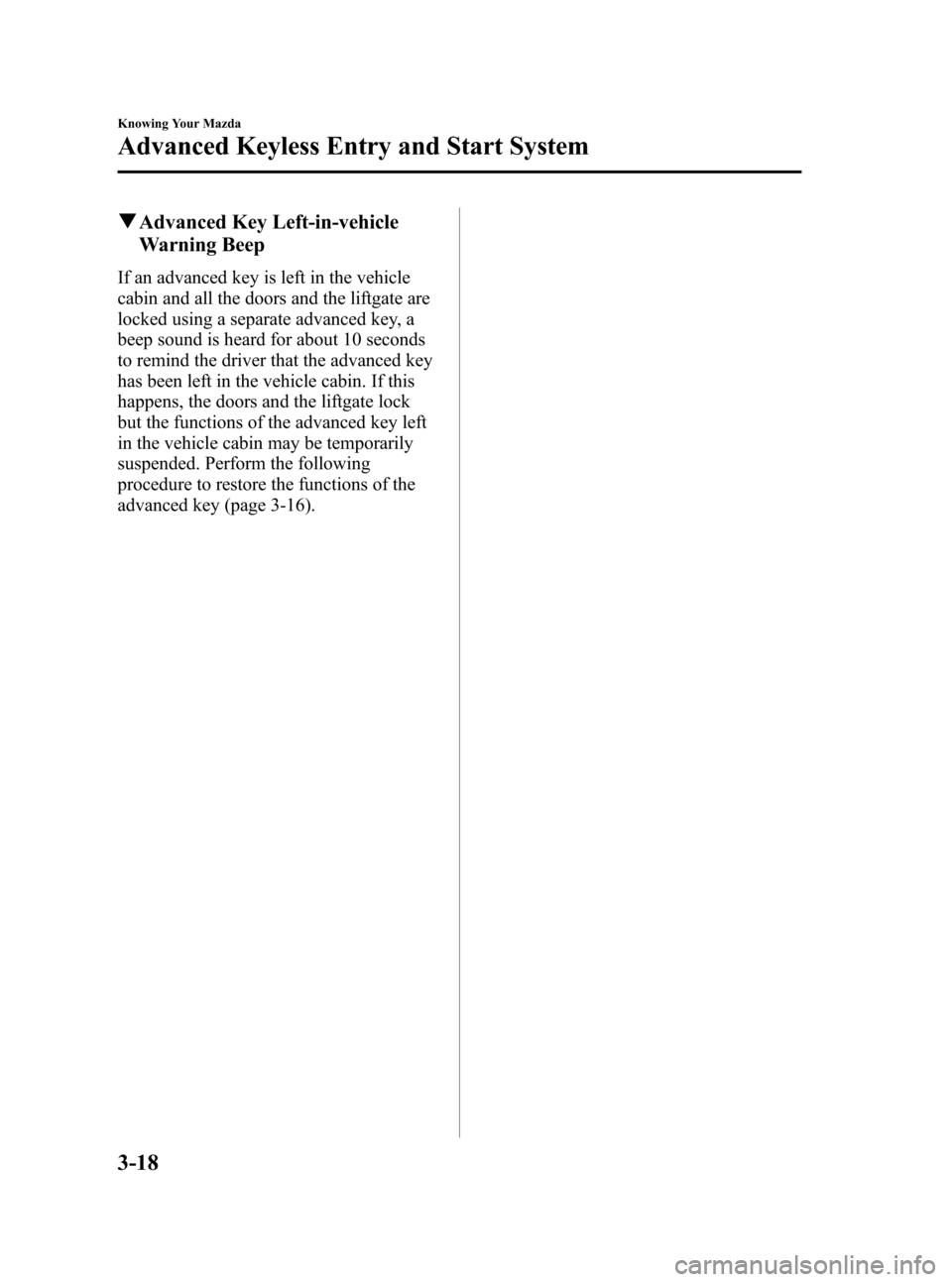

qAdvanced Key Left-in-vehicle
Warning Beep
If an advanced key is left in the vehicle
cabin and all the doors and the liftgate are
locked using a separate advanced key, a
beep sound is heard for about 10 seconds
to remind the driver that the advanced key
has been left in the vehicle cabin. If this
happens, the doors and the liftgate lock
but the functions of the advanced key left
in the vehicle cabin may be temporarily
suspended. Perform the following
procedure to restore the functions of the
advanced key (page 3-16).
3-18
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8Z60-EA-08D_Edition2 Page96
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (97,1)
Setting Change (Function Customization)
The following function settings are possible. These settings can only be changed by an
Authorized Mazda Dealer.
Setting Function At Initial SettingAfter Setting
Change
Advanced key battery
dead indicatorKEY indicator light (green) flashes to indicate
that the advanced key battery power is low.Activated Deactivated
Lock/unlock operation
confirmation beep
sound
*1
A beep sound is heard to confirm that all doors or
the liftgate have been locked/unlocked. Activated Deactivated
Autolock function
*2
When all doors and the liftgate are closed and the
advanced key is being carried and out of
operational range, all the doors and the liftgate
automatically lock after 3 seconds.
(Even if the driver is in the operational range, all
doors and the liftgate are locked automatically
after about 30 seconds.)Deactivated Activated
*1: When the autolock function is operating, the warning sound will be heard regardless of the setting.
*2: When Autolock function is enabled, windows will not automatically close. You must close before leaving
vehicle.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-19
CX-7_8Z60-EA-08D_Edition2 Page97
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (98,1)
When Warning Indicator/Beep is Activated
Under the following conditions, warning beeps are heard and a warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of the
advanced key to prevent theft of the vehicle (page 3-16).
Warning What to check
When a door is open, a continuous beep sound will be
heard.Check whether the start knob has been returned to the
LOCK position.
When a door is open, 6 beep sounds are heard, and the
KEY warning light (red) in the instrument cluster
flashes.Check whether the advanced key has been removed
from the vehicle.
When a door is closed, a beep sound is heard 6 times,
and the KEY warning light (red) in the instrument
cluster flashes.Check whether the advanced key has been removed
from the vehicle.
When attempting to lock the doors, a beep sound is
heard.Check whether the advanced key has been left in the
vehicle.
Check whether the start knob has been returned to the
LOCK position.
Check whether a door or the liftgate is open.
When the KEY indicator light (green) flashes in the
instrument cluster.The advanced key battery power is low. Replace the
battery with a new one.
Refer to Advanced Key Maintenance on page 3-5.
When the KEY warning light (red) remains illuminated
in the instrument cluster.The advanced key is malfunctioning. Park the vehicle in
a safe place, and use the auxiliary key to continue
driving the vehicle. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
3-20
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8Z60-EA-08D_Edition2 Page98
Friday, May 30 2008 5:26 PM
Form No.8Z60-EA-08D

Black plate (100,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry System
This system remotely locks and unlocks
the doors and the liftgate, and opens the
power windows and the moonroof.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
ØGet the transmitter wet.
ØDisassemble the transmitter.
ØExpose the transmitter to any kind
of magnetic field.
ØExpose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
3-22
Knowing Your Mazda
Doors and Locks
CX-7_8Z60-EA-08D_Edition2 Page100
Friday, May 30 2008 5:27 PM
Form No.8Z60-EA-08D

Black plate (101,1)
NOTElThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system doesn't operate when the key is
in the ignition switch.
lDoors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. However, the
hazard warning lights will not flash and the
horn will not sound.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-25).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
qTransmitter
Lock button
Unlock button
Panic button
Operation
indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
The unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to the following pages:
Opening/Closing the Power Windows (page
3-38)
Opening/Closing the Moonroof (page 3-45)
The operation indicator light flashes when
the buttons are pressed.
Knowing Your Mazda
Doors and Locks
3-23
CX-7_8Z60-EA-08D_Edition2 Page101
Friday, May 30 2008 5:27 PM
Form No.8Z60-EA-08D

Black plate (104,1)
5. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and
snap the transmitter shut.
7. Align the key with the transmitter as
shown in the figure, and insert the key
until a click sound is heard.
CAUTION
Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
3-26
Knowing Your Mazda
Doors and Locks
CX-7_8Z60-EA-08D_Edition2 Page104
Friday, May 30 2008 5:27 PM
Form No.8Z60-EA-08D

Black plate (105,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
Knowing Your Mazda
Doors and Locks
3-27
CX-7_8Z60-EA-08D_Edition2 Page105
Friday, May 30 2008 5:27 PM
Form No.8Z60-EA-08D
