2009 MAZDA MODEL 6 engine

Black plate (393,1)
Fuse block (Passenger's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 P.WIND 30 A Power window
2 METER IG 15 A For protection of various circuits
3 ILLUMI 7.5 A BCM, Illumination
4 MIRROR 5 A Power control mirror
5 SAS 5 A Air bag, ABS
6 ―― ―
7 INT, LOCK/SHIFT 5 A AT shift
í
8 ―― ―
9 HEGO 5 A Power control mirror
10 A/C 10 A Air conditioner
11 P.OUTLET/CIGAR 15 A Lighter
í
12 D.LOOK 25 A BCM, Door lock motor
13 ENGINE IG 15 A Engine control system
14 WIPER 25 A Windshield wiper and washer
15 ROOM 15 A Interior lights
16 SPARE ――
17 SPARE ――
18 SPARE ――
Maintenance and Care
Owner Maintenance
8-51íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page393
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (415,1)

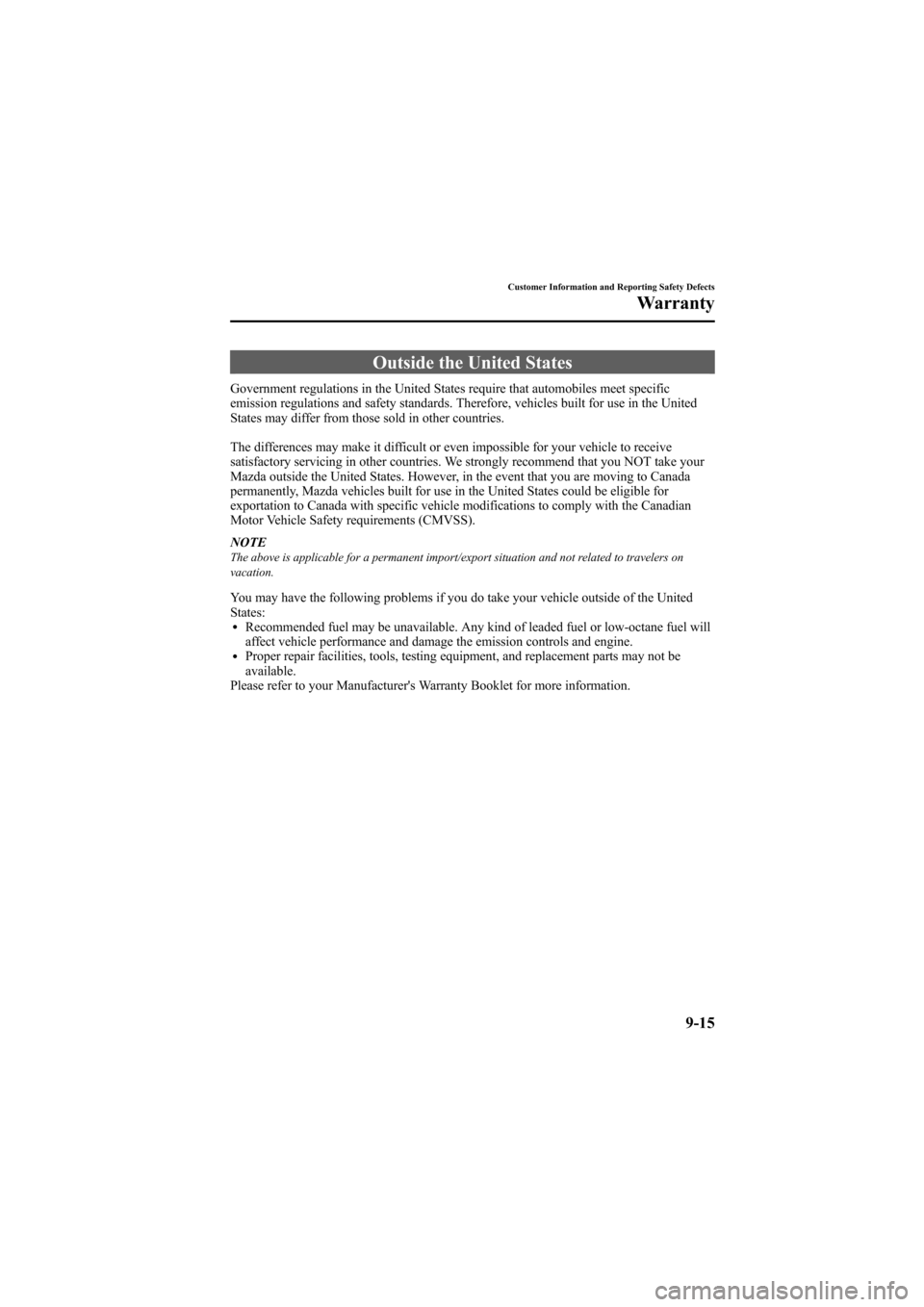

Outside the United States
Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety requirements (CMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of the United
States:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information and Reporting Safety Defects
Warranty
9-15
Mazda6_8Z64-EA-08H_Edition1 Page415
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (416,1)
Outside Canada
Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of Canada:lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
9-16
Customer Information and Reporting Safety Defects
Warranty
Mazda6_8Z64-EA-08H_Edition1 Page416
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (418,1)
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems: Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS/TCS/DSC inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
9-18
Customer Information and Reporting Safety Defects
Warranty
Mazda6_8Z64-EA-08H_Edition1 Page418
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (440,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not tow a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
9-40
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda6_8Z64-EA-08H_Edition1 Page440
Wednesday, June 25 2008 10:6 AM
Form No.8Z64-EA-08H

Black plate (449,1)
qTire Pressure Label
qEngine Number
2.5-liter engine
Forward
3.7-liter engine
Forward
Identification Numbers
10-3
Mazda6_8Z64-EA-08H_Edition1 Page449
Wednesday, June 25 2008 10:6 AM
Form No.8Z64-EA-08H

Black plate (450,1)
Specifications
qEngine
Item Specification
2.5-liter engine 3.7-liter engine
Type DOHC-16V in-line, 4-cylinder DOHC-24V 60°V, 6-cylinder
Bore×Stroke 89.0 × 100 mm (3.50 × 3.94 in) 95.5 × 86.7 mm (3.75 × 3.41 in)
Displacement 2,488 ml (2,488 cc, 151.8 cu in) 3,726 ml (3,726 cc, 227.4 cu in)
Compression ratio 9.710.3
qElectrical System
Item Classification
Battery 12V-46AH/5HR
Spark-plug number 2.5-liter engine LFG1 18 110
*1
L3Y2 18 110
3.7-liter engine CY01 18 110*1
Spark-plug gap2.5-liter engine
1.25―1.35 mm (0.049 ―0.053 in)
3.7-liter engine 1.29―1.45 mm (0.051 ―0.057 in)
*1 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush.
(2.5-liter engine) The fine particulate coating on the iridium alloy and platinum tips
could be damaged.
(3.7-liter engine) The fine particulate coating on the platinum alloy could be
damaged.
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page
8-19.
Manual transaxle oil Any temperature
API Service
GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F) API Service
GL-4 or GL-5
SAE 80W-90
Automatic transaxle fluid 2.5-liter engine
ATF M-V
3.7-liter engine JWS3309
Power steering fluid ATF M-V
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda6_8Z64-EA-08H_Edition1 Page450
Wednesday, June 25 2008 10:6 AM
Form No.8Z64-EA-08H

Black plate (451,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil 2.5-liter engine
With oil filter replacement 5.0 L (5.3 US qt. 4.4 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt. 4.0 Imp qt)
3.7-liter engine With oil filter replacement 5.2 L (5.5 US qt. 4.6 Imp qt)
Without oil filter replacement 4.7 L (5.0 US qt. 4.1 Imp qt)
Coolant 2.5-liter engine
9.4 L (9.9 US qt. 8.3 Imp qt)
3.7-liter engine 9.8 L (10 US qt. 8.6 Imp qt)
Manual transaxle oil 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 2.5-liter engine
8.14 L (8.60 US qt, 7.16 Imp qt)
3.7-liter engine 7.0 L (7.4 US qt, 6.2 Imp qt)
Fuel tank 70.0 L (18.5 US gal, 15.4 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Specification
Overall length Without license plate holder
4,920 mm (193.7 in)
With license plate holder 4,940 mm (194.5 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch
1,595 mm (62.8 in)
17-inch 1,595 mm (62.8 in)
18-inch 1,585 mm (62.4 in)
Rear tread 16-inch
1,595 mm (62.8 in)
17-inch 1,595 mm (62.8 in)
18-inch 1,585 mm (62.4 in)
Wheelbase 2,790 mm (109.8 in)
qWeights
2.5-liter engine
Manual transaxle
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,969 kg (4,340 lb)
GAWR (Gross Axle Weight Rating) Front
1,037 kg (2,286 lb)
Rear 935 kg (2,062 lb)
Specifications
10-5
Mazda6_8Z64-EA-08H_Edition1 Page451
Wednesday, June 25 2008 10:6 AM
Form No.8Z64-EA-08H
