CAUTION
ØDo not shade the light sensor by
adhering a sticker or a label on
the windshield. Otherwise the light
sensor will not operate correctly.
Light sensor
ØThe light sensor also works as a
rain sensor for the auto-wiper
control. Keep hands and scrapers
clear of the windshield when the
ignition switch is in the ON
position as fingers could be
pinched or the wipers and wiper
blades damaged when the wipers
activate automatically. If you are
going to clean the windshield, be
sure the wipers are turned off
completely - this is particularly
important when clearing ice and
snow - when it is particularly
tempting to leave the engine
running. NOTE
lThe light may not turn off immediately even
if the surrounding area becomes well-lit
because the light sensor determines that it
is nighttime if the surrounding area is
continuously dark for several minutes such
as inside long tunnels, traffic jams inside
tunnels, or in indoor parking lots.
In this case, the light turns off if the light
switch is turned to the OFF position.
lWhen the headlight switch is in the AUTO
position and the ignition switch is turned to
the ACC or LOCK position, the headlights,
other exterior lights and dashboard
illumination will turn off.
lThe timing for turning on the headlights,
other exterior lights and dashboard
illumination can be delayed by adjusting
the sensitivity of the light sensor. Consult an
Authorized Mazda Dealer regarding sensor
adjustment.
lThe sensitivity of the AUTO lights may be
changed by an Authorized Mazda Dealer.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
5-46
Driving Your Mazda
íSome models.
Switches and Controls
Mazda5_8Z98-EA-08F_Edition1 Page152
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (153,1)
NOTE
If the headlights flicker, or the brightness
weakens, the bulb-life may be depleted and a
replacement is necessary. Consult an
Authorized Mazda Dealer.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull back to original position for low
beam.
High beam
Low beam
q Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch does
not need to be on, and the lever will return
to the normal position when released.
qHeadlight Levelingí
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The headlight leveling switch adjusts this
angle.
Driving Your Mazda
Switches and Controls
5-47íSome models.
Mazda5_8Z98-EA-08F_Edition1 Page153
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (154,1)
Select the proper setting from the following chart.Front seat Rear
seat Load Switch
Position
Driver Passenger
× ――― 0
×× ――0
×× × ―1
×× ×× 2
× ―― ×3
×: Yes
― :No
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
Turn and Lane-Change
Signals
q Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn OFF
Right lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change ―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without flashing
or if it flashes abnormally, one of the turn
signal bulbs may be burned out.
5-48
Driving Your Mazda
Switches and Controls
Mazda5_8Z98-EA-08F_Edition1 Page154
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (297,1)
Light Bulbs
Luggage compartment light
LED type
Bulb type
Headlights Overhead light (Rear)
License plate lights Rear turn signal lights
Rear turn signal lights
Overhead light/Map lights (Front) Front turn signal lights/Side-markerSide turn signal lights
Reverse lights
High-mount brake light
Fog lights
Brake
lights/
Taillight
Reverse
lightsBrake
lights/Ta
illights
Some models.
Maintenance and Care
Owner Maintenance
8-35
Mazda5_8Z98-EA-08F_Edition1 Page297
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (298,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs: When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing a headlight bulbs
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood. 3. Perform the following procedure when
replacing the left headlight bulb. Turn
the screws counterclockwise and
remove them and the cover.
Battery duct
Battery cover
4. Find the high and low beam bulbs inthe rear of the headlight unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam
(page 8-35).
High-beam bulb
1. Turn the socket and bulb assembly counterclockwise, and carefully pull it
backward.
2. Disconnect the socket and bulb assembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
8-36
Maintenance and Care
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page298
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (299,1)
3. Install the new socket and bulbassembly in the reverse order of
removal.
NOTE
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulb)
1. Disconnect the electrical connector from the bulb by pulling it to the rear.
2. Pull off the sealing cover. 3. Unhook the bulb retaining spring.
4. Swing the retaining spring out and
away to free the headlight bulb.
5. Carefully remove the socket and bulb assembly by pulling it straight back.
6. Remove the headlight bulb from the socket.
7. Install the new socket and bulbassembly in the reverse order of
removal.
Maintenance and Care
Owner Maintenance
8-37
Mazda5_8Z98-EA-08F_Edition1 Page299
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (368,1)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 60 HB3 (HB3)
Low beam
Halogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Side-marker lights 27/8 ―(#1157NA)
Fog lights
í55 H11 (H11)
Side turn signal lights*15 WY5W (―)
High-mount brake light LED*2―(― )
Rear combination light Reverse lights 18 W16W (#921)
Rear turn signal lights 21 WY21W (32CP)
Brake
lights/Tail-
lights
(Rear side-
marker light)Bulb type 21/5 W21/5W (#7443)
LED type
LED
*2―(― )
License plate lights 5W5W (4CP)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wattage ECE R
Luggage compartment light 8 ―
Overhead lights/Map lights (Front) 5 W5W
Overhead light (Rear) 10 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-31.
Standard tire
Tire size Inflation pressure
Front Rear
P205/55R16 89H 230 kPa (34 psi)230 kPa (34 psi)
205/50R17 89V 230 kPa (34 psi)230 kPa (34 psi)
10-6íSome models.
Specifications
Mazda5_8Z98-EA-08F_Edition1 Page368
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

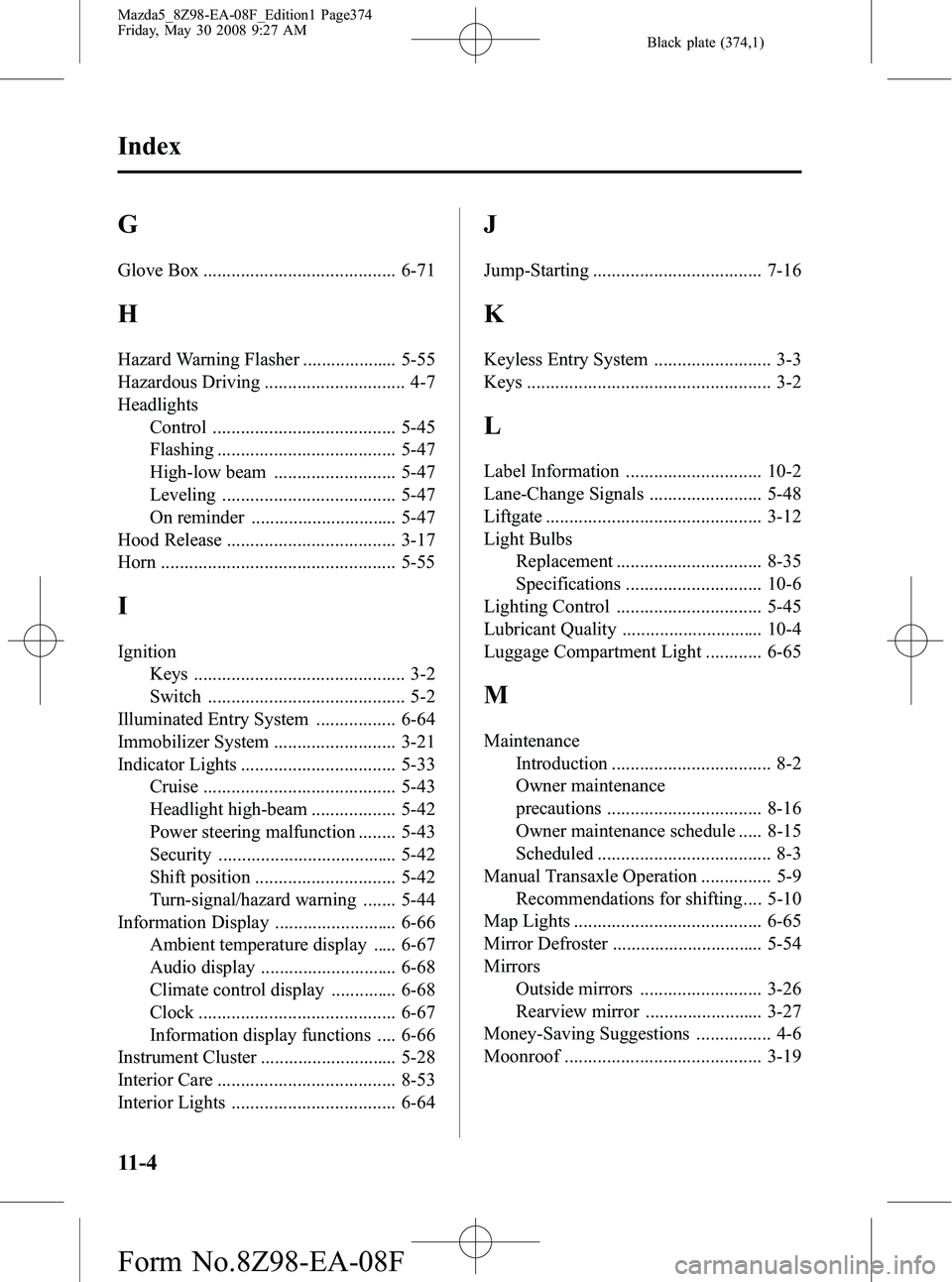

Black plate (374,1)
G
Glove Box ......................................... 6-71
H
Hazard Warning Flasher .................... 5-55
Hazardous Driving .............................. 4-7
HeadlightsControl ....................................... 5-45
Flashing ...................................... 5-47
High-low beam .......................... 5-47
Leveling ..................................... 5-47
On reminder ............................... 5-47
Hood Release .................................... 3-17
Horn .................................................. 5-55
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-64
Immobilizer System .......................... 3-21
Indicator Lights ................................. 5-33 Cruise ......................................... 5-43
Headlight high-beam .................. 5-42
Power steering malfunction ........ 5-43
Security ...................................... 5-42
Shift position .............................. 5-42
Turn-signal/hazard warning ....... 5-44
Information Display .......................... 6-66 Ambient temperature display ..... 6-67
Audio display ............................. 6-68
Climate control display .............. 6-68
Clock .......................................... 6-67
Information display functions .... 6-66
Instrument Cluster ............................. 5-28
Interior Care ...................................... 8-53
Interior Lights ................................... 6-64
J
Jump-Starting .................................... 7-16
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-48
Liftgate .............................................. 3-12
Light Bulbs Replacement ............................... 8-35
Specifications ............................. 10-6
Lighting Control ............................... 5-45
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-65
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting.... 5-10
Map Lights ........................................ 6-65
Mirror Defroster ................................ 5-54
Mirrors Outside mirrors .......................... 3-26
Rearview mirror ......................... 3-27
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-19
11-4
Index
Mazda5_8Z98-EA-08F_Edition1 Page374
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F
