Under severe operating conditions, the A/C may cycle on and off to
protect overheating of the engine.
Avoid excessive speed because vehicle momentum can work against you
and cause the vehicle to become stuck to the point that assistance may
be required from another vehicle. Remember, you may be able to back
out the way you came if you proceed with caution.
Mud and water
If you must drive through high water, drive slowly. Traction or brake
capability may be limited.
When driving through water, determine the depth; avoid water higher
than the bottom of the wheel rims (for cars) or the bottom of the hubs
(for trucks) (if possible) and proceed slowly. If the ignition system gets
wet, the vehicle may stall.
Once through water, always try the brakes. Wet brakes do not stop the
vehicle as effectively as dry brakes. Drying can be improved by moving
your vehicle slowly while applying light pressure on the brake pedal.
Be cautious of sudden changes in vehicle speed or direction when you
are driving in mud. Even AWD vehicles can lose traction in slick mud. As
when you are driving over sand, apply the accelerator slowly and avoid
spinning your wheels. If the vehicle does slide, steer in the direction of
the slide until you regain control of the vehicle.
If the engine, transmission, AWD System components or axles are
submerged in water, their fluids should be checked and changed, if
necessary.
Driving through deep water may damage the engine or
transmission.
If the front or rear axle is submerged in water, the axle lubricant and
PTU (Power Transfer Unit) lubricant should be checked and changed if
necessary.
After driving through mud, clean off residue stuck to rotating driveshafts
and tires. Excess mud stuck on tires and rotating driveshafts causes an
imbalance that could damage drive components.
2009 MKZ(378)
Owners Guide
USA(fus)
Driving
206

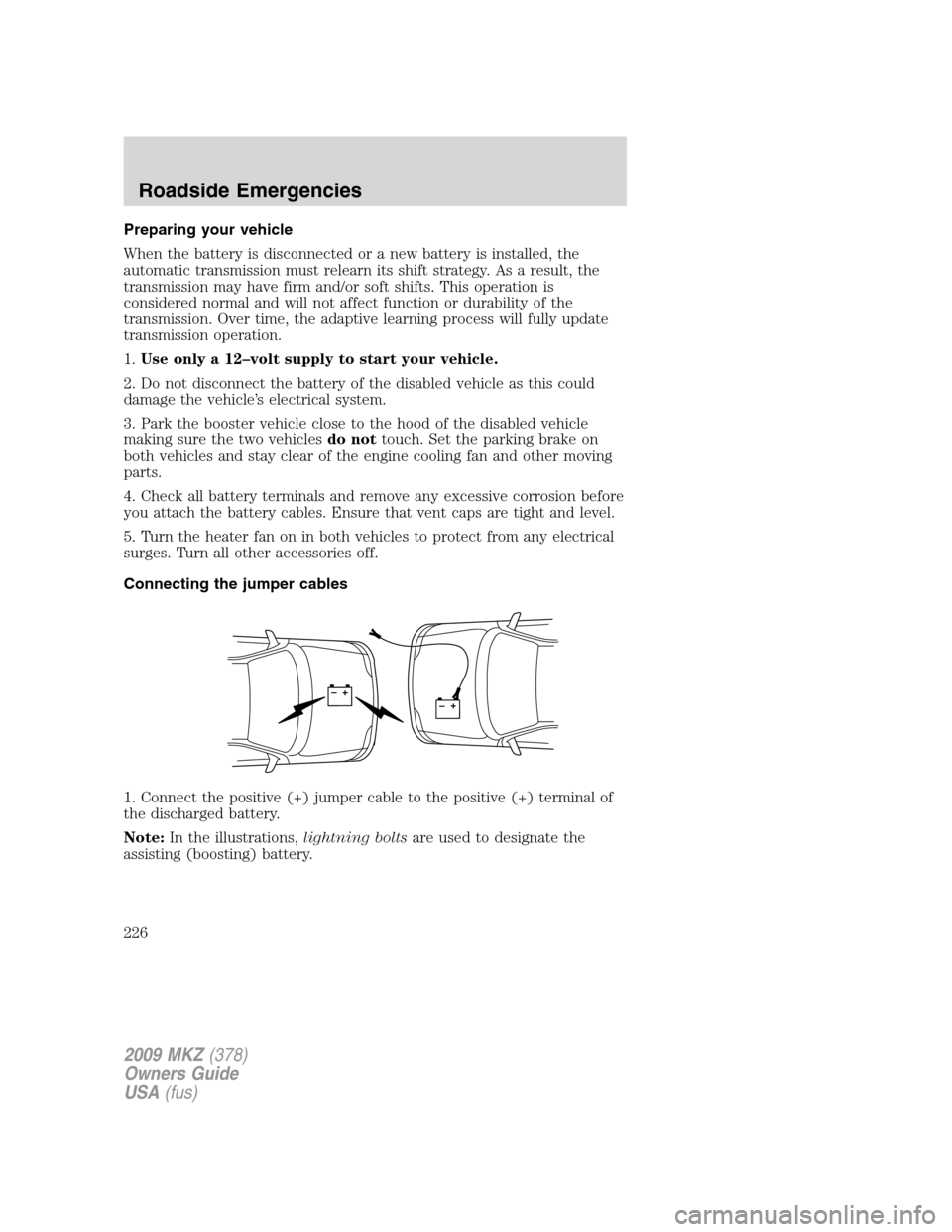

Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
+–+–
2009 MKZ(378)
Owners Guide
USA(fus)
Roadside Emergencies
226

Use the following guidelines to avoid electrostatic charge build-up when
filling an ungrounded fuel container:
•Place approved fuel container on the ground.
•DO NOT fill a fuel container while it is in the vehicle (including the
cargo area).
•Keep the fuel pump nozzle in contact with the fuel container while
filling.
•DO NOT use a device that would hold the fuel pump handle in the fill
position.
Fuel filler cap
Your fuel tank filler cap has an indexed design with a 1/4 turn on/off
feature.
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise 1/4 of a turn until it clicks at least once.
If the check fuel cap light
or a “check fuel cap” message comes on,
the fuel filler cap may not be properly installed. The light or message can
come on after several driving events after you’ve refueled your vehicle.
At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
or “check fuel cap” message may not reset immediately; it may
take several driving cycles for the check fuel cap light
or “check fuel
cap” message to turn off. A driving cycle consists of an engine start-up
(after four or more hours with the engine off) followed by city and
highway driving.
Continuing to drive with the check fuel cap light
or “check fuel cap”
message on may cause the
light to turn on as well.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford, Motorcraft or other certified fuel filler cap
is not used.
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
266

•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle may reduce fuel economy at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example; bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
271

A
Accessory delay ..........................58
AdvanceTrac ..............................192
Air cleaner filter ...............278–279
Air conditioning ....................31, 33
Airbag supplemental restraint
system ........................126, 135, 138
and child safety seats ............128
description ..............126, 135, 138
disposal ....................................141
driver airbag ............128, 136, 139
indicator light .........134, 137, 140
operation .................128, 136, 139
passenger airbag .....128, 136, 139
side airbag ...............................135
All Wheel Drive (AWD),
driving off road .........................203
Antifreeze
(see Engine coolant) ................258
Anti-lock brake system
(see Brakes) ......................190–191
Anti-theft system ................96, 100
arming the system ..................100
disarming a triggered
system .....................................101
Audio system (see Radio) .........16
Automatic transmission
driving an automatic
overdrive .................................199
fluid, adding ............................276
fluid, checking ........................276
fluid, refill capacities ..............280
fluid, specification ..................280
Auxiliary input jack (Line in) ....23
Axle
lubricant specifications ..........280
B
Battery .......................................256acid, treating emergencies .....256
jumping a disabled battery ....225
maintenance-free ....................256
replacement, specifications ...279
servicing ..................................256
Belt-Minder.............................121
Booster seats .............................154
Brakes ........................................190
anti-lock ...........................190–191
anti-lock brake system (ABS)
warning light ...........................191
fluid, checking and adding ....275
fluid, refill capacities ..............280
fluid, specifications .................280
lubricant specifications ..........280
parking ....................................191
shift interlock ..........................198
Break-in period .............................5
Bulbs ............................................42
C
Capacities for refilling fluids ....280
Cell phone use ..............................7
Changing a tire .........................218
Child safety seats ......................145
attaching with tether straps ..151
in front seat ............................146
in rear seat ..............................146
LATCH .....................................149
recommendations ...................143
Child safety seats - booster
seats ...........................................154
Cleaning your vehicle
engine compartment ..............243
instrument panel ....................245
interior .....................................245
plastic parts ............................244
washing ....................................241
2009 MKZ(378)
Owners Guide
USA(fus)
Index
287

Keys .......................................80, 98
positions of the ignition .........185
L
Lamps
autolamp system .......................37
bulb replacement
specifications chart ..................42
daytime running light ...............38
fog lamps ...................................38
headlamps .................................37
headlamps, flash to pass ..........39
instrument panel, dimming .....39
interior lamps ...........................41
replacing bulbs .........................44
LATCH anchors .........................149
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........191
Load limits .................................178
Locks
autolock .....................................83
childproof ..................................86
doors ..........................................82
Lubricant specifications ...........280
Lug nuts ....................................224
Lumbar support, seats .............107
M
Message center .....................70–71
english/metric button ...............76
system check button ................75
warning messages .....................77
Mirrors ...................................58–59
automatic dimming rearview
mirror ........................................58
heated ........................................60
programmable memory ............91
side view mirrors (power) .......59Moon roof ..............................65, 90
Motorcraft parts ........247, 263, 279
N
Navigation system .......................30
O
Octane rating ............................267
Oil (see Engine oil) ..................252
P
Parking brake ............................191
Parts (see Motorcraft parts) ....279
Passenger Occupant
Classification Sensor .................113
Power distribution box
(see Fuses) ...............................215
Power door locks ........................82
Power mirrors .............................59
Power point .................................55
Power steering ..........................197
fluid, checking and adding ....275
fluid, refill capacity ................280
fluid, specifications .................280
Power Windows ...........................56
Power windows
opening using remote entry
system .......................................90
R
Radio ............................................16
Recommendations for
attaching safety restraints for
children ......................................143
2009 MKZ(378)
Owners Guide
USA(fus)
Index
290
