CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
1. Cupholders
2. Tissue box holder (if equipped)
(located on underside of console
lid)
3. Rear power point
4. Utility compartment with a
Secondary storage bin with coin
holder slots (on hinges inside utility
compartment), power point, AIJ
(Audio Input Jack), and a multi
position bin divider (two positions vertical/one position horizontal) and,
(if equipped) an ambient light control switch located on the front of the
compartment.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power point is located
on the instrument panel.
A second auxiliary power point is
located in the center console utility
compartment.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of 12 VDC/180W. If the power point or
cigar lighter socket is not working, a fuse may have blown. Refer to
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
52

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Passenger front smart window
2 15A Not used (Spare)
3 15A SYNC
4 30A Driver front smart window
5 10A Keypad illumination, 2nd row
seat, Tire Pressure Monitoring
System (TPMS), Brake Shift
Interlock (BSI), Smart junction
box (SJB)
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
229

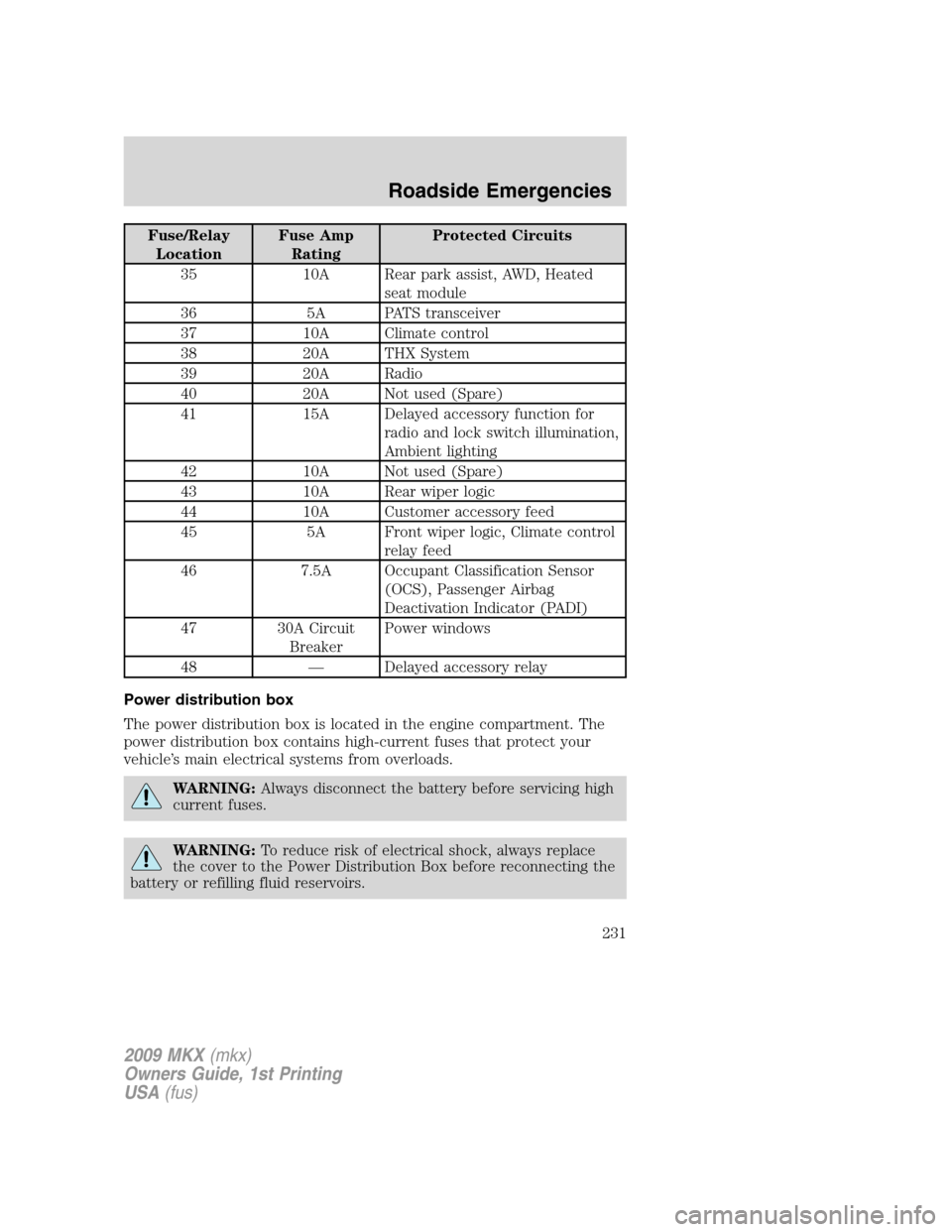

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
35 10A Rear park assist, AWD, Heated
seat module
36 5A PATS transceiver
37 10A Climate control
38 20A THX System
39 20A Radio
40 20A Not used (Spare)
41 15A Delayed accessory function for
radio and lock switch illumination,
Ambient lighting
42 10A Not used (Spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic, Climate control
relay feed
46 7.5A Occupant Classification Sensor
(OCS), Passenger Airbag
Deactivation Indicator (PADI)
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
231

Power distribution box (see
Fuses) ........................................231
Power door locks ........................87
Power liftgate ..............................78
Power mirrors .............................56
Power point .................................52
Power steering ..........................211
fluid, checking and adding ....289
fluid, refill capacity ................295
fluid, specifications .................295
Power Windows ...........................54
R
Radio ............................................18
Recommendations for
attaching safety restraints for
children ......................................150
Relays ........................................227
Remote entry system ...........91, 93
illuminated entry ................97–98
locking/unlocking doors .....93–94
opening the trunk .....................94
panic alarm ...............................95
replacement/additional
transmitters ...............................96
replacing the batteries .............96
Reverse sensing system ...........216
Roadside assistance ..................225
S
Safety belts (see Safety
restraints) ..................120, 123–127
Safety Canopy ...................142, 145
Safety defects, reporting ..........254Safety restraints ........120, 123–127
Belt-Minder...........................129
extension assembly ................129
for adults .........................124–127
for children .............................148
Occupant Classification
Sensor ......................................121
warning light and chime ........129
Safety restraints - LATCH
anchors ......................................156
Safety seats for children ..........152
Safety Compliance
Certification Label ....................298
Satellite Radio Information ........29
Seats ..........................................107
child safety seats ....................152
climate control ........................114
easy access/easyout feature ..112
front seats ...............................113
heated ......................................119
memory seat .....................95, 112
SecuriCode keyless entry
system ..........................................99
SecuriLock passive anti-theft
system ........................................101
Servicing your vehicle ..............262
Spare tire (see Changing the
Tire) ...........................................238
Spark plugs,
specifications .....................293, 297
Specification chart,
lubricants ...................................295
Speed control ..............................57
Starting your vehicle ........199–201
jump starting ..........................241
Steering wheel
controls ......................................60
tilting .........................................50
SYNC..........................................31
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Index
306
