2009 LINCOLN MKS engine

•Be sure that areas where the vehicle is parked are clean and clear of
all combustibles such as petroleum products, dust, rags, paper and
similar items.
•Be sure that the engine block heater, heater cord and extension cord
are solidly connected. A poor connection can cause the cord to
become very hot and may result in an electrical shock or fire. Be sure
to check for heat anywhere in the electrical hookup once the system
has been operating for approximately a half hour.
•Finally, have the engine block heater system checked during your fall
tune-up to be sure it’s in good working order.
How to use the engine block heater
Ensure the receptacle terminals are clean and dry prior to use. To clean
them, use a dry cloth.
Depending on the type of factory installed equipment, your engine block
heater system may consume anywhere between 400 watts or 1000 watts
of energy per hour. Your factory installed block heater system does not
have a thermostat; however, maximum temperature is attained after
approximately three hours of operation. Block heater operation longer
than three hours will not improve system performance and will
unnecessarily use additional electricity.
Make sure system is unplugged and properly stowed before driving the
vehicle. While not in use, make sure the protective cover seals the
prongs of the engine block heater cord plug.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toBrake system warning
lightin theInstrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an Anti-lock Braking System (ABS). This
system helps you maintain steering control during emergency stops by
keeping the brakes from locking. Noise from the ABS pump motor and
P!
BRAKE
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
215

The AdvanceTrac
system provides the following stability enhancement
features for certain driving situations:
•Traction Control (TCS), which functions to help avoid drive-wheel
spin and loss of traction.
•Electronic Stability Control (ESC), which functions to help avoid skids
or lateral slides
The AdvanceTrac
system automatically enables each time the engine is
started. All features of the AdvanceTrac
system (TCS and ESC) are
active and monitor the vehicle from start-up. However, the system will
only intervene if the driving situation requires it.
The AdvanceTrac
system includes
an AdvanceTrac
Offbutton on
the center of the instrument panel,
and a “sliding car” icon
in the
instrument cluster. The “sliding car”
icon
in the instrument cluster
will illuminate temporarily during start-up as part of a normal system
self-check, or during driving if a driving situation causes the
AdvanceTrac
system to operate. If the “sliding car” icon
illuminates
steadily, verify that the AdvanceTrac
system is not manually disabled by
pressing the AdvanceTrac
Offbutton located on the center stack of
the instrument panel. If the “sliding car” icon
remains steadily
illuminated, have the system serviced by an authorized dealer
immediately. If equipped with a message center, the vehicle will also
indicate a failure with the AdvanceTrac
system.
When AdvanceTrac
performs a normal system self-check, some drivers
may notice a slight movement of the brake, and/or a rumble, grunting, or
grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTrac
you may experience
the following:
•A slight deceleration of the vehicle
•The “sliding car”
indicator light will flash.
•A vibration in the pedal when your foot is on the brake pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
219

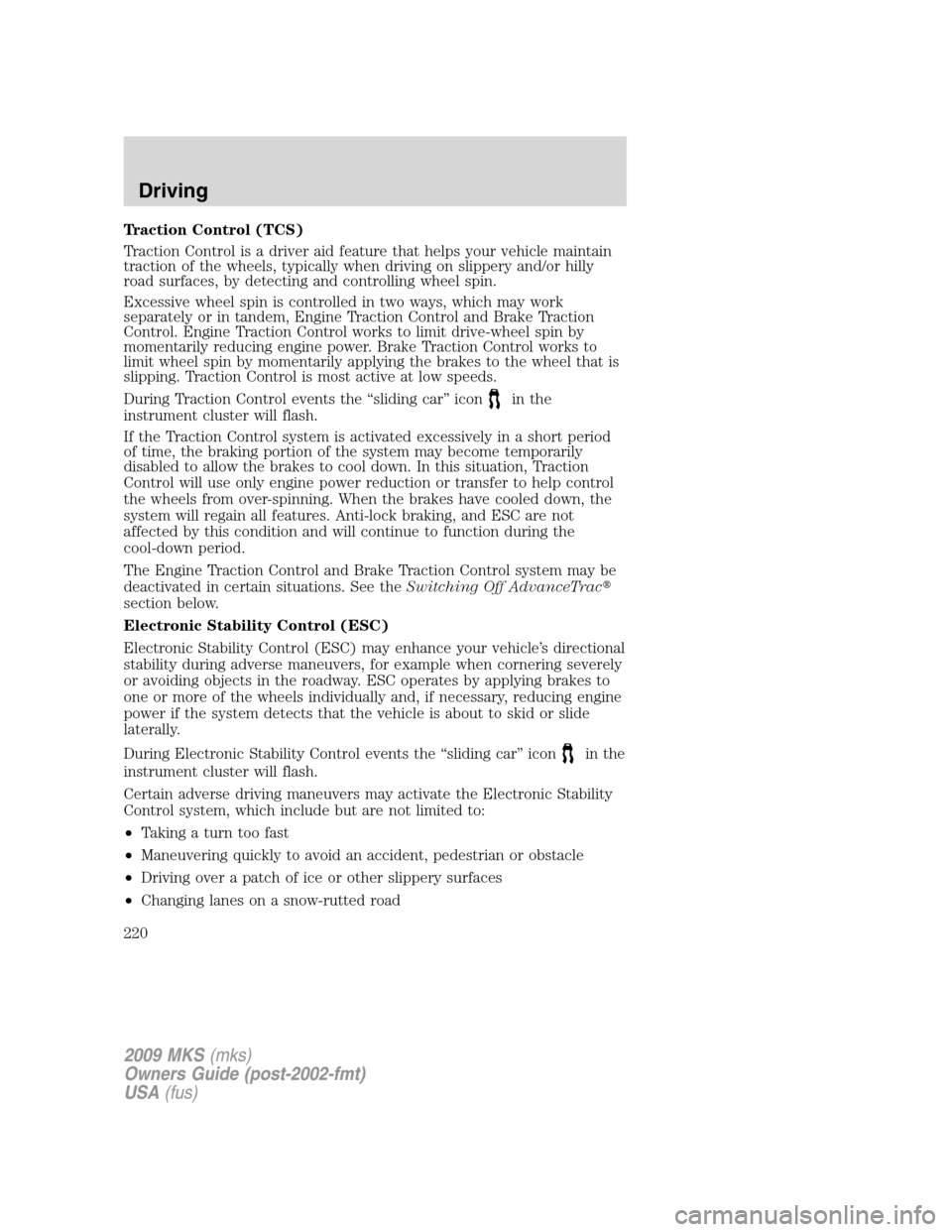

Traction Control (TCS)
Traction Control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem, Engine Traction Control and Brake Traction
Control. Engine Traction Control works to limit drive-wheel spin by
momentarily reducing engine power. Brake Traction Control works to
limit wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction Control is most active at low speeds.
During Traction Control events the “sliding car” icon
in the
instrument cluster will flash.
If the Traction Control system is activated excessively in a short period
of time, the braking portion of the system may become temporarily
disabled to allow the brakes to cool down. In this situation, Traction
Control will use only engine power reduction or transfer to help control
the wheels from over-spinning. When the brakes have cooled down, the
system will regain all features. Anti-lock braking, and ESC are not
affected by this condition and will continue to function during the
cool-down period.
The Engine Traction Control and Brake Traction Control system may be
deactivated in certain situations. See theSwitching Off AdvanceTrac

section below.
Electronic Stability Control (ESC)
Electronic Stability Control (ESC) may enhance your vehicle’s directional
stability during adverse maneuvers, for example when cornering severely
or avoiding objects in the roadway. ESC operates by applying brakes to
one or more of the wheels individually and, if necessary, reducing engine
power if the system detects that the vehicle is about to skid or slide
laterally.
During Electronic Stability Control events the “sliding car” icon
in the
instrument cluster will flash.
Certain adverse driving maneuvers may activate the Electronic Stability
Control system, which include but are not limited to:
•Taking a turn too fast
•Maneuvering quickly to avoid an accident, pedestrian or obstacle
•Driving over a patch of ice or other slippery surfaces
•Changing lanes on a snow-rutted road
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
220

•Entering a snow-free road from a snow-covered side street, or vice
versa
•Entering a paved road from a gravel road, or vice versa
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter).
The Electronic Stability Control system may be deactivated in certain
situations. See theSwitching Off AdvanceTrac
section below.
Switching Off AdvanceTrac

If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off certain features of the AdvanceTrac
system may be
beneficial because the wheels are allowed to spin. This will restore full
engine power and will enhance momentum through the obstacle. To
switch off the AdvanceTrac
system press the AdvanceTrac
Off
button. Full features of the AdvanceTrac
system can be restored by
pressing the AdvanceTrac
Offbutton again or by switching off and
restarting the engine.
If you switch off the AdvanceTrac
system the AdvanceTrac “Off” button
will illuminate and the sliding caricon
will illuminate steadily.
Pressing the AdvanceTrac
Offbutton again will turn off the lighted
button and thesliding caricon
.
In R (Reverse), ABS and the Engine and Brake Traction Control features
will continue to function; however, ESC is disabled.
AdvanceTrac
with RSC Features
Button functions“Sliding car”
icon
ESCTraction
Control
Default at start-upIlluminated
during bulb
checkEnabled Enabled
Button pressed
momentarilyIlluminated solid Enabled Disabled
Button pressed
again after
deactivationNot illuminated Enabled Enabled
STEERING
To help prevent damage to the power steering system, never hold the
steering wheel at its furthest turning points (until it stops) for more than
a few seconds when the engine is running.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
221

It is also important to maintain a proper power steering fluid level in the
power steering fluid reservoir:
•Do not operate the vehicle with a low power steering pump fluid level.
SeePower steering fluidin theMaintenance and Specifications
chapter.
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the maximum
level, as this may result in leaks from the reservoir. SeePower
steering fluidin theMaintenance and Specificationschapter.
If the power steering system breaks down (or if the engine is off), you
can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
AUTOMATIC TRANSMISSION OPERATION
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is applied. If you cannot move
the gear lever out of P (Park) when the ignition is on and the brake
pedal applied, it is possible that a fuse has blown or the vehicle’s brake
lamps are not operating properly. Refer toFuses and relaysin the
Roadside Emergencieschapter.
WARNING:Do not drive your vehicle until you verify that the
brakelamps are working.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
222

•The overdrive cancel and grade
assist lamp in the instrument
cluster is illuminated.
2. Grade Assist
•Improves driving experience in hilly terrain or mountainous areas by
providing additional grade (engine) braking and extends lower gear
operation on uphill climbs.
•Provides additional engine braking through the automatic transmission
shift strategy which reacts to vehicle inputs (vehicle acceleration,
accelerator pedal, brake pedal and vehicle speed).
•Allows the transmission to select gears that will provide the desired
engine braking based on the vehicle inputs mentioned above. This will
increase engine RPM during engine braking.
Overdrive Cancel with Grade Assist is designed to provide optimal gear
selection in hilly terrain or mountainous areas. It is recommended that
you return to O/D (overdrive mode) on flat terrain to provide the best
fuel economy and transmission function.
To return to O/D (overdrive mode), move the shift lever back fromM
toD.
•The overdrive cancel and grade assist lamp in the instrument cluster
will not be illuminated.
•The transmission will operate in gears one through six.
O/D (overdrive mode) is automatically returned each time the ignition is
off.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
225

In order to prevent the engine from running at too low an RPM, which
may cause it to stall, the SST will still automatically make some
downshifts if it has determined that you have not downshifted in time.
Although the SST will make some downshifts for you, it will still allow
you to downshift at any time as long as the SST determines that the
engine will not be damaged from over-revving.
The SST will not automatically upshift, even if the engine is approaching
the RPM limit. It must be shifted manually by moving the gearshift lever
back toward (+) and releasing.
Engine damage may occur if excessive engine revving is held
without shifting.
FORWARD (IF EQUIPPED) AND REVERSE SENSING SYSTEMS
The forward and reverse sensing system will warn the driver of obstacles
within a certain range of the front and rear bumpers. The front sensors
will be active when the gearshift is in any position other than P (Park)
or N (Neutral) and the vehicle speed is below 8 mph (13 km/h). The
rear sensors will only be active when the gearshift is in R (Reverse).
The front sensors cover an area up
to 27.6 inches (70 cm) from the
front of the vehicle and about 6–9 in
(15–23 cm) to the side of the front
end of the vehicle. See the
illustration for approximate sensor
area coverage.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
227

Driving on slippery surfaces with AWD vehicles
AWD vehicles are specially equipped for driving on sand, snow, mud and
rough roads and have operating characteristics that are somewhat
different from conventional vehicles, both on and off the highway.
When driving at slow speeds off-highway under high outside
temperatures, use a low gear when possible. A lower gear operation will
maximize the engine and transmission cooling capability.
Under severe operating conditions, the A/C may cycle on and off to
protect overheating of the engine.
Basic operating principles
•Drive slower in strong crosswinds which can affect the normal steering
characteristics of your vehicle.
•Be extremely careful when driving on pavement made slippery by
loose sand, water, gravel, snow or ice.
If your vehicle goes off the edge of the pavement
•If your vehicle goes off the edge of the pavement, slow down, but
avoid severe brake application, ease the vehicle back onto the
pavement only after reducing your speed. Do not turn the steering
wheel too sharply while returning to the road surface.
•It may be safer to stay on the apron or shoulder of the road and slow
down gradually before returning to the pavement. You may lose
control if you do not slow down or if you turn the steering wheel too
sharply or abruptly.
•It often may be less risky to strike small objects, such as highway
reflectors, with minor damage to your vehicle rather than attempt a
sudden return to the pavement which could cause the vehicle to slide
sideways out of control or rollover. Remember, your safety and the
safety of others should be your primary concern.
If your vehicle gets stuck
If your vehicle gets stuck in mud or snow it may be rocked out by
shifting between forward and reverse gears, stopping between shifts, in a
steady pattern. Press lightly on the accelerator in each gear.
If your vehicle is equipped with Traction Control™, it may be beneficial
to disengage the Traction Control™ system while attempting to rock the
vehicle.
Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
233
