2009 LINCOLN MKS check engine light

Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
+–+–
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
257

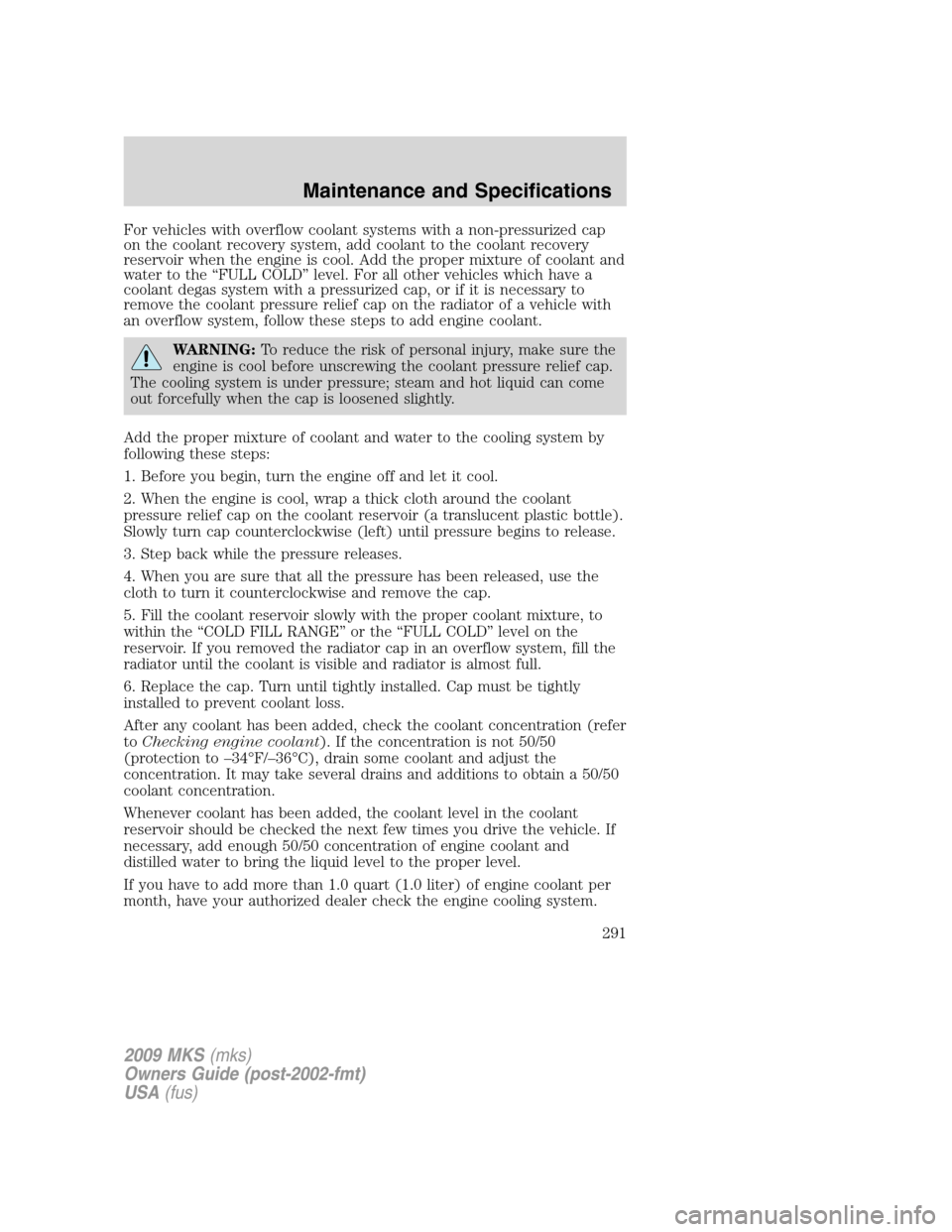

For vehicles with overflow coolant systems with a non-pressurized cap
on the coolant recovery system, add coolant to the coolant recovery
reservoir when the engine is cool. Add the proper mixture of coolant and
water to the “FULL COLD” level. For all other vehicles which have a
coolant degas system with a pressurized cap, or if it is necessary to
remove the coolant pressure relief cap on the radiator of a vehicle with
an overflow system, follow these steps to add engine coolant.
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the “COLD FILL RANGE” or the “FULL COLD” level on the
reservoir. If you removed the radiator cap in an overflow system, fill the
radiator until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
291

A
Accessory delay ..........................58
Adaptive Cruise Control .............63
AdvanceTrac ..............................218
Air cleaner filter ...............309–310
Air conditioning ....................32, 35
Airbag supplemental restraint
system ................144–145, 153, 155
and child safety seats ............146
description ..............145, 153, 155
disposal ....................................159
driver airbag ............147, 154, 157
indicator light .................153, 159
operation .................147, 154, 157
passenger airbag .....147, 154, 157
side airbag ...............................153
All Wheel Drive (AWD),
driving off road .........................232
AM/FM .........................................16
Antifreeze (see Engine
coolant) .....................................288
Anti-lock brake system
(see Brakes) ......................215–216
Anti-theft system ..............113, 117
arming the system ..................117
disarming a triggered
system .....................................118
triggering .................................119
Audio system (see Radio) .........16
Automatic transaxle
fluid, refill capacities ..............311
fluid, specification ..................311
Automatic transmission
driving an automatic
overdrive .................................223
fluid, adding ............................307
fluid, checking ........................307Selectshift (SST) ....................226
Auxiliary input jack (Line in) ....23
B
Battery .......................................286
acid, treating emergencies .....286
jumping a disabled battery ....256
maintenance-free ....................286
replacement, specifications ...310
servicing ..................................286
Belt-Minder
.............................140
Booster seats .............................172
Brakes ........................................215
anti-lock ...........................215–216
anti-lock brake system (ABS)
warning light ...........................216
fluid, checking and adding ....307
fluid, refill capacities ..............311
fluid, specifications .................311
lubricant specifications ..........311
parking ....................................217
shift interlock ..........................222
Bulbs ............................................48
C
Capacities for refilling fluids ....311
Cargo cover .................................58
Cargo net .....................................90
CD ................................................16
Cell phone use ..............................7
Changing a tire .........................248
Child safety seats ......................164
attaching with tether straps ..170
in front seat ............................165
in rear seat ..............................165
LATCH .....................................168
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Index
318

refill capacities ........................311
service points ..................281–282
Engine block heater .................214
Engine oil ..................................283
change oil soon warning,
message center .......................283
checking and adding ..............283
dipstick ....................................283
filter, specifications ........285, 310
recommendations ...................285
refill capacities ........................311
specifications ..........................311
Event data recording ....................6
Exhaust fumes ..........................213
F
Fail safe cooling ........................293
Fluid capacities .........................311
Foglamps .....................................41
Four-Wheel Drive vehicles
driving off road .......................233
Fuel ............................................294
calculating fuel
economy ............................80, 300
cap ...........................................296
capacity ...................................311
choosing the right fuel ...........297
comparisons with EPA fuel
economy estimates .................303
detergent in fuel .....................298
filler funnel .............................298
filling your vehicle with
fuel ...........................294, 296, 300
filter, specifications ........294, 310
improving fuel economy ........300
octane rating ...................298, 313
quality ......................................298
running out of fuel .........256, 298safety information relating to
automotive fuels .....................294
Fuses ..........................................241
G
Gas cap (see Fuel cap) ............296
Gas mileage
(see Fuel economy) .................300
Gauges .........................................14
H
Hazard flashers .........................240
Headlamps ...................................40
aiming ........................................46
autolamp system .......................40
bulb specifications ....................48
daytime running lights .............45
flash to pass ..............................45
high beam .................................42
turning on and off ....................40
Heated Seats .....................125–126
Heating
heating and air conditioning
system .................................32, 35
Homelink wireless control
system ..........................................75
Hood ..........................................280
I
Ignition ...............................208, 313
Illuminated visor mirror .............53
Infant seats (see Safety seats)...164
Inspection/maintenance (I/M)
testing ........................................305
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Index
320

Instrument panel
cleaning ...................................275
cluster ........................................10
lighting up panel and
interior .......................................46
Intelligent Access Key ................93
Intelligent Access with push
button start ...............................103
J
Jack ............................................248
positioning ...............................248
storage .....................................248
Jump-starting your vehicle ......256
K
Keyless entry system ...............111
autolock .....................................96
keypad .....................................111
locking and unlocking doors ..112
programming entry code .......111
Keys .....................................91, 114
positions of the ignition .........208
L
Lamps
autolamp system .......................40
bulb replacement
specifications chart ..................48
daytime running light ...............45
fog lamps ...................................41
headlamps .................................40
headlamps, flash to pass ..........45
instrument panel, dimming .....46
interior lamps .....................48–49
LATCH anchors .........................168
Lights, warning and indicator ....10anti-lock brakes (ABS) ..........216
Load limits .................................198
Locks
autolock .....................................96
childproof ................................100
doors ..........................................94
Lubricant specifications ...........311
Lug nuts ....................................255
Lumbar support, seats .............125
M
Message center .....................78–79
english/metric button ...............82
system check button ................81
warning messages .....................84
Mirrors ...................................58–59
automatic dimming rearview
mirror ........................................58
heated ............................32, 35, 60
programmable memory ..........106
side view mirrors (power) .......59
Moon roof ....................................73
Motorcraft parts ........278, 294, 310
N
Navigation system .......................31
O
Octane rating ............................298
Oil (see Engine oil) ..................283
P
Park Assist ................................227
Parking brake ............................217
Parts (see Motorcraft parts) ....310
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Index
321
