2009 Lexus IS F traction control

08_IS F_U_(L/O_0808)
17
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

169
2-4. Using other driving systems
2
When driving
08_IS F_U_(L/O_0808)
Driving assist systems
To help enhance driving safety and performance, the following systems
operate automatically in response to various driving situations. Be aware,
however, that these systems are supplementary and should not be relied
upon too heavily when operating the vehicle.
■ ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface.
■Brake assist
Generates an increased level of braking force after the brake pedal is
depressed, when the system detects a panic stop situation.
■VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning on
slippery road surfaces.
■TRAC (Traction Control)
Maintains drive power and prevents the rear wheels from spinning when
starting the vehicle or accelerating on slippery roads.
■Hill-start assist control
Prevents the vehicle from rolling backwards when starting on an incline or
slippery slope.
■EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to turn
the steering wheel.
■VDIM (Vehicle Dynamics Integrated Management)
Provides integrated control of the ABS, brake assist, TRAC, VSC, hill-start
assist control, and EPS systems.
Maintains vehicle stability when swerving on slippery road surfaces by
controlling the brakes and engine output.
When the “SPORT” side of the F-sport mode total control switch is
pressed, “Sport” mode is activated. (→ P. 1 7 2 )
■PCS (Pre-Collision System) (if equipped)
→ P. 1 76

420
6-1. Specifications
08_IS F_U_(L/O_0808)■

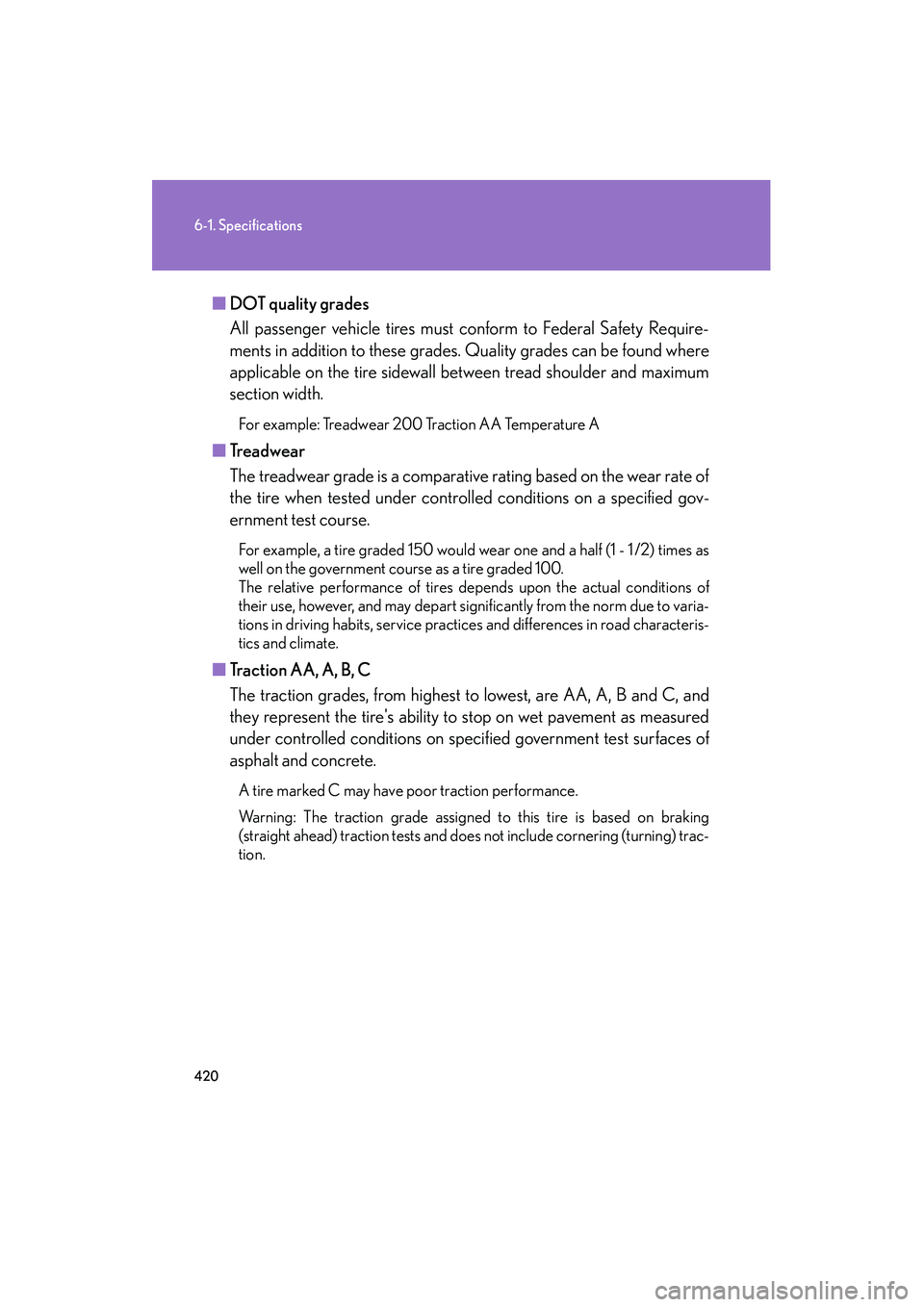

DOT quality grades
All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found where
applicable on the tire sidewall between tread shoulder and maximum
section width.
For example: Treadwear 200 Traction AA Temperature A
■Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified gov-
ernment test course.
For example, a tire graded 150 would wear one and a half (1 - 1 /2) times as
well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of
their use, however, and may depart significantly from the norm due to varia-
tions in driving habits, service practices and differences in road characteris-
tics and climate.
■Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire's ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of
asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning) trac-
tion.

450
Alphabetical index
08_IS F_U_(L/O_0808)
Tachometer....................................................131
Tail lights
Switch ........................................................ 142
Talk switch*
Telephone switch*
Theft deterrent system
Alarm ...........................................................73
Engine immobilizer system ............... 71
Theft prevention labels .......................... 75
Tire inflation pressure ............................311
Tire information Glossary................................................... 421
Size ............................................................ 418
Tire identification number .............. 418
Uniform tire quality grading ...........419
Tires
Chains ...................................................... 184
Checking .............................................. 300
If you have a flat tire.......................... 379
Inflation pressure....................................311
Inflation pressure sensor............... 300
Information..............................................416
Replacing............................................... 379
Rotating tires ........................................305
Size ...............................................................411
Snow tires ............................................... 184
Tools ........................................................... 379
Total load capacity ................................ 183
Towing Dinghy towing .......................................187
Emergency towing ........................... 345
Trailer towing........................................ 186 TRAC ..........................................................169
Traction control.......................................169
Transmission shift switches....... 122, 124
Trip meter ................................................... 131
Trunk
Extending a space .............................249
Opener ........................................................41
Trunk light
Trunk light ................................................. 42
Wattage ................................................... 412
Turn signal lights Replacing light bulbs ....................... 338
Switch........................................................ 128
Wattage ................................................... 412
Vanity lights Vanity lights.......................................... 238
Wattage ................................................... 412
Vanity mirrors ........................................ 238
VDIM...........................................................169
Vehicle dynamics integrated management .........................................169
Vehicle identification number ......... 403
Vehicle stability control .......................169
VSC .............................................................169T
V

451
Alphabetical index
08_IS F_U_(L/O_0808)
Warning buzzersBrake system ....................................... 355
Open door ..........................................358
Seat belt reminder ............................358
Warning lights Anti-lock brake system .................. 356
Automatic transmission fluid temperature warning light.........358
Brake assist system .......................... 356
Brake system ....................................... 355
Charging system ............................... 356
Electric power steering warning light ..................................... 356
Low fuel level.......................................358
Malfunction indicator lamp .......... 356
Master warning light ........................358
Open door ...........................................358
Pre-collision system ......................... 356
Pretensioners ...................................... 356
Seat belt reminder light ..................358
SRS airbags .......................................... 356
Tire pressure warning
light........................................................358 Warning messages
Dynamic radar
cruise control........................367, 370
Engine oil level ....................................370
Engine oil maintenance ..................370
Engine oil pressure .......................... 366
Engine oil temperature .................. 366
Hill-start assist control .................... 369
Hood ........................................................370
Intuitive parking assist ..........367, 370
Moon roof .............................................370
Open door ............................................370
Parking brake ......................................370
Pre-collision system..............367, 370
Smart access system with push-button start ............................ 375
Steering lock......................................... 367
Tire pressure warning system....................367, 370
Traction control ................................. 369
Trunk ........................................................370
Vehicle stability control ................. 369
Washer fluid .........................................370
Washer
Checking ...............................................299
Preparing and checking before winter ..................................... 184
Switch........................................................ 146
Washing and waxing ...........................268W
*: Refer to the “Navigation System Owner’s Manual”
