2009 Lexus IS F heating

113
2-1. Driving procedures
2
When driving
08_IS F_U_(L/O_0808)
CAUTION
■Exhaust gases
Exhaust gases include harmful carbon monoxide (CO) that is colorless and odor-
less. Inhaling exhaust gases may lead to death or a serious health hazard.
●If the vehicle is in a poorly ventilated area, stop the engine. In a closed area, such
as a garage, exhaust gases may collect and enter the vehicle. This may lead to
death or a serious health hazard.
●The exhaust should be checked occasionally. If there is a hole or crack caused by
corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehi-
cle inspected and repaired by your Lexus dealer. Failure to do so may allow
exhaust gases to enter the vehicle, resulting in death or a serious health hazard.
■When taking a nap in the vehicle
Always turn the engine off. Otherwise, you may accidentally move the shift lever or
depress the accelerator pedal, which could cause an accident or fire due to engine
overheating. Additionally, if the vehicle is parked in a poorly ventilated area, exhaust
gases may collect and enter the vehicle, leading to death or a serious health hazard.
■When braking the vehicle
●When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and may cause one side of
the vehicle to brake differently than the other side. Also the parking brake may
not securely hold the vehicle.
●If the power brake assist function does not operate, do not follow other vehicles
closely and avoid downhills or sharp turns that require braking.
In this case, braking is still possible, but it will require more force on the pedal than
usual. Braking distance may also increase.
●Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted brakes.
●The brake system consists of 2 individual hydraulic systems: if one of the systems
fails, the other will still operate. In this case, the brake pedal should be depressed
more firmly than usual and braking distance becomes longer.
Do not drive your vehicle with only a single brake system. Have your brakes fixed
immediately.

129
2-1. Driving procedures
2
When driving
08_IS F_U_(L/O_0808)
Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
Sets the parking brake*
(Depressing the pedal again
releases the parking brake.)
*: Fully depress the parkingbrake pedal with your left
foot while depressing the
brake pedal with your right
foot.
CANADAU.S.A.

134
2-2. Instrument cluster
08_IS F_U_(L/O_0808)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The following may indicate that the engine is overheating. Immediately stop the
vehicle in a safe place. (
→P. 3 9 7 )
• The engine coolant temperature gauge is in the red zone (H)
• The display on the engine oil temperature gauge flashes
■When driving the vehicle
If the display on the voltage gauge starts to flash while the engine is running, it may
indicate that there is a malfunction in the vehicle’s charging system. Have your vehi-
cle inspected by your Lexus dealer.

173
2-4. Using other driving systems
2
When driving
08_IS F_U_(L/O_0808)
■Sounds and vibrations caused by the ABS, brake assist, VSC, TRAC and hill-start
assist control systems
●A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate that
a malfunction has occurred in any of these systems.
●Any of the following conditions may occur when the above systems are operat-
ing. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS is activated.
• The brake pedal may move down slightly after the ABS is activated.
■LSD function
The LSD function is part of TRAC control. It maintains drive power by applying the
brakes to wheels that spin when accelerating during a turn, and operates even
when TRAC or TRAC/VSC operation is turned off. However, it will not operate
when the rear brakes are at a high temperature.
■Hill-start assist control is operational when
●The shift lever is in the D or M position.
●The brake pedal is not depressed.
■EPS operation sound
When the steering wheel operates, a motor sound (whirring sound) may be heard.
This does not indicate a malfunction.
■Reduced effectiveness of EPS
The effectiveness of EPS is reduced to prevent the system from overheating when
there is frequent steering input over an extended period of time. The steering wheel
may feel heavy as a result. Should this occur, refrain from excessive steering input or
stop the vehicle and turn the engine OFF. The system should return to normal within
10 minutes.
■Automatic deactivation of “Sport” mode
When the “ENGINE START STOP” switch is turned OFF after driving in “Sport”
mode, the mode is automatically deactivated.

247
3-5. Other interior features
3
Interior features
08_IS F_U_(L/O_0808)
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp objects
(needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the switches off when the engine is not running.

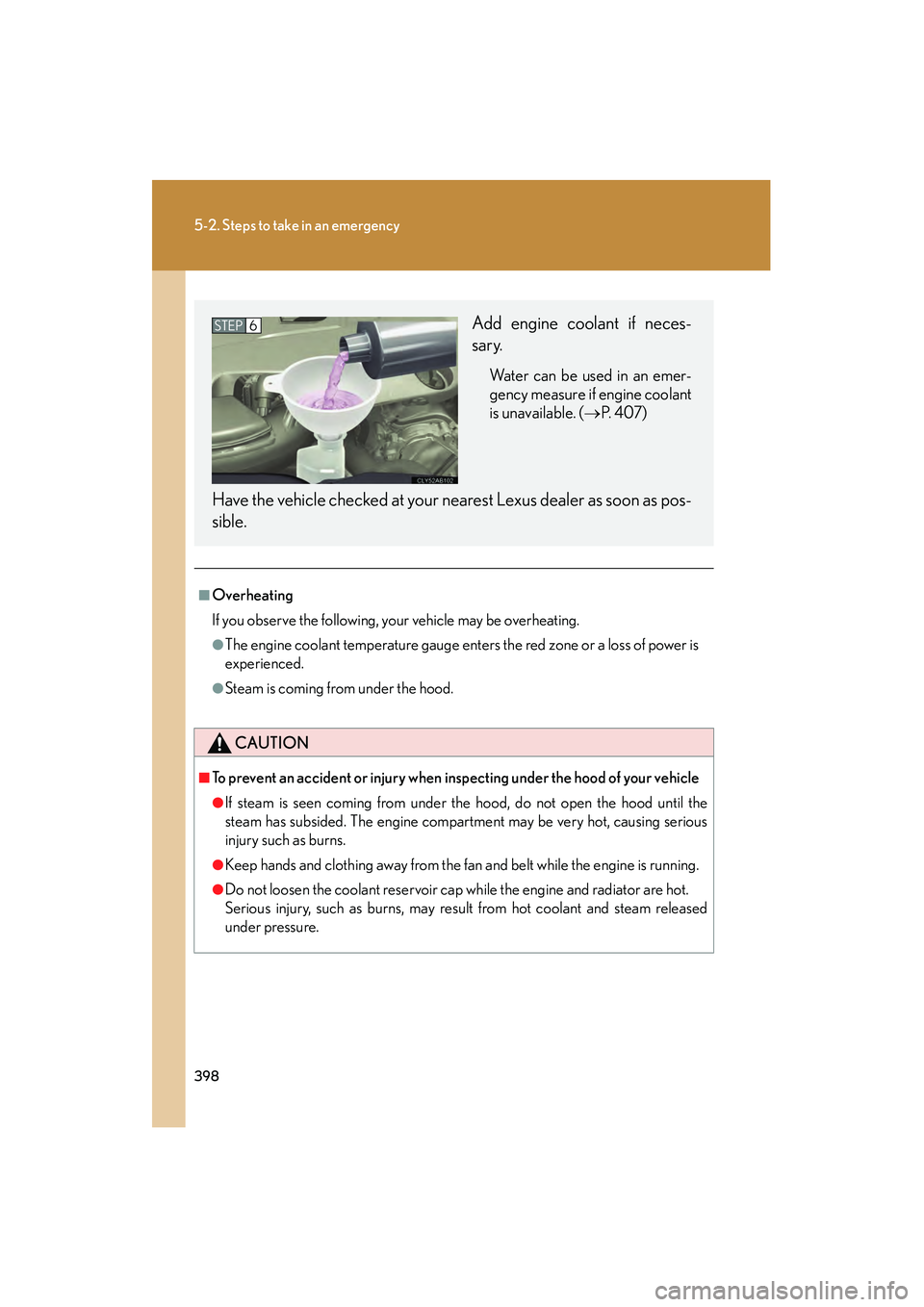

398
5-2. Steps to take in an emergency
08_IS F_U_(L/O_0808)
■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injury such as burns.
●Keep hands and clothing away from the fan and belt while the engine is running.
●Do not loosen the coolant reservoir cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency measure if engine coolant
is unavailable. (→P. 4 0 7 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6

444
Alphabetical index
08_IS F_U_(L/O_0808)
Child-protectors ......................................38
Cigarette lighter.................................... 244
CleaningExterior ...................................................268
Interior ....................................................... 271
Seat belts.................................................272
Clock .........................................................239
Coat hooks ............................................... 251
Compass .................................................. 262
Condenser .............................................. 294
Console box ........................................... 232
Cooling system Engine overheating .......................... 397
Cornering assist sensors .................... 163
Cruise control Cruise control ...................................... 150
Dynamic radar crui se control .......153
Cup holders ............................................ 234
Curtain shield airbags............................ 78
Customizable features .......................428 Daytime running light system ............143
Defogger
Rear window .........................................198
Side mirrors............................................198
Dimension ............................................... 402
Dinghy towing..........................................187
Display Dynamic radar crui se control....... 153
Satellite switch mode....................... 240
Trip information.................................... 139
Warning message ............................ 365
Do-it-yourself maintenance .............280
Door courtesy lights Door courtesy lights ......................... 227
Wattage ................................................... 412
Door pockets ......................................... 236
Doors Door glasses............................................63
Door lock ................................ 24, 35, 37
Side mirrors............................................... 61
Driver's seat belt reminder light .....358
Driving Correct posture..................................... 76
Procedures.............................................108
Driving position memory...................... 45D

445
Alphabetical index
08_IS F_U_(L/O_0808)
Electric power steering ....................... 169
Electronic keyIf the electronic key does not operate properly .............................. 391
Emergency flashers Switch ...................................................... 344
Emergency, in case of If the engine will not start ...............388
If the shift lever cannot be shifted from P ................................... 389
If the vehicle has discharged battery.................................................. 394
If the warning buzzer sounds...... 355
If the warning light turns on .......... 355
If the warning message is displayed ............................................ 365
If you have a flat tire ........................ 379
If you lose your keys ........................390
If you think something is wrong..................................................... 351
If the electronic key does not operate properly .............................. 391
If your vehicle becomes stuck ....400
If your vehicle needs to be towed ................................................... 345
If your vehicle overheats................ 397 Engine
ACCESSORY mode......................... 116
Compartment..................................... 286
Engine switch .......................................... 116
Hood ........................................................283
How to start the engine ..................... 116
Identification number ...................... 403
If the engine will not start............... 388
Ignition switch ......................................... 116
Overheating .........................................397
Engine compartment cover ............. 287
Engine coolant Capacity .................................................407
Checking ............................................... 292
Preparing and checking before winter ..................................... 184
Engine coolant temperature gauge......................................................... 131
Engine immobilizer system....................71
Engine oil Capacity ................................................ 406
Checking .............................................. 288
Preparing and checking before winter ..................................... 184
Engine oil maintenance data............290
EPS .............................................................. 169
Event data recorder ............................353E
